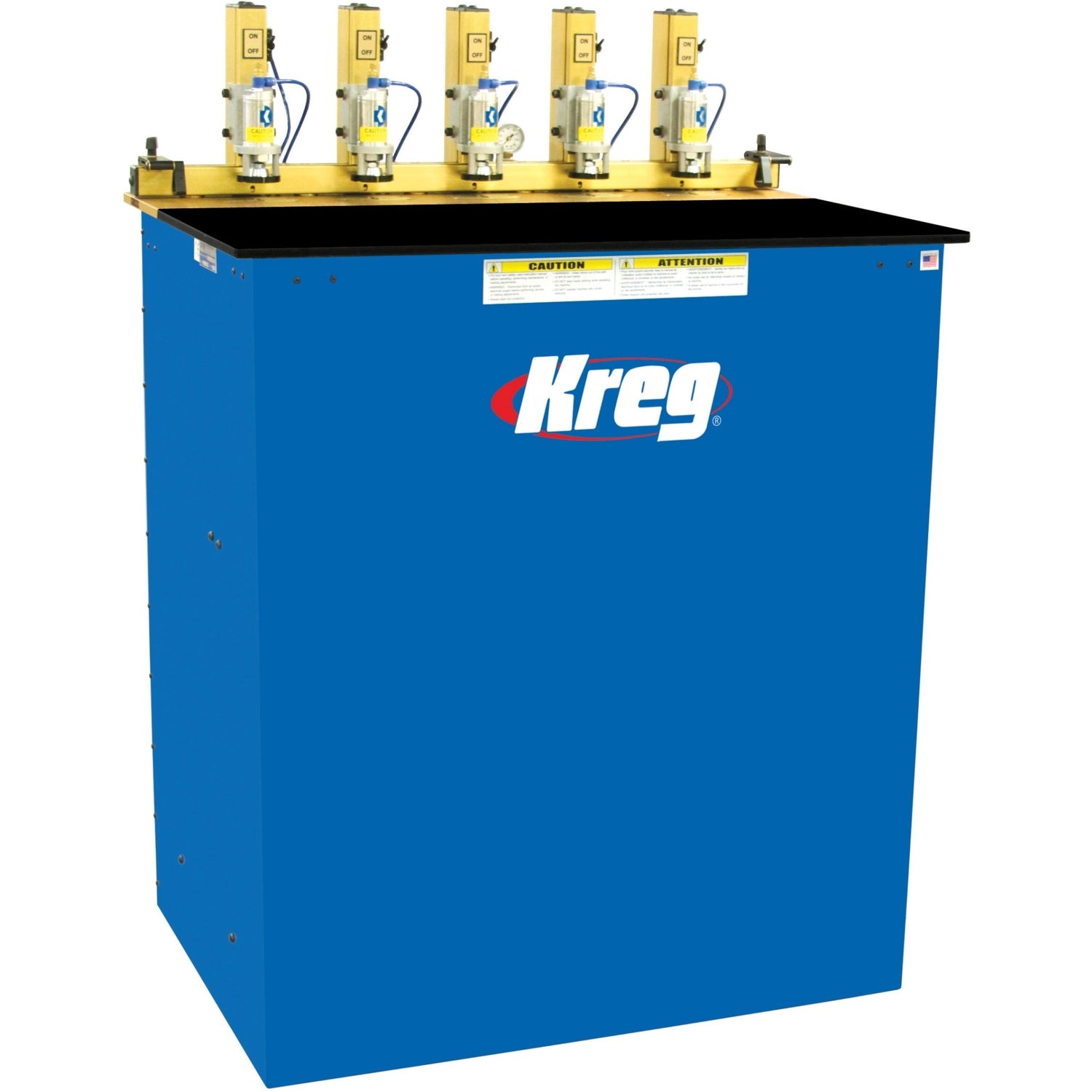

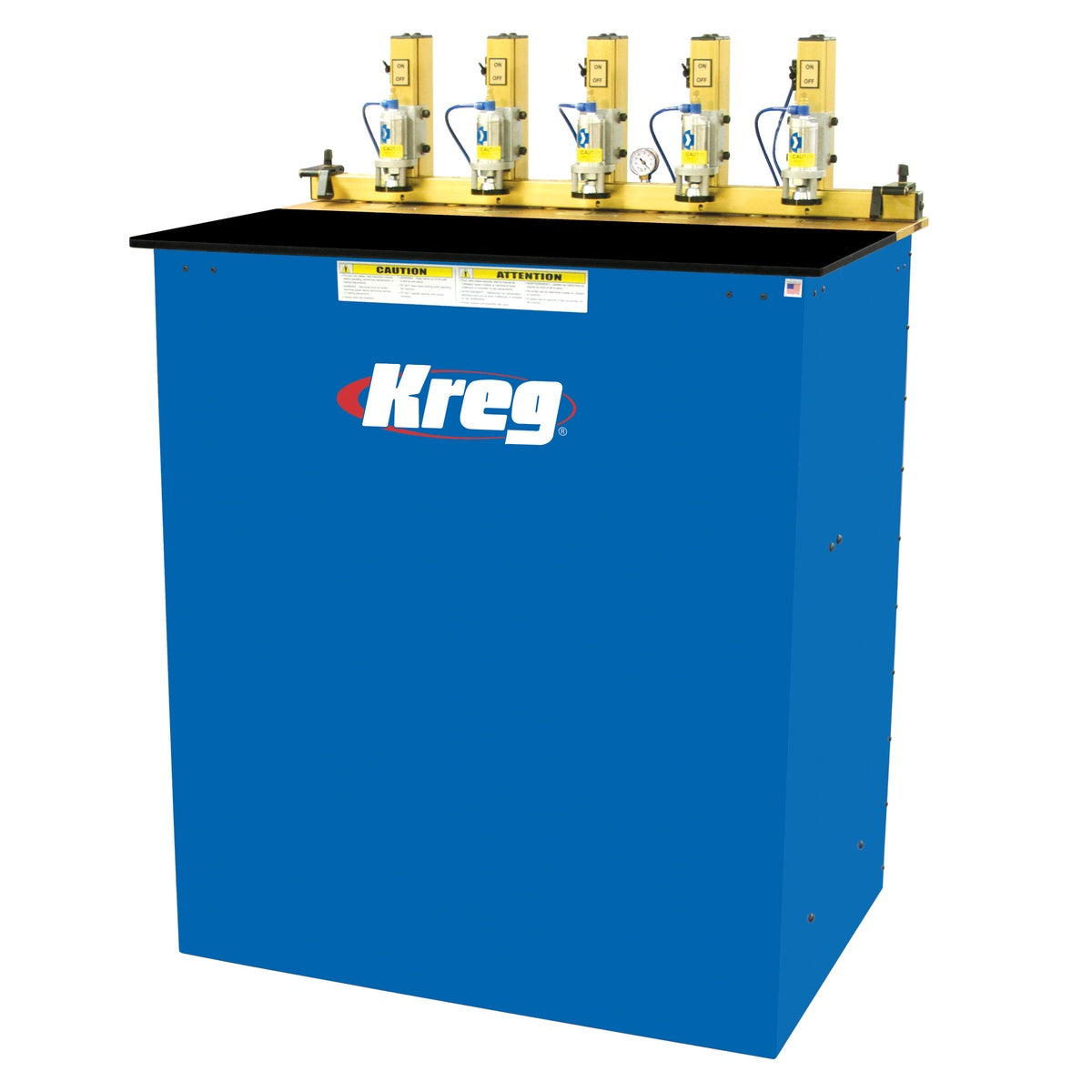

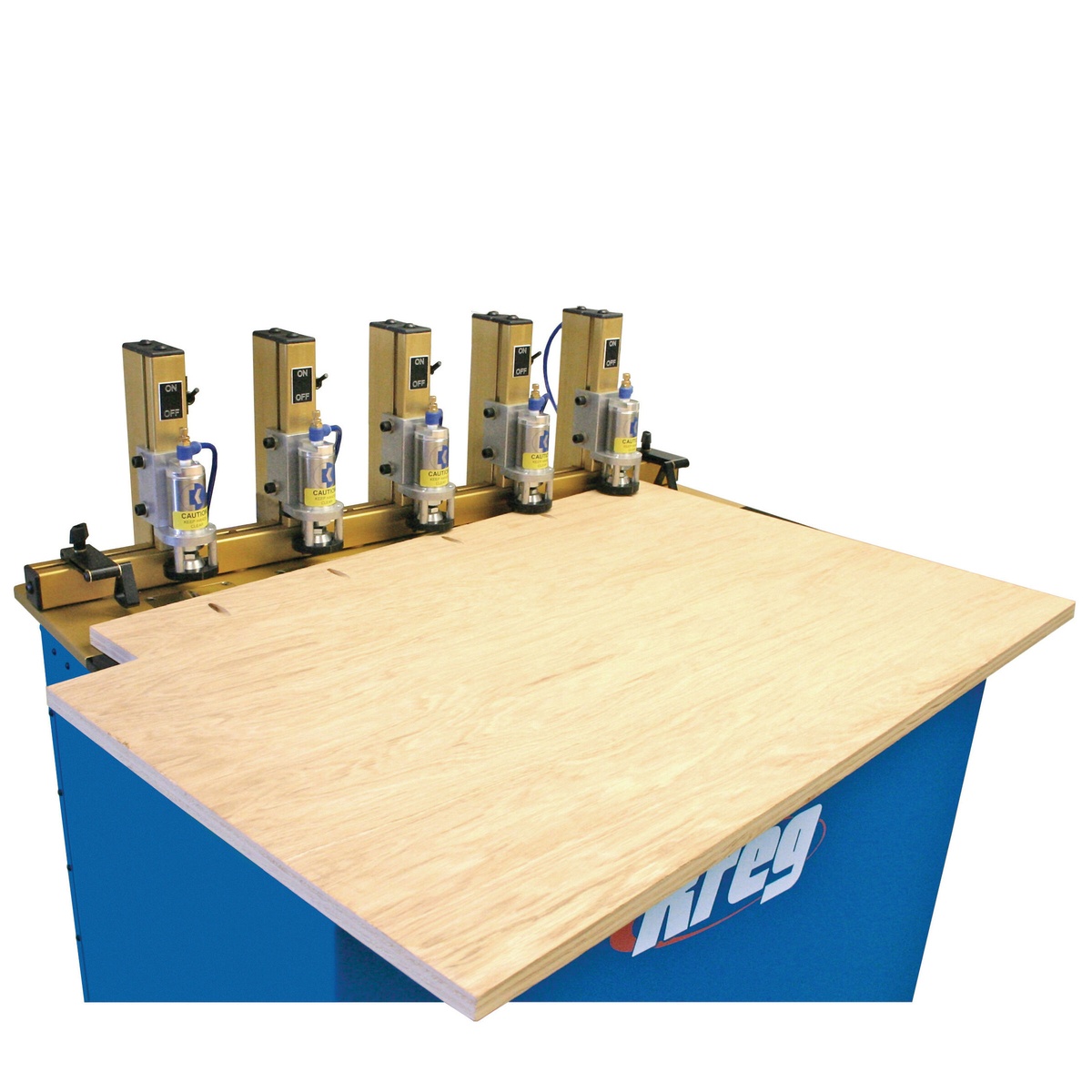

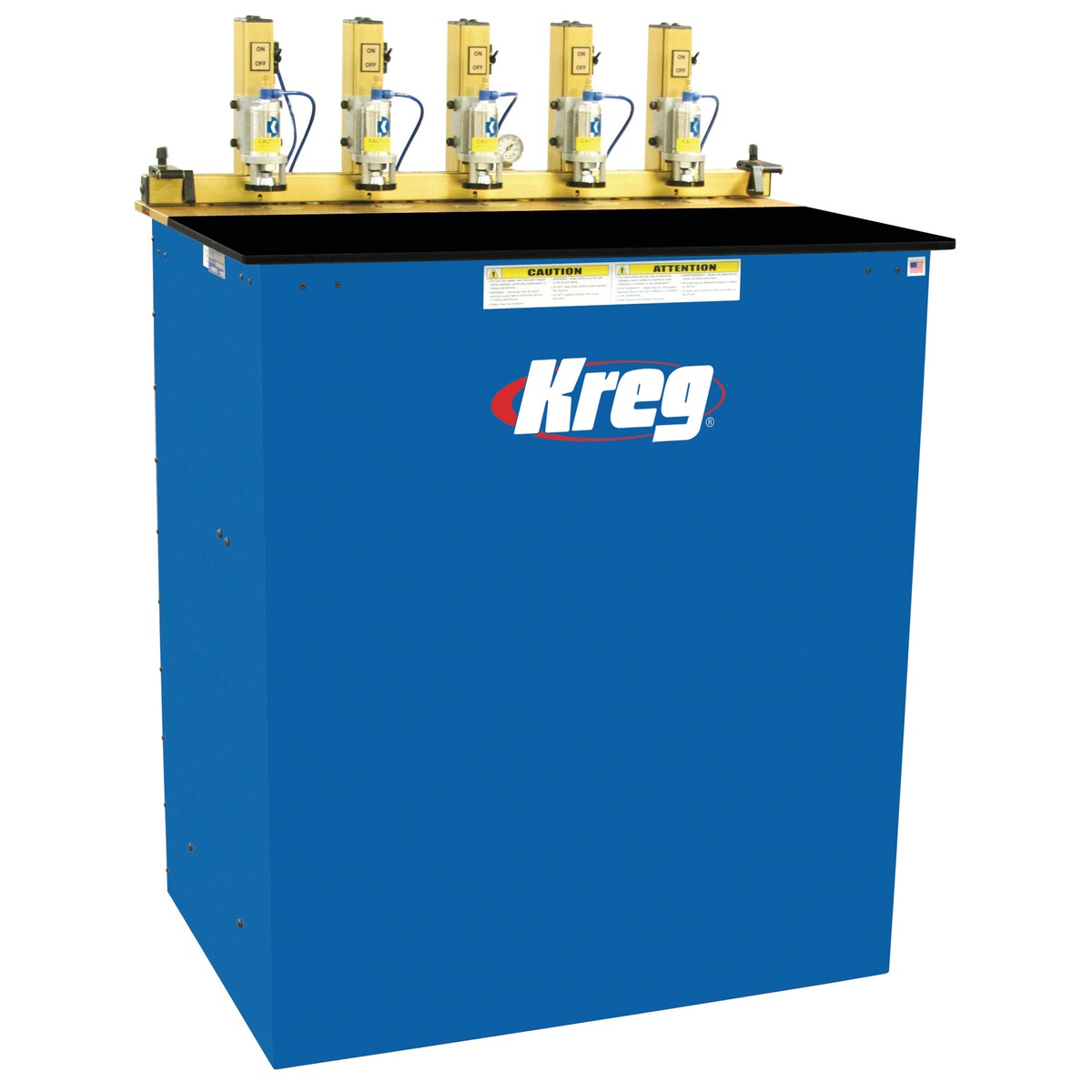

The Kreg DK5100 Panel-Boring Pocket Hole-Machine is a production pocket hole machine built for shops that need to drill multiple pocket holes across panels quickly and consistently. This is a panel-boring pocket hole machine designed for repetitive pocket hole drilling in cabinet parts, shelving, stairs, and door or window extensions. Model Number: DK5100. If a single-station setup is slowing down your workflow, this machine is meant to remove that bottleneck.

The big reason this machine matters is simple: it can drill up to five pocket holes in one machine cycle. Kreg spaces the five spindles 6 inches on center, which lines up well with many panel applications. In practical shop terms, that means fewer repositioning steps, faster part throughput, and more uniform results when you are running repeat jobs instead of one-off work.

Kreg equips the DK5100 with five industrial-grade pneumatic motors, five individually actuated clamping cylinders, and five durable drill spindles. That combination is aimed squarely at commercial woodworking and cabinet production where speed alone is not enough. You also need the machine to hold the work securely, drill cleanly, and do it the same way over and over without slowing the operator down.

One of the smarter details here is the individual on/off control for each spindle. Each spindle has its own switch located on the clamping tower, so you can run all five or shut down a few to match the part in front of you. That makes the DK5100 more flexible than a fixed-output setup because it can handle a range of repetitive production tasks without forcing the same hole pattern every time.

The operating cycle is built for speed. Kreg states that a simple tap of the foot pedal creates five uniform pocket holes in less than two seconds. For a busy cabinet shop, that translates directly into labor savings and smoother flow at the bench. Instead of tying up time with repeated indexing and clamping on a smaller machine, the operator can load, position, actuate, and move on.

For long-term shop use, Kreg adds hardened-steel drill guides to help maximize drill bit life. That is not a throwaway spec. On a machine built for repeated drilling, guide wear and bit life affect hole quality, downtime, and consumable cost. The DK5100 is also fitted with dust collection chutes for efficient chip removal, plus a pre-filter and automatic lubricator to support the pneumatic system in daily operation.

Material handling is also set up with production in mind. Swing stops help with material positioning, which is a real benefit when you are feeding similar parts all day and need repeatable placement without measuring each one from scratch. Combined with the five clamping cylinders, that helps reduce variation from part to part and keeps the operator focused on throughput instead of constant setup correction.

This Kreg pocket hole machine is best suited to professional cabinet shops, millwork operations, and production woodworking environments with a specific repetitive application. If your volume is high enough that pocket hole drilling has become the slow step in the process, the DK5100 makes sense. If you are only doing occasional joinery or small-batch work, it is more machine than you need. But for dedicated panel processing and repeated fastening prep, this is exactly the kind of equipment that earns its floor space.

Kreg DK5100 Panel-Boring Pocket Hole-Machine for Real Production Work

This is the kind of machine you buy when pocket hole drilling is no longer a task, it is a production step that needs to move faster.

• Who it's for: Cabinet shops and woodworking businesses running repeat panel work where throughput and consistency directly affect profit.
• Why it stands out: Five pneumatic motors, five clamping cylinders, individual spindle control, and sub-two-second multi-hole cycles make it a true production pocket hole machine, not a dressed-up bench tool.
• Worth knowing: This is purpose-built equipment for repetitive applications. If your work is mostly custom one-offs or low volume, you probably will not tap what this machine is built to do.

• How many pocket holes can the DK5100 drill at one time? It can drill up to five pocket holes in a single machine cycle.
• Can you turn off some of the drilling stations? Yes. Each of the five spindles has an individual on and off switch, so you can run only the stations needed for the part.
• What type of power does this machine use? The DK5100 uses an entirely pneumatic design with industrial-grade pneumatic motors.
• What kind of work is this machine intended for? It is designed for repetitive production applications such as cabinet sides, shelving, stairs, and door or window extensions.
