Kreg Tool 4-ft. x 8-ft. Pneumatic Face-Framing Table with Four Clamping Cylinders (KFT4X8)
Kreg Tool 4-ft. x 8-ft. Pneumatic Face-Framing Table with Four Clamping Cylinders (KFT4X8)
In Stock - Ships from Manufacturer
Product Details
Product Details
Key Features
Overview
The Kreg KFT4X8 4' x 8' Face-Framing Table is a production-style assembly table for cabinet and woodworking shops that want faster, more consistent face-frame assembly. This is a face-framing table designed for fast, accurate face-frame assembly. Model Number KFT4X8. If you are building frame after frame and need them pulled together flush and square without fighting a flat bench setup, this is the kind of station that earns its space.

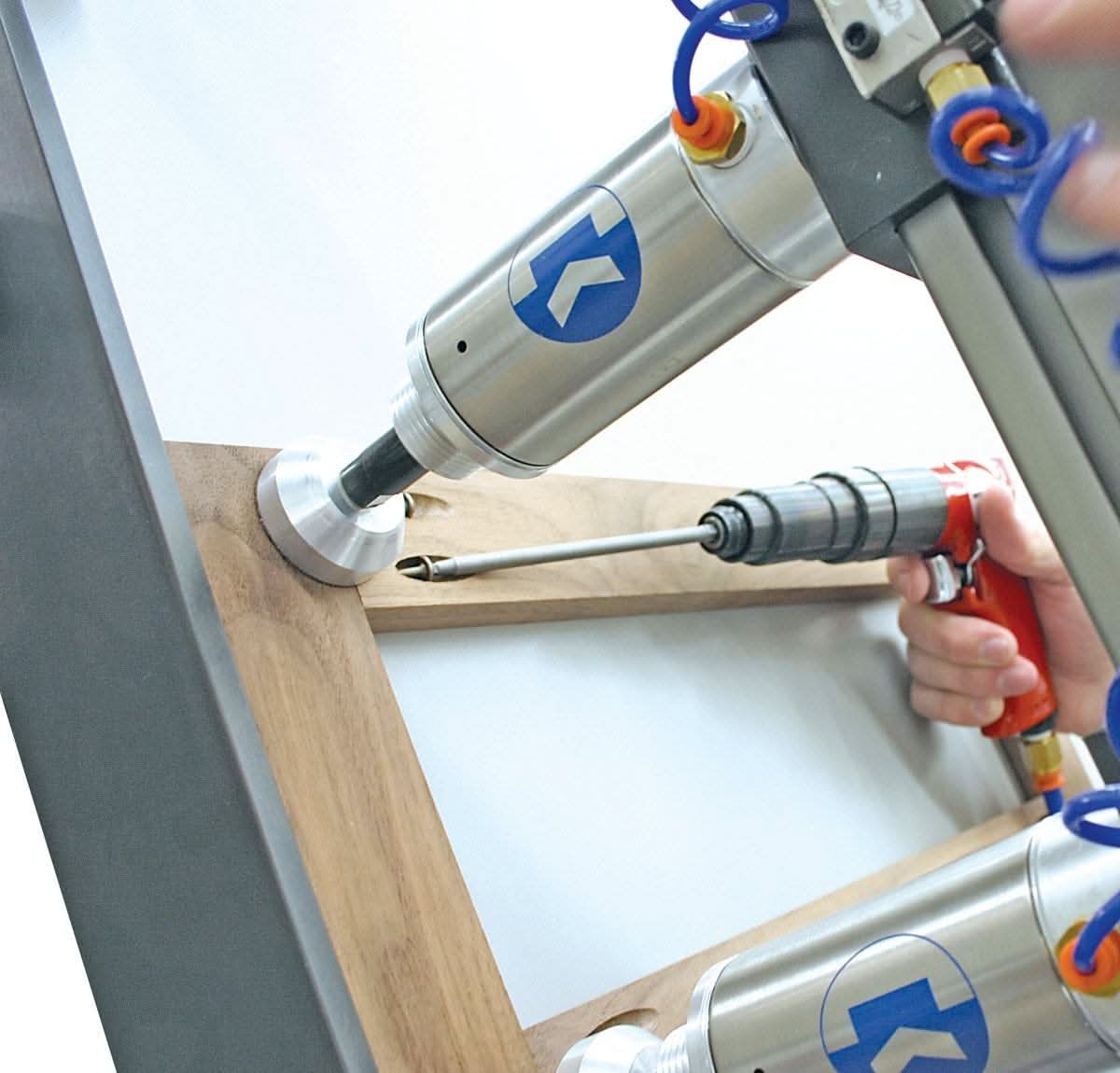

The big selling point here is controlled clamping at the joint line. Instead of relying on a basic bench setup and separate clamps scattered across the workpiece, the table uses four adjustable clamping cylinders that can be positioned for different frame sizes. Kreg calls out strong joint-line pressure, and that matters because flush joints mean less sanding and less rework before finishing. In a cabinet shop, that translates directly into time saved.

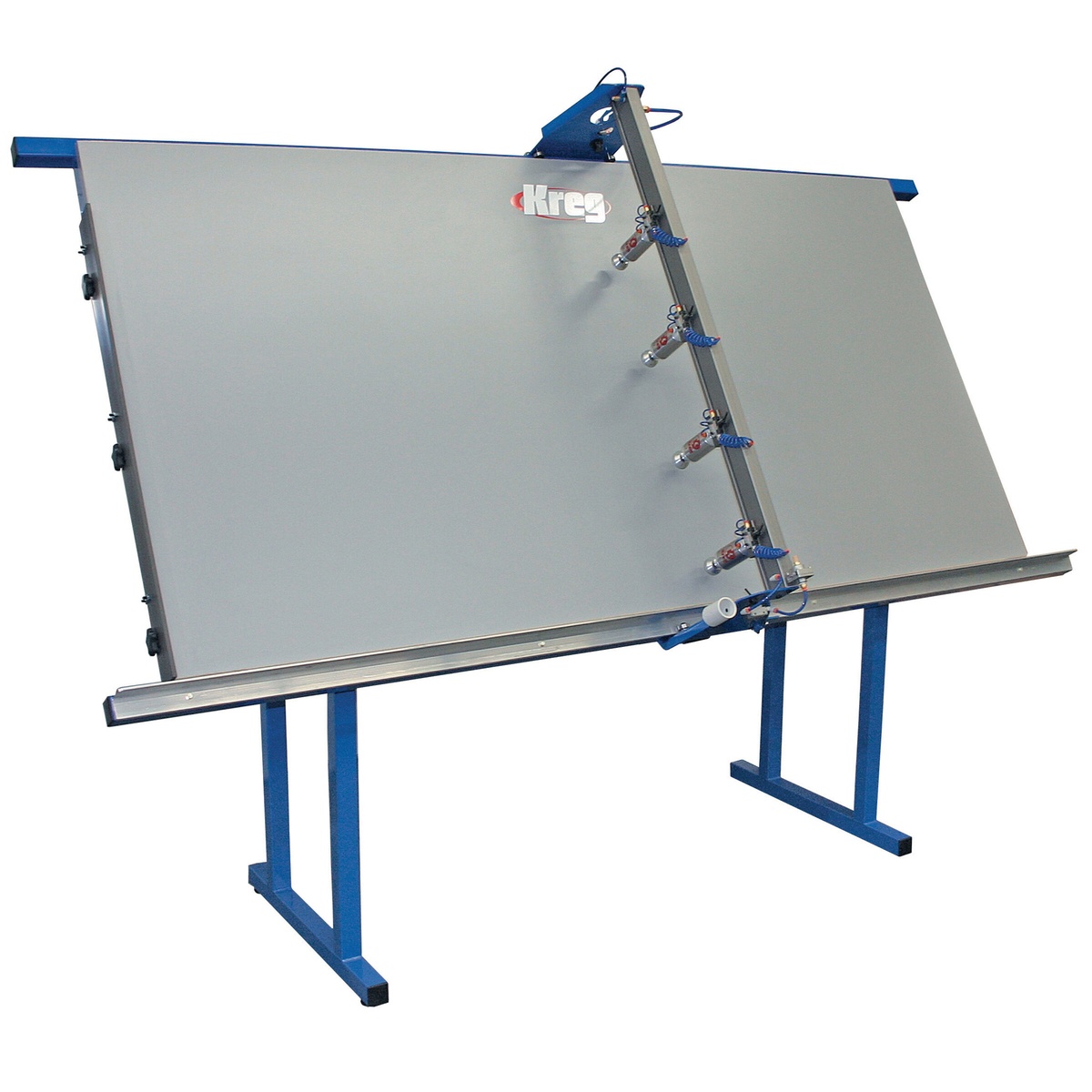

The table stands at a 30-degree angle, which is a practical design choice, not a gimmick. It takes up less floor space than a flat table and lets the operator work in a more upright position. If your crew is assembling frames throughout the day, that stand-up working angle is easier on the back and makes repetitive production work more manageable.

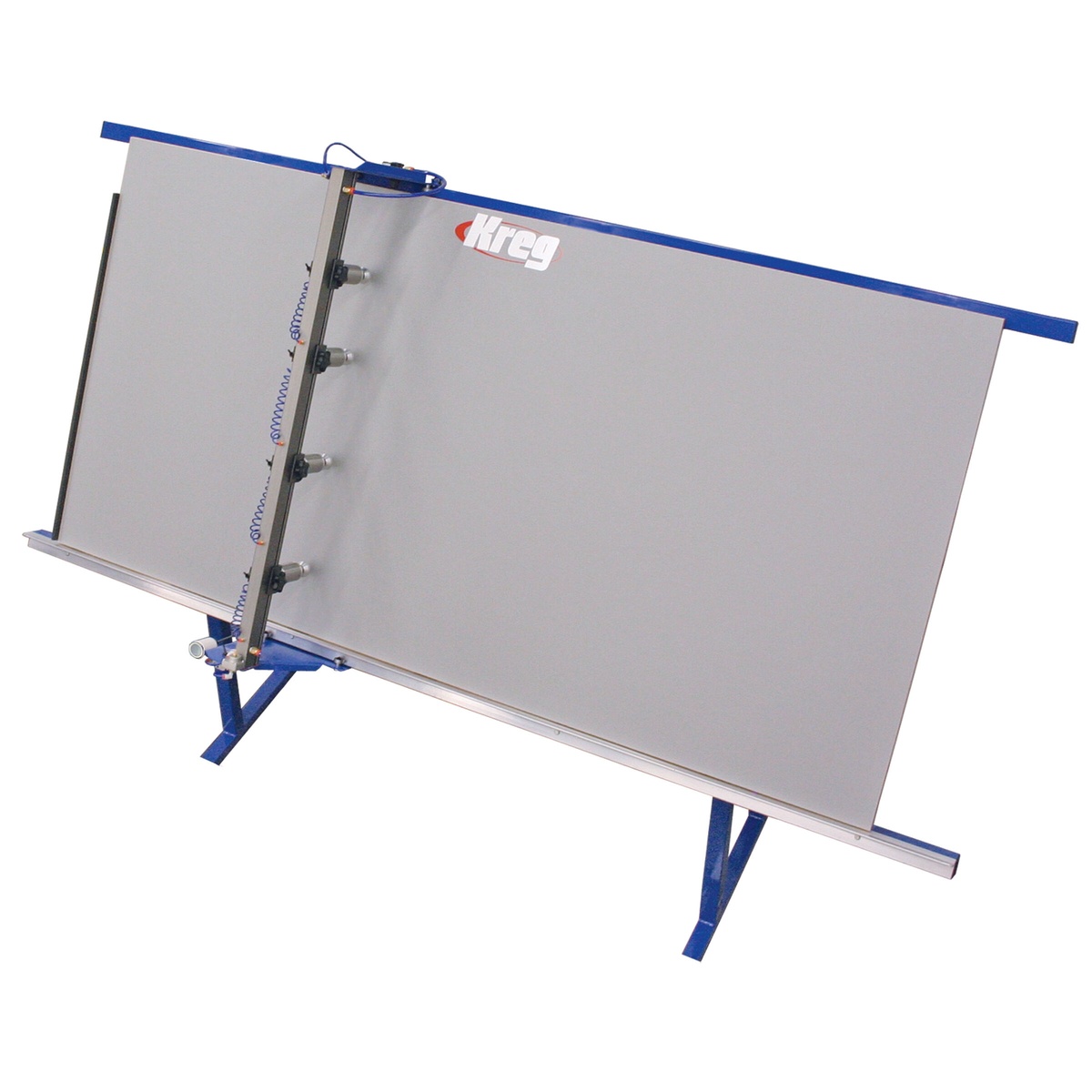

Kreg also built in flexibility for longer work. The retractable aluminum squaring fence on the left side helps you start a frame square, then retracts when you need to accommodate frames longer than 8 feet. That is a useful detail for shops that do not build the exact same cabinet sizes all day. You get registration when you need it and clearance when you do not.
On the construction side, the source data points to a 1-1/8 inch melamine surface on a one-piece tubular steel frame. That combination makes sense for this kind of machine. The melamine top gives you a durable, smooth work surface, while the steel frame provides the rigidity needed when the cylinders are applying pressure across the assembly. Kreg also includes an E-Z guide transfer arm, and the clamping arm rides on roller bearings with cylinders that glide along the arm for positioning.

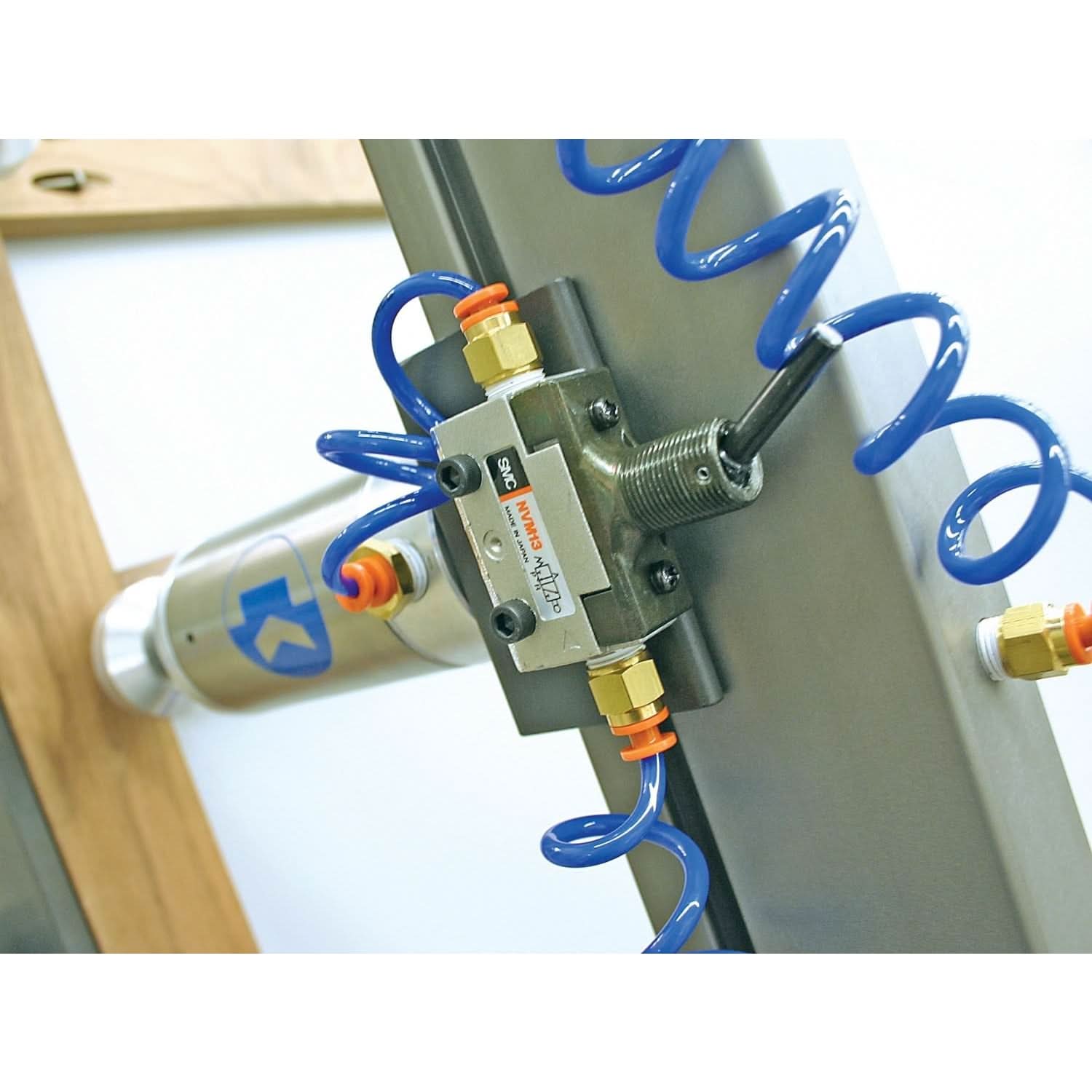

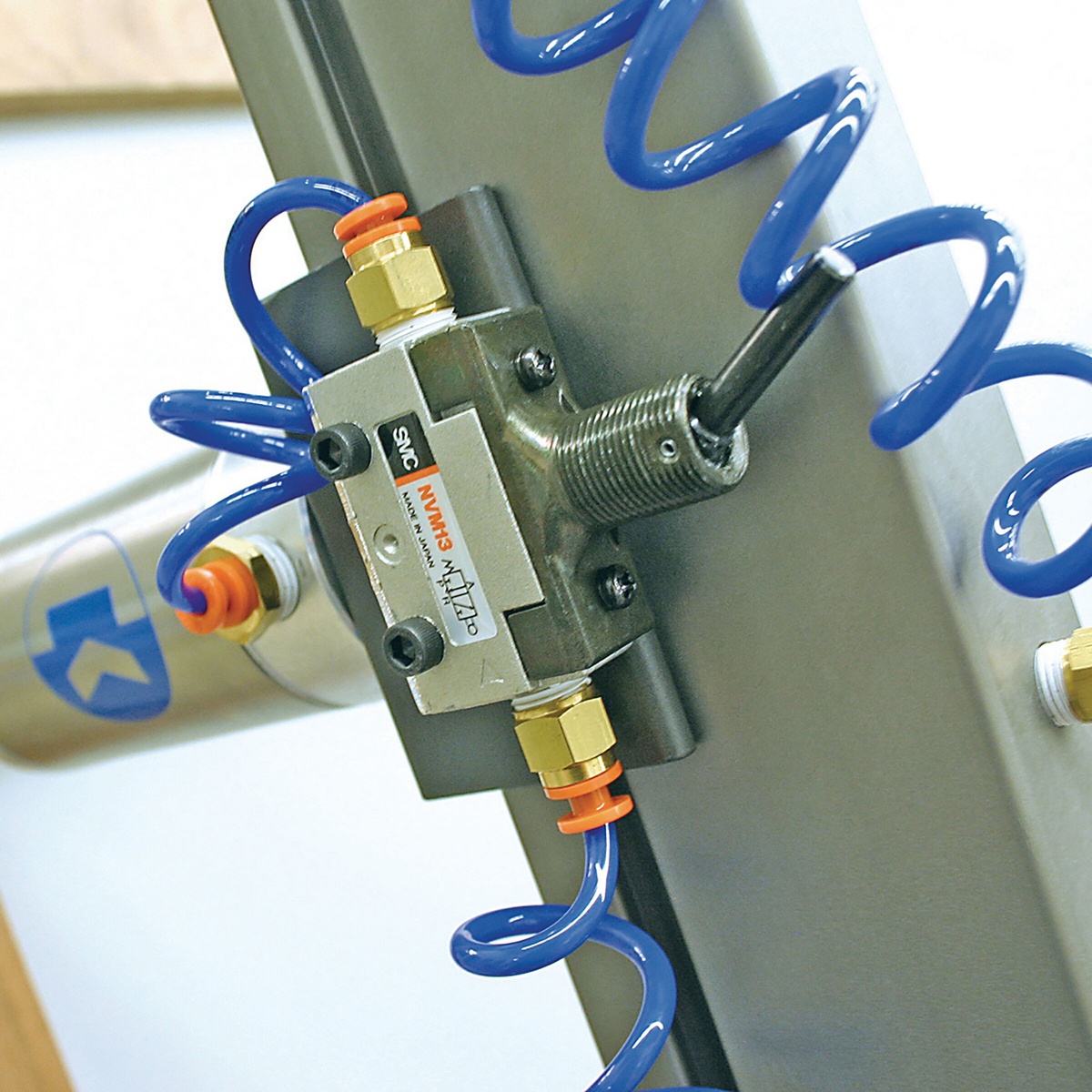

Air control is set up for production use. Each cylinder can be independently controlled, or all four can be activated at once with the master switch at the bottom of the clamping arm. That gives you a more customized setup depending on frame size and workflow. The web data also specifies a 90 PSI minimum for the clamping cylinders, so this setup is best suited for a shop already running compressed air as part of normal production.
This face-frame assembly table is best for cabinet makers, millwork shops, and serious woodworking operations doing repeated frame assembly where speed and consistency matter. If you are a hobbyist building occasional projects, it is probably more machine than you need. If you are producing face frames regularly and want cleaner alignment, less sanding, and a workflow that is easier on the body, the Kreg KFT4X8 is aimed right at that job.
Keep Face Frames Flush From the Start
This setup is built around making face-frame assembly faster without giving up alignment. The angled table and guided clamping layout help keep parts supported and easier to work through during repeated production runs.
- 4 foot x 8 foot working size handles common cabinet face-frame work
- 30-degree table angle saves floor space and reduces hunching over a flat bench
Dial In Pressure Where the Joint Needs It
The clamping system is what separates this from a basic assembly bench. Independent cylinder control gives you the ability to match pressure and placement to the frame instead of forcing every job into one clamp pattern.
- Four high-quality clamping cylinders for strong pressure at the joint line
- 90 PSI minimum air requirement for proper pneumatic operation
Key Specifications
 Table Size |
4 ft x 8 ft |
|---|---|
 Surface Material |
Melamine |
 Surface Thickness |
1-1/8 in |
|
Frame Construction |
One-piece tubular steel frame |
|
Clamping Cylinders |
4 |
|
Minimum Air Pressure |
90 PSI |
|
Table Angle |
30° |
|
Squaring Fence |
Retractable aluminum fence |
Built For
Pro Tip
When you are assembling frames longer than 8 feet, start with the squaring fence up to establish alignment, then retract it as the frame grows. That gives you the benefit of a square starting reference without losing clearance on the longer run.
Tool Nut's Take
Why the Kreg KFT4X8 4' x 8' Face-Framing Table Makes Sense in a Real Shop
This is the kind of machine that pays off when face-frame assembly is a regular part of your week, not a once-in-a-while task.
- Who it's for: Cabinet makers, millwork shops, and serious woodworking operations that need repeatable face-frame assembly with less cleanup.
- Why it stands out: The combination of four adjustable clamping cylinders, a stand-up 30-degree layout, and a retractable squaring fence is built around actual shop efficiency, not just a big work surface.
- Worth knowing: This is a pneumatic production table, so it is best for shops already set up with compressed air and a steady flow of frame work to justify it.
Common Questions
- What is this product designed to do? It is designed for fast, accurate face-frame assembly in cabinet and woodworking shop settings.
- How many clamping cylinders does it use? The Kreg KFT4X8 uses four adjustable clamping cylinders.
- What air pressure does it require? The source data lists a 90 PSI minimum for the clamping cylinders.
- Can it handle frames longer than 8 feet? Yes. The retractable squaring fence is designed to move out of the way for oversize frames.
