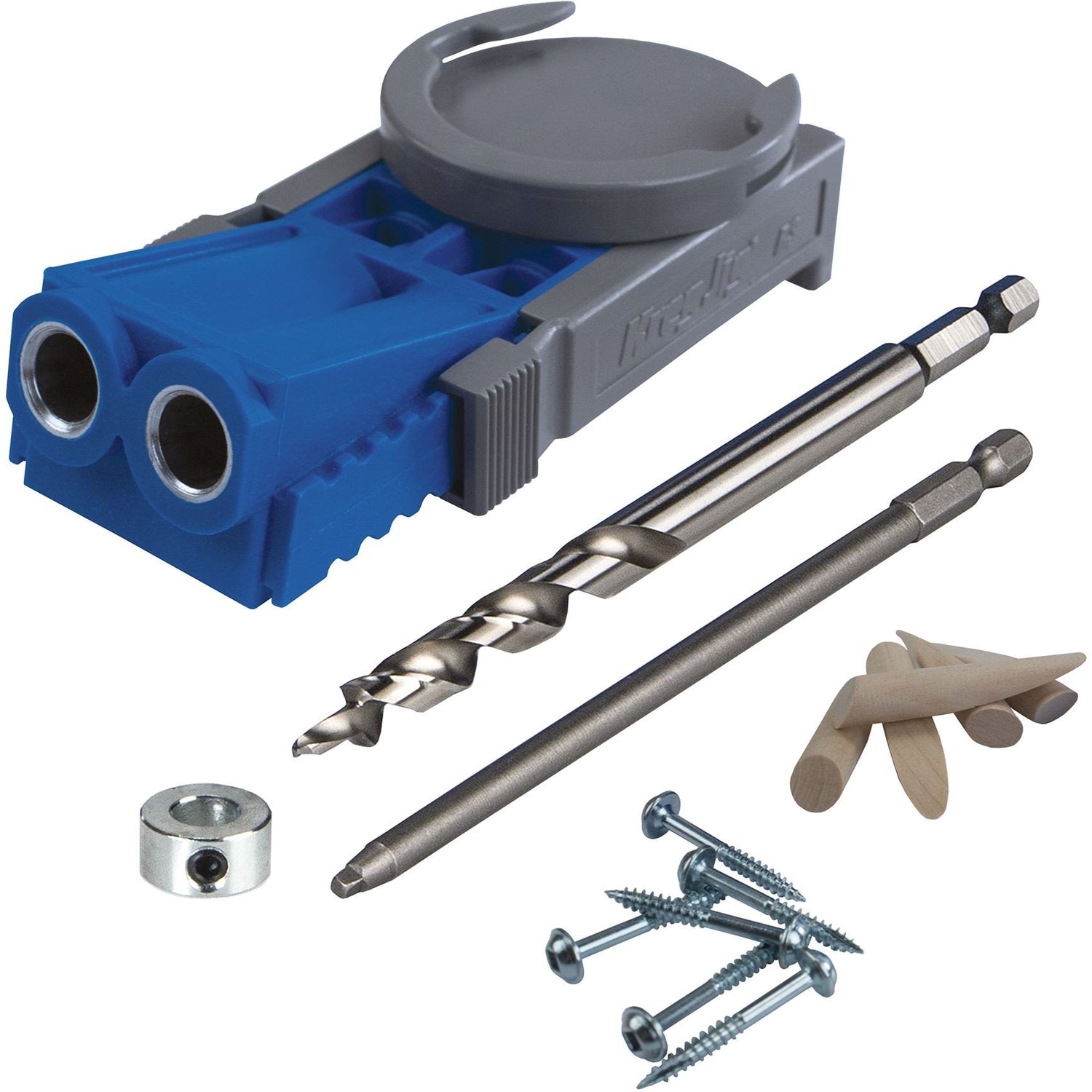

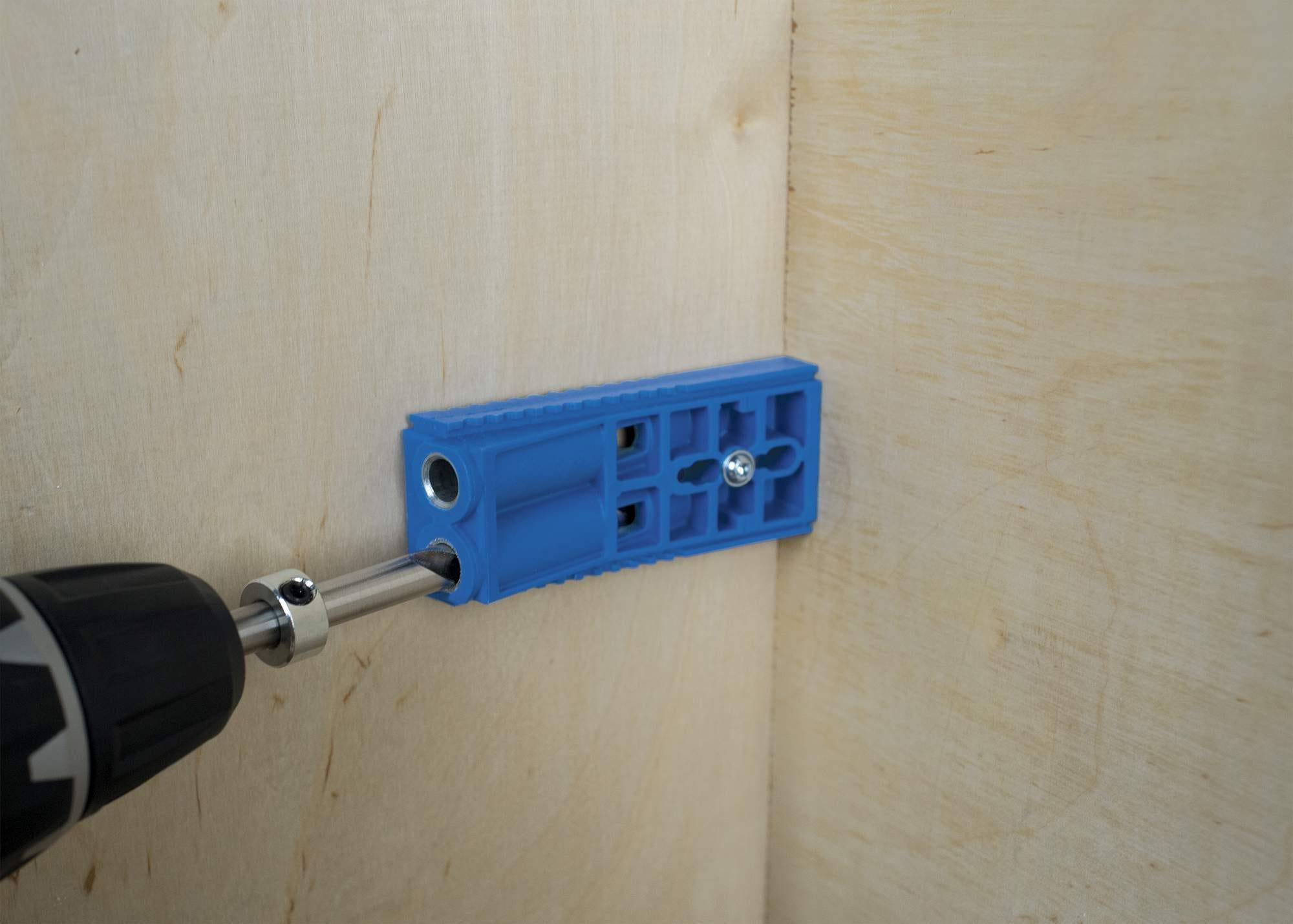

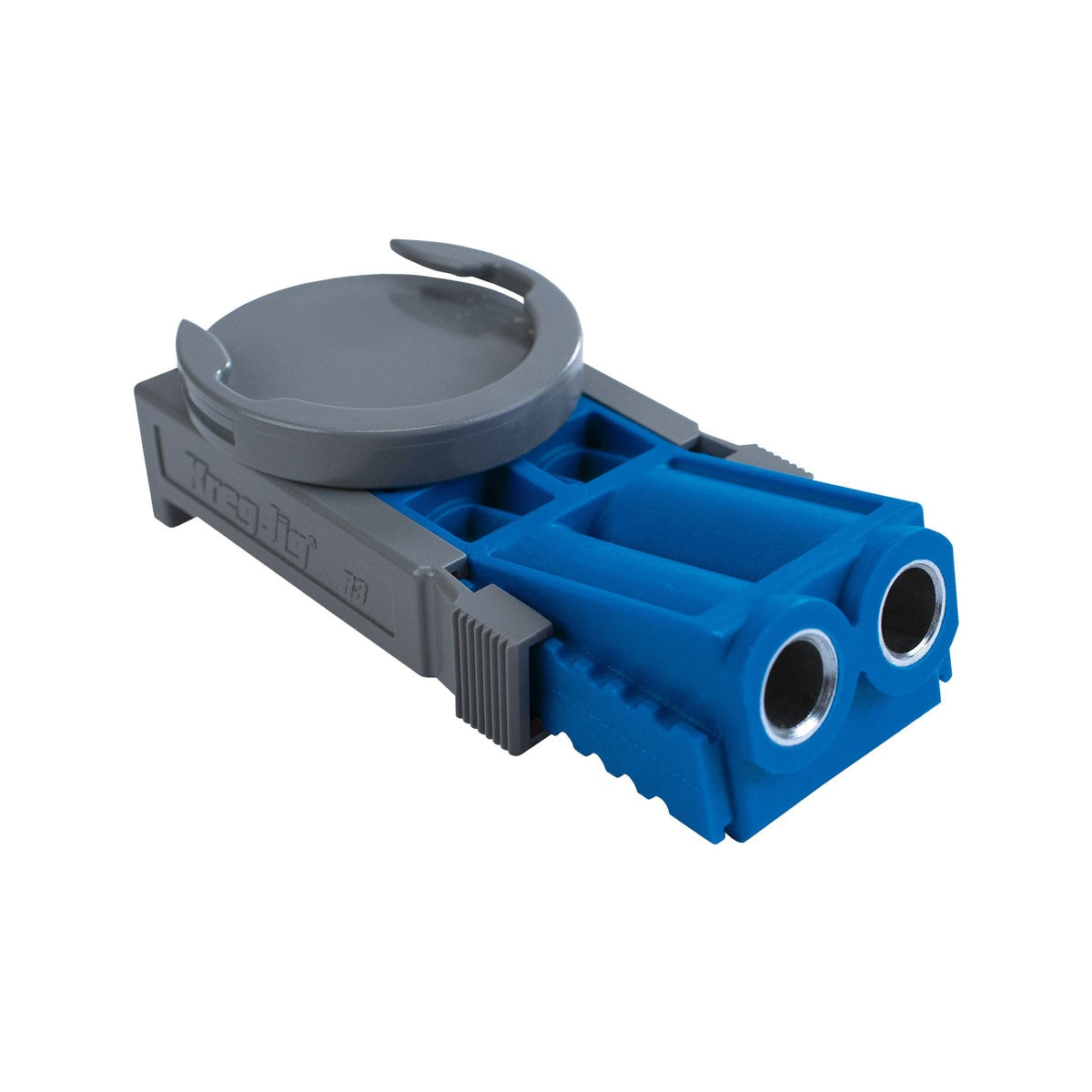

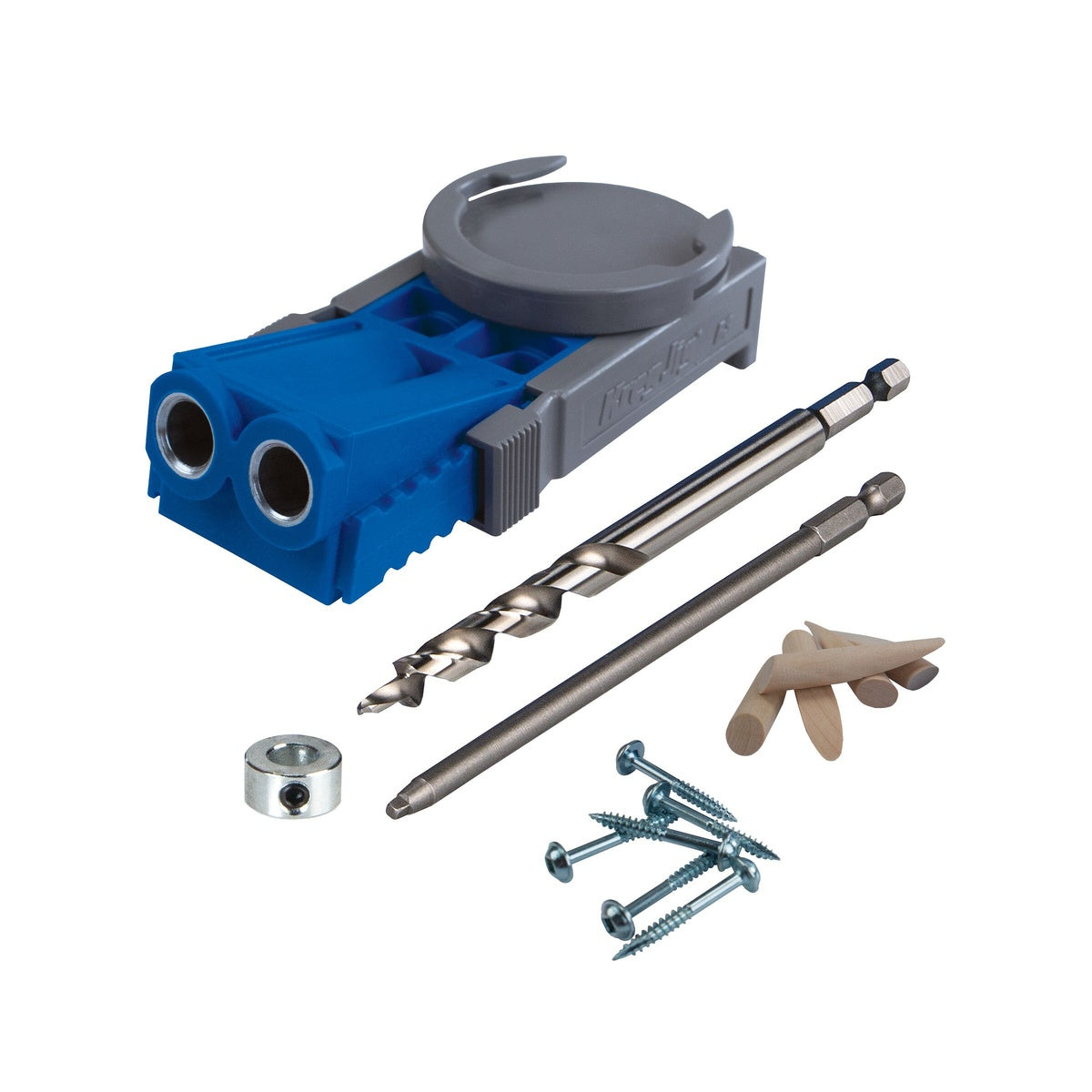

The Kreg Jig R3 Pocket Hole System is a compact pocket-hole jig for wood joinery built for DIYers, home improvers, and woodworkers who want strong, repeatable screw joints without a large bench-mounted setup. This is a pocket-hole jig designed for drilling angled joinery holes in wood for cabinets, shelves, repairs, and general woodworking projects. Model Number: R3.

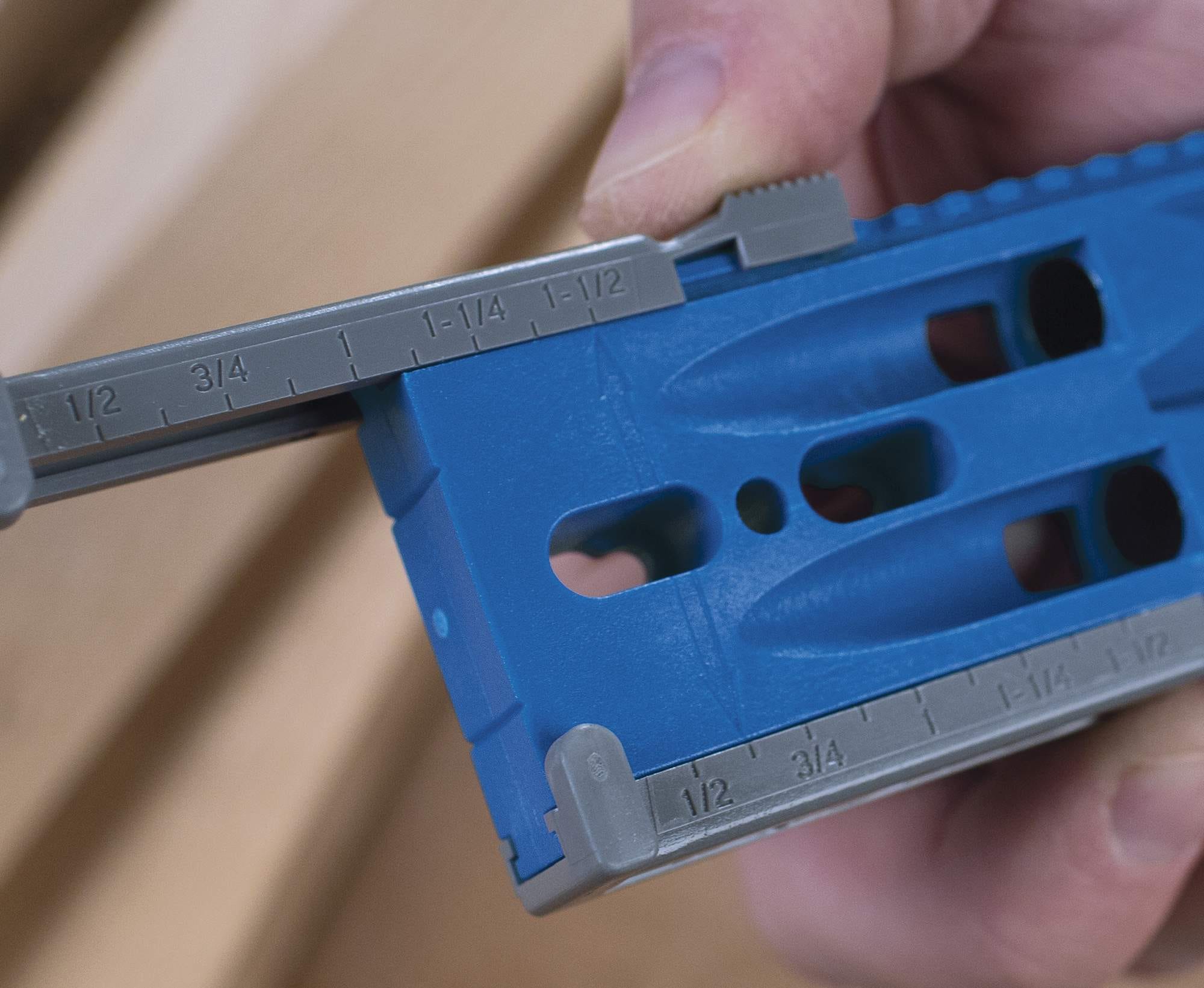

The big reason this jig works for a lot of shops is adjustability. Independent positioning sliders give you nine depth settings, so you can join material from 1/2 in. to 1-1/2 in. thick in 1/8 in. increments. That means the same jig can move from thin drawer components and craft work to heavier framing-style stock like 2x lumber without forcing a one-size-fits-all setup.

Kreg also built the R3 around jobsite-friendly details that actually matter. Dual wood-chip relief holes help keep the drill bit clear as you drill, which reduces drag on the bit and makes it easier to complete the pocket hole in one smooth plunge. Less chip packing also helps cut down on heat and unnecessary wear when you are drilling a batch of holes.

Accuracy and durability are where this jig earns its keep. The two drill guides use hardened steel because they take direct bit contact every time you use the jig. Kreg states the hardened-steel drill bit guides carry a lifetime warranty, and the guide design supports the bit through the full drill stroke to help reduce deflection and tear-out. In practical terms, that means cleaner pocket holes and better fit when you want to plug the holes for finish work.

The body uses glass-reinforced nylon, which gives the R3 a good balance of strength and resilience without making it bulky. Kreg also uses an optimized drilling angle to improve driving efficiency and keep the pocket hole compact, at less than 1-1/2 in. overall size. That smaller hole can make finished work look cleaner while still giving you the holding power pocket-hole joinery is known for.

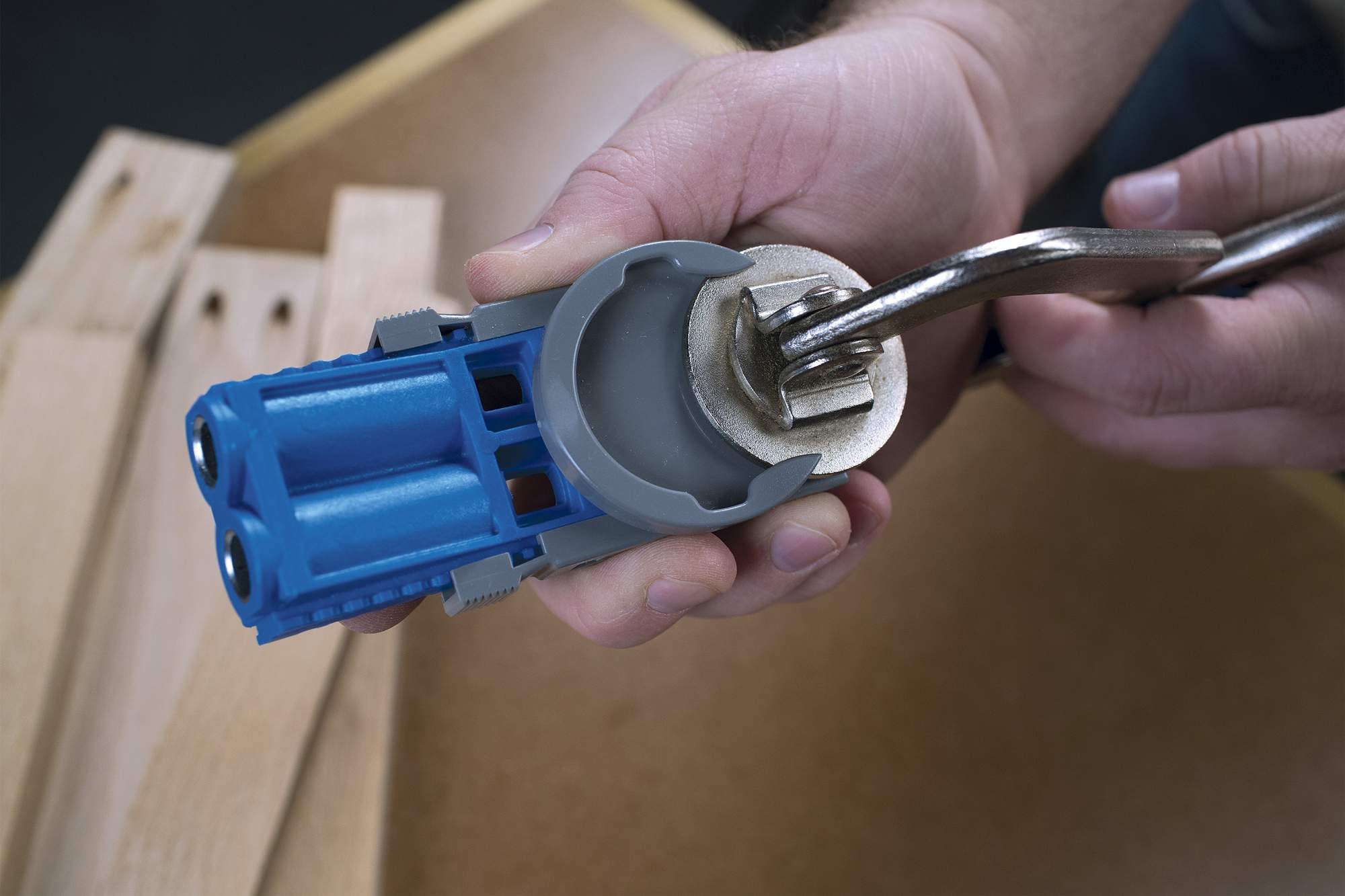

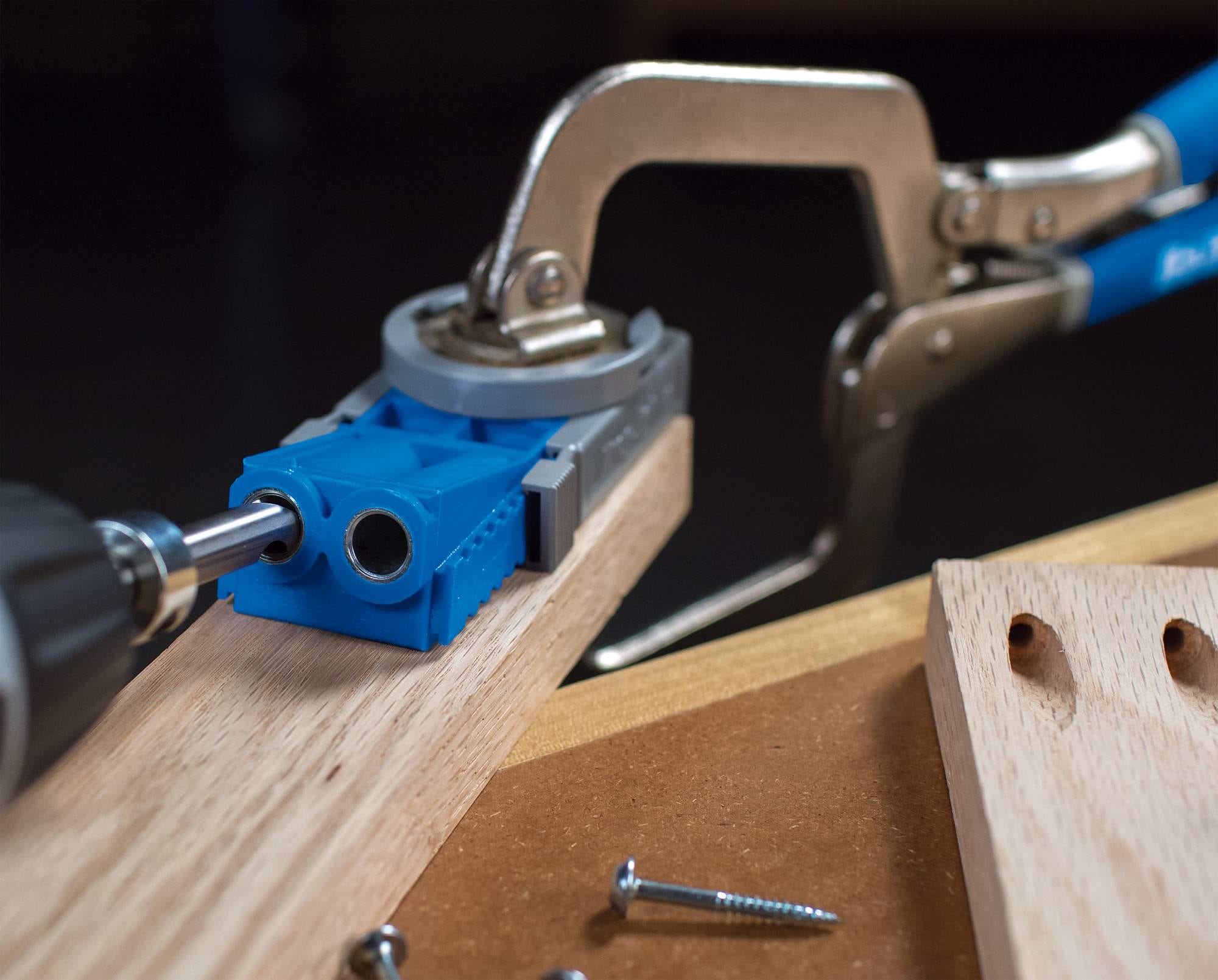

For setup and portability, the R3 includes a clamp pad adapter so it can be secured with a standard bar clamp, C-clamp, or Kreg Face Clamp. That matters because you are not locked into one dedicated clamping system to get started. The included carrying case also keeps the jig and accessories together, and Kreg molded a depth-collar gauge into the case so your reference point is always with the tool instead of buried in a manual or lost in a drawer.

If you are building bookcases, storage shelves, cabinets, tables, chairs, stairs, built-ins, or making repairs around the house, this is the kind of woodworking jig that makes sense. It is especially good for users who want the speed of pocket-hole joinery in a compact kit, and it is a smart fit for anyone who needs a portable joinery tool instead of a larger shop-only jig.

A smart pick for portable pocket-hole work

The Kreg Jig R3 Pocket Hole System gives you the core pieces you need to build strong wood joints fast without stepping up to a larger dedicated jig.

• Who it's for: DIY woodworkers, home improvers, and anyone building cabinets, shelves, built-ins, or repair projects in a small shop or around the house.
• Why it stands out: Wide thickness adjustment, hardened-steel drill guides, chip relief, and clamp-anywhere portability make it more useful than the cheapest entry-level jigs.
• Worth knowing: This is a compact system meant for flexibility and portability, so if you are doing high-volume production work every day, you may eventually want a larger bench-style setup.

• What material thickness can this jig handle? The R3 is designed for wood from 1/2 in. to 1-1/2 in. thick, with settings in 1/8 in. increments.
• Does it need a special clamp? No. With the included clamp pad adapter, it can be secured using a standard bar clamp, C-clamp, or Kreg Face Clamp.
• What makes the drill guides important? The hardened-steel guides support the bit through the full drilling stroke, which helps reduce bit deflection, tear-out, and messy pocket holes.
