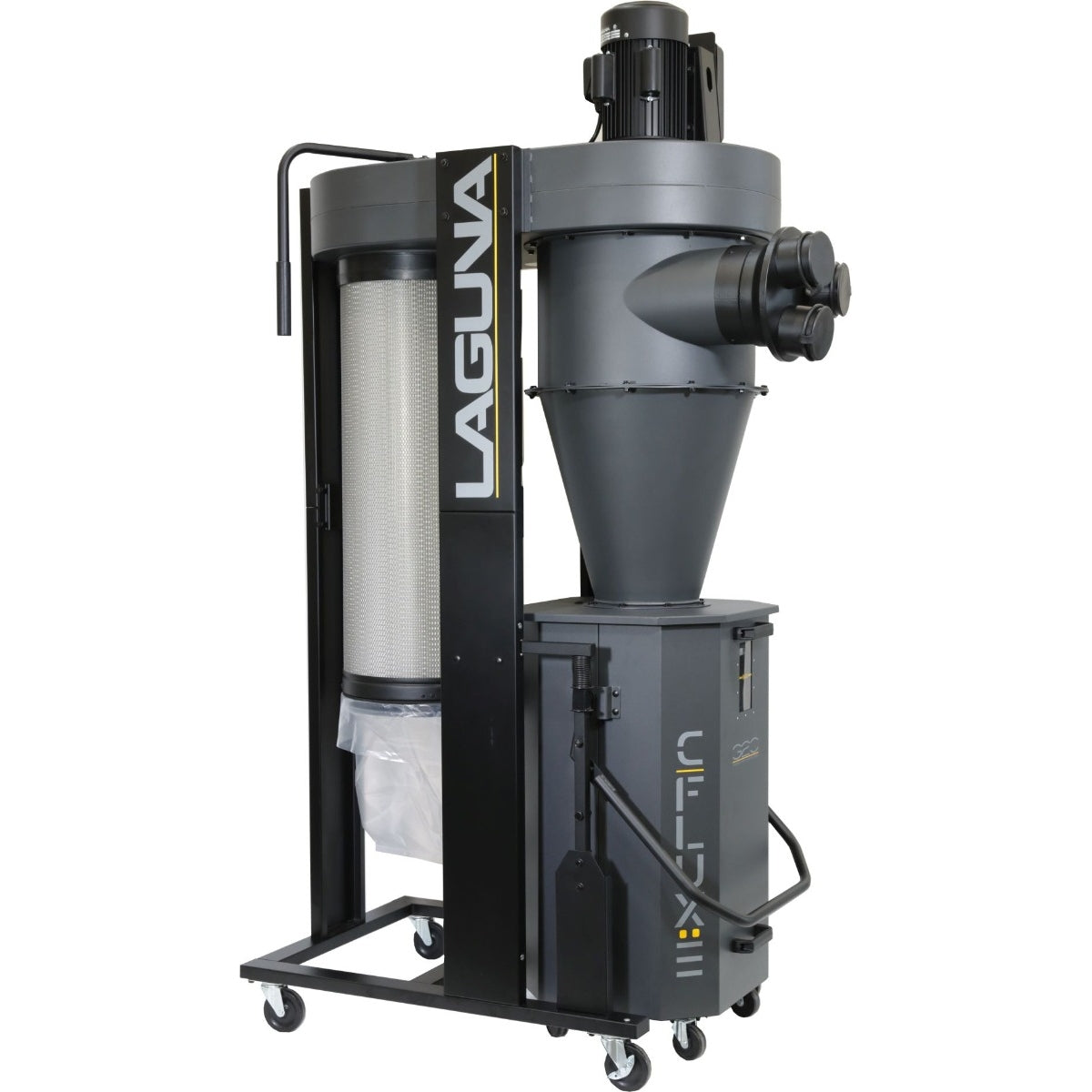

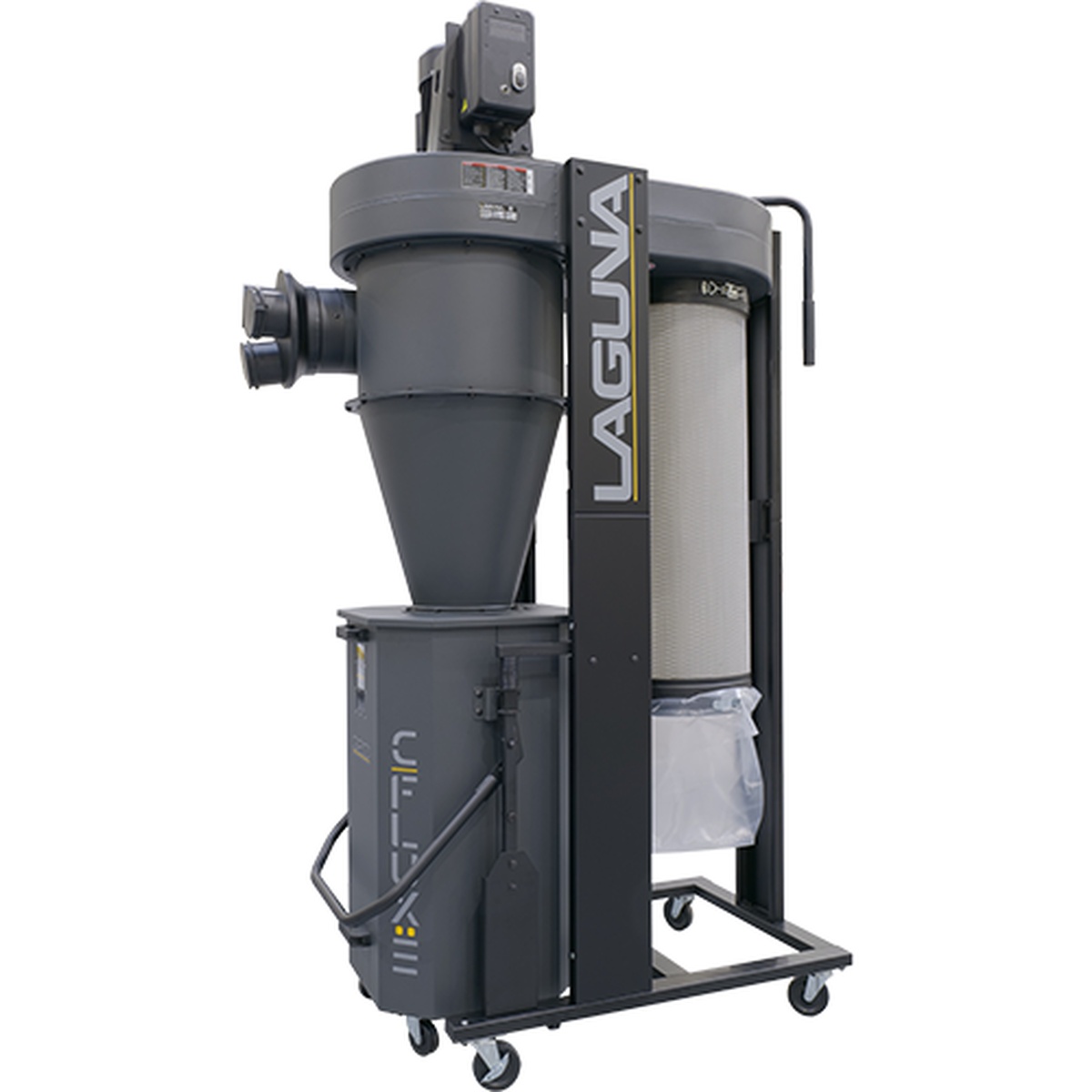

The Laguna C|Flux: 3 Dust Collector is a 3 horsepower cyclone dust collector built for woodworking shops that need stronger airflow, larger chip capacity, and better fine dust control than a small single-stage unit can deliver. This is a dust collector designed for central shop dust collection and machine hookup in woodworking applications. Model Number MDCCF32201. If you are running planers, jointers, table saws, or other high-output machines, this is the kind of collector that makes the rest of the shop work better.

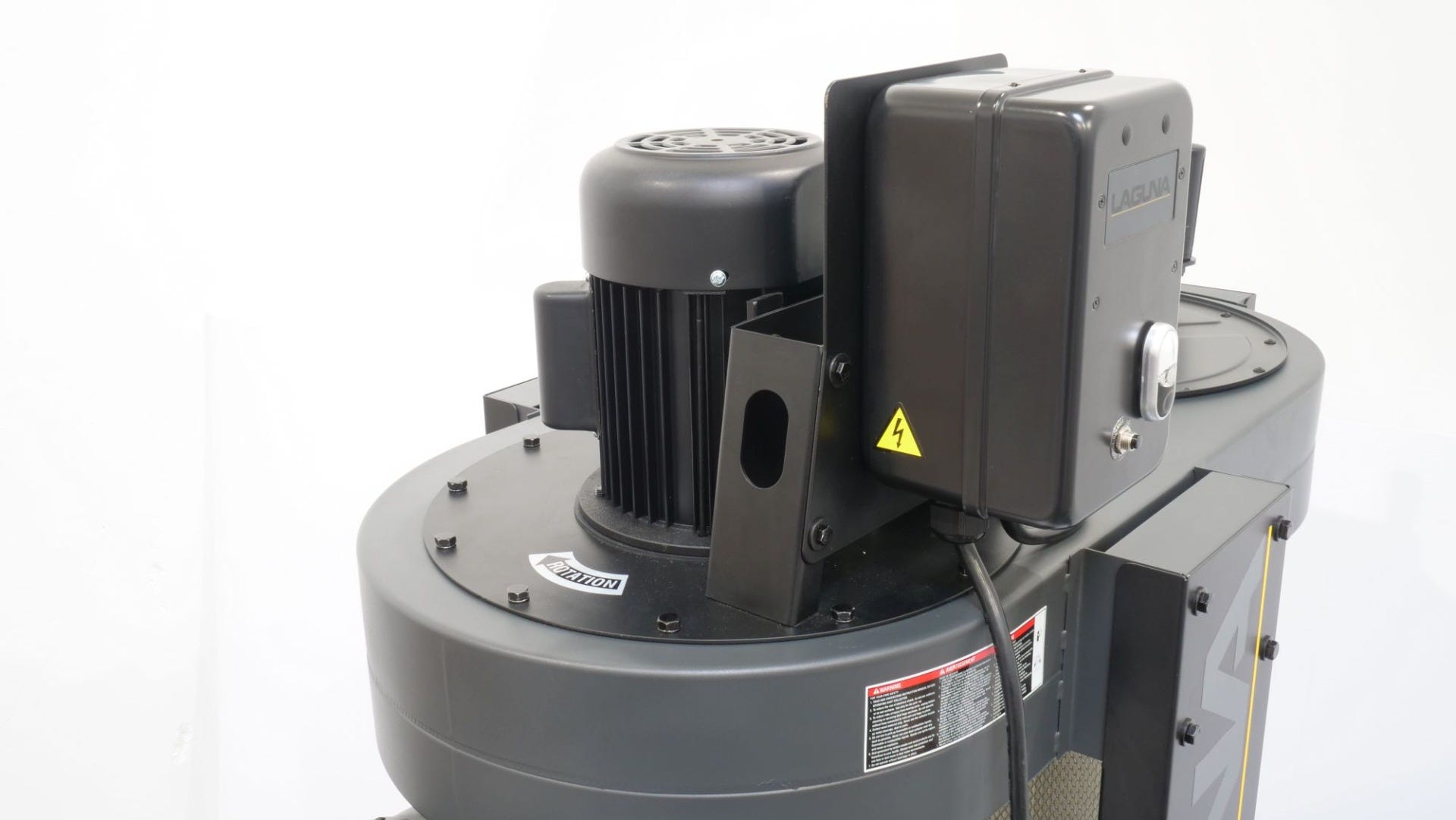

On paper, the numbers tell you this unit is aimed at serious use. The motor is rated at 3 horsepower and runs on 220 volts, single phase, at 3450 revolutions per minute. Maximum airflow is listed at 2718 cubic feet per minute, with a shop setting airflow rating of 1624 cubic feet per minute. In plain terms, that means it is built to move a lot of air through ducting, separators, and machine ports, not just look good in the corner. The 11.2 inch maximum static pressure also matters because airflow only tells part of the story. Static pressure is what helps the system keep pulling when duct runs, fittings, and smaller ports start adding resistance.

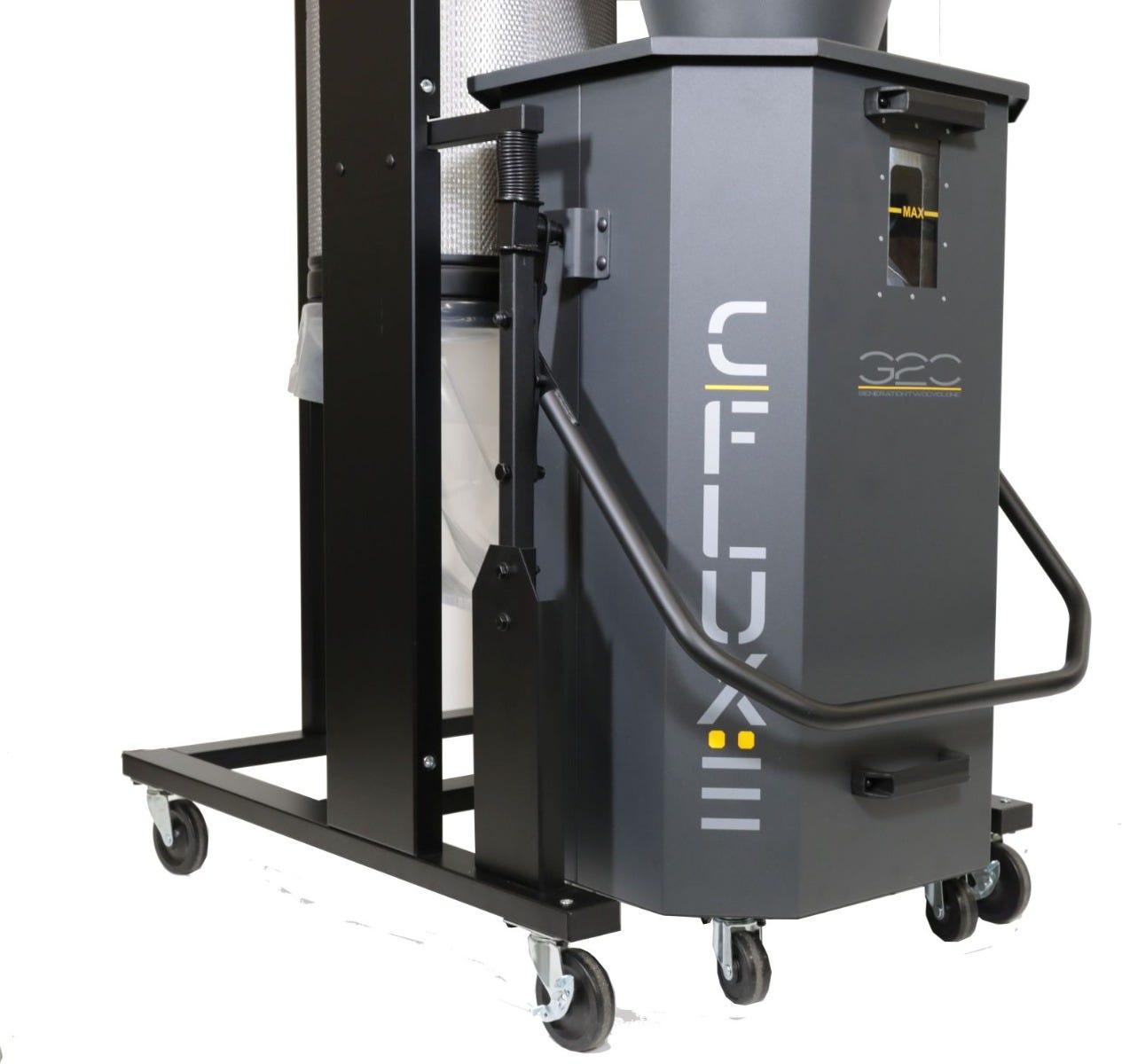

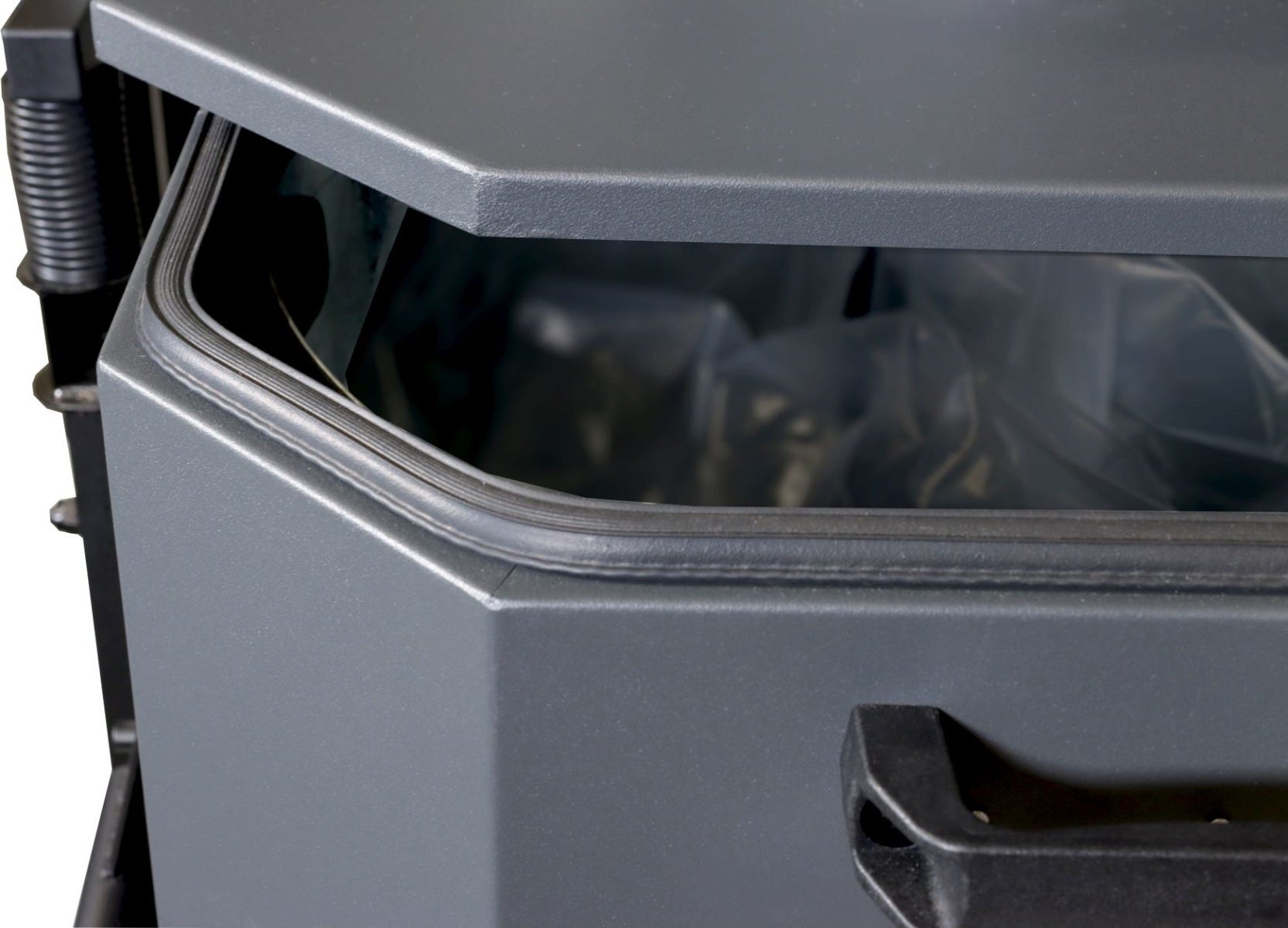

Laguna also built the C|Flux: 3 around cyclone-style separation, which is the right approach when you want to keep the filter from loading up as fast with larger chips and heavier waste. The horizontal chute design is intended to maximize airflow while improving collection efficiency, and the large 46 gallon octagon drum backs that up with real holding capacity. For a busy shop, that larger drum is not just a convenience feature. It means fewer interruptions when you are dimensioning stock or running several operations back to back.

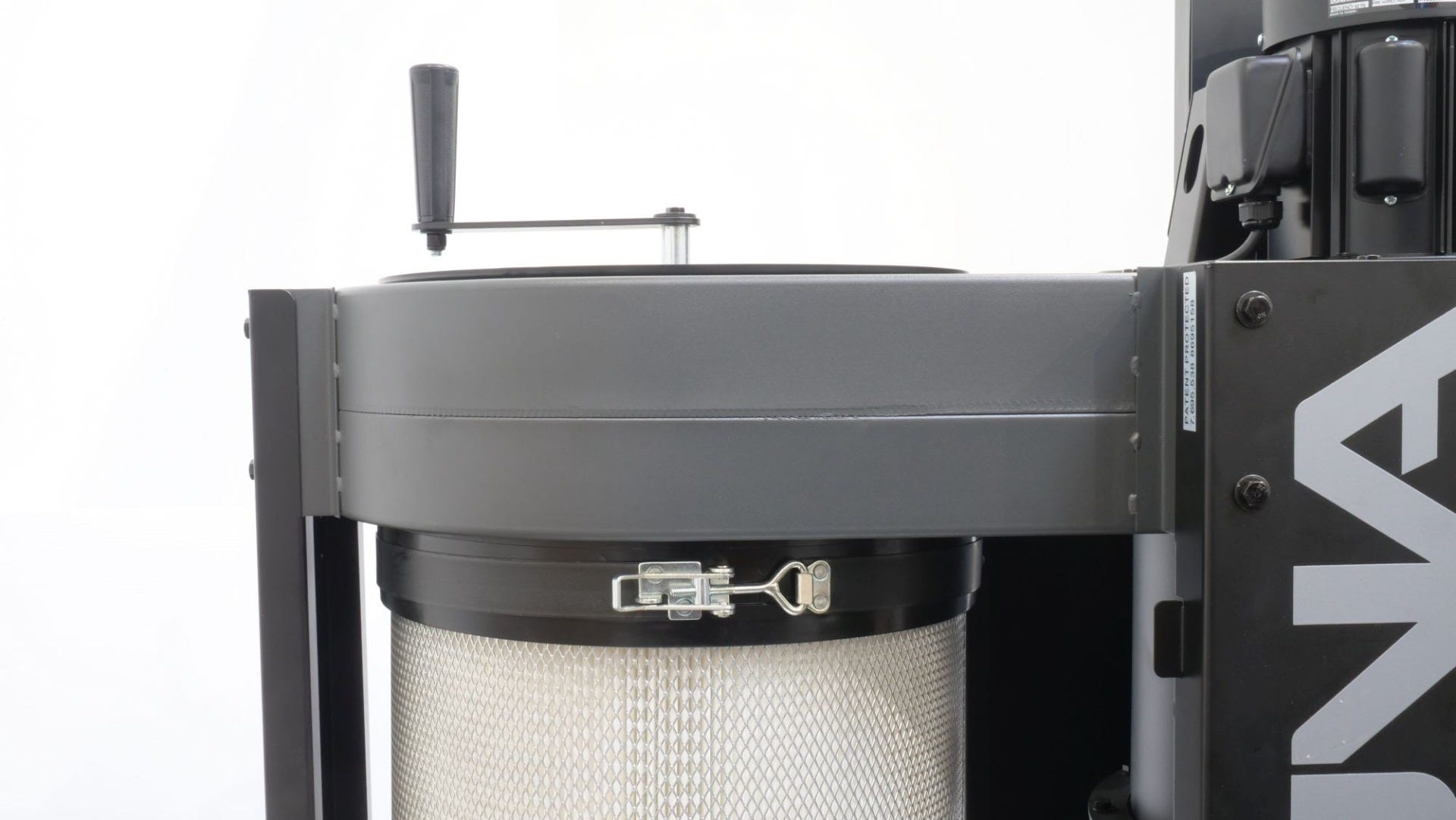

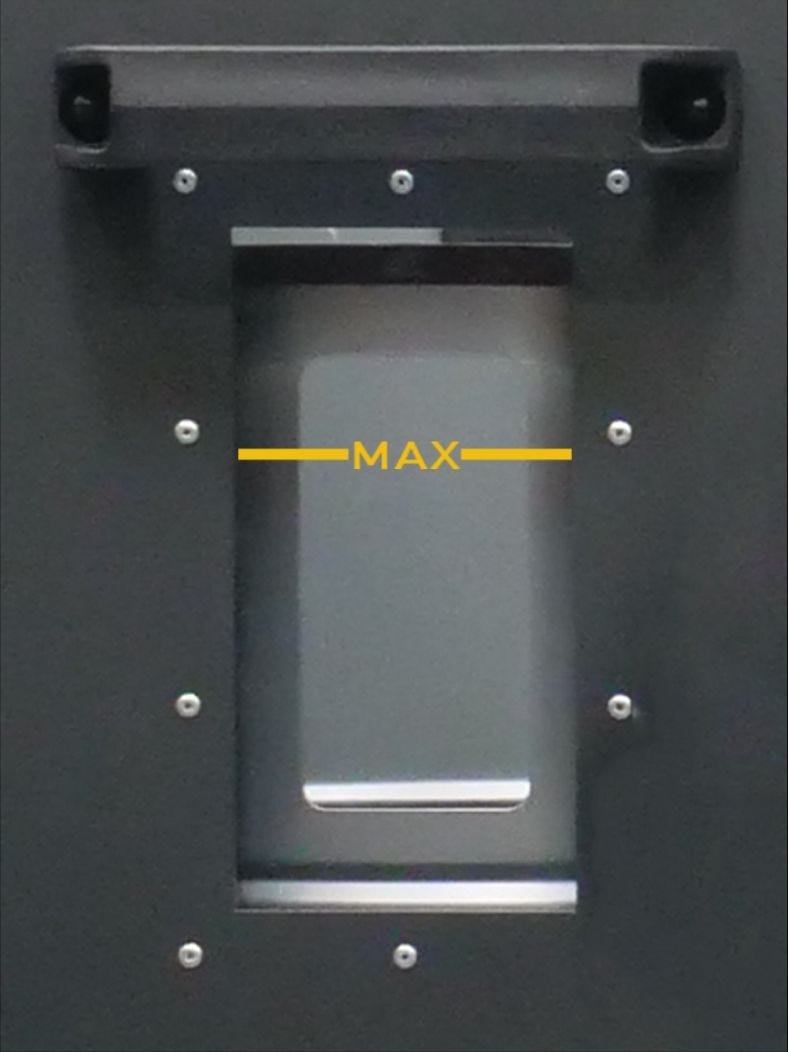

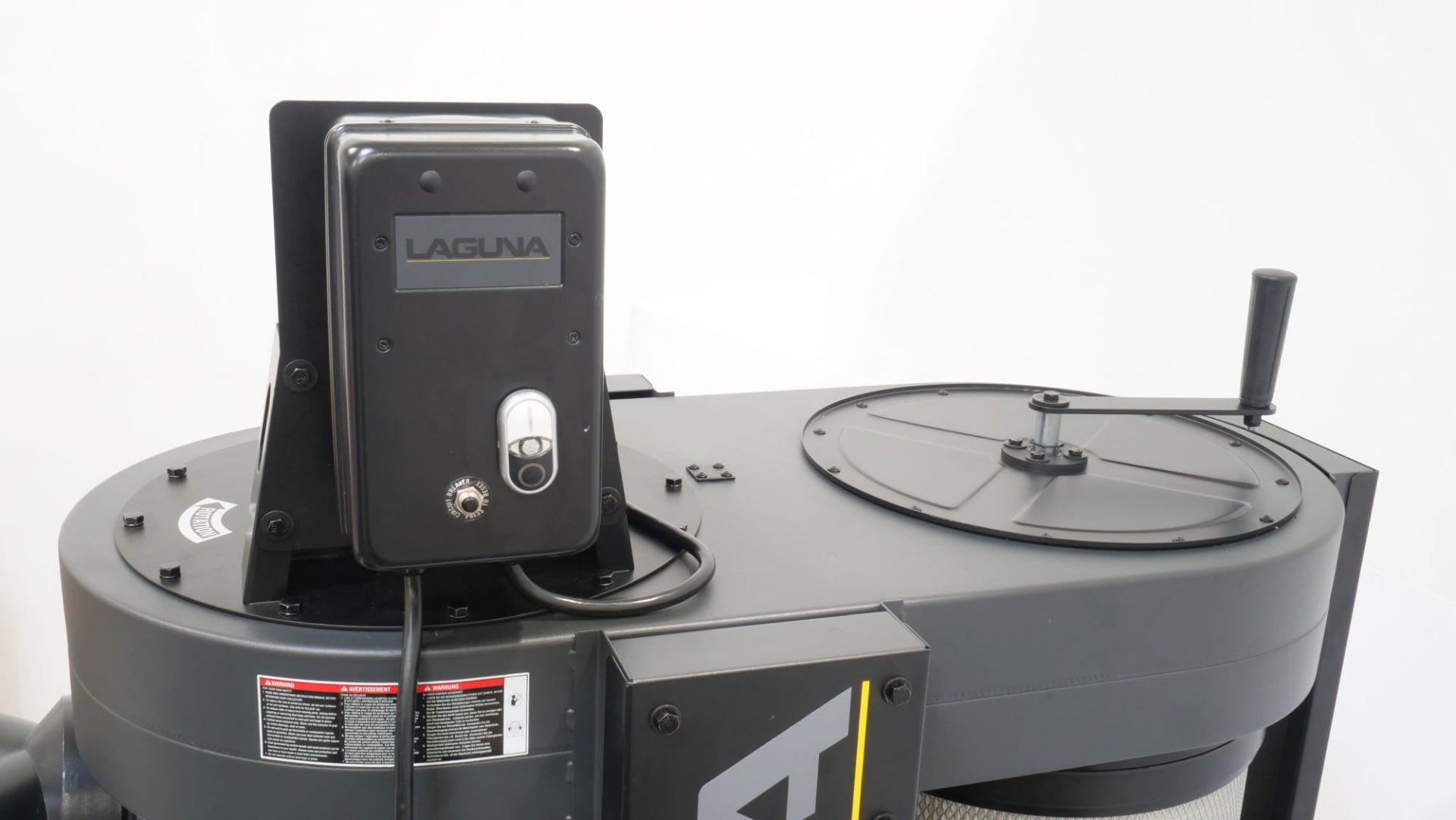

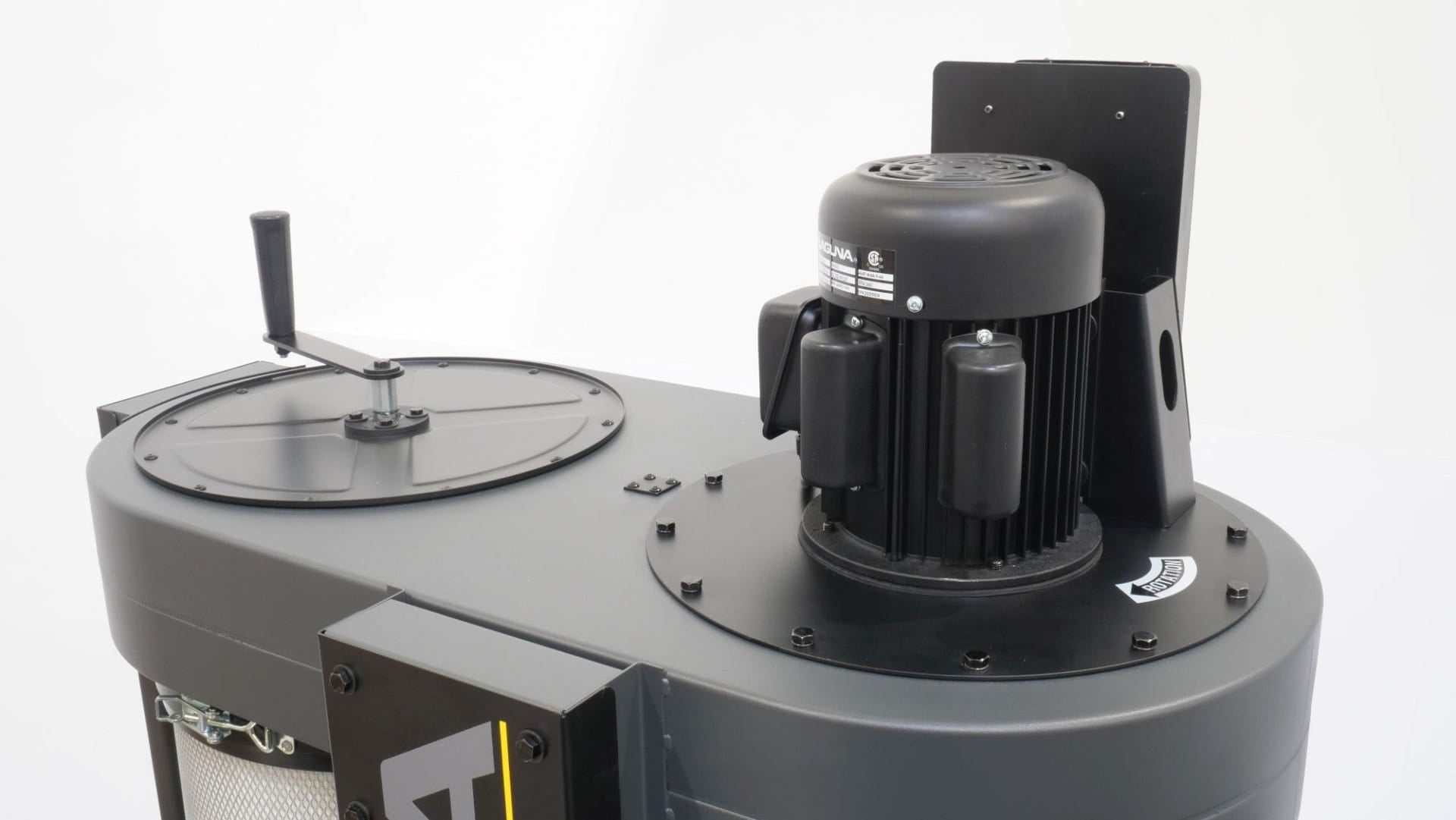

One of the more practical upgrades here is the dual-paddle manual filter cleaning setup. Dust collectors live or die by how well they maintain airflow over time, and filter cleaning is one of those chores that gets skipped when it is annoying. Laguna made that process easier, and they added a max level indicator to help protect filter life. That is important because once waste gets too high in the drum, performance can fall off and cleanup gets messy fast. The listed filter area is 102 square feet, and the cartridge filter is rated to 1 micron, which is the part serious woodworkers pay attention to when they care about the fine airborne dust that does not settle right away.

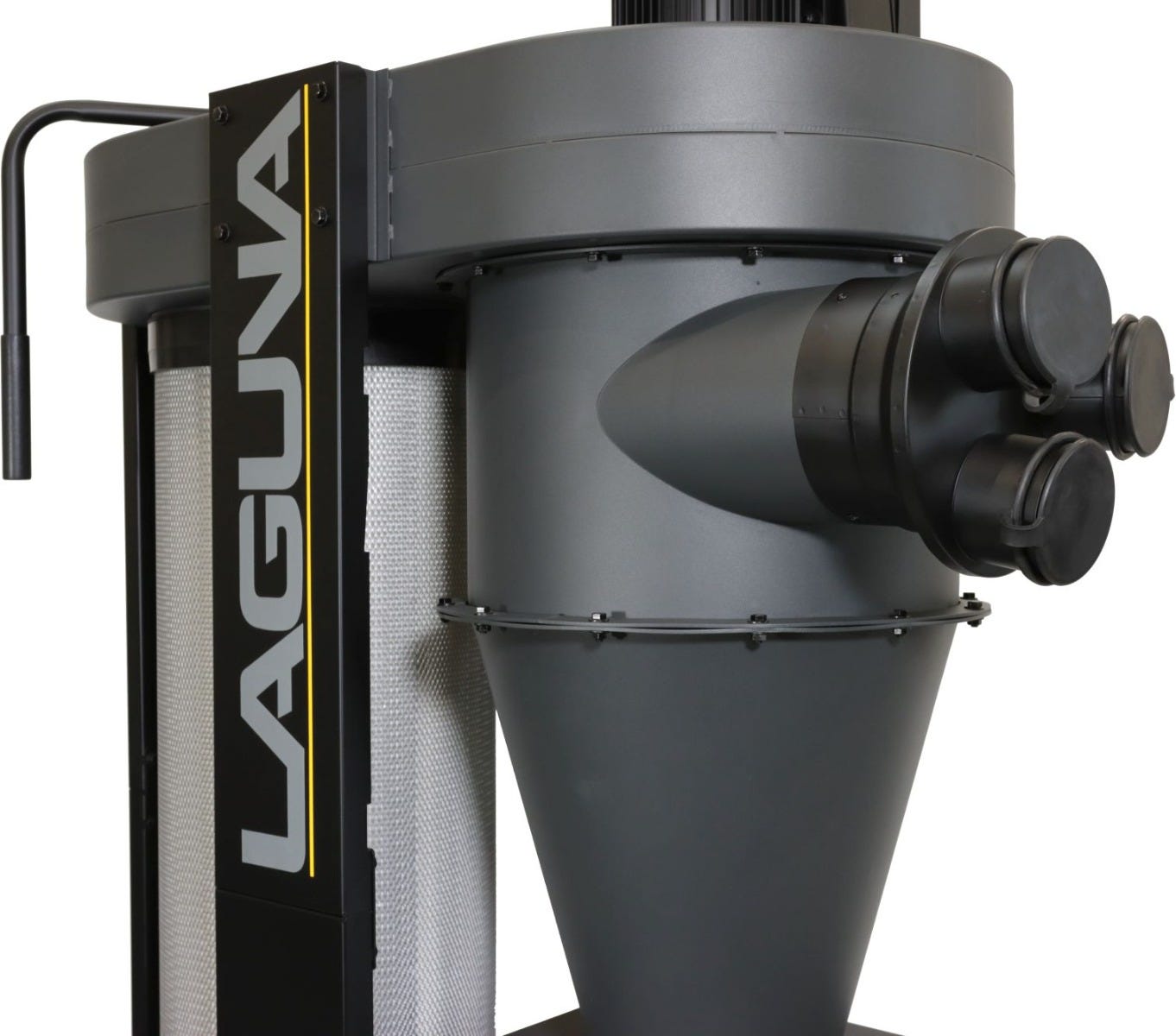

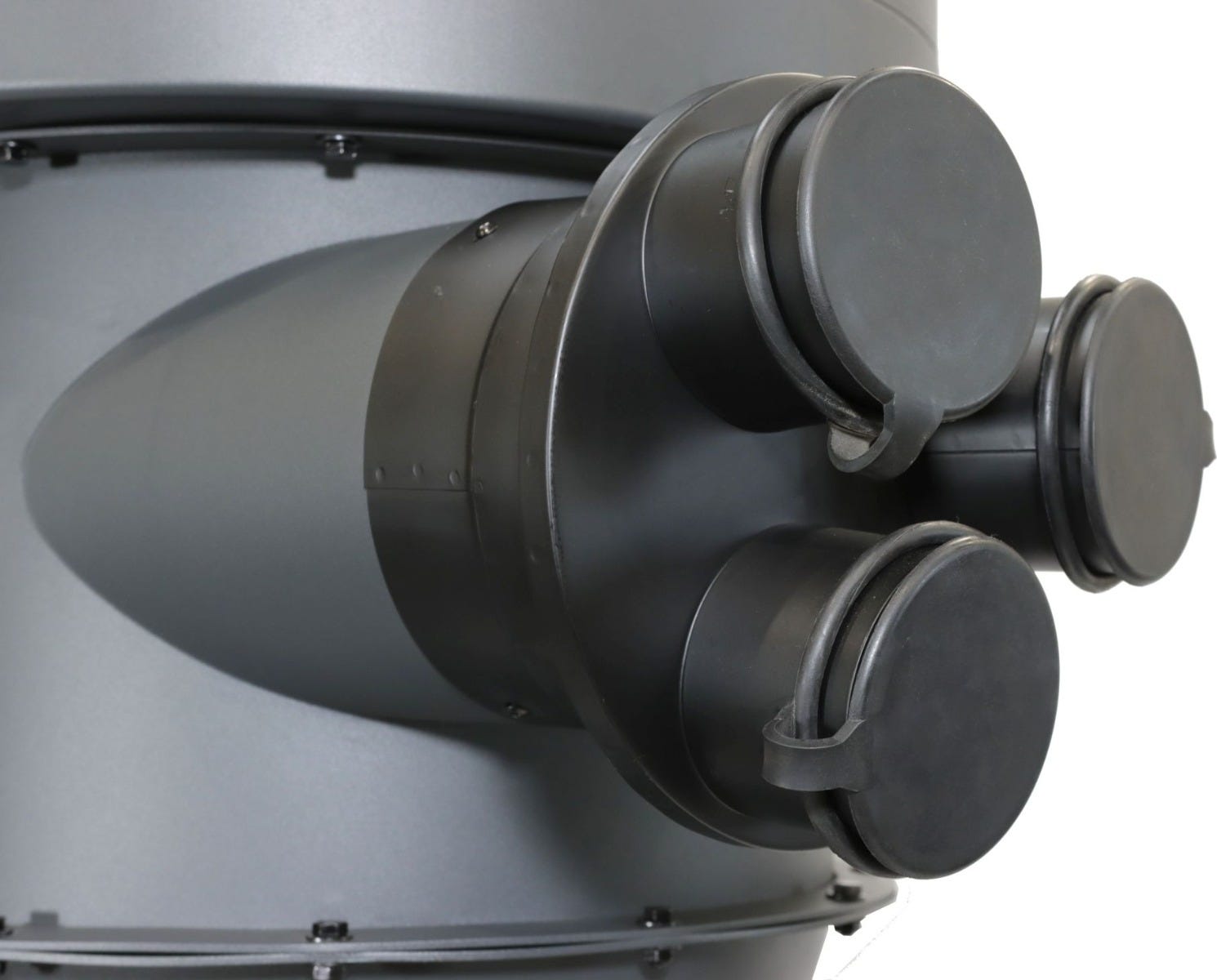

From a shop layout standpoint, the inlet setup gives you some flexibility. The main inlet is 8 inches, with an 8 inch by 4 inch by 3 port arrangement noted in the specs. That makes this a better fit for a ducted dust collection system than a grab-and-go machine you wheel between tools all day. Even so, Laguna includes a caster setup with two locking and two swivel casters, so you still get some mobility during setup or shop reconfiguration. The plug is not included, which is worth knowing before installation since this machine is intended to be wired into a proper 220 volt shop setup.

Physically, this is a substantial machine. Assembled dimensions are listed at 48 inches long by 28 inches wide by 89 inches high from Laguna, and machine weight is listed at 373 pounds. That size and weight are part of the tradeoff for moving more air and holding more waste. It is not a compact collector for a corner of a one-car garage. It is better suited for dedicated woodworking spaces where dust collection is a core part of the workflow, not an afterthought.

The Laguna C|Flux: 3 Dust Collector makes the most sense for cabinet shops, furniture builders, serious hobby woodworkers, and small professional shops that are ready to step up from lighter-duty collection. If you have one high-demand machine or a few core tools tied into a ducted system, this collector has the airflow, capacity, and filtration setup to justify the footprint. If your shop is small and you only make occasional cuts, it is probably more machine than you need. But if dust control is already slowing down your work, this is the kind of upgrade you feel every day.

Laguna C|Flux: 3 Dust Collector means you are done messing around with undersized dust collection

This is a serious cyclone collector for woodworkers who want stronger airflow, better fine dust control, and fewer interruptions from overfilled bins and clogged filters.

• Who it's for: Woodworkers, cabinet shops, and dedicated home shops running bigger stationary machines and real ductwork.
• Why it stands out: The combination of 3 horsepower, 2718 CFM maximum airflow, a 46 gallon drum, and a 1 micron cartridge filter puts it firmly in the category of true shop infrastructure, not a light-duty add-on.
• Worth knowing: It runs on 220 volt single phase power, weighs 373 pounds, and the plug is not included, so plan your install before delivery day.

• What kind of power does this dust collector require? It uses 220 volt, 60 hertz, single phase power and the motor is rated at 3 horsepower.
• How much airflow does the Laguna C|Flux: 3 Dust Collector produce? Laguna lists maximum airflow at 2718 CFM and shop setting airflow at 1624 CFM.
• What size dust bin does it use? It uses a 46 gallon octagon drum, which is sized for longer collection intervals in active woodworking shops.
• How fine is the filter? The cartridge filter is rated to 1 micron and provides 102 square feet of filtering area.
