Makita Tilt Base (198987-9)
Makita Tilt Base (198987-9)
Out of Stock - Available to Order - Usually ships in 12-18 days
Product Details
Product Details
Key Features
Overview

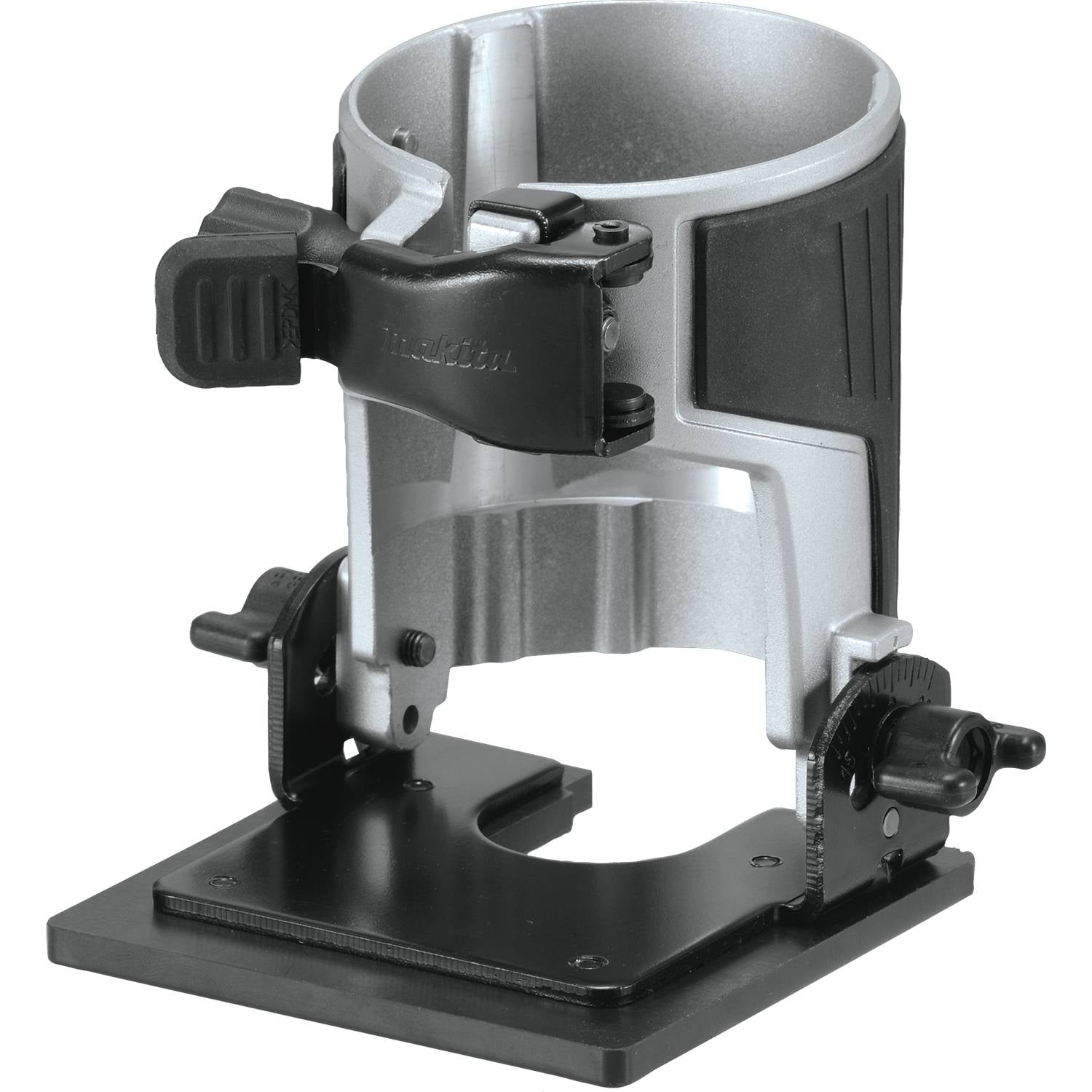

The Makita 198987-9 Compact Router Tilt Base is a router base accessory for Makita compact routers. This is a router tilt base designed for angled edge routing and trimming on laminated boards and other thin materials. Model 198987-9 gives woodworkers and finish carpenters a straightforward way to change the router's working angle without changing the whole tool.
The big reason to buy this base is angle control. It has positive stops at negative 30 degrees and 45 degrees, so you can move between common angled routing positions without guessing. That saves setup time and helps keep profiles consistent when you are repeating cuts across trim pieces, laminated panels, or small detail parts.
Makita also built this accessory around practical versatility. By letting the router run at different angles, the base helps you create different profiles while using the same quarter inch shank router bit. If you already own compatible bits and a Makita compact router, this base expands what your setup can do without adding another dedicated machine to the bench.
The design is aimed at compact-router users who need control more than brute size. It is a metal router base, which matters because angled routing puts more demand on rigidity than straight trimming does. A solid base helps the router stay planted and predictable as you work along an edge, especially on thin stock where wobble shows up fast in the finished cut.
In real shop use, the Makita 198987-9 Compact Router Tilt Base makes the most sense for laminate trimming, edge detailing, light profile work, and other finish-oriented cuts where the router angle changes the result. It is not trying to replace a full-size router table setup. It is for the user who wants more flexibility out of a compact router while keeping the tool portable and easy to handle.
Compatibility is a major part of the story here. This base is made for use with Makita compact router models GTR01, XTR01, RT0701C, and RT0700C, and it works with quarter inch shank bits. That makes it a clean add-on for users already on Makita's compact router platform, whether they are using the cordless 18V LXT router or one of Makita's corded compact router models.
Who should buy it? If you do trim work, cabinetry, furniture details, laminate work, or small custom edge profiles, this accessory makes a lot of sense. If your routing is mostly straight flush trimming and basic edge work, your standard base may cover the basics. But if you want angled routing capability from a compact router without piecing together a workaround, this is the right accessory for the job.
Add Angled Routing to a Compact Router
If you already like the size and control of a Makita compact router, this base gives it another job to do. It is built for angled routing work where a standard fixed base would limit the profile you can cut.
- Positive stops at negative 30 degrees and 45 degrees for repeatable angle changes
- Designed for trimming laminated boards and other thin materials
- Works with quarter inch shank router bits
- Compatible with select Makita compact router models
What's in the Box
- (1) Makita Tilt Base, model 198987-9
Router, router bits, batteries, and charger are not included.
Key Specifications
| Accessory Type | Router Tilt Base |
|---|---|
| Material | Metal |
| Angle Stops | Negative 30 degrees, 45 degrees |
| Bit Compatibility | Quarter inch shank bits |
| Product Length | 5 in |
| Product Height | 5.25 in |
| Weight | 1.2 lbs |
| Package Quantity | 1 |
Compatibility
Built For
Pro Tip
When you switch to an angled cut, make a quick test pass on scrap from the same laminate or trim stock first. The tilt changes how the bit meets the edge, so a 30-second test piece can save you from blowing out a finished part.
Tool Nut's Take
Makita 198987-9 Compact Router Tilt Base for More Than Basic Edge Work
This is the accessory you buy when your compact router needs to do cleaner, more creative angled detail work instead of just straight trimming.
- Who it's for: Woodworkers, finish carpenters, cabinet guys, and serious DIY users already running a compatible Makita compact router.
- Why it stands out: The fixed angle stops at negative 30 degrees and 45 degrees are the real selling point, because they make angled routing practical instead of fiddly.
- Worth knowing: This is an accessory, not a full router kit, so it makes the most sense if you already own one of the supported Makita routers and use quarter inch shank bits.
Common Questions
- What type of product is this? It is a router tilt base accessory for compatible Makita compact routers.
- Which routers does it fit? It is compatible with Makita models GTR01, XTR01, RT0701C, and RT0700C.
- What bit size does it support? It works with quarter inch shank router bits.
- What kind of work is it best for? It is ideal for trimming laminated boards and other thin materials, plus angled edge profiling and detail routing.
