Makita 40V max XGT Brushless Cordless 6-1/2-in Plunge Track Saw, AWS Capable, 4.0Ah Kit with 55 In. Guide Rail for Track Saws and 40V max XGT 4.0Ah Battery
Makita 40V max XGT Brushless Cordless 6-1/2-in Plunge Track Saw, AWS Capable, 4.0Ah Kit with 55 In. Guide Rail for Track Saws and 40V max XGT 4.0Ah Battery
SOLD OUT
Product Details
Product Details
Key Features
Overview

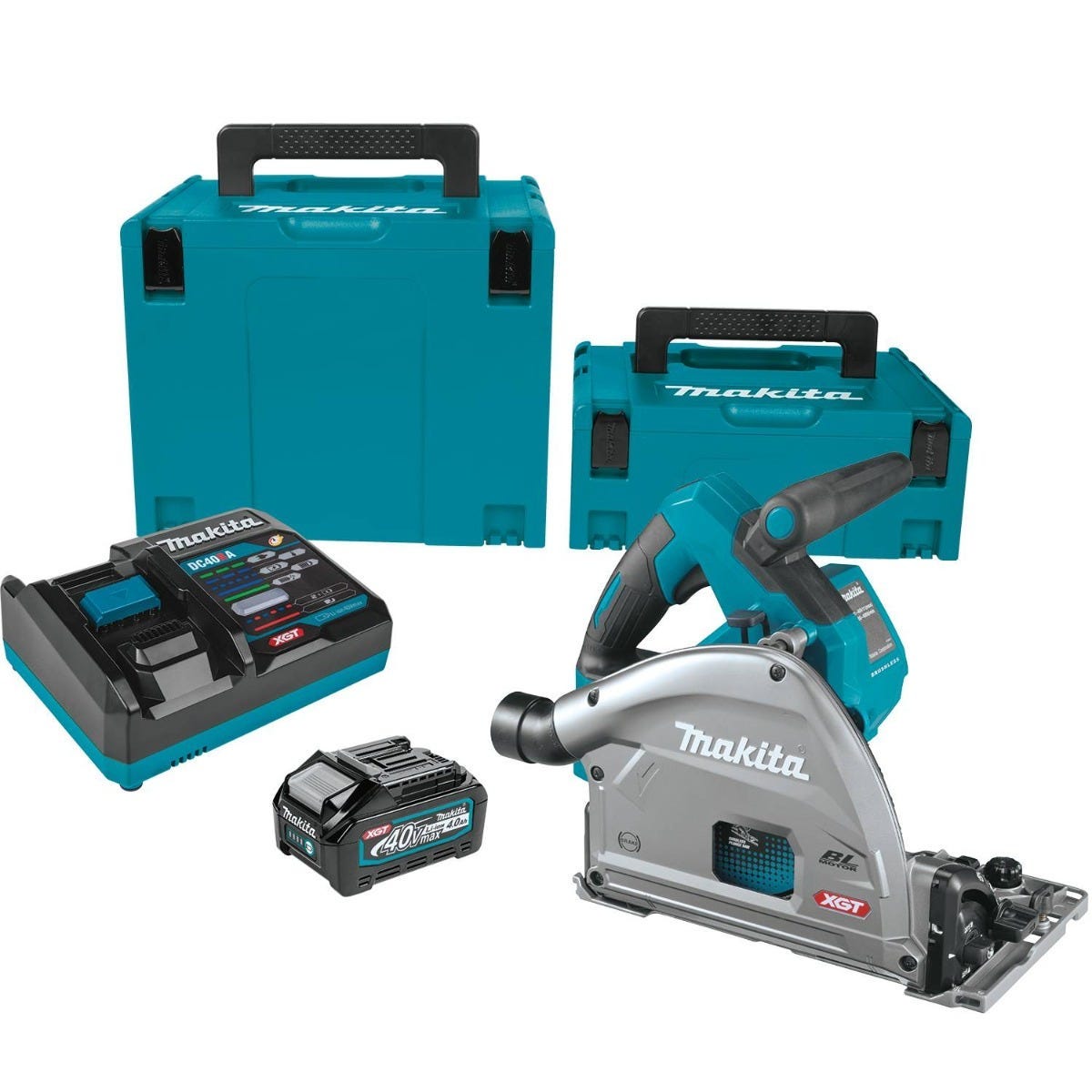

The Makita 40V max XGT Brushless Cordless 6-1/2-in Plunge Track Saw, AWS Capable, 4.0Ah Kit with 55 In. Guide Rail for Track Saws and 40V max XGT 4.0Ah Battery is a cordless plunge track saw package built for accurate sheet cutting, finish work, and straight bevel cuts. This is a track saw designed for precise cutting in large panels, wood materials, melamine, MDF, aluminum, and Corian when used with the right blade. The main saw in this kit is Model GPS01M1J, and this package also includes the Makita 194368-5 55 inch guide rail and a BL4040 40V max XGT 4.0Ah battery.
What makes this setup matter on the job is control. The 6-1/2 inch plunge circular saw format gives you clean entry cuts and better visibility for cabinet work, built-ins, countertops, and panel breakdown. Makita gives this saw a variable speed range of 2,500 to 4,900 RPM, so you can tune the blade speed to the material instead of forcing one setting to do everything. Automatic Speed Change Technology adjusts cutting speed and torque under load, which helps the saw stay consistent when the material changes density mid-cut.
Capacity is where this saw starts to separate itself from lighter-duty options. You get a maximum cutting capacity of 2-3/16 inches at 90 degrees and 1-9/16 inches at 45 degrees, plus bevel capability from negative 1 degree to 48 degrees with positive stops at 22.5 degrees and 45 degrees. For finish carpenters and installers, that means more flexibility when you're fitting panels, trimming doors, or dialing in bevel cuts without dragging out a full table saw or miter saw setup.
The included 55 inch guide rail is a big part of the value here. A plunge saw without a rail is only half the story. The rail and saw base work together to produce straighter cuts with less guesswork and less tear-out than a freehand circular saw. That matters most when you're cutting sheet goods that have to fit the first time. Makita also builds in a preliminary scoring stop that lets you make a shallow first pass from 2 mm to 3 mm before completing the cut, which is especially useful on melamine, veneered plywood, and other materials that chip easily.
Makita also paid attention to day-to-day usability. Soft start helps the saw come up smoothly instead of jerking at startup. The electric brake helps speed up repetitive work because the blade stops quicker between cuts. A locking lever holds the blade in position for easier blade changes, and the on-board hex wrench keeps the change tool with the saw instead of buried in the truck. Dual front and rear bevel supports add rigidity for more consistent bevel cuts, and the close-to-wall cutting ability of 11/16 inch helps when you need to work tight to a vertical surface.
Dust control is handled in a practical way. The large 1-7/16 inch rear dust port directs material away from the operator and connects to a vacuum system. On top of that, this saw is AWS capable, so it can wirelessly start and stop a compatible Makita dust extractor through Bluetooth communication. That is a real quality-of-life feature for indoor finish work and shop use. Worth knowing: the AWS transmitter is sold separately, so you need that part if you want to use the wireless dust-control function.
This kit also puts the saw on Makita's 40V max XGT platform, which is built around higher-demand cordless tools. The included BL4040 4.0Ah battery uses Makita's XGT digital communication to help manage overload, over-discharge, and overheating, and Makita states the battery can reach a full charge in 45 minutes or less with the proper charger. For contractors already on XGT, this saw drops into the system cleanly. For users moving into cordless track saws for the first time, this is a serious entry point with the battery, charger, and rail already handled.
Who should buy it? This kit makes the most sense for cabinet installers, trim carpenters, remodelers, finish crews, and serious woodworkers who need accurate cuts in full-size panels without setting up a larger stationary saw. It also fits general contractors who want a more portable solution for straight cutting and bevel work on site. If your work lives in sheet goods, prefinished materials, and clean install-quality results, this Makita plunge track saw kit is the right kind of cordless setup.
Makita 40V max XGT Brushless Cordless 6-1/2-in Plunge Track Saw Delivers Clean Panel Cuts

If you want track-saw accuracy without being tied to a cord, this is the setup. The GPS01M1J gives you plunge-cut control, enough capacity for real work, and the cordless freedom to break down sheet goods where they sit.
- Variable speed range from 2,500 to 4,900 RPM for matching blade speed to the material
- Cutting capacity of 2-3/16 in. at 90 degrees and 1-9/16 in. at 45 degrees
Guide Rail Accuracy Without the Guesswork

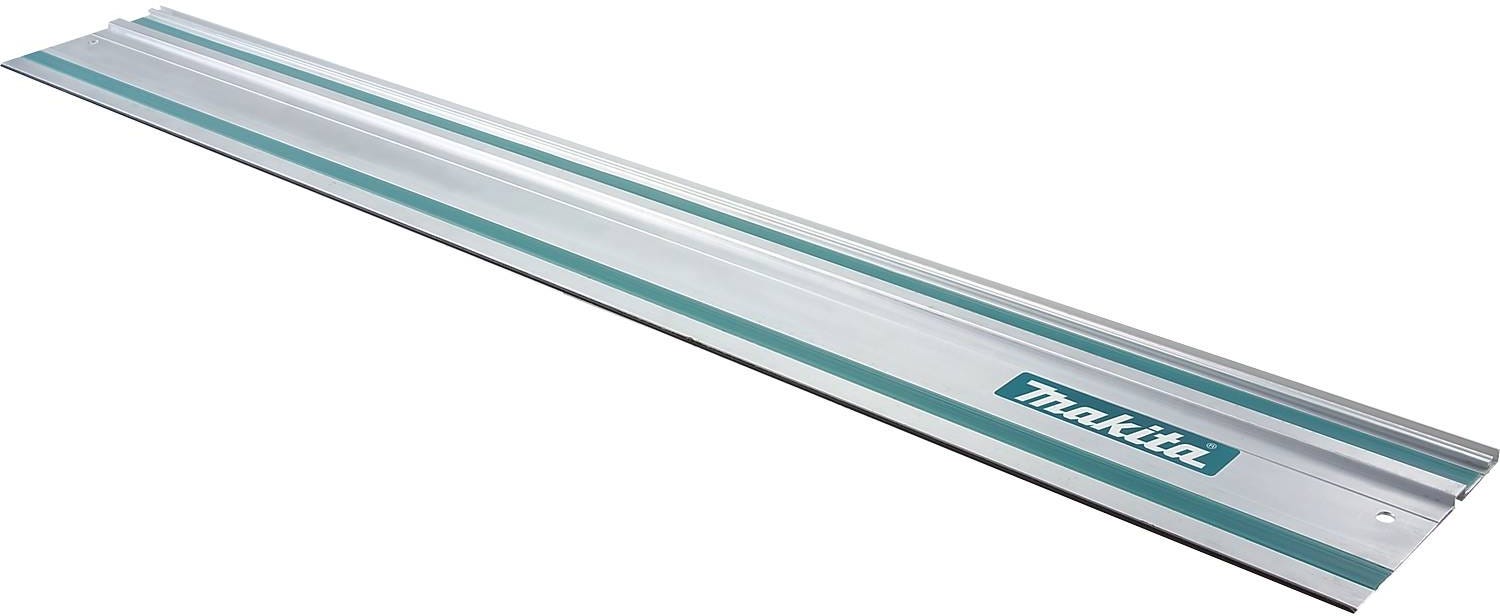

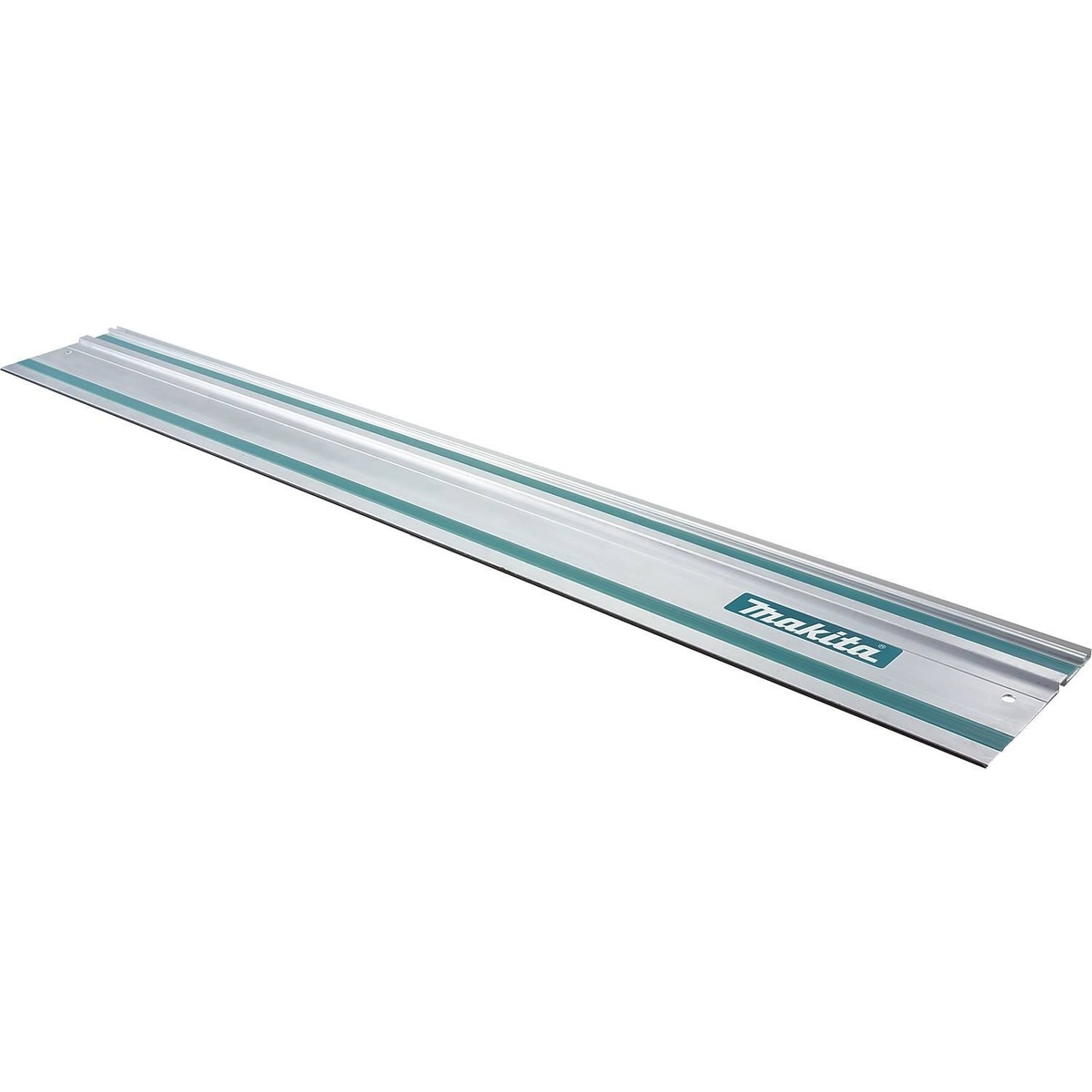

The included 55 inch rail is what turns this from a good saw into a real track-saw system. It gives the base a straight reference for long rip cuts, crosscuts in panels, and repeatable bevel work where edge quality matters.
- 55 in. aluminum guide rail included in the package
- Smooth rubber inserts help the saw travel cleanly along the rail
Built for Cordless Finish Work and Dust-Controlled Cutting

This kit is set up the way most buyers actually want it: saw, battery, charger, storage, and rail. That makes it a stronger choice for crews who need to get cutting right away instead of piecing together a system one part at a time.
- AWS capable for wireless start-stop communication with a compatible dust extractor
- Soft start and electric brake improve control during repetitive finish cuts
XGT Battery Power That Matches the Saw

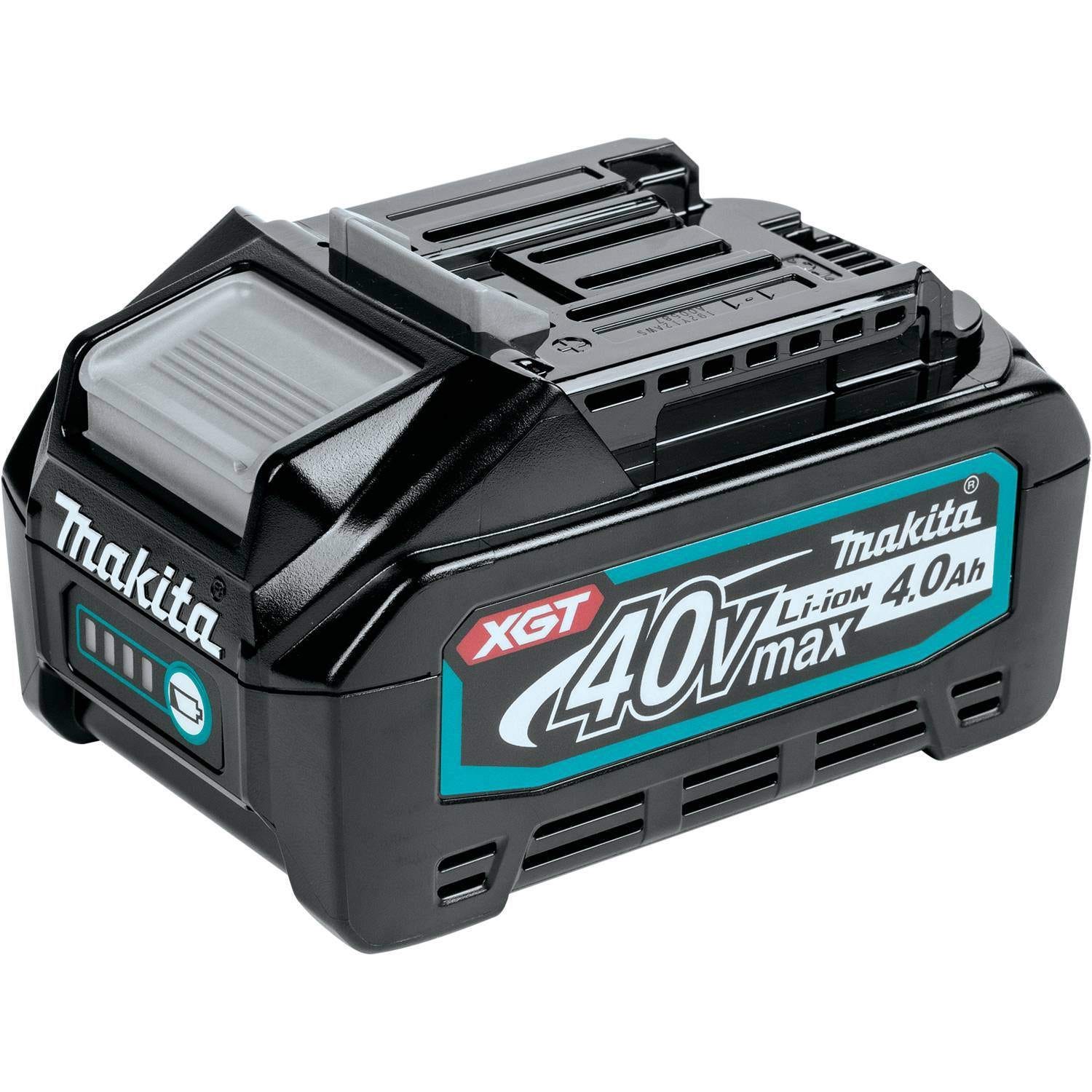

A track saw is only as good as the power behind it, especially when you're deep in sheet goods or denser materials. The included BL4040 battery is part of Makita's XGT platform, designed for higher-demand cordless tools that need sustained output.
- 40V max XGT 4.0Ah battery included
- Makita states a full charge in 45 minutes or less with the proper charger

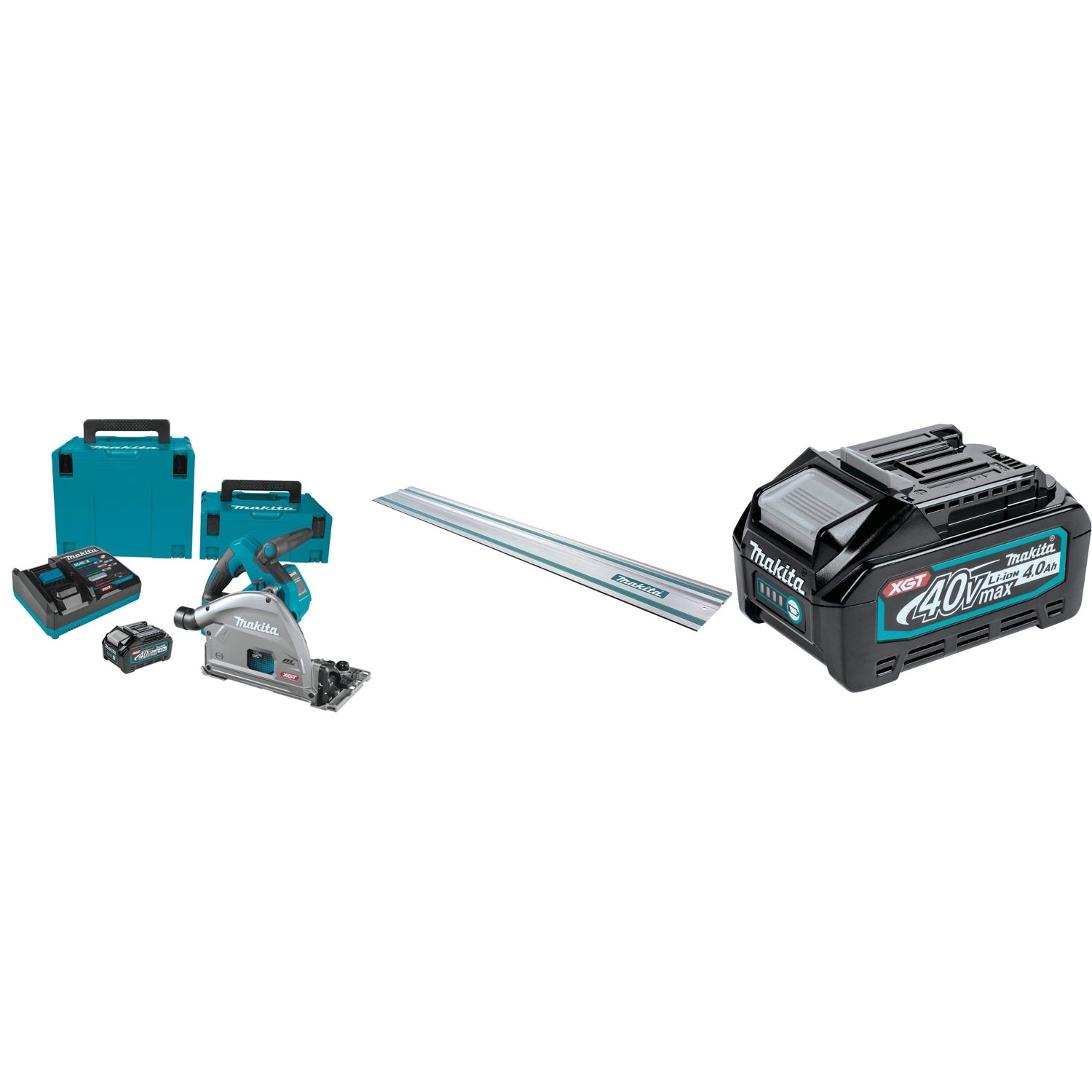

What's in the Box
- Makita GPS01M1J 40V max XGT Brushless Cordless 6-1/2-in Plunge Track Saw, AWS Capable, 4.0Ah Kit
- Makita 194368-5 55 in. Guide Rail for Track Saws
- Makita BL4040 40V max XGT 4.0Ah Battery
- Charger
- Makita case(s) as shown with the kit
AWS transmitter and dust extractor are sold separately. The saw includes a wood blade; other material-specific blades are sold separately.
Key Specifications
| Voltage (V) | 40V max XGT |
|---|---|
| Blade Diameter | 6-1/2 in. |
| No-Load Speed (RPM) | 2,500 - 4,900 RPM |
| Cutting Capacity at 90° | 2-3/16 in. |
| Cutting Capacity at 45° | 1-9/16 in. |
| Bevel Range | -1° to 48° |
| Guide Rail Length | 55 in. |
| Battery Capacity | 4.0Ah |
Compatibility
Built For
Pro Tip
When you're cutting melamine or prefinished panels, use the built-in shallow scoring stop first, then make the full pass. It takes an extra step, but it pays you back with a cleaner edge and less chip-out.
Warranty & Support
Tool Nut's Take
Serious cordless track-saw setup, not a stripped-down starter kit
The Makita 40V max XGT Brushless Cordless 6-1/2-in Plunge Track Saw, AWS Capable, 4.0Ah Kit with 55 In. Guide Rail for Track Saws and 40V max XGT 4.0Ah Battery makes sense for buyers who want clean results and want the rail included from day one.
- Who it's for: Cabinet installers, finish carpenters, remodelers, and woodworkers cutting sheet goods where edge quality and fit matter.
- Why it stands out: You get the plunge saw, the 55 inch rail, XGT battery power, and AWS capability in one package, plus a useful mix of capacity, bevel range, and variable speed.
- Worth knowing: If wireless dust extraction is part of the plan, the AWS transmitter is still a separate purchase, and specialty blades for materials beyond wood are sold separately.
Common Questions
- What type of tool is this? This is a cordless plunge track saw designed for straight, accurate cutting with a guide rail system.
- What materials is it intended to cut? Makita lists large wood panels, wood materials including melamine and MDF, aluminum, and Corian when paired with the appropriate material-specific blade.
- Does it support dust extraction? Yes. It has a large rear dust port for vacuum connection and it is AWS capable for wireless communication with a compatible dust extractor.
- What is the bevel range? The saw bevels from negative 1 degree to 48 degrees, with positive stops at 22.5 degrees and 45 degrees.
