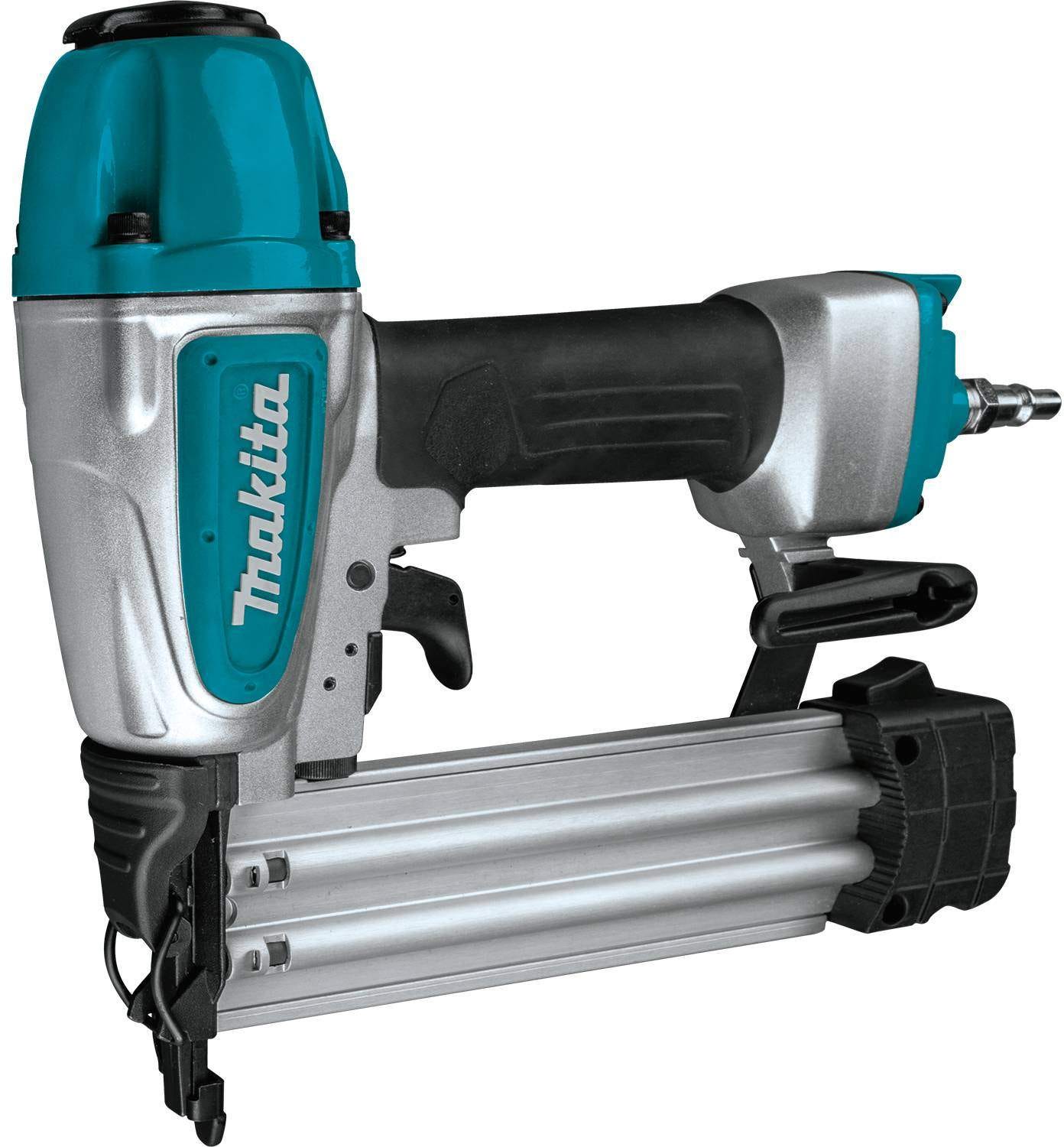

The Makita AF506 18 Gauge 2-inch Brad Nailer is a pneumatic finish nailer built for trim carpenters, remodelers, cabinet installers, and serious DIY users who want clean fastening without hauling around a heavier framing-style tool. This is a pneumatic brad nailer designed for trim installation, molding, flooring detail work, and finish fastening in wood. Model Number: AF506. It drives 18 gauge brad nails from 5/8 inch to 2 inches, which gives it enough range for delicate trim pieces as well as thicker finish materials.

On the job, that nail range matters. Shorter brads help when you need holding power without blowing through thin material, while the 2 inch capacity gives you more bite for baseboard, casing, and crown work. Makita rates the AF506 for use in hard or soft wood, so it is not limited to one type of interior finish work. The side-loading magazine holds up to 100 nails, which helps keep production moving, and the dual nail reload indicator windows make it easier to spot when you are getting low before you start dry-firing blanks into a workpiece.

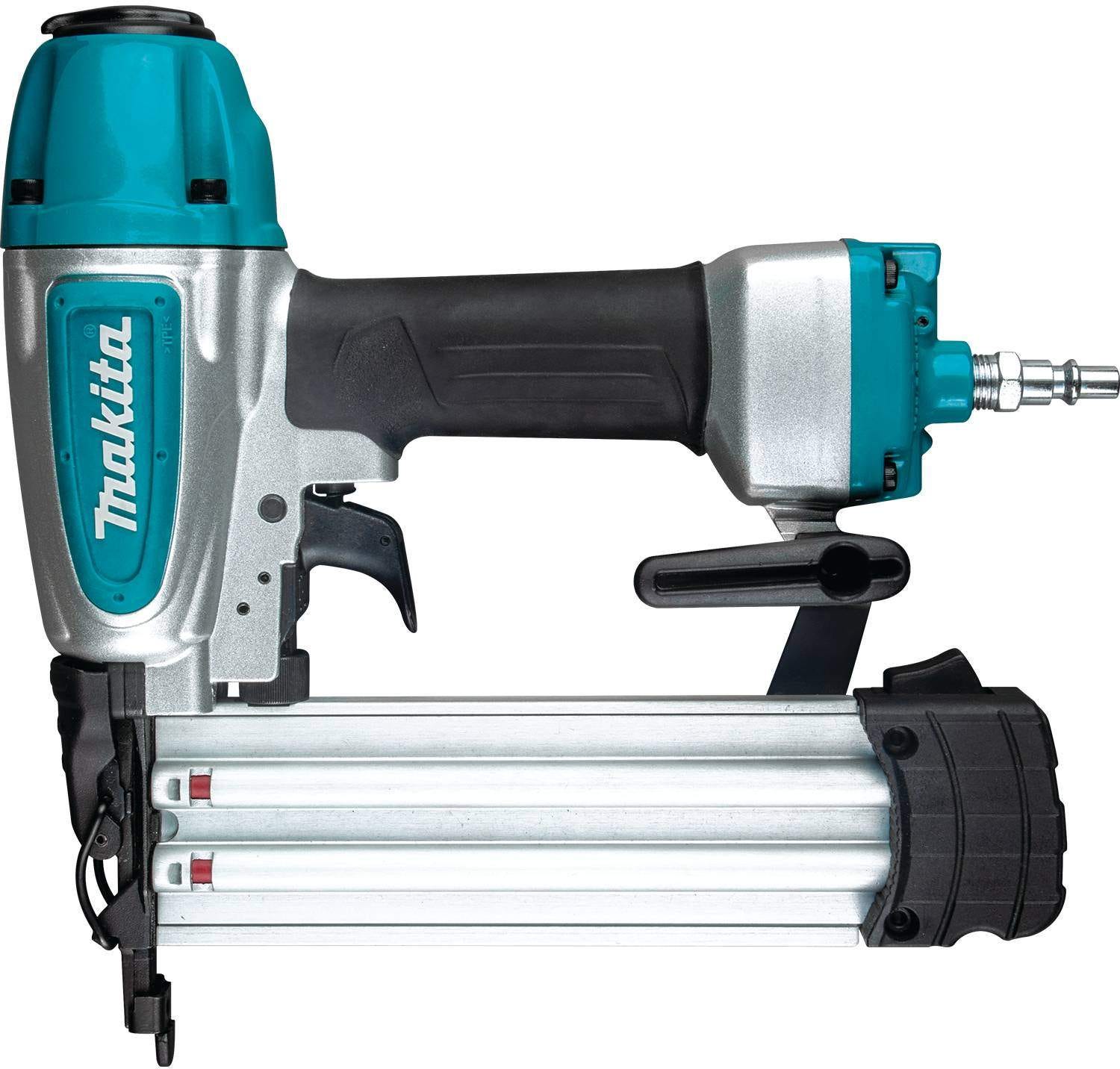

Makita kept this one compact and practical. The aluminum body, magazine, and cylinder are there for a reason: you get a tool that weighs only 2.9 lbs without feeling flimsy. That lower weight pays off fast when you are installing long runs of trim, reaching into corners, or working overhead on crown. The narrow nose design is another real-world feature, not brochure filler. It gives you better access in tight spots where a bulkier nose would force awkward angles or extra hand finishing.

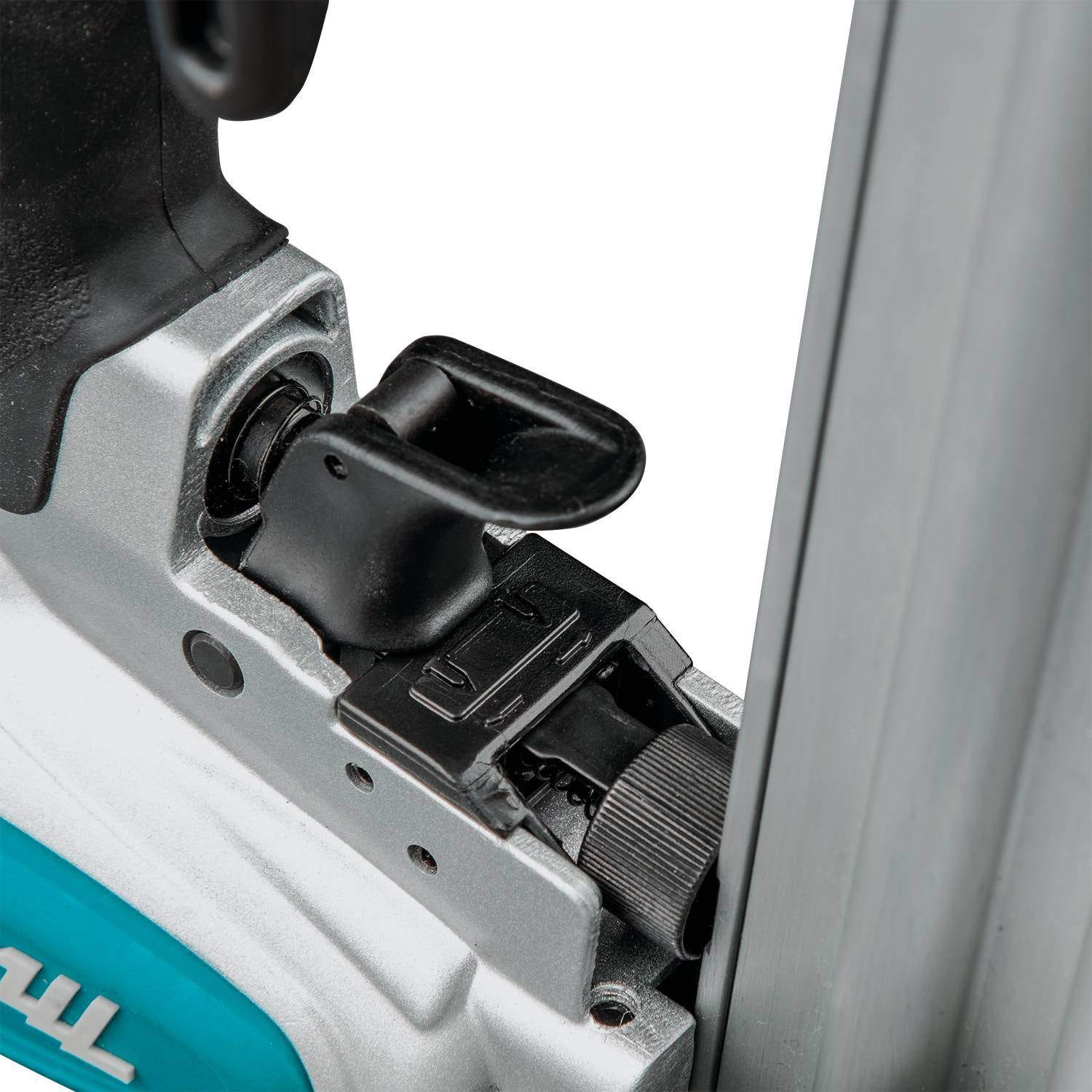

Precision features are where the AF506 separates itself from bare-bones air nailers. The cast and machined nose piece is built for accurate contact at the work surface, while the non-marring rubber nose and housing bumpers help protect finished wood from dents and scuffs. If you are doing painted trim, stained moldings, or prefinished materials, that protection matters. The tool-less depth adjustment dial makes it easier to tune the drive for different wood density and material thickness, so you are not constantly overdriving or leaving nails proud.

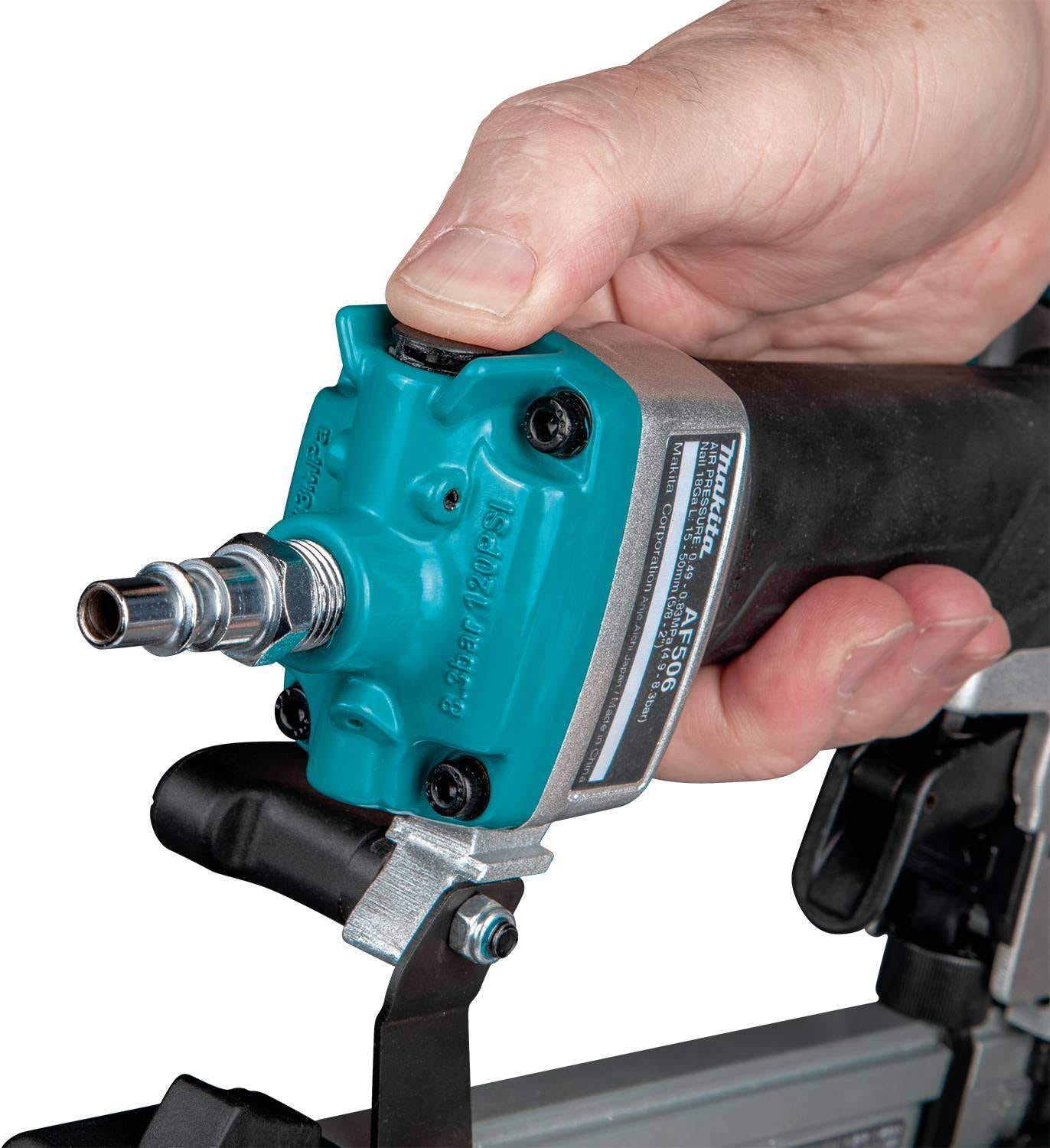

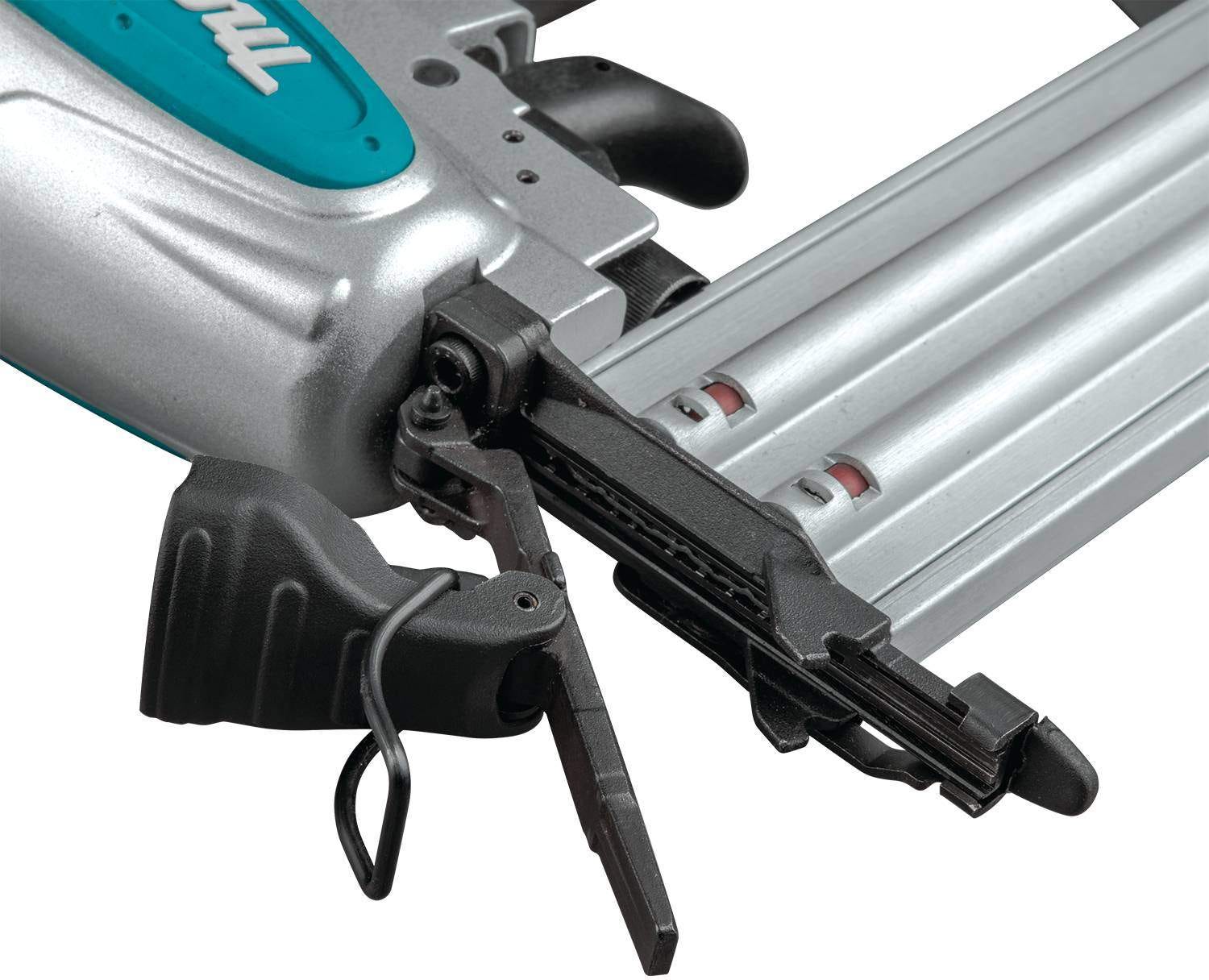

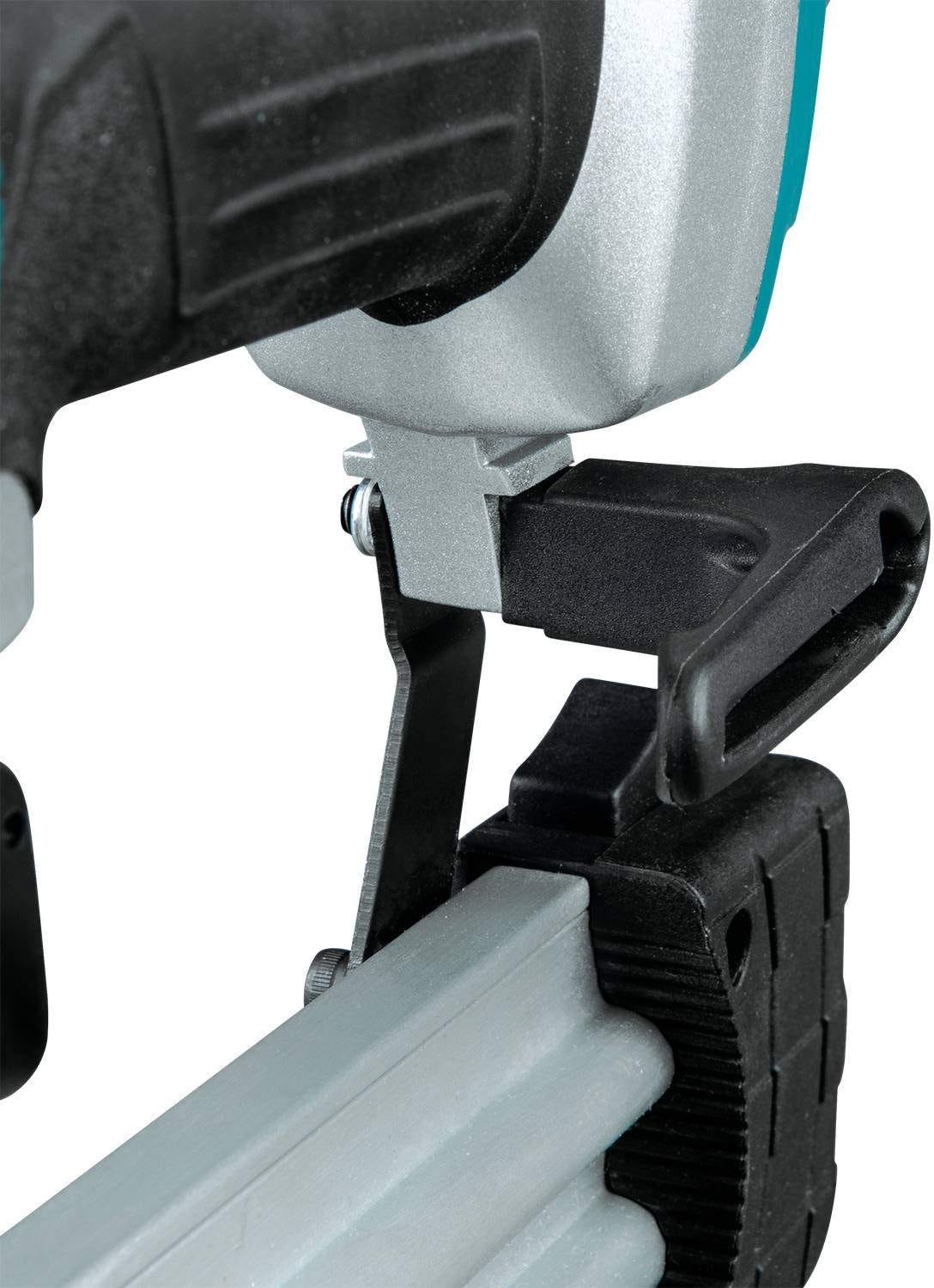

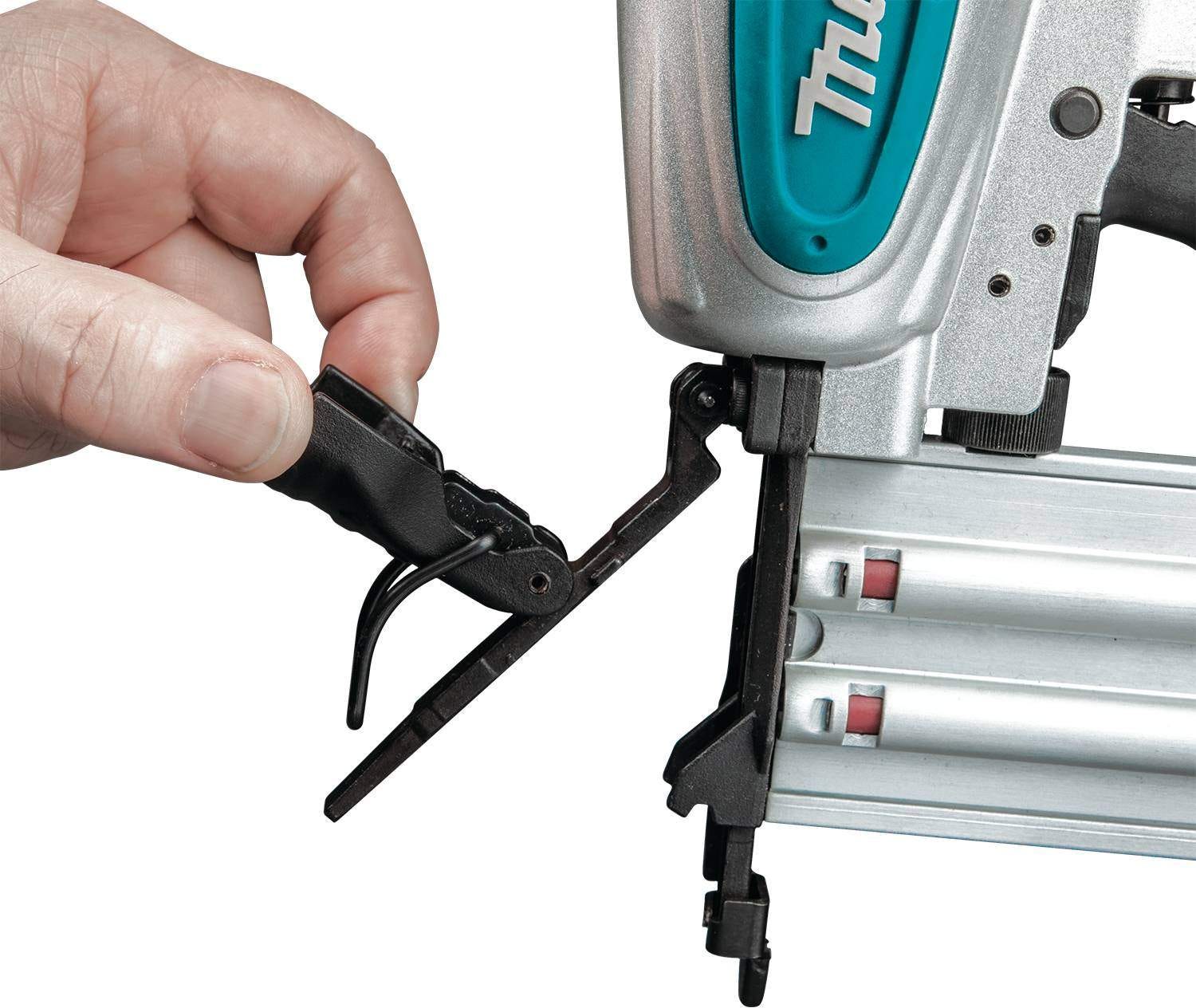

Makita also added the kind of convenience features that save time over the course of a day. The built-in air duster gives you a quick way to clear dust and chips from the work area before setting the next piece or checking your layout line. The tool-less easy-to-clear nose helps speed up nail extraction when a jam happens. A reversible belt hook keeps the tool close when you are climbing a ladder, moving between cuts, or installing room-to-room trim. The multi-directional exhaust port rotates 360 degrees so you can direct exhaust air away from your face and away from the surface you are working on.

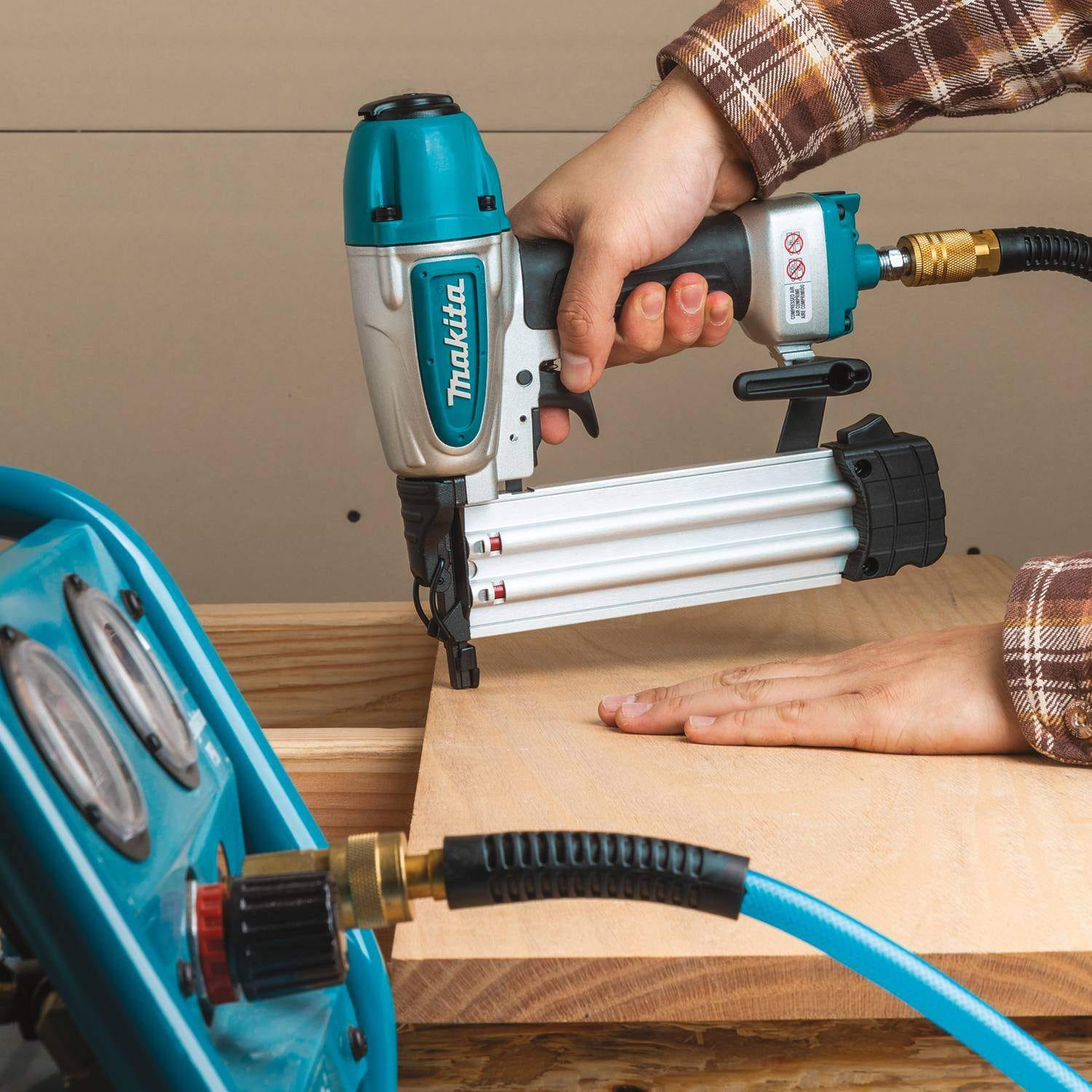

For air supply, the AF506 operates from 70 to 120 PSI and uses a 1/4 inch NPT inlet. Makita recommends a minimum air delivery of 1.5 SCFM at 90 PSI. That makes it a straightforward fit for common finish-tool compressor setups, provided your compressor can maintain the demand. Since this is a pneumatic nailer, there is no battery platform to worry about, no charger to keep track of, and no extra weight from onboard power. If your workflow already centers around an air compressor, this kind of tool stays light, simple, and ready to run.

The Makita AF506 18 Gauge 2-inch Brad Nailer makes the most sense for finish carpentry and woodworking users who care about clean results, low weight, and easy control. It is especially well suited for trim work, baseboard and crown molding installation, flooring detail, and general interior wood fastening. If you need a compact 18 gauge brad nailer that covers the common finish-nailing range and includes the useful features pros actually notice, this one is an easy choice.

Makita AF506 18 Gauge 2-inch Brad Nailer Gets the Important Stuff Right

This is the kind of finish nailer that earns its spot by being light, simple to adjust, and easy to trust on finished material.

• Who it's for: Trim carpenters, remodelers, flooring installers, cabinet crews, and DIY users who want a dedicated pneumatic brad nailer for clean interior wood fastening.
• Why it stands out: The combination of 5/8 inch to 2 inch nail capacity, 2.9 lb weight, narrow nose, tool-free depth adjustment, and built-in air duster makes it more useful day to day than stripped-down entry models.
• Worth knowing: This is an air tool, so you need a compressor and hose setup. If you already run pneumatic finish tools, that is actually a plus because you get lighter weight and no battery bulk.

• What fasteners does the AF506 use? It uses 18 gauge brad nails from 5/8 inch to 2 inches.
• Is this a cordless or pneumatic nailer? It is a pneumatic nailer and operates on 70 to 120 PSI air pressure.
• How many nails does the magazine hold? The side-loading magazine holds up to 100 nails.
• Is it suitable for finished trim and molding? Yes. It is designed for trim work, baseboard, crown molding, flooring, and other woodworking applications, and it has non-marring contact surfaces to help protect the workpiece.
