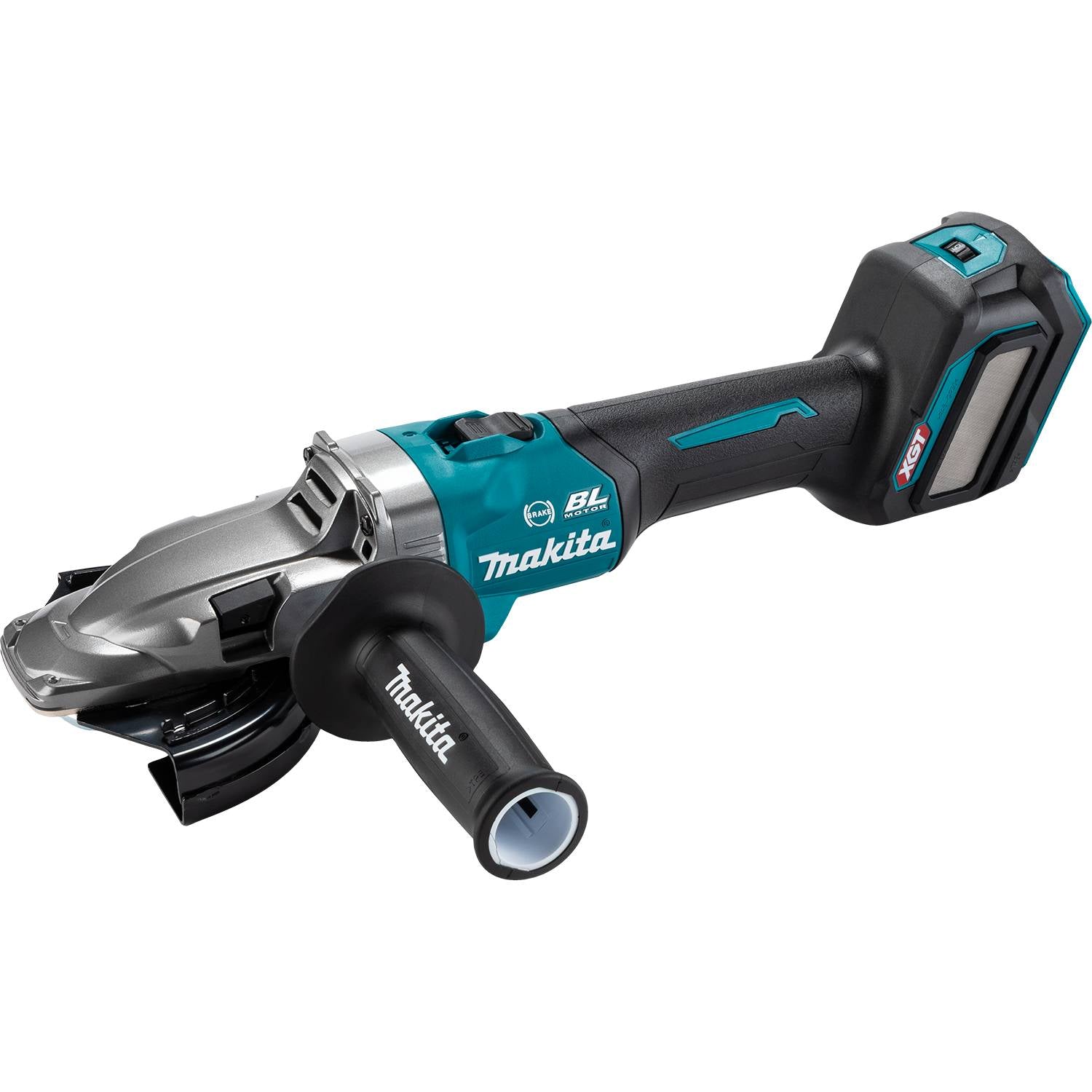

Makita 40V max XGT Brushless 5-in. Slide Switch Flathead Grinder, Variable Speed, with Electric Brake, Tool Only (GAG15Z)
Makita 40V max XGT Brushless 5-in. Slide Switch Flathead Grinder, Variable Speed, with Electric Brake, Tool Only (GAG15Z)
Out of Stock - Available to Order - Usually ships in 12-18 days
Product Details
Product Details
Key Features
Overview
The Makita GAG15Z 40V max XGT Brushless Cordless 5" Slide Switch Flathead Grinder, Variable Speed, with Electric Brake, Tool Only is a cordless flathead grinder built for metal grinding and cut-off work where access is tight and a standard grinder head gets in the way. This is a flathead grinder designed for grinding, weld cleanup, and cut-off work in confined spaces. Model Number: GAG15Z. If you already run Makita XGT batteries, this tool is aimed at users who need cordless mobility with corded-class output.
Makita rates it to deliver the power of a 13 amp corded grinder, and the feature set backs that up in practical use. The variable 5-speed dial gives you selectable no-load speeds of 3,000, 4,500, 6,000, 7,500, and 9,000 RPM, so you are not stuck with one speed for every task. That is useful when switching between heavier grinding, deburring, surface cleanup, and cut-off wheel work where control matters just as much as raw speed.
The main reason to buy this model over a more typical grinder is the low-profile 39° flathead design. Makita claims over 45% more access in tight spaces, and that is the whole point of this tool. It is built for places where clearance is limited around steel framing, pipe, railing, automotive work, fab tables, or inside assemblies where the body of a regular grinder would hit before the wheel reaches the work.
Makita also did the jobsite convenience stuff right. The slide switch includes lock-on for continuous operation, which is helpful during longer passes. The tool-less wheel guard speeds up guard changes and adjustments, so you are less likely to waste time digging for a wrench just to reposition the guard. The removable dust cover and Extreme Protection Technology are there for the real world too, especially if the tool sees regular use in dirty metalworking or general construction conditions.
On the protection side, the GAG15Z includes an electric brake for faster wheel stop, anti-restart protection so the tool does not fire back up when a battery is inserted with the switch locked on, and Active Feedback-Sensing Technology that shuts the motor off if wheel rotation is suddenly forced to stop. There is also an electronic current limiter to help protect the motor in high torque applications. Those are not throwaway features on a grinder. They directly affect control, safety, and how well the tool holds up under hard use.
This grinder runs on the Makita 40V max XGT platform and uses Makita 40V max XGT lithium-ion batteries only. The brushless motor and XGT digital communication system are designed to optimize power delivery and monitor overload, over-discharge, and overheating. For buyers already invested in XGT, that means this tool fits into a serious cordless platform made for high-demand applications rather than light-duty occasional use.
At 16-3/4 inches overall length with a 5 inch wheel capacity and 5/8 inch - 11 UNC spindle, the Makita GAG15Z sits in a practical sweet spot for fabrication, maintenance, field installs, and punch-list grinding where reach and control matter more than a big 7 inch grinder. It is not the one to buy if you need a complete ready-to-run kit out of the box, because this is a bare tool and the battery and charger are sold separately. It is the right pick for pros and serious DIY users who already own XGT packs and need a purpose-built cordless grinder for tight access metal work.
Reach Places a Standard Grinder Cannot
The flathead layout is the reason this tool exists. When you need the wheel to get down into narrow spots without the gear housing getting in the way, this design makes the job a lot easier.
- Low-profile 39° flathead design for increased access
- Over 45% more access in tight spaces compared to standard designs
- 5 inch wheel capacity keeps it useful for common grinding and cut-off tasks
Control the Cut and Keep Moving
This is the kind of grinder that lets you match the tool to the work instead of forcing every job at one speed. Add the electric brake and lock-on slide switch, and it is set up for steady production work.
- Five speed settings: 3,000 / 4,500 / 6,000 / 7,500 / 9,000 RPM
- Electric brake helps reduce downtime between passes
- Slide switch with lock-on is useful for longer grinding sessions
What's in the Box
- Makita GAG15Z 40V max XGT Brushless Cordless 5 inch Slide Switch Flathead Grinder
- 5 inch Tool-Less Wheel Guard (1411A3-9)
- 5 inch Tool-Less Cut-Off Wheel Guard (1411A1-3)
- Inner Flange (224639-7)
- Lock Nut (224486-6)
- Side Handle (141J72-7)
- Side Handle Adapter (327405-2)
Battery, charger, and grinding wheel are not included.
At a Glance
Key Specifications
| Wheel Diameter | 5 in. |
|---|---|
| No-Load Speed (RPM) | 3,000 / 4,500 / 6,000 / 7,500 / 9,000 RPM |
| Voltage (V) | 40V max |
| Motor Type | Brushless |
| Spindle Thread Size | 5/8 in. - 11 UNC |
| Overall Length | 16-3/4 in. |
| Weight (lbs) | 7.72 lbs |
| Electric Brake | Yes |
Compatibility
Built For
Pro Tip
If you are switching between weld cleanup and cut-off wheel work, take advantage of the 5-speed dial instead of running full speed all day. Slowing the grinder down when you need more control can make the flathead design even easier to manage in cramped spots.
Warranty & Support
Tool Nut's Take
Makita GAG15Z 40V max XGT Brushless Cordless 5" Slide Switch Flathead Grinder for Real Tight-Access Work
If tight clearance is the problem, this grinder is the answer. You are getting corded-class power, real speed control, and a head design that solves a problem a standard grinder usually cannot.
- Who it's for: Metal fabricators, installers, maintenance techs, and Makita XGT users who routinely grind or cut in hard-to-reach areas.
- Why it stands out: The 39° flathead design is the big deal here, and Makita backed it up with variable speed, electric brake, AFT, anti-restart protection, and tool-less guard adjustments.
- Worth knowing: This is a bare tool, so you need an XGT battery and charger if you do not already own them. It is also a purpose-built 5 inch grinder, not a replacement for every larger grinder on the truck.
Common Questions
- What battery platform does this grinder use? It is compatible with Makita 40V max XGT lithium-ion batteries only.
- Does this grinder have variable speed? Yes. It has a 5-speed control dial with settings at 3,000, 4,500, 6,000, 7,500, and 9,000 RPM.
- Does it include an electric brake? Yes. The GAG15Z is equipped with an electric brake for faster wheel stop.
- What size wheel does it use? This grinder is designed for 5 inch wheels and uses a 5/8 in. - 11 UNC spindle.
