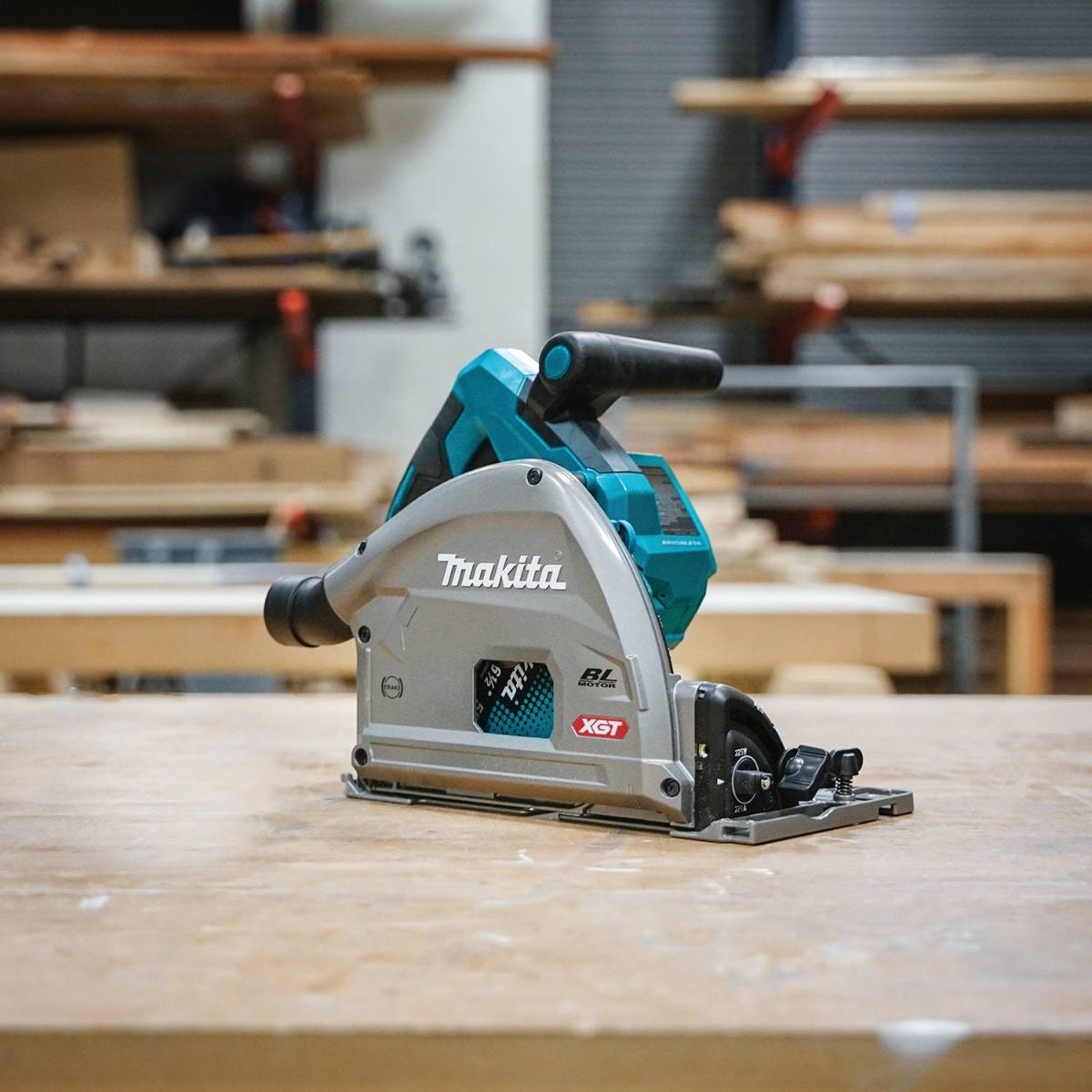

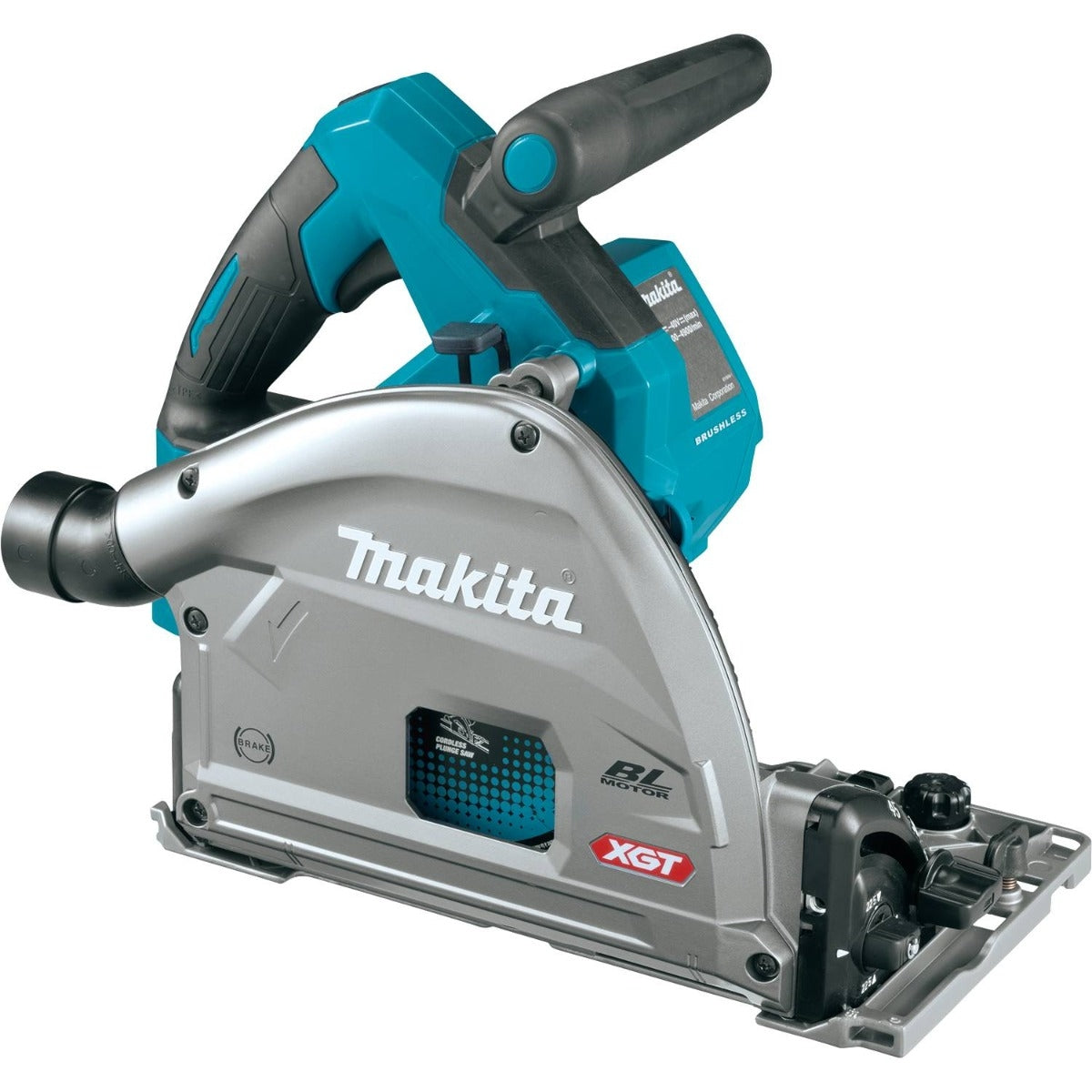

Makita GPS01Z 40V max XGT Brushless Cordless 6-1/2" Plunge Circular Saw, AWS Capable, Tool Only
Makita GPS01Z 40V max XGT Brushless Cordless 6-1/2" Plunge Circular Saw, AWS Capable, Tool Only
Out of Stock - Available to Order - Usually ships in 12-18 days
Product Details
Product Details
Key Features
Overview
Makita GPS01Z 40V max XGT Brushless Cordless 6-1/2 Inch Plunge Circular Saw, AWS Capable, Tool Only is a cordless plunge-cut saw built for accurate sheet-good cutting, finish work, and controlled straight-line cuts with an optional guide rail. This is a plunge circular saw designed for precise panel cutting, trim work, and clean bevel cuts. Model Number: GPS01Z. It is a strong fit for cabinet installers, remodelers, finish carpenters, and serious woodworkers who want track-saw-style accuracy on the Makita XGT platform.
The big story here is control. Makita pairs a brushless motor with a variable speed range of 2,500 to 4,900 RPM, Automatic Speed Change Technology, constant speed control, soft start, and an electric brake. On the job, that means the saw can stay composed when the material changes, start smoother at the line, and stop quickly when the cut is done. If you are cutting plywood, MDF, melamine, or laminate where a rough entry or wandering blade can ruin the piece, those features are not fluff. They directly affect cut quality.

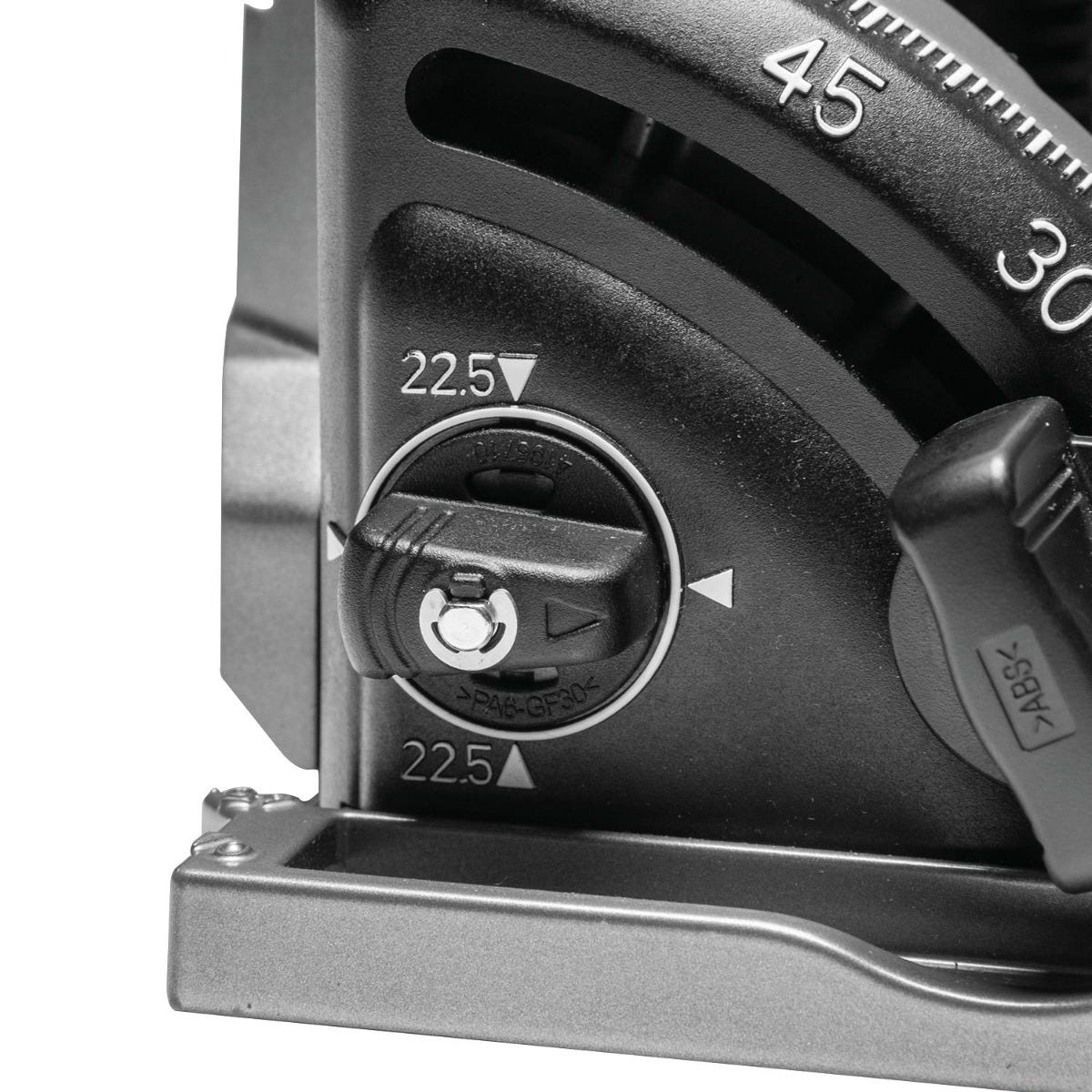

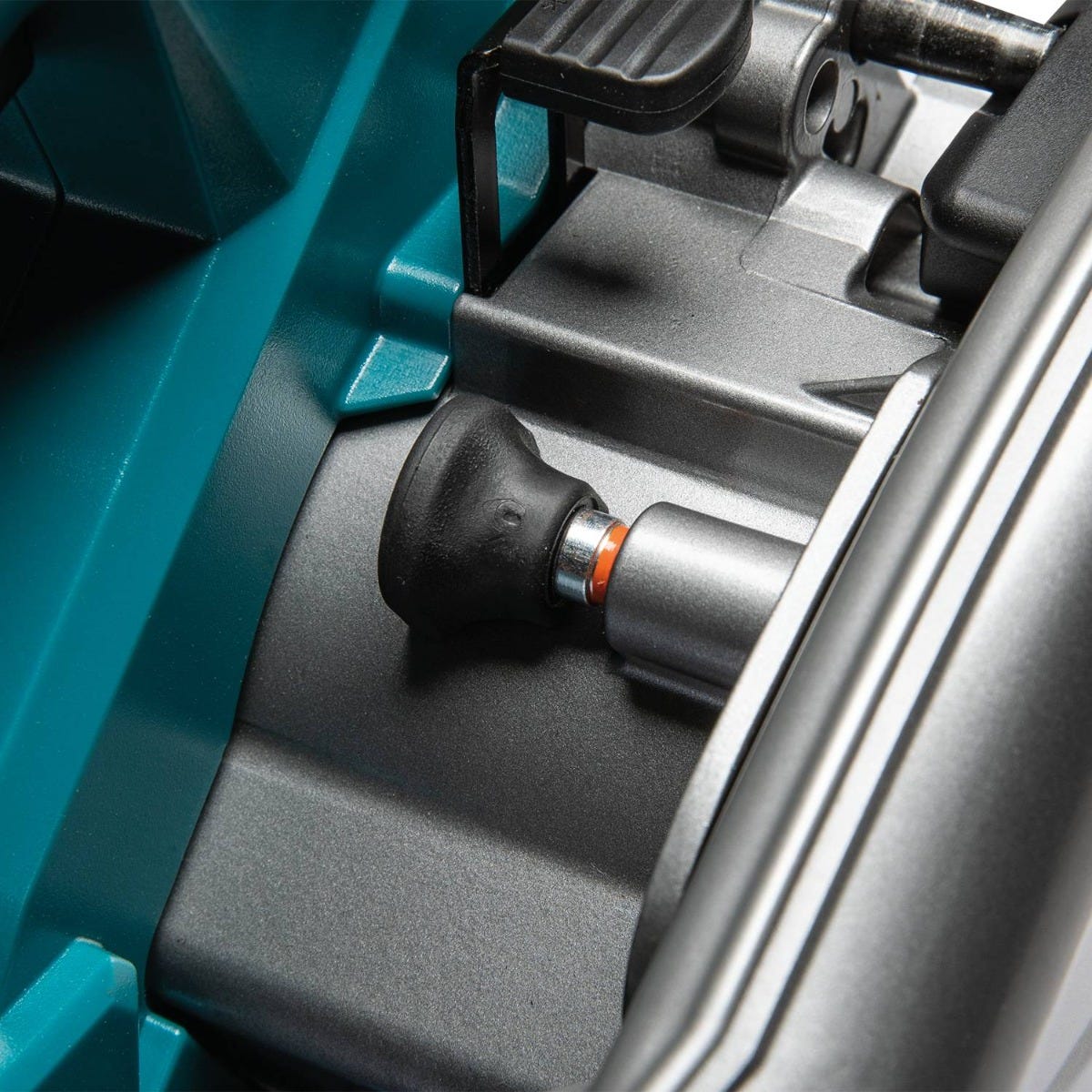

Capacity is another reason this saw stands out. You get a maximum cutting capacity of 2-3/16 inches at 90 degrees and 1-9/16 inches at 45 degrees, plus bevel capability from -1 degree to 48 degrees with positive stops at 22.5 and 45 degrees. That gives the tool enough range for panel work, bevel cuts, and trim applications without feeling like a one-trick specialty saw. Makita also includes a built-in depth stop that allows a shallow scoring cut from 2 mm to 3 mm before the full pass, which is especially useful for reducing splintering on finished surfaces.
The design is clearly aimed at clean, repeatable work. Dual front and rear bevel supports add rigidity for more accurate bevel cuts, and the plunge release lever is built for smoother operation. Makita also calls out close-to-wall cutting capability of 11/16 inch, which helps when you are working near vertical surfaces or trying to make the most of limited clearance. The onboard hex wrench and locking lever for blade position make blade changes less of a hassle than on many saws in this class.

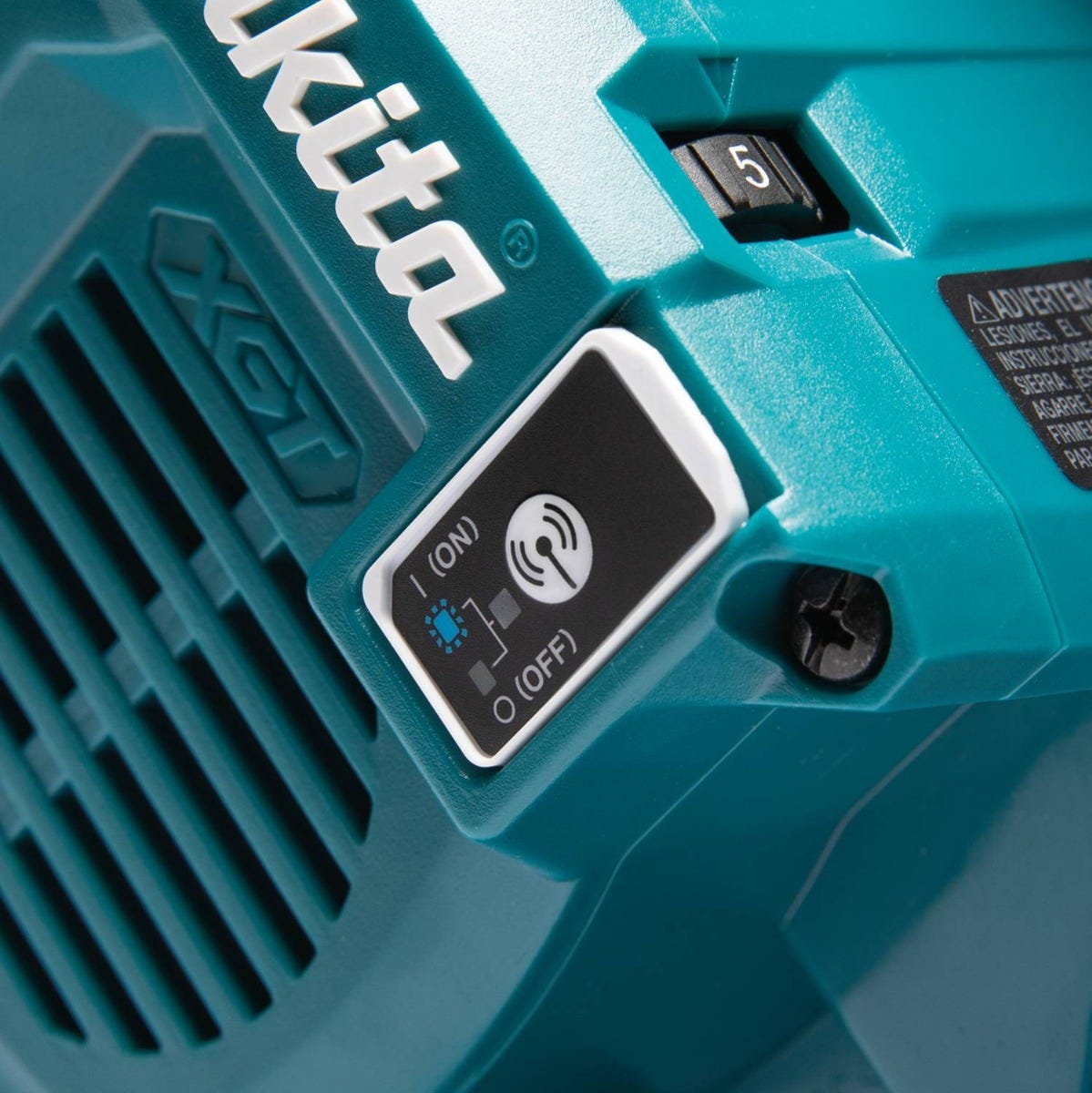

Dust handling is jobsite-friendly too. The rear dust port measures 1-7/16 inches and is built to direct material away from the operator while connecting easily to a vacuum system. On top of that, the saw is AWS capable, so with the separately sold Auto-start Wireless Transmitter and a compatible dust extractor, the saw can trigger dust extraction wirelessly through Bluetooth communication. If you cut indoors, in finished spaces, or in a shop where dust control matters, that is a genuinely useful feature.
As part of the Makita 40V max XGT system, this cordless circular saw is made to work with Makita XGT lithium-ion batteries and chargers. Makita positions XGT as its high-demand cordless platform, with digital communication that helps manage overload, over-discharge, and overheating. For users already on XGT, this bare tool makes sense because you can add a precision plunge saw without buying into another battery system. For users not on XGT yet, keep in mind this is tool only, so battery and charger are sold separately.

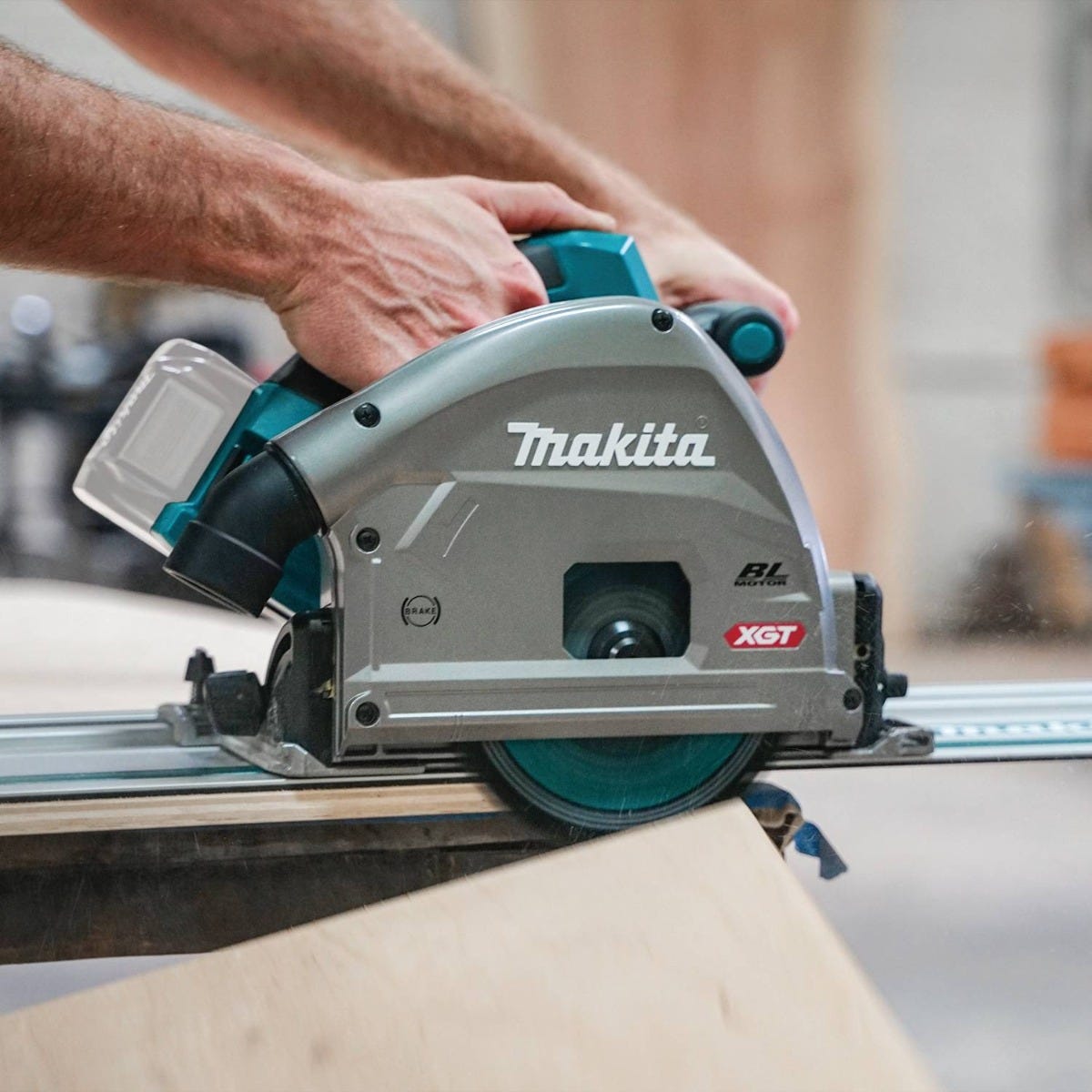

This saw is best for users who care more about cut quality, straight tracking, and clean finished results than raw framing speed. If you regularly cut large panels, melamine, MDF, laminate, aluminum, or Corian with the proper blade, the Makita GPS01Z gives you the features that matter: controlled plunge action, scoring-cut capability, bevel precision, dust collection integration, and guide rail compatibility. It is not trying to replace a rough carpentry sidewinder. It is built for cleaner, more deliberate work.
Clean Cuts Without the Guesswork
This saw is built around precision features that help you get cleaner finished results, especially when working with sheet goods and surface-sensitive materials.

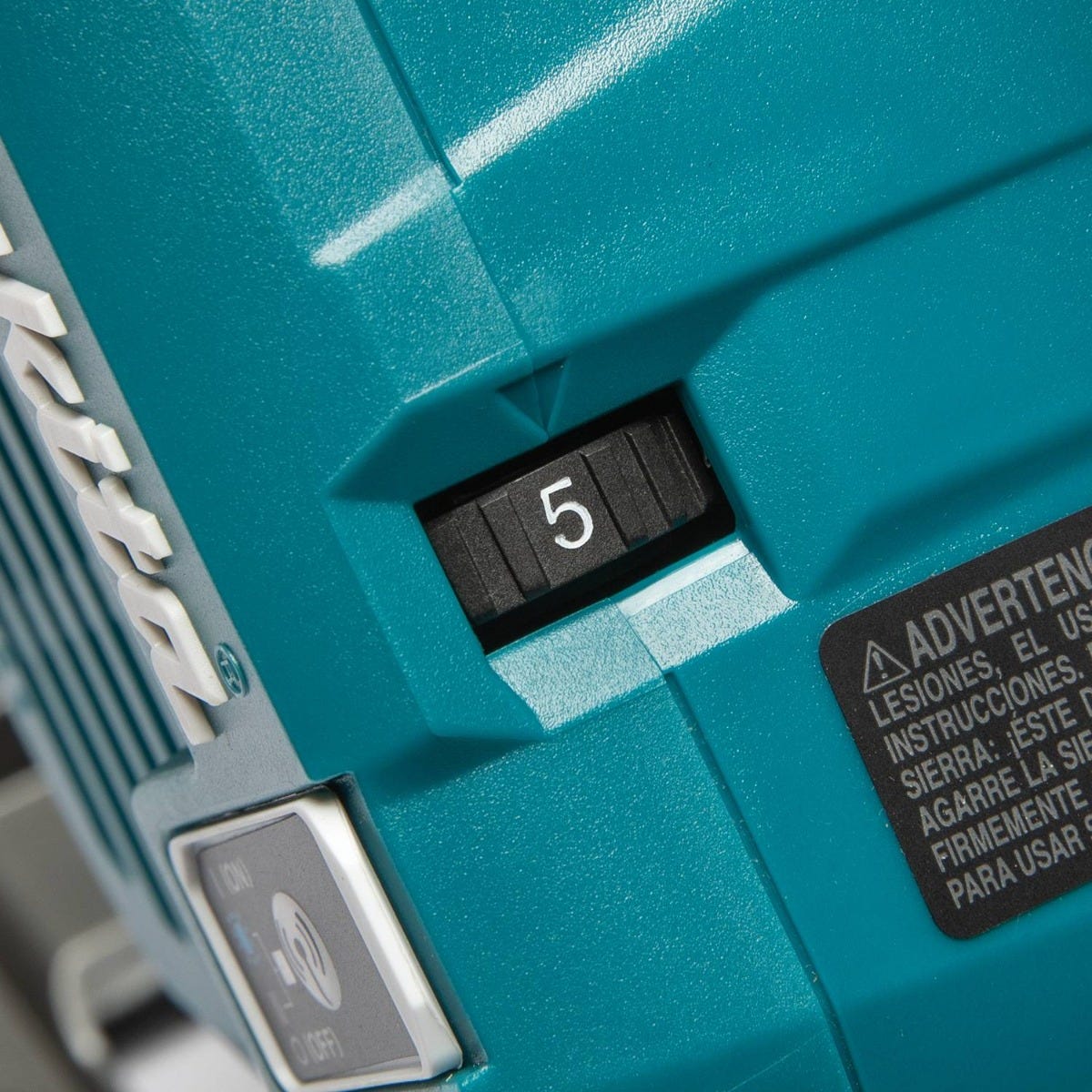

- Variable speed control dial from 2,500 to 4,900 RPM for matching blade speed to the material

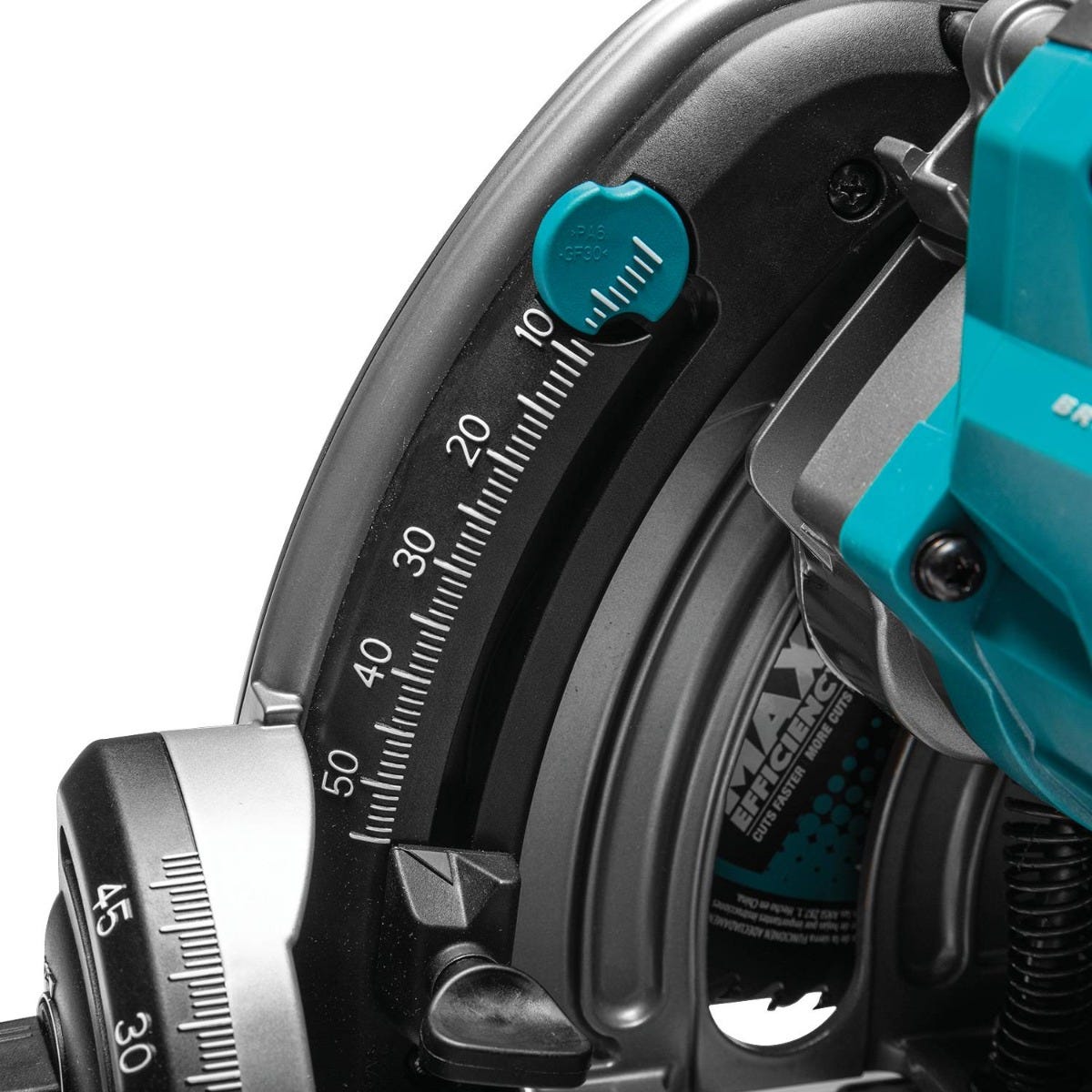

- Built-in scoring cut depth stop for shallow first passes that help reduce splintering

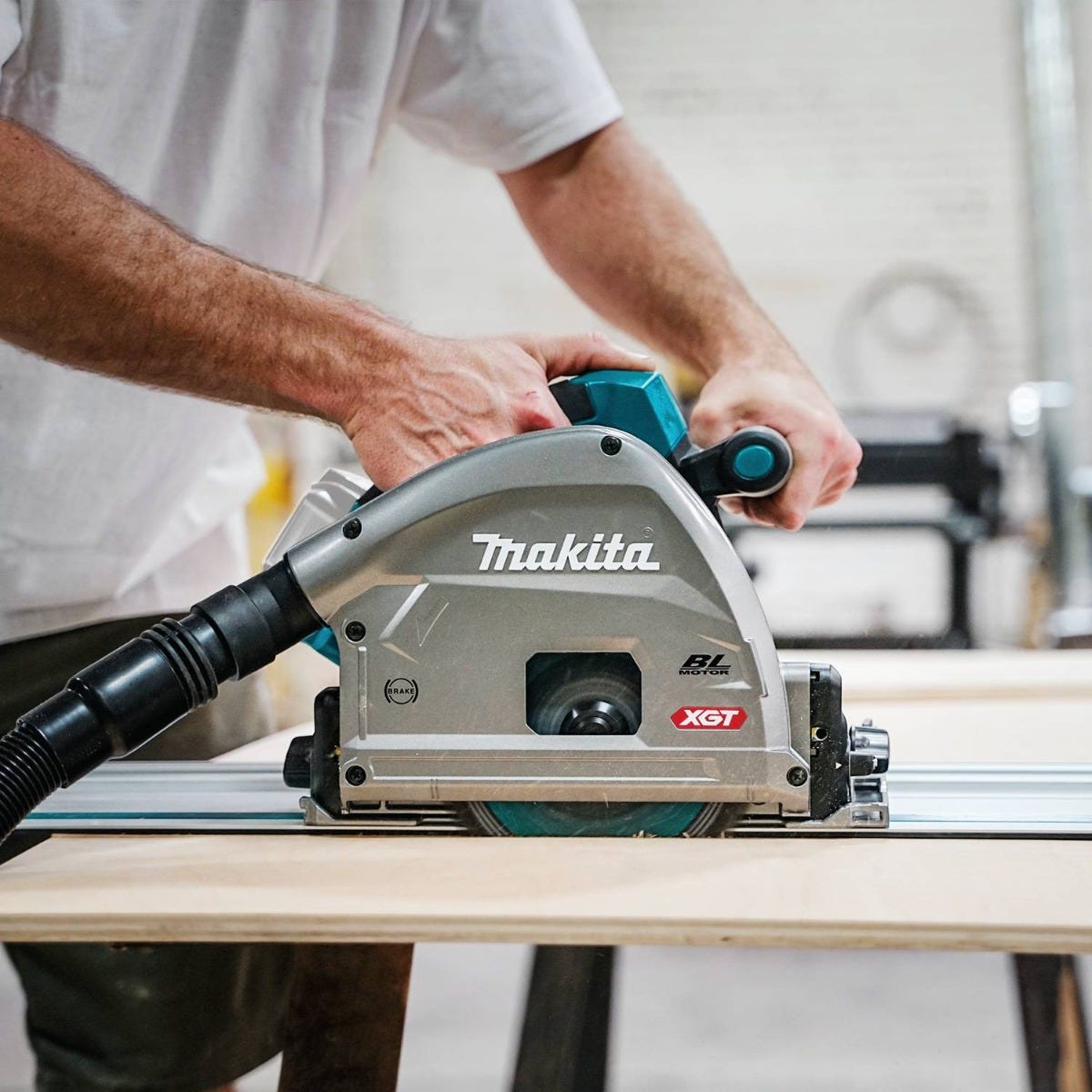

- Optional guide rail compatibility for straighter, more repeatable cuts with minimal tear-out
What's in the Box
- Makita GPS01Z 40V max XGT Brushless Cordless 6-1/2 Inch Plunge Circular Saw
- 6-1/2 Inch 56T C.T. plunge saw blade for wood, MDF, and laminate (B-57342)
- Hex wrench (783203-8)
Battery, charger, guide rail, dust extractor, and AWS transmitter are sold separately.
Key Specifications
| Blade Diameter | 6-1/2 in |
|---|---|
| Arbor Size | 20 mm |
| No-Load Speed (RPM) | 2,500 - 4,900 RPM |
| Cutting Capacity at 90° | 2-3/16 in |
| Cutting Capacity at 45° | 1-9/16 in |
| Bevel Range | -1° to 48° |
| Overall Length | 13-5/8 in |
| Weight (lbs) | 11 lbs |
| Voltage | 40V max |
| Motor Type | Brushless |
| Power Source | Cordless |
| AWS | Capable, transmitter sold separately |
Compatibility
Built For
Pro Tip
When you are cutting melamine, laminate, or other finish-sensitive panels, use the built-in shallow scoring stop first, then make the full-depth pass. It takes an extra step, but it is one of the easiest ways to keep the top face cleaner and reduce chip-out.
Warranty & Support
Tool Nut's Take
Makita GPS01Z 40V max XGT Brushless Cordless 6-1/2 Inch Plunge Circular Saw means clean work, not rough work
If your cuts need to look finished right off the saw, this is the kind of cordless plunge saw that earns its keep fast.
- Who it's for: Finish carpenters, cabinet installers, remodelers, and woodworkers cutting panels, trim parts, and bevels where accuracy matters more than brute-force framing speed.
- Why it stands out: Guide rail compatibility, scoring-cut depth stop, AWS dust integration, and a brushless motor with speed control give it the features that actually improve the cut.
- Worth knowing: This is a bare tool, so plan on buying the battery and charger if you are not already on Makita XGT. To use the wireless dust-start feature, the transmitter is separate too.
Common Questions
- Is this saw cordless or corded? It is a cordless plunge circular saw powered by the Makita 40V max XGT battery platform.
- Can it connect to dust extraction? Yes. It has a rear dust port for vacuum connection and it is AWS capable for wireless dust extractor control with the required separately sold transmitter and a compatible extractor.
- What materials is it intended to cut? Makita lists large wood panels, wood materials including melamine and MDF, aluminum, and Corian when used with the correct material-specific blade.

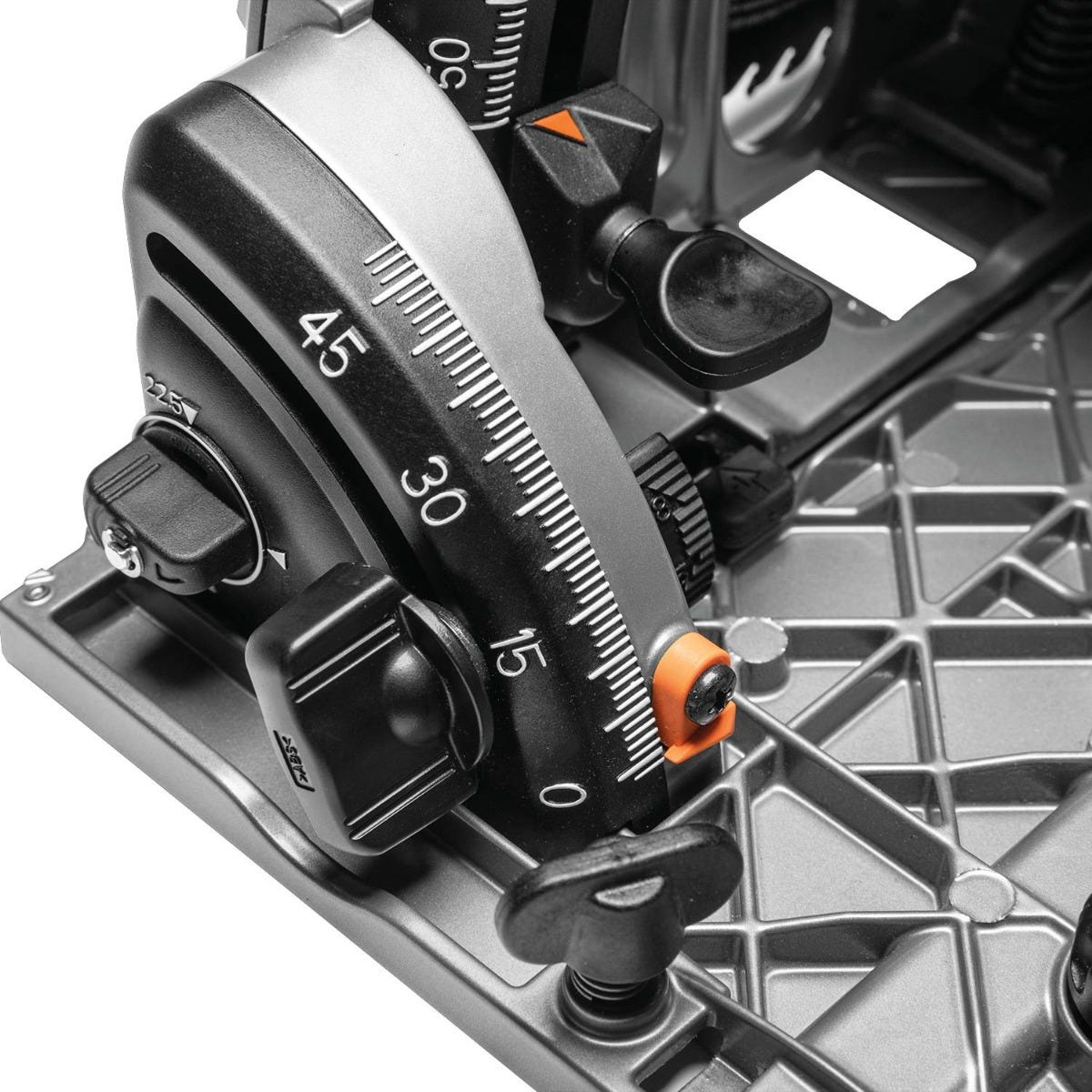

- Does it support bevel cuts? Yes. The saw bevels from -1 degree to 48 degrees and includes positive stops at 22.5 and 45 degrees.
