Makita 18V LXT X2 (36V) Brushless 7-1/4-in. Rear Handle Circular Saw 5.0Ah Kit (XSR01PT)
Makita 18V LXT X2 (36V) Brushless 7-1/4-in. Rear Handle Circular Saw 5.0Ah Kit (XSR01PT)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

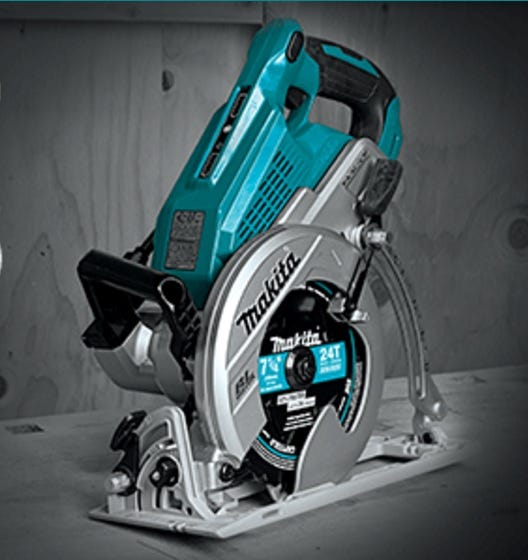

The Makita XSR01PT 36V (18V X2) LXT Brushless Rear Handle 7-1/4" Circular Saw Kit is a cordless rear handle circular saw kit built for framers, builders, roofers, and remodelers who want corded-style cutting performance on the Makita LXT platform. This is a circular saw designed for framing, sheet goods, and general jobsite cutting. Model XSR01PT includes the saw, two 18V 5.0Ah batteries, a dual-port charger, blade, wrench, and bag, so you are starting with a ready-to-work kit instead of piecing it together one part at a time.
What makes this saw matter on the job is the combination of power, capacity, and runtime. The electronically controlled Makita brushless motor delivers 5,100 RPM, which is right where a serious 7-1/4 inch framing saw needs to be for fast, clean cuts. Automatic Speed Change technology adjusts speed and torque during the cut, so the saw responds better when the material starts pushing back. Makita also rates it for up to 558 crosscuts in 2x4 SPF lumber and up to 291 crosscuts in 2x10 SPF lumber using the included pair of 5.0Ah batteries, which gives you a practical idea of how far a charge can go in real carpentry work.

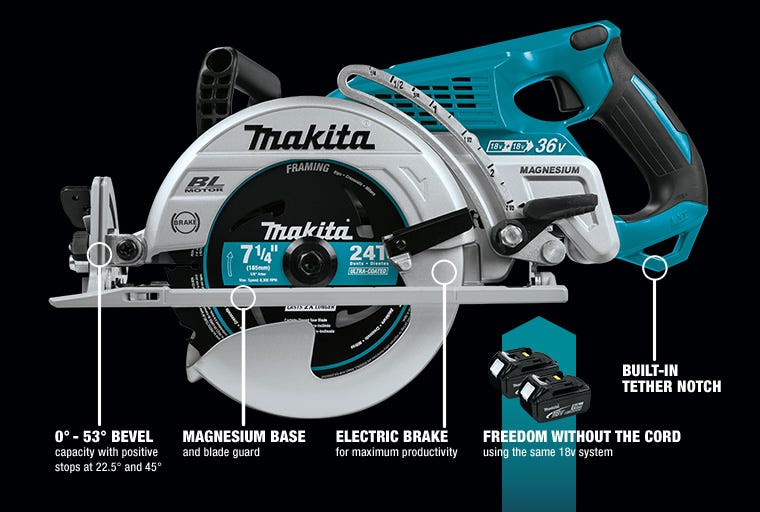

The rear handle, blade-left layout is a big part of the appeal here. If you are coming from a traditional corded framing saw, this setup feels familiar and gives right-handed users a clear view of the cut line. The 2-9/16 inch cutting capacity at 90 degrees means it will cut 3x material in a single pass, which is one of those specs that actually changes how quickly you work. Bevel capacity runs from 0 degrees to 53 degrees, with positive stops at 22.5, 45, and 53 degrees, so common roof, stair, and framing angles are faster to hit without fiddling around.
Makita did not build this one like a lightweight homeowner saw. The base and blade guard are die-cast magnesium, while the blade cover and motor housing are die-cast aluminum. That matters because it keeps the tool durable without turning it into a boat anchor. At 12.4 pounds with batteries and 17-1/2 inches overall length, it still has the size and stance you want in a rear handle saw, but it is manageable enough for all-day use. The electric brake helps speed up repetitive cuts, and the retractable extra-wide hook gives you a practical place to hang the saw when you are moving around a ladder, deck frame, or roof setup.
For rough jobsite conditions, Makita adds Extreme Protection Technology for improved dust and water resistance, plus Star Protection communication between tool and battery to help protect against overload, over-discharge, and overheating. There is also a built-in tether notch for crews working in elevated applications where dropped-tool planning matters. These are the kinds of details that do not sound flashy, but they are exactly what separates a serious trade saw from a basic cordless circular saw.
Platform-wise, this saw runs on Makita 18V LXT batteries using the 18V X2 setup, so you get 36V performance while staying inside the Makita 18V LXT cordless system. That is the real advantage for Makita users already invested in the platform: same battery family, same charger ecosystem, more output for heavier cutting. It is also compatible with Makita 18V LXT and Compact Lithium-Ion batteries that have the Star symbol, though this kit is set up with the two 5.0Ah packs most users will actually want for framing work.
If your work is mostly shelves, trim, and light punch-list stuff, this may be more saw than you need. But if you cut framing lumber, subfloor, roof decking, or sheet goods regularly and want a cordless rear handle circular saw that feels like a real jobsite tool, this is the right kind of upgrade. The Makita XSR01PT 36V (18V X2) LXT Brushless Rear Handle 7-1/4" Circular Saw Kit is built for users who value familiar rear-handle control, strong runtime, and staying on the Makita battery platform.
Rear-Handle Control for Framing Work
This saw is built around the handling style that framing crews already trust. The blade-left, rear-handle layout gives you better line of sight and a more natural push through long rips and repeated crosscuts.
- 7-1/4 inch blade size with 5/8 inch arbor fits a standard framing saw format
- 2-9/16 inch max depth at 90 degrees cuts 3x material in one pass
- 0 to 53 degree bevel range with stops at 22.5, 45, and 53 degrees
Ready-to-Run Kit, Not a Bare Tool
The kit format matters here because this saw is designed around an 18V X2 setup. You are getting the batteries and the dual-port charger needed to take advantage of the saw's intended performance and runtime right out of the box.
- Includes two 18V LXT 5.0Ah batteries for 36V class output through the X2 system
- Dual Port Rapid Optimum Charger charges both batteries at the same time
- Makita states the 5.0Ah packs can reach a full charge in 45 minutes or less

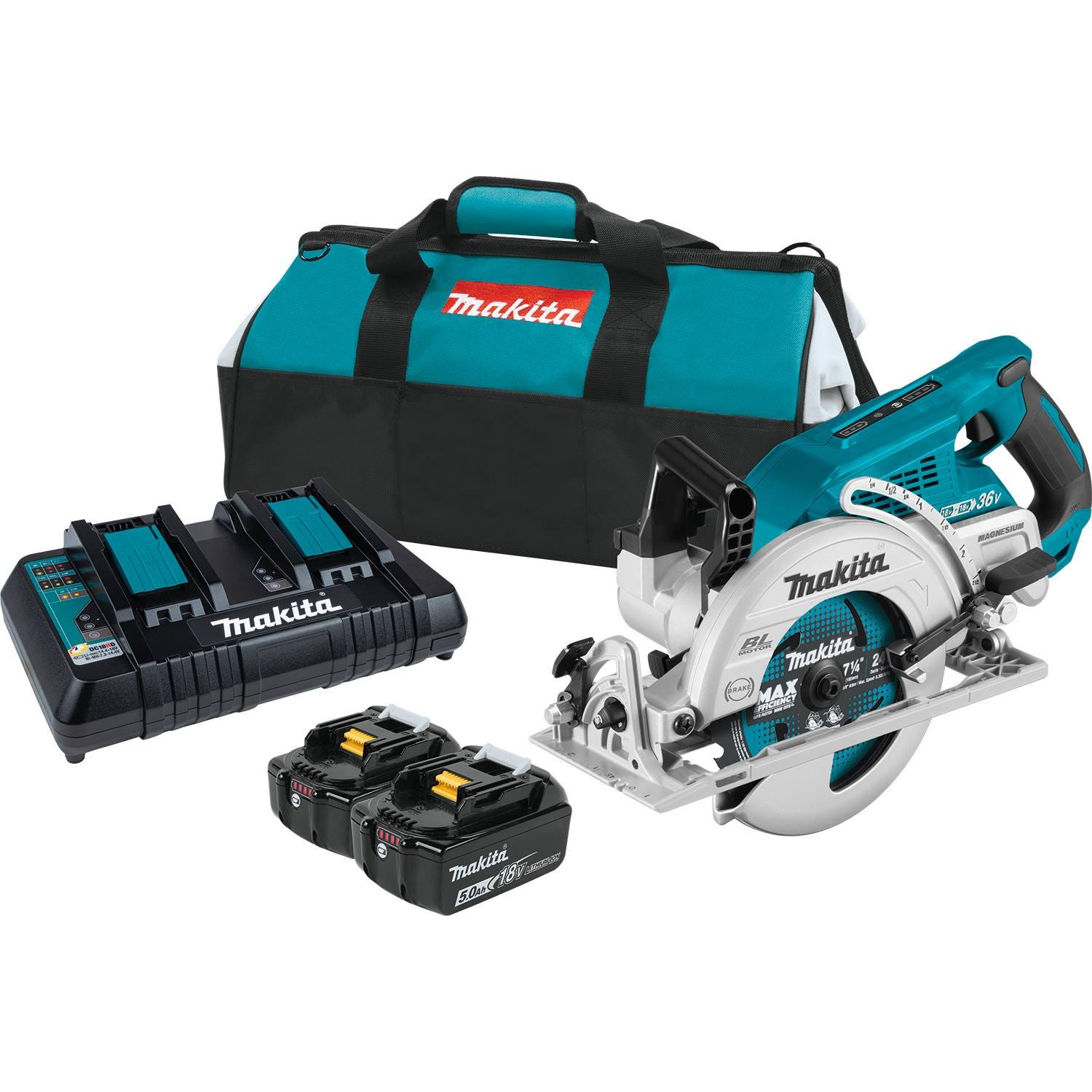

What's in the Box

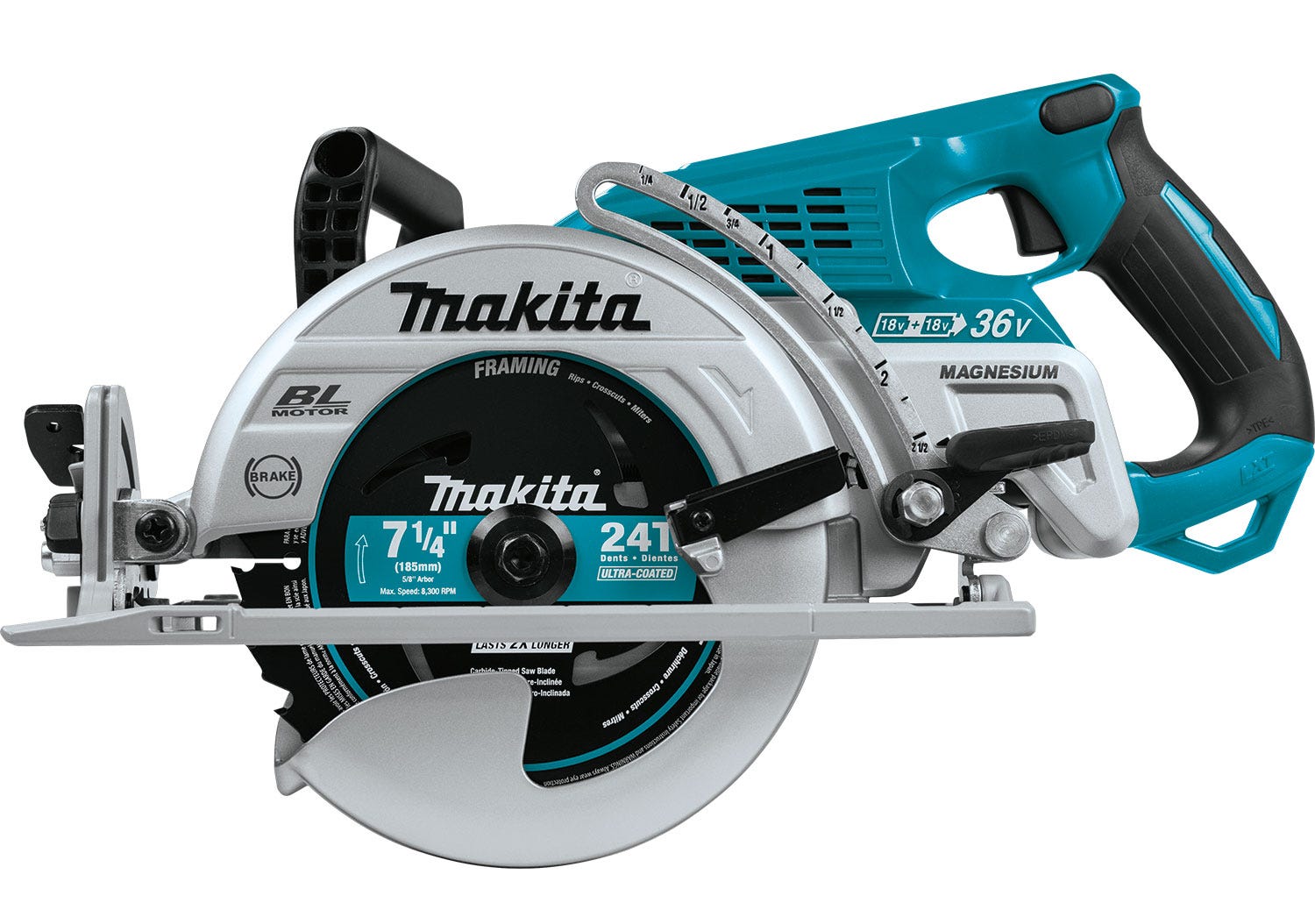

- (1) Makita XSR01Z 36V (18V X2) LXT Brushless Rear Handle 7-1/4 inch Circular Saw
- (2) Makita BL1850B 18V LXT Lithium-Ion 5.0Ah Batteries
- (1) Makita DC18RD Dual Port Rapid Optimum Charger
- (1) 7-1/4 inch 24 tooth circular saw blade
- (1) Hex wrench
- (1) Tool bag
Key Specifications
| Blade Diameter | 7-1/4 in |
|---|---|
| Arbor Size | 5/8 in |
| No-Load Speed | 5,100 RPM |
| Cutting Capacity at 90° | 2-9/16 in |
| Cutting Capacity at 45° | 1-3/4 in |
| Cutting Capacity at 53° | 1-1/2 in |
| Bevel Capacity | 0° to 53° |
| Overall Length | 17-1/2 in |
| Weight | 12.4 lbs with batteries |
| Battery Platform | Makita 18V LXT X2 |
| Motor Type | Brushless |
| Handle Type | Rear Handle |
Compatibility
Built For
Pro Tip
Keep the two batteries as a matched pair and charge them together on the included dual-port charger. On an 18V X2 saw like this, balanced packs help the tool deliver consistent power and runtime instead of having one weaker battery hold the whole setup back.
Warranty & Support
Tool Nut's Take
Makita XSR01PT Circular Saw Kit for Crews Who Want to Ditch the Cord
This is the kind of cordless framing saw that makes sense the minute you pick it up if you already like a rear-handle layout.
- Who it's for: Framers, roofers, builders, and remodelers who want a cordless circular saw that feels familiar and has the depth to handle real framing stock.
- Why it stands out: You get blade-left rear-handle control, a 5,100 RPM brushless motor, single-pass 3x cutting capacity, and the advantage of staying on the Makita 18V LXT battery platform.
- Worth knowing: This is a two-battery saw by design, so it is best used with matched LXT packs. The good news is this kit already gives you the right batteries and charger to run it the way it should be run.
Common Questions
- What type of saw is this? This is a cordless rear handle 7-1/4 inch circular saw designed for framing, sheet goods, and dimensional lumber cutting.
- What batteries does it use? It uses two Makita 18V LXT batteries at the same time in an 18V X2 configuration.
- What is the maximum cutting depth at 90 degrees? The saw cuts up to 2-9/16 inches at 90 degrees.
- Does it have an electric brake? Yes. It is equipped with an electric brake for faster transitions between cuts.
- What is the bevel range? The saw bevels from 0 degrees to 53 degrees, with positive stops at 22.5, 45, and 53 degrees.
