Micro Jig FITFINDER Lock Miter 1/2-in. Shank Router Bit (MB-050-0750LM)
Micro Jig FITFINDER Lock Miter 1/2-in. Shank Router Bit (MB-050-0750LM)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

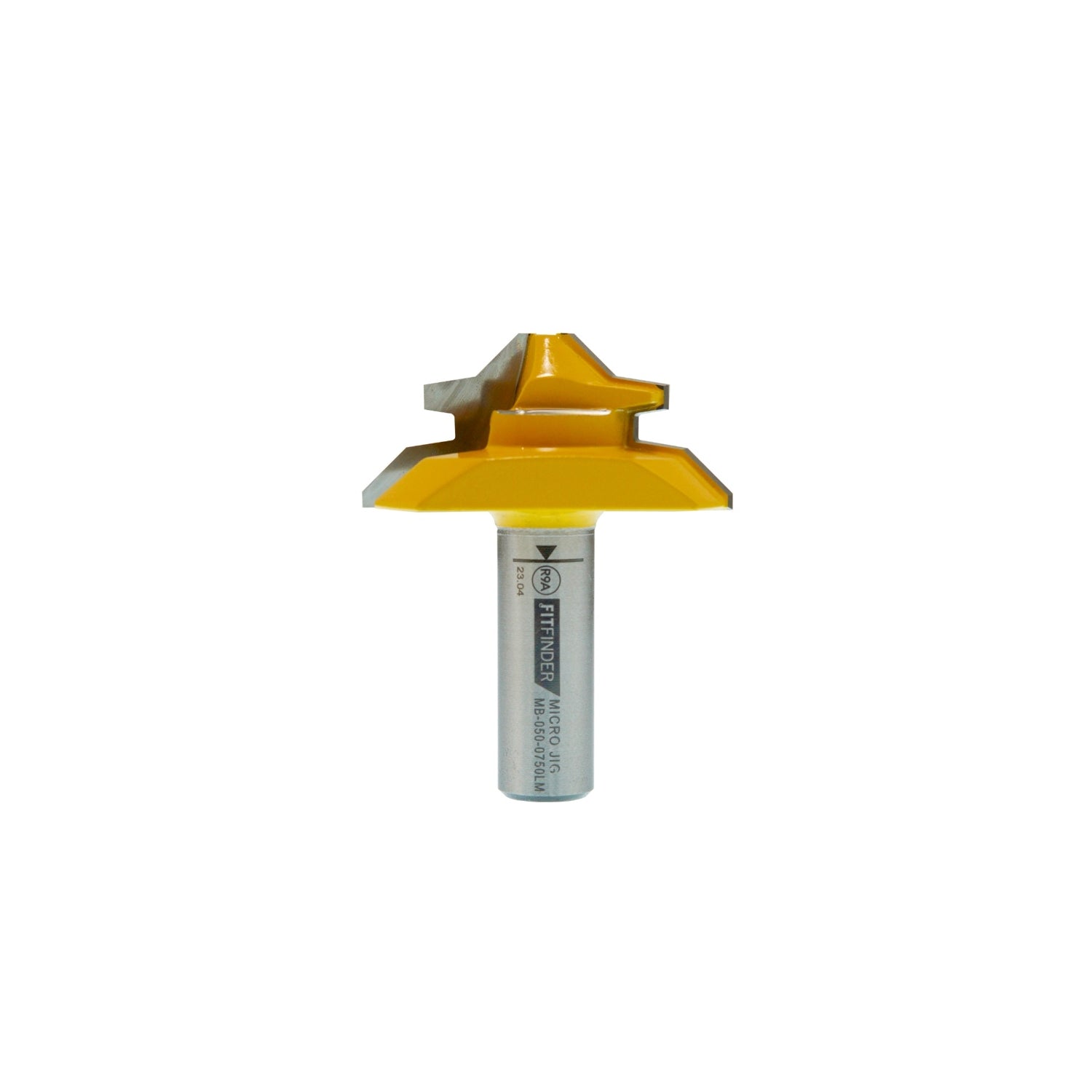

The Micro Jig MB-050-0750LM FITFINDER Lock Miter 1/2" Shank Router Bit is a carbide-tipped lock miter router bit built for precise wood joinery. This is a router bit designed for cutting interlocking lock miter profiles in woodworking projects. Model Number: MB-050-0750LM. If you build boxes, cases, columns, cabinet parts, or mitered assemblies and you want faster setup with fewer test cuts, this bit is aimed right at that job.

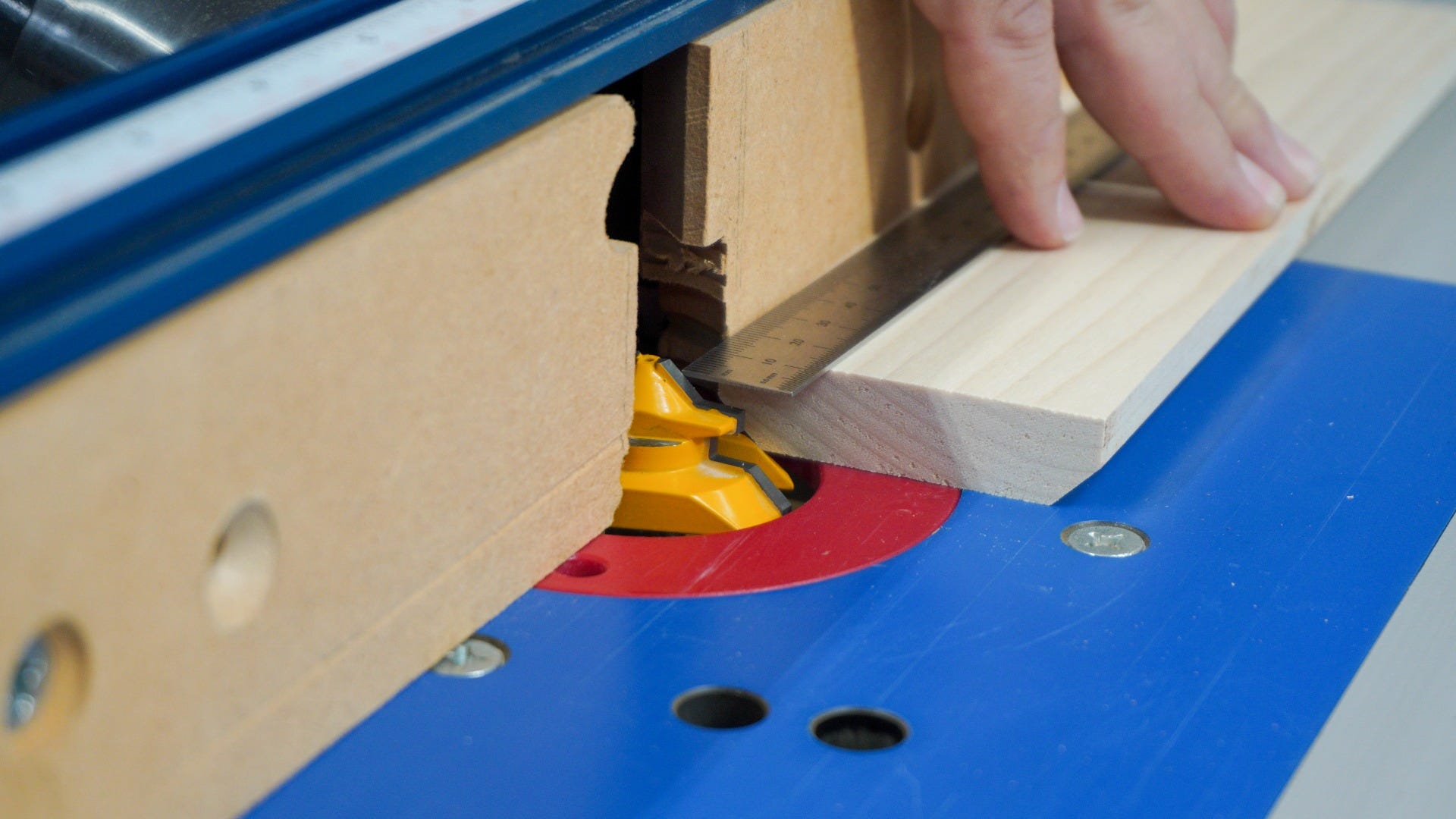

What makes this bit different is the FITFINDER center-finding platform. Lock miter bits can be excellent once they are dialed in, but anybody who has used one knows setup is usually the part that burns time. Micro Jig built this one to simplify centering on stock thickness and reduce the guesswork that normally comes with aligning the bit height. That matters because better initial setup means cleaner mating profiles, less wasted material, and more confidence when you are moving from scrap tests to actual parts.

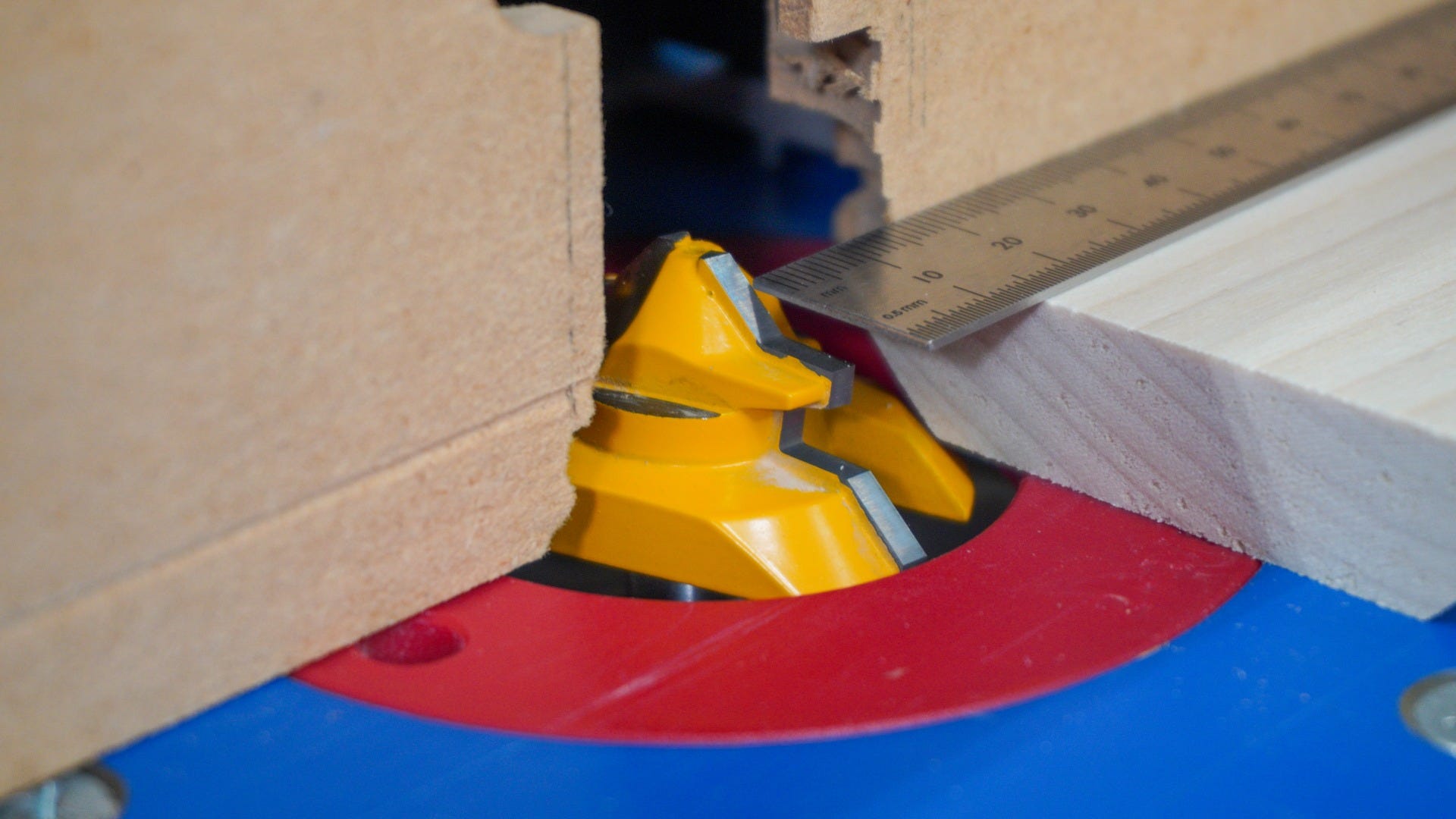

Micro Jig also machines a center point into the bit body for measurement, and the bit is compatible with the FitFinder 1/2 Gauge for quicker centering. The gauge is sold separately, but the system approach is the real story here. Instead of treating a lock miter bit like a one-off specialty cutter, Micro Jig built this one to work as part of a repeatable setup process. For a woodworker who wants consistent results, that is a lot more useful than a bit that only looks good on paper.
On the cut-quality side, the carbide-tipped construction is there for durability, while the built-in glue wells solve a real problem at assembly. Excess glue can keep lock miter joints from closing all the way if it has nowhere to go. These glue wells give it room, helping the joint seat more fully. The payoff is straightforward: tighter joints, less clamp pressure fighting the parts into place, and a cleaner glue-up when accuracy matters.
Micro Jig also includes a router collet safety line to make installation easier and more repeatable. That is one of those small details that helps in a real shop because it gives you a quick visual reference when setting the bit in the collet. Combined with the 1/2 inch shank, this design is meant for routers and router tables where stable setup matters more than rushing through a cut with a lightweight accessory.
Compatibility is broad where it counts. This router bit is designed for use with most routers and router tables that accept a 1/2 inch shank bit, and it is specifically designed to pair with the Micro Jig FitFinder 1/2 Gauge. If you already work in a router table workflow and want more predictable lock miter setup, this system makes a lot of sense.
This bit is a strong fit for cabinetmakers, furniture builders, trim carpenters, and serious DIY woodworkers who want cleaner mitered joinery without spending half the afternoon sneaking up on bit height. If you only cut lock miters once in a blue moon, it is still useful because it lowers the setup penalty. If you cut them regularly, it is the kind of bit that can save real shop time.
Spend Less Time Dialing In
Lock miter work usually rewards patience, but it also punishes sloppy setup. This bit is built to make that setup more straightforward so you can get accurate profile alignment with less trial and error.
- Patented center-finding platform helps simplify bit height setup

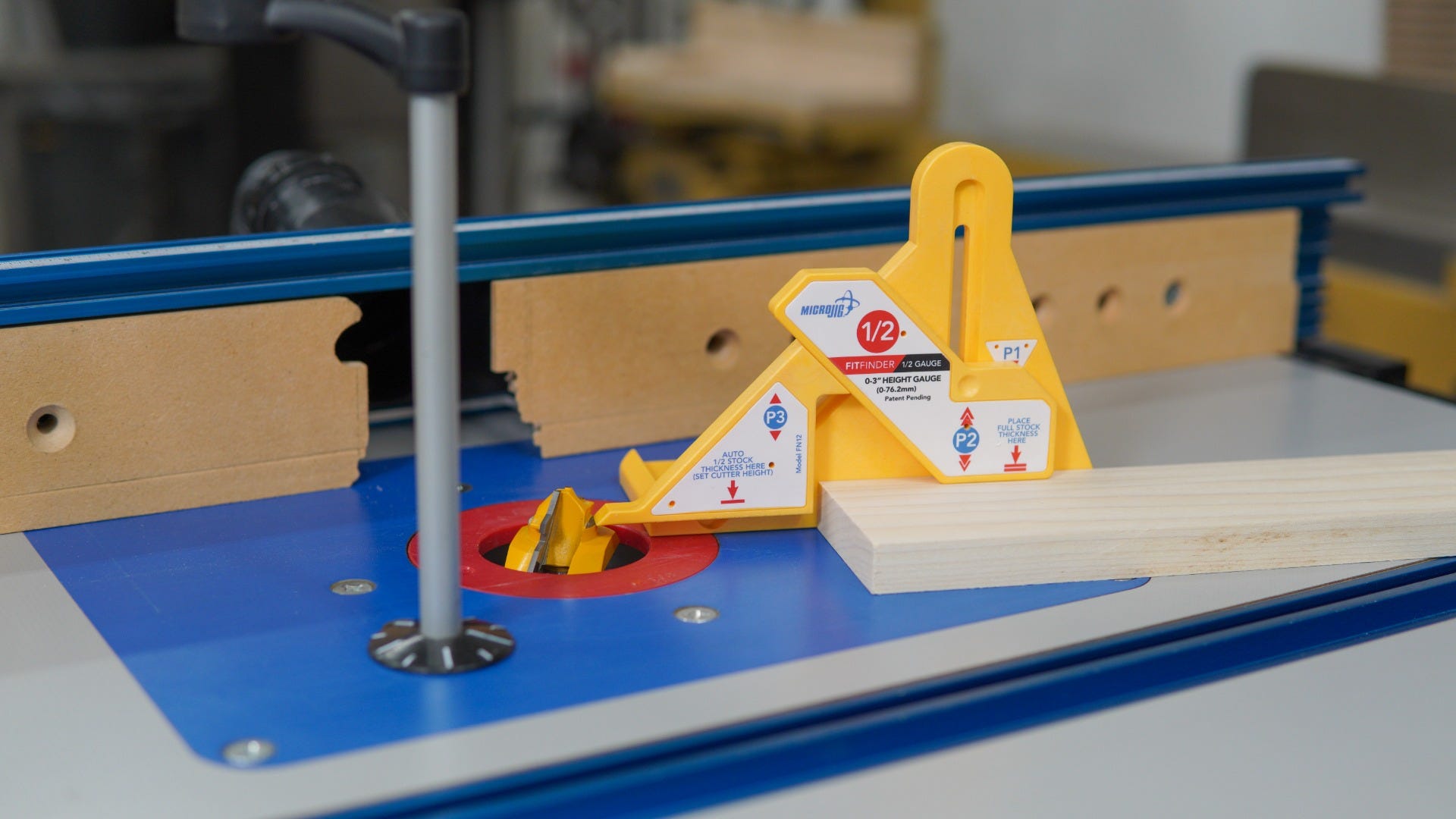

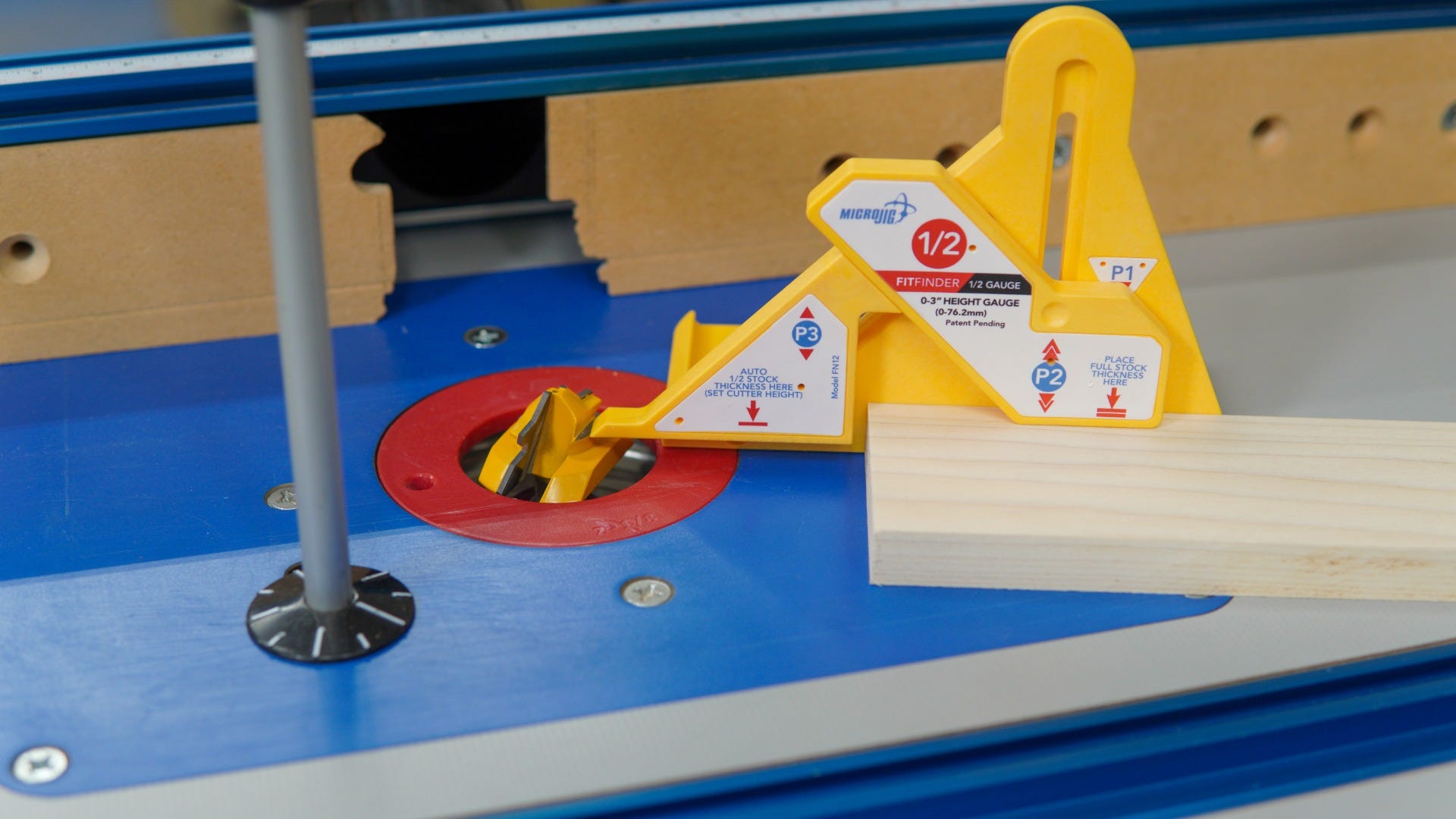

- Compatible with the Micro Jig FitFinder 1/2 Gauge for centered setup on stock thickness
- Router collet safety line gives a clear reference during installation
- Built-in glue wells help joints close tighter during glue-up
What's in the Box
- (1) Micro Jig MB-050-0750LM FITFINDER Lock Miter Router Bit
FitFinder 1/2 Gauge is sold separately.
Key Specifications
| Bit Type | Lock Miter Router Bit |
|---|---|
| Shank Diameter | 1/2 in |
| Bit Material | Carbide Tipped |
| Number of Flutes | 1 |
| Bearing Included | Yes |
| Weight | 0.4375 lb |
| Shank Length | 4 in |
| Made In | Austria |
Compatibility
Built For
Pro Tip
When you are dialing in a lock miter profile, mill both mating pieces from the same stock thickness and make your test cuts from offcuts of that exact material. That lets the FITFINDER setup system do its job and keeps you from chasing fit problems caused by thickness variation instead of bit height.
Warranty & Support
Tool Nut's Take
Micro Jig MB-050-0750LM FITFINDER Lock Miter 1/2" Shank Router Bit Makes a Fussy Cut More Manageable
This is the kind of specialty bit that earns its keep by cutting setup time, not just wood.
- Who it's for: Woodworkers, cabinet guys, and furniture builders who want stronger, cleaner lock miter joints without a long setup fight every time.
- Why it stands out: The center-finding platform, collet safety line, and glue wells all solve real problems that normally come with lock miter bits.
- Worth knowing: You get the most out of it on a router table and the FitFinder 1/2 Gauge is sold separately, so plan around that if you want the full setup system.
Common Questions
- What type of tool is this? It is a lock miter router bit for cutting interlocking miter profiles in woodworking applications.
- What shank size does it use? This bit uses a 1/2 inch shank.
- Does it work with a router table? Yes. It is designed for use with most routers and router tables.
- Is it compatible with the FitFinder gauge? Yes. It is compatible with the Micro Jig FitFinder 1/2 Gauge, which is sold separately.
- What is the cutting material? The bit is carbide tipped for durability in repeated woodworking use.
