Milwaukee M18 Red Exterior Dual Slope Rotary Laser Level Kit with Receiver & Remote (3704-21)
Milwaukee M18 Red Exterior Dual Slope Rotary Laser Level Kit with Receiver & Remote (3704-21)
Out of Stock - Available to Order - Usually ships in 14-20 days
Product Details
Product Details
Key Features
Overview

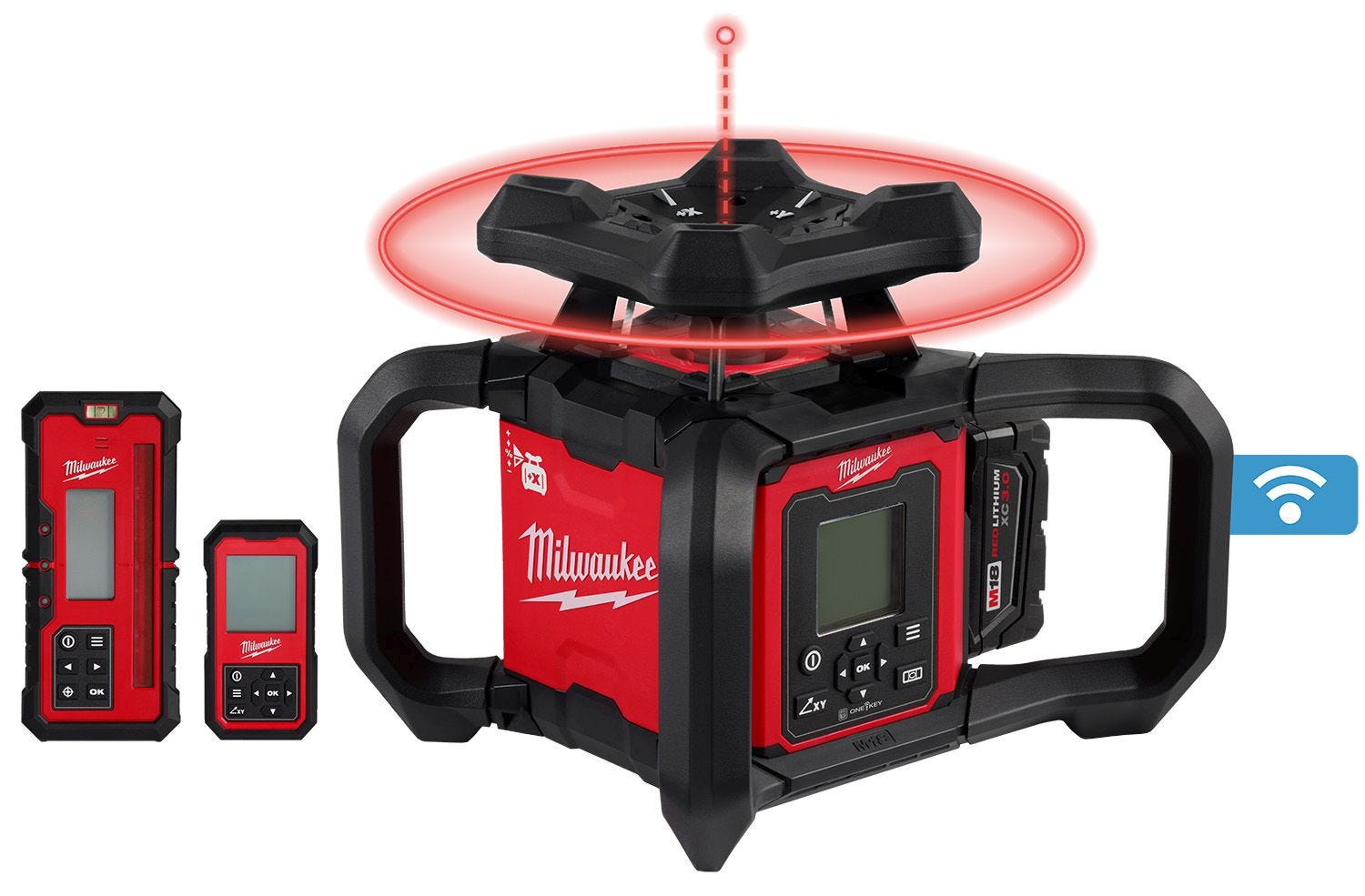

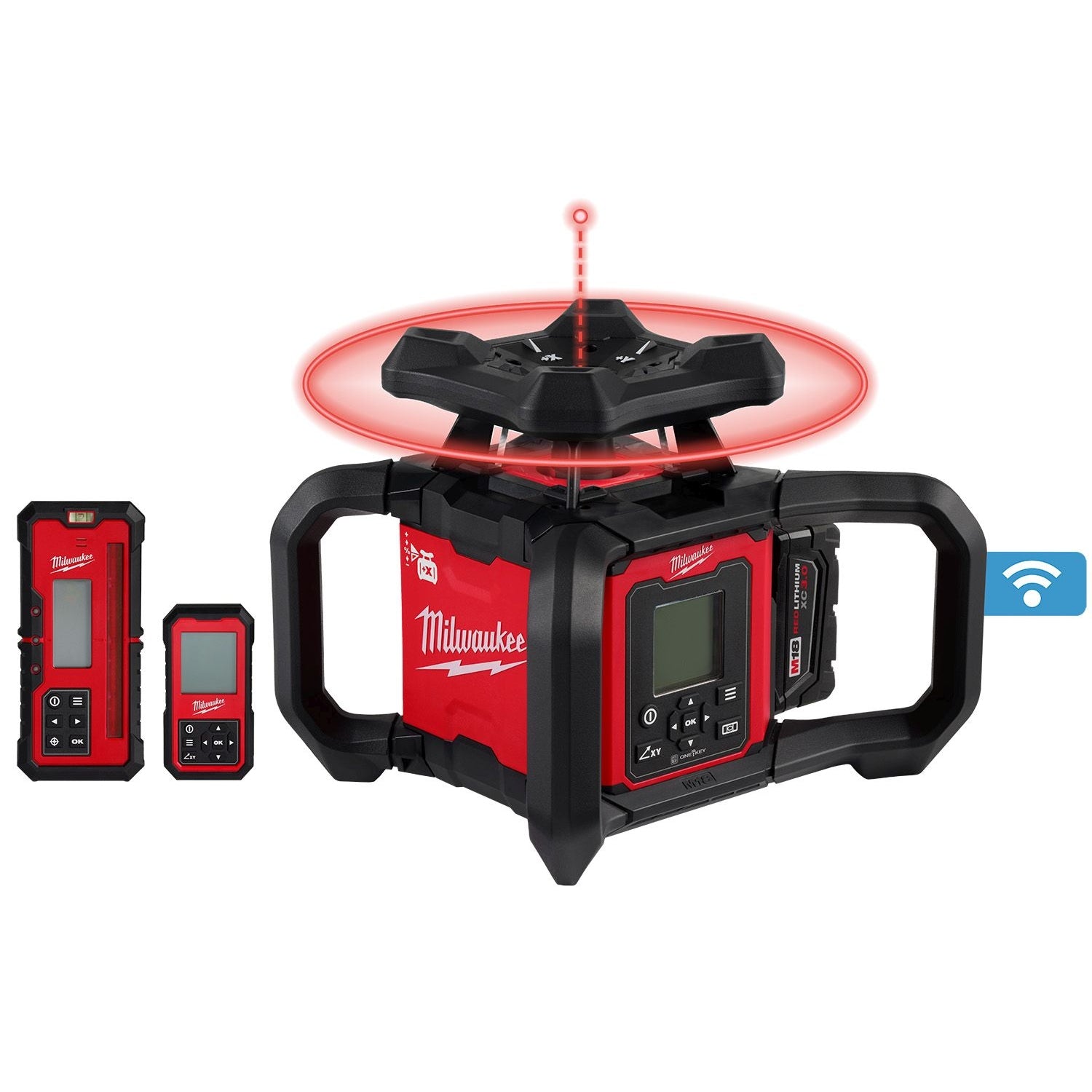

The Milwaukee 3704-21 M18 Red Exterior Dual Slope Rotary Laser Level Kit w/ Receiver & Remote is a complete exterior leveling and grading system for site work, concrete, excavation, and general construction crews. This is a rotary laser level designed for setting elevations, establishing grade, and leveling, aligning, and squaring layouts outdoors. Model Number 3704-21 bundles the laser with a dual slope receiver, a remote control, an M18 REDLITHIUM XC3.0 battery, a charger, and a carrying case. It sits at the top of the Milwaukee laser levels lineup for exterior work.
Accuracy is where a rotary laser earns its keep. Milwaukee rates the 3704 at +/- 1/16" at 100 ft horizontally and +/- 1/8" at 100 ft vertically. It self-levels within +/- 5 degrees in both horizontal and vertical orientation, and it projects a vertical plumb dot for transferring points. Paired with the receiver, the working range covers a 4,000 ft diameter, which is enough to shoot grade across a large pad or parking lot from one setup.

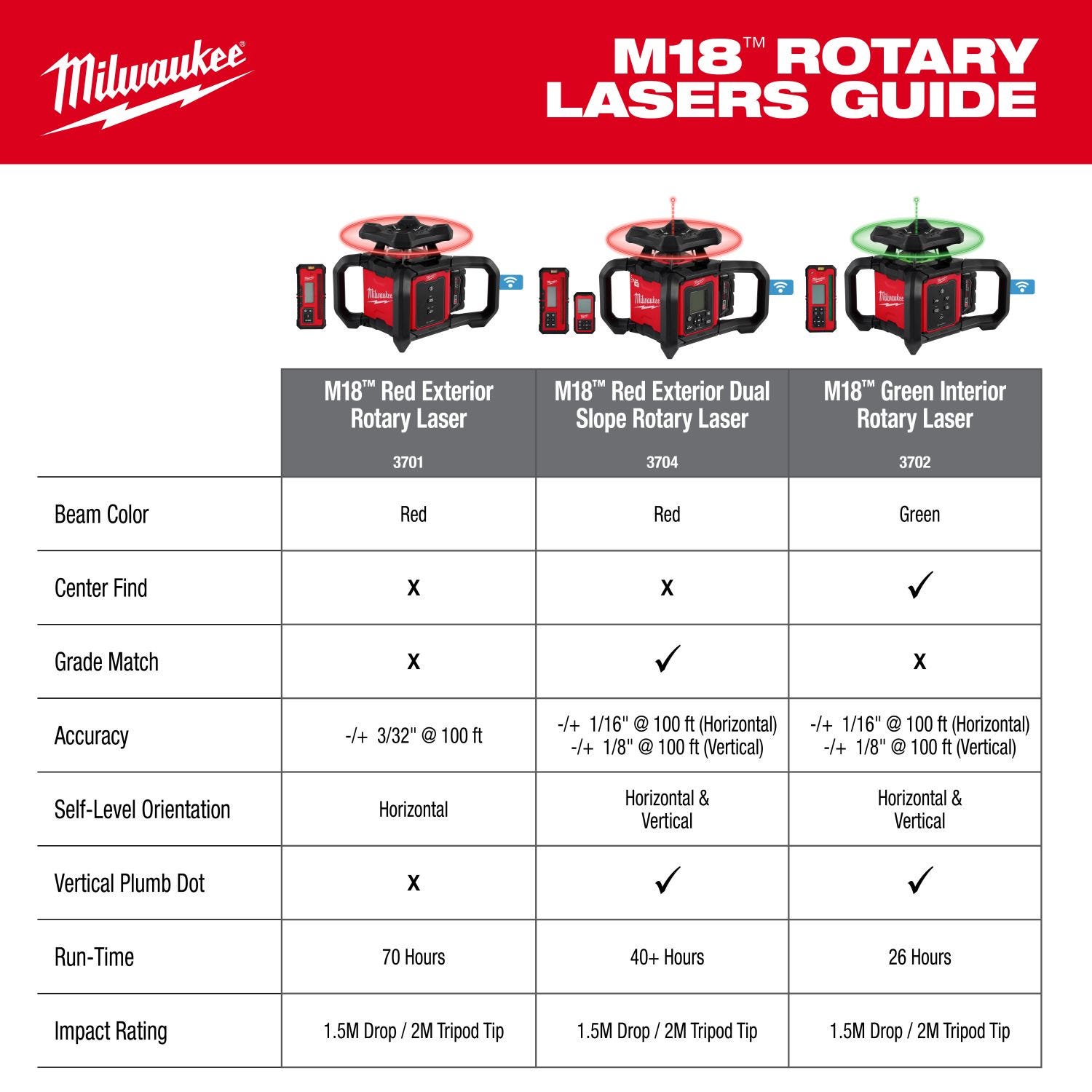

Dual slope capability is what separates this laser from Milwaukee's standard red exterior model. You can set grade on two axes for drainage pads, driveways, and parking areas, and the remote mirrors the laser's display so slope adjustments happen from wherever you are standing. Communication between the remote and the laser reaches 328 ft (100 m). Rotation speed selects between 600, 900, and 1,200 RPM, and low and high bump sensitivity modes let you decide how aggressively the laser stops and re-levels after it gets disturbed.

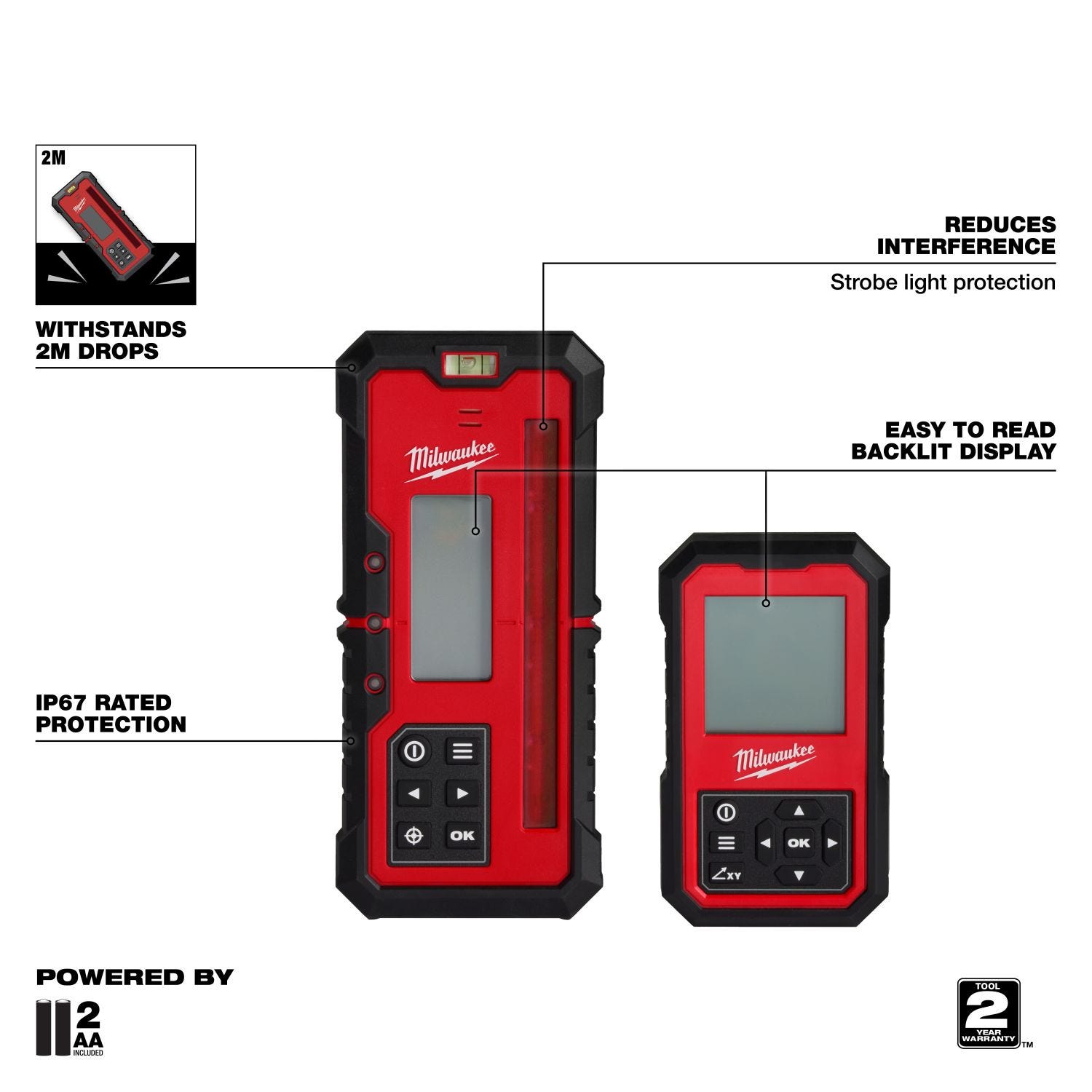

The receiver is matched to this laser. The Milwaukee 3714 Red Exterior Dual Slope Rotary Laser Receiver uses Automatic Grade Match to lock onto existing grades, built-in strobe light protection to cut interference from other light sources, and an easy-to-read backlit display. It carries an IP67 rating, survives 6.6 ft (2 m) drops, runs on two AA batteries, and mounts to a grade rod with the included receiver clamp.

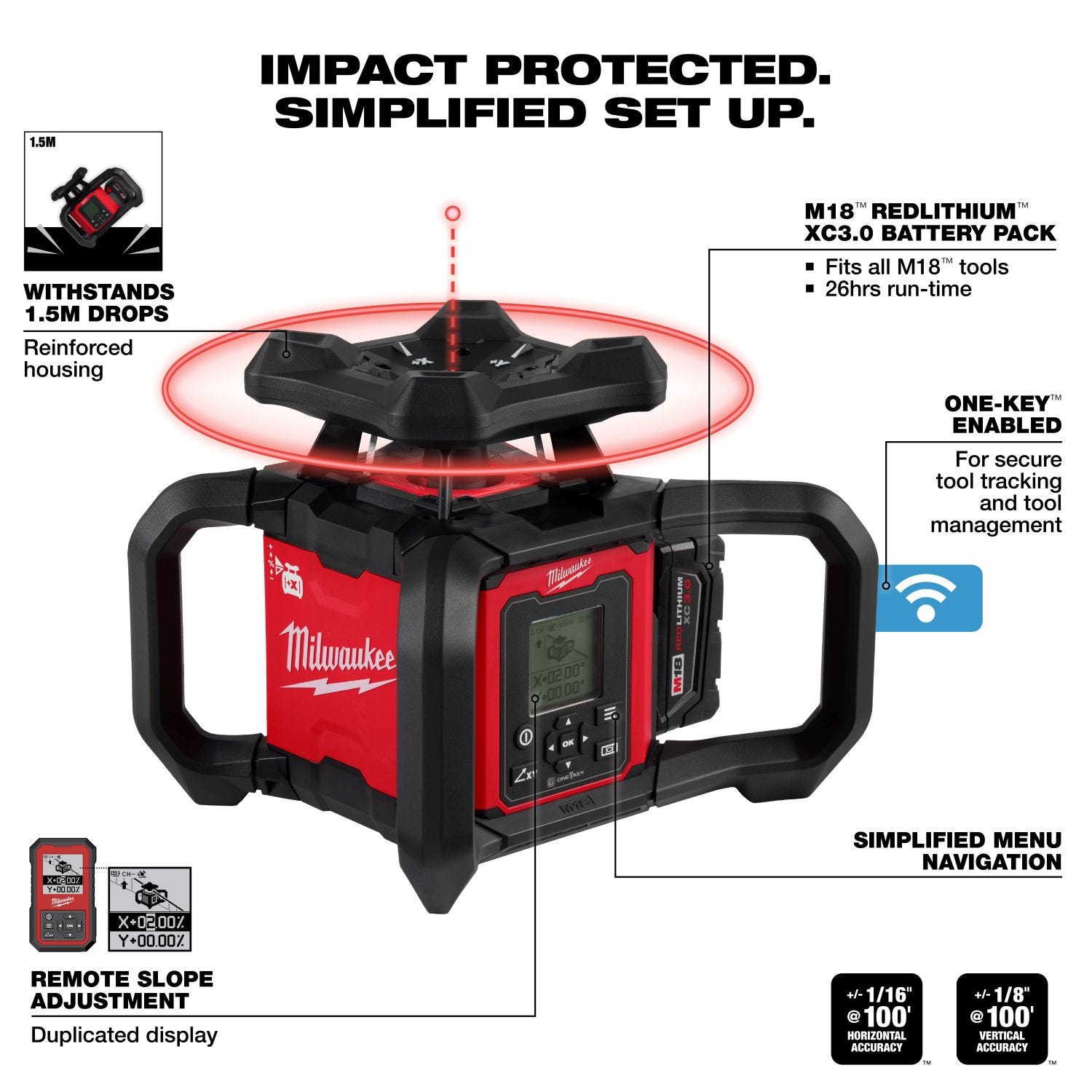

Durability was clearly a design priority. The reinforced housing handles 4.9 ft (1.5 m) drops and 6.6 ft (2 m) tripod tips, and the IP66 rating protects against dust and water on exterior jobs. The simplified menu keeps setup quick, and the 5/8"-11 threaded insert fits standard construction tripods.
The laser runs on M18 power, which means the batteries you already use for drills, saws, and impact wrenches will run it too. Milwaukee rates run-time at 40+ hours. The kit includes an M18 and M12 multi-voltage charger, so the included pack goes back on charge alongside your other batteries. The laser is also ONE-KEY enabled for tracking and managing its location, which matters for a tool that costs this much and spends its days on open sites.

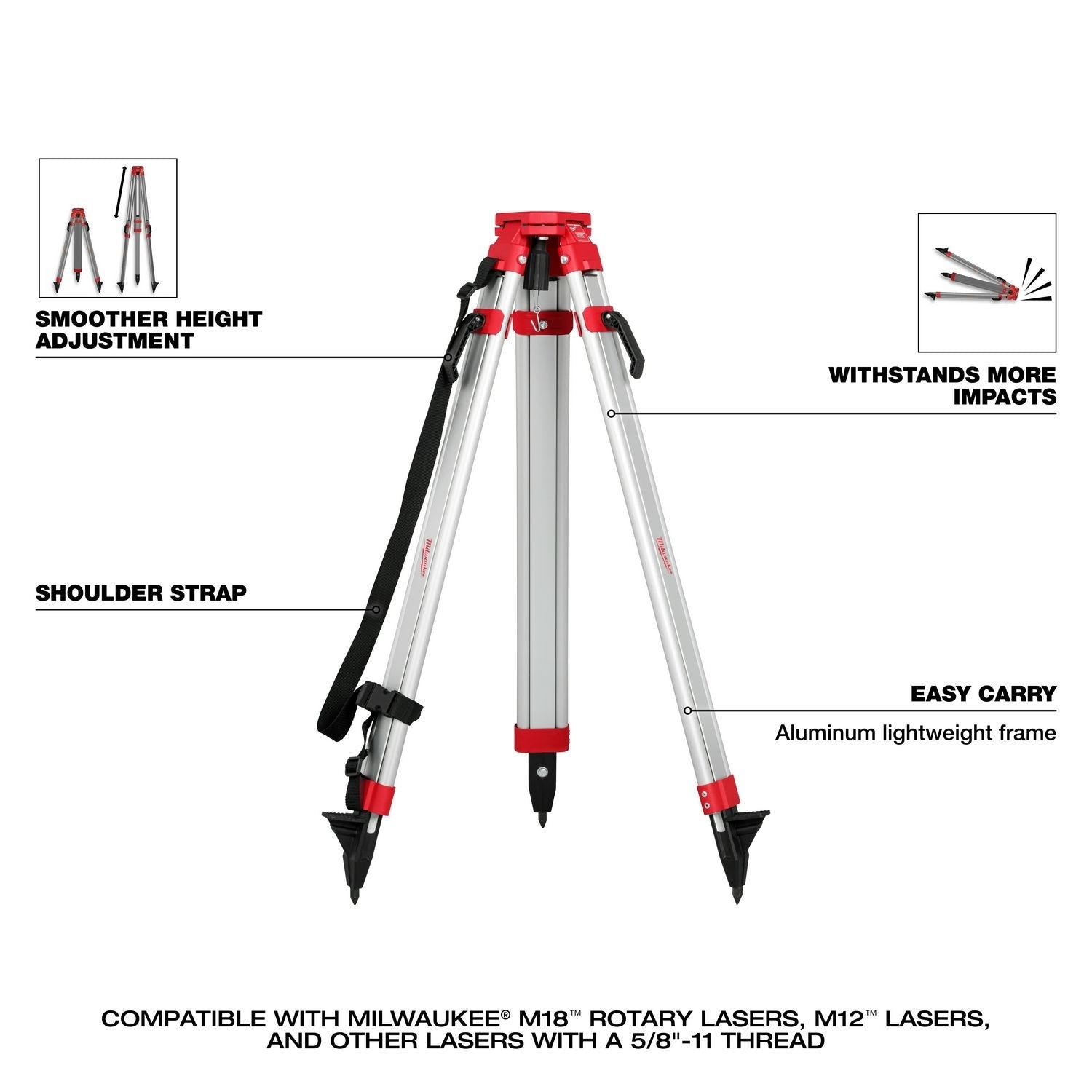

Who should buy it? Site work contractors, concrete and flatwork crews, excavation and grading operators, and general contractors who set grade often enough that walking back to the laser for every adjustment costs real time. If you also need a tripod and grade rod, the Milwaukee 3704-21T kit adds both.

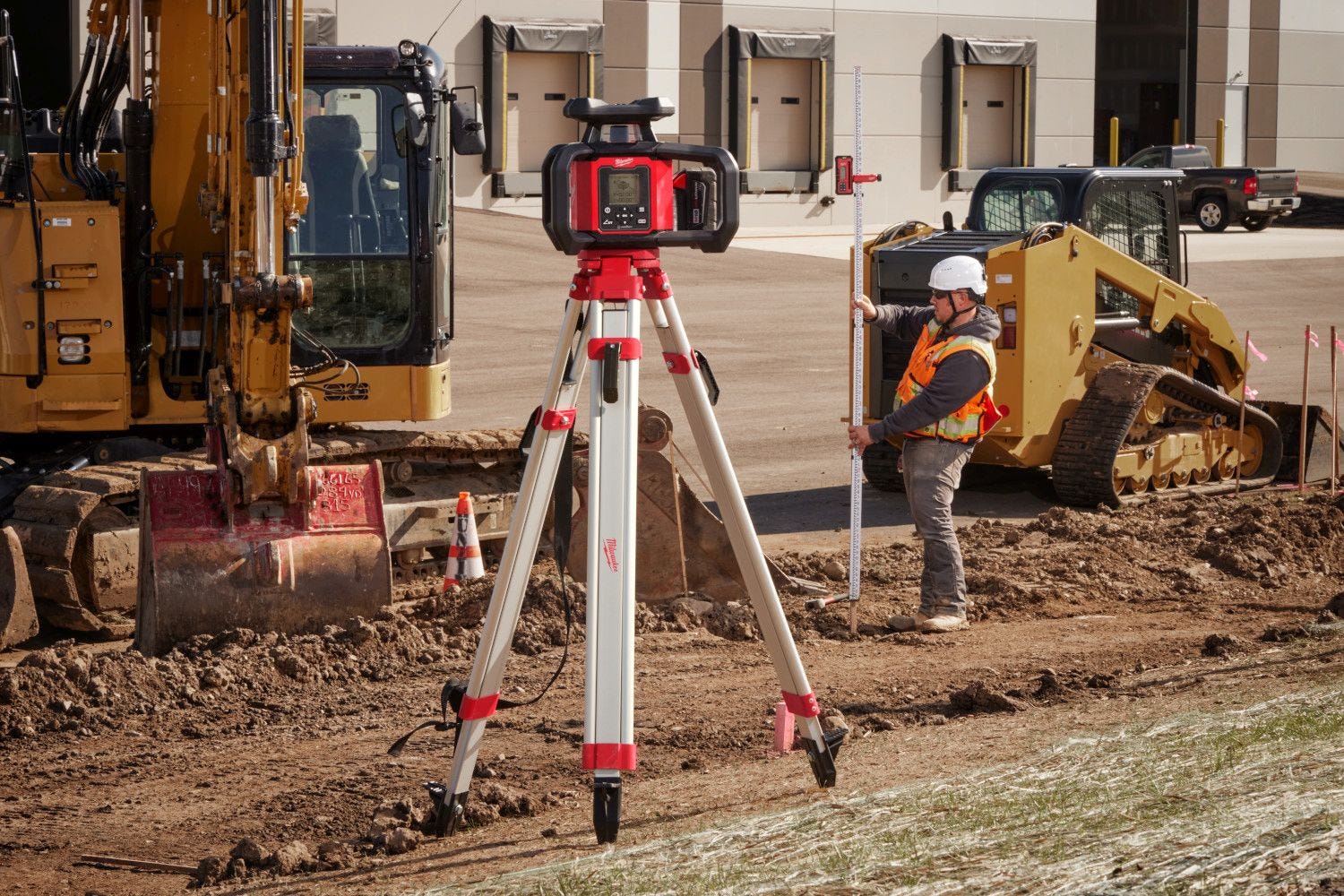

One Setup Covers the Whole Site
With a 4,000 ft diameter working range, one tripod position can cover a full building pad or lot. Fewer setups mean fewer chances to introduce error.
- 4,000 ft diameter working range with receiver
- 600, 900, and 1,200 RPM rotation modes

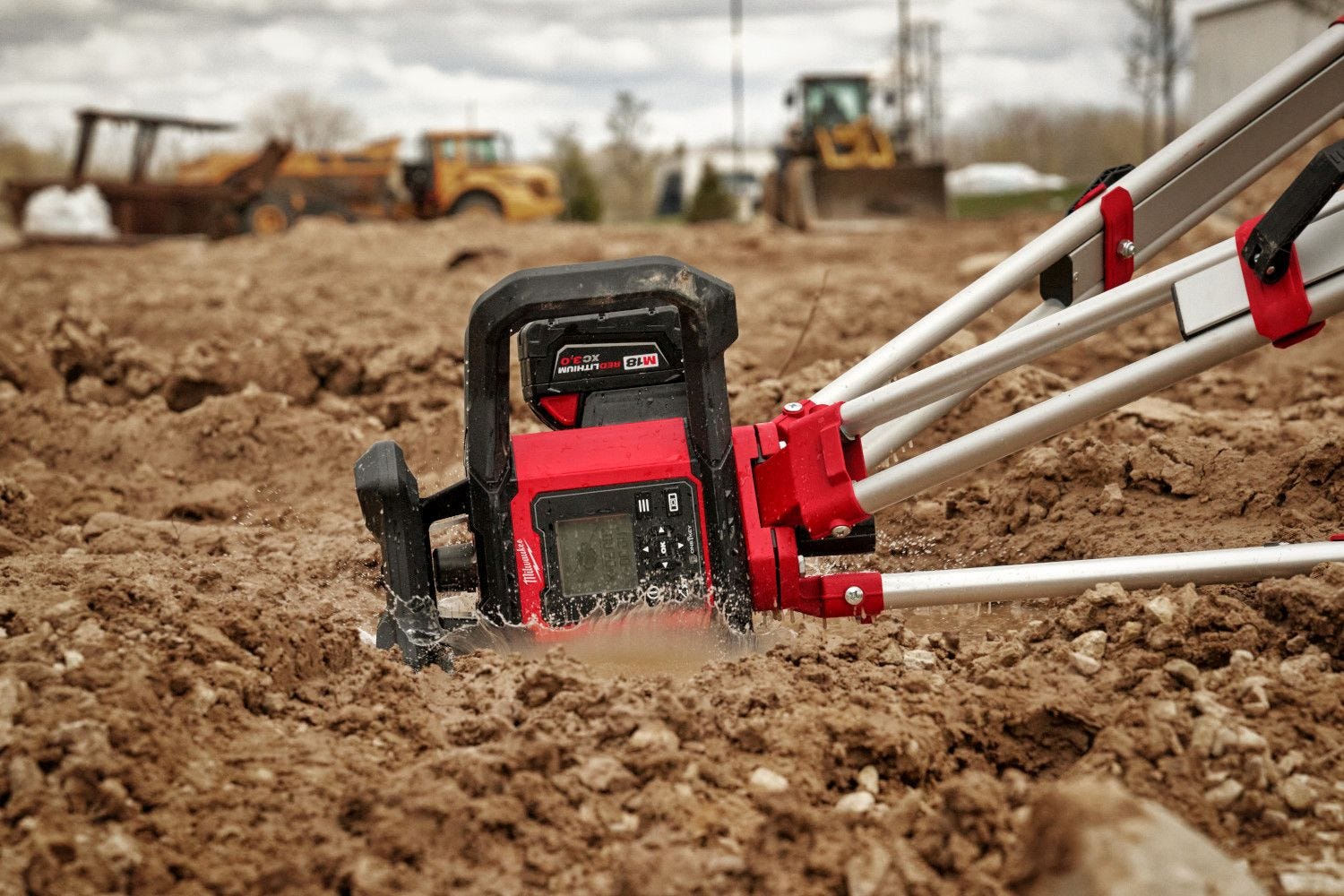

Tough Enough for Grade Work
Exterior lasers get set on gravel, bumped by equipment, and rained on. The 3704 is rated for all of it, and bump sensitivity tells you when it has been disturbed.
- IP66 rated against dust and water
- Rated for 4.9 ft (1.5 m) drops and 6.6 ft (2 m) tripod tips
Read Grade at the Rod

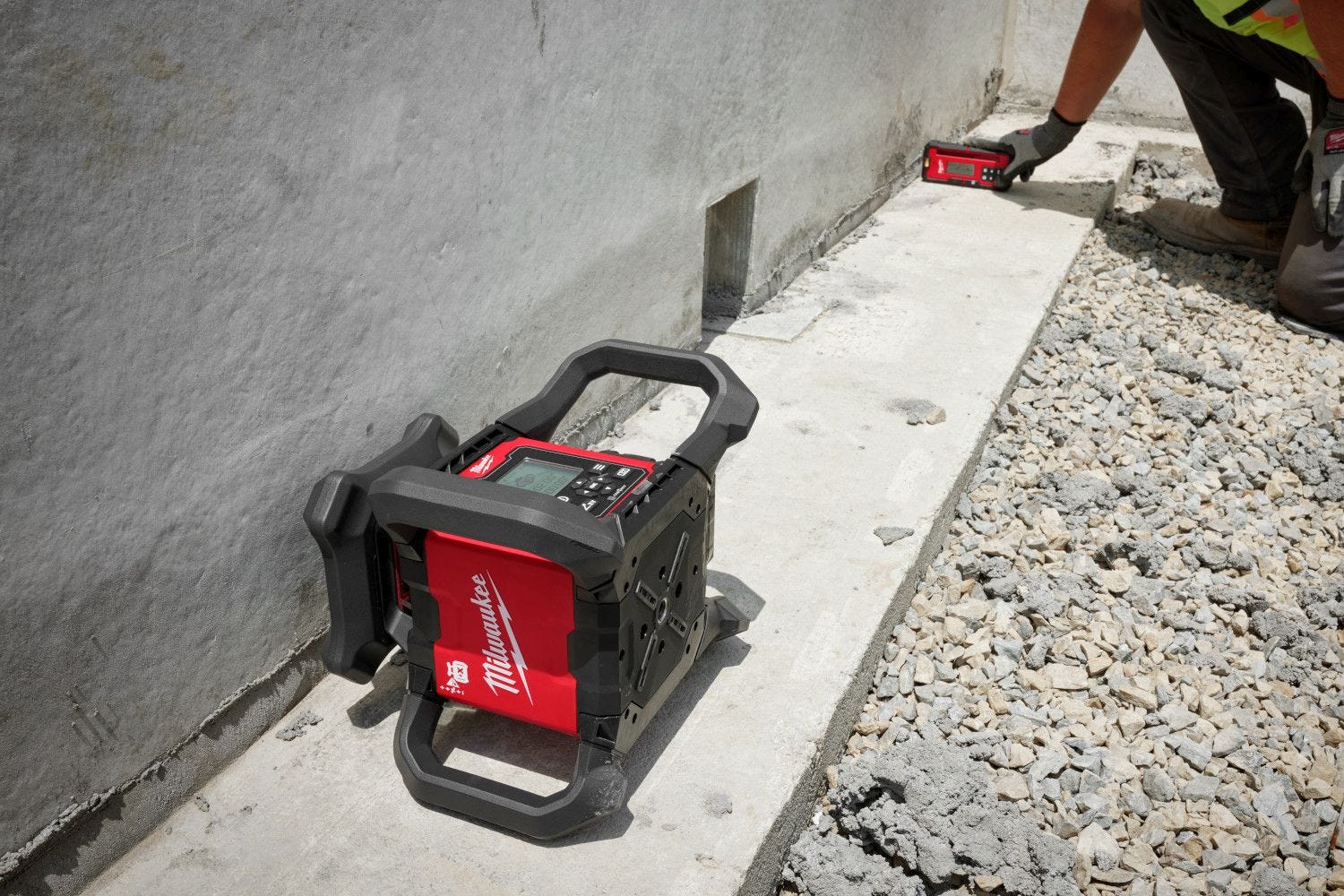

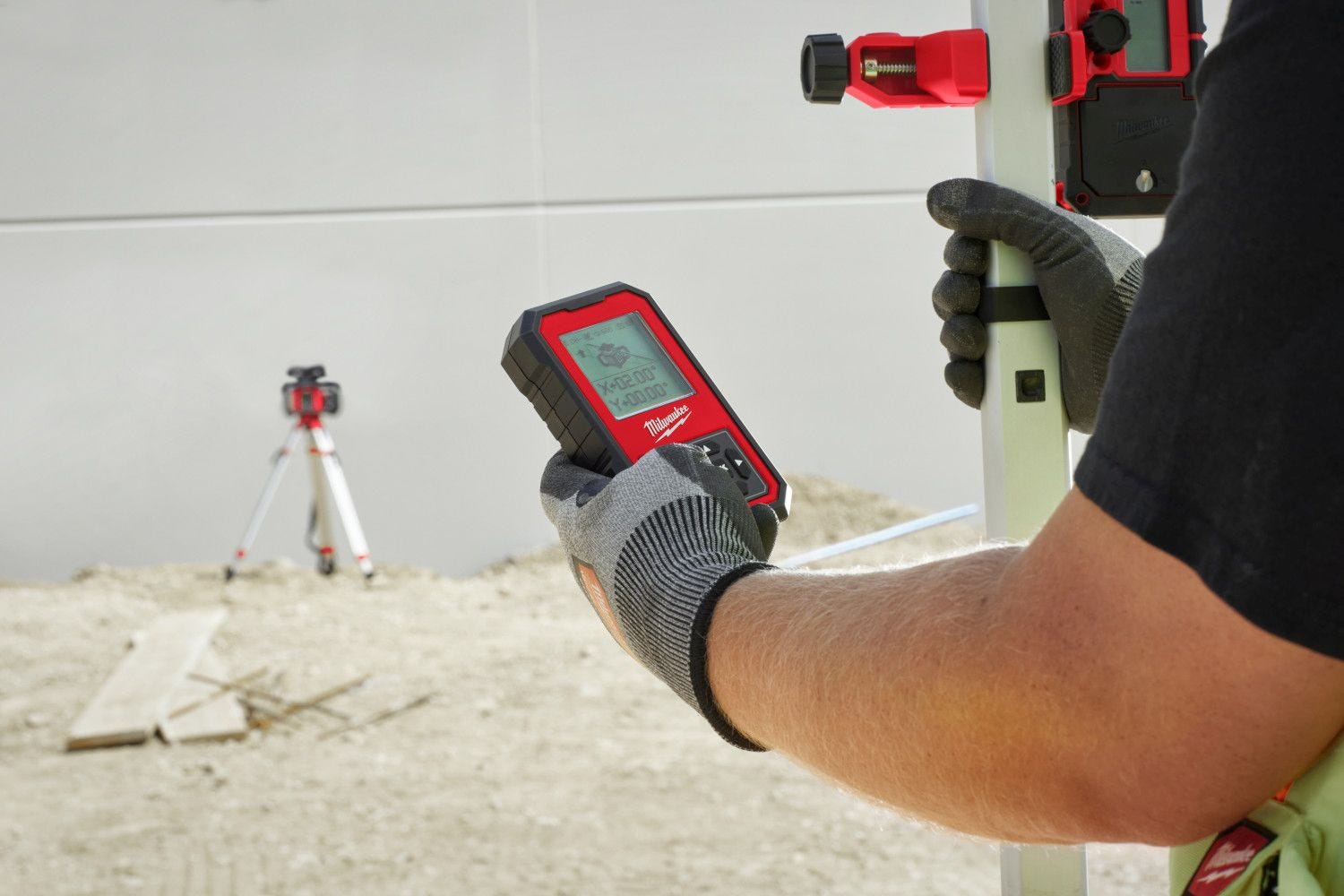

The receiver and remote keep the person on the rod in control. Match an existing grade, read elevation, and adjust slope without a second worker at the laser.
- Automatic Grade Match on the receiver
- Strobe light protection reduces interference
Runs on the Batteries You Already Own
M18 power gives the laser 40+ hours of rated run-time, and a spare pack from any other M18 tool keeps it running if a battery goes flat mid-shift.
- Fits all Milwaukee M18 batteries
- ONE-KEY enabled for location tracking

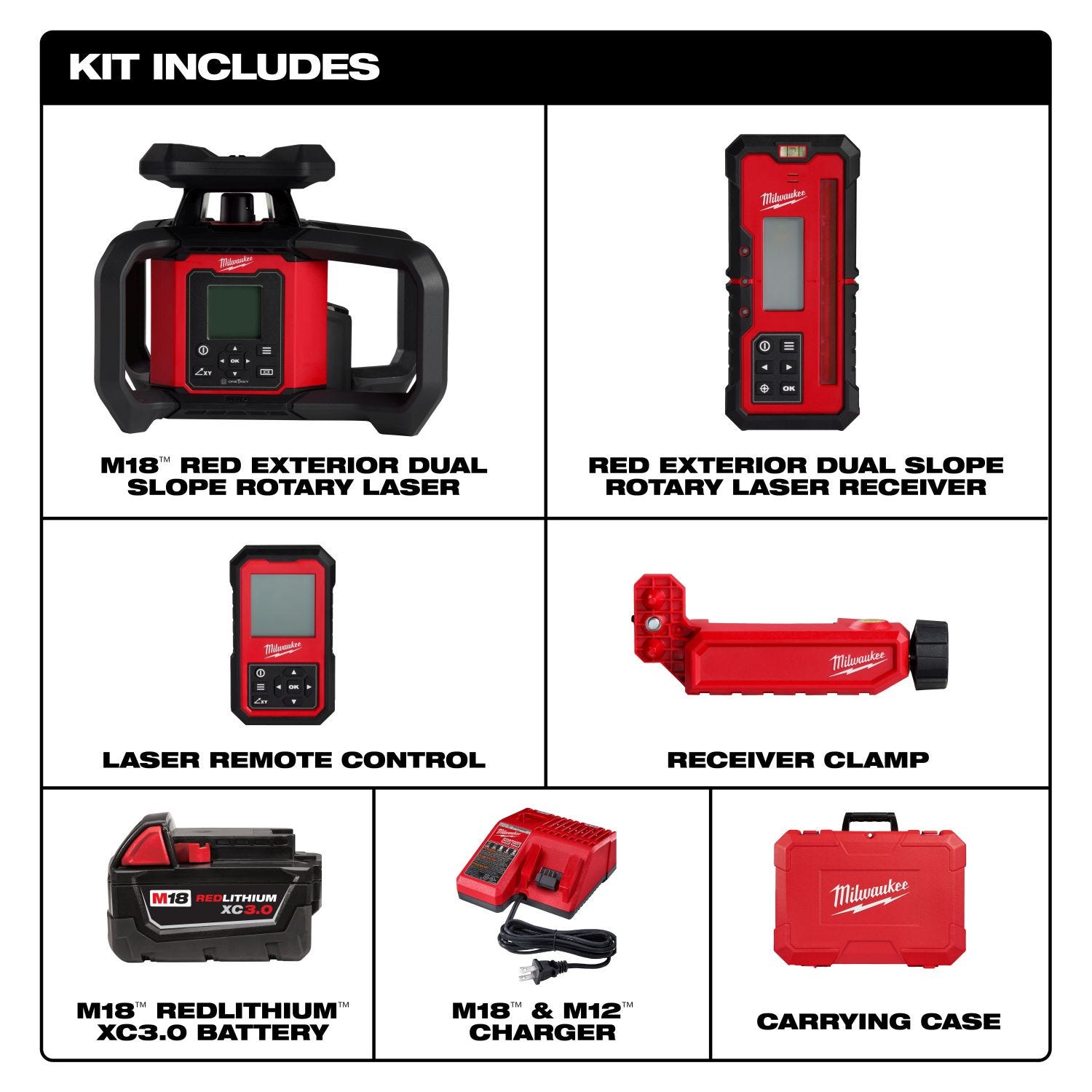

What's in the Box
- (1) M18 Red Exterior Dual Slope Rotary Laser
- (1) Red Exterior Dual Slope Rotary Laser Receiver
- (1) Dual Slope Rotary Laser Remote Control
- (1) Receiver Clamp
- (1) M18 REDLITHIUM XC3.0 Battery
- (1) M18 & M12 Multi-Voltage Charger
- (2) AA Batteries
- (1) Carrying Case

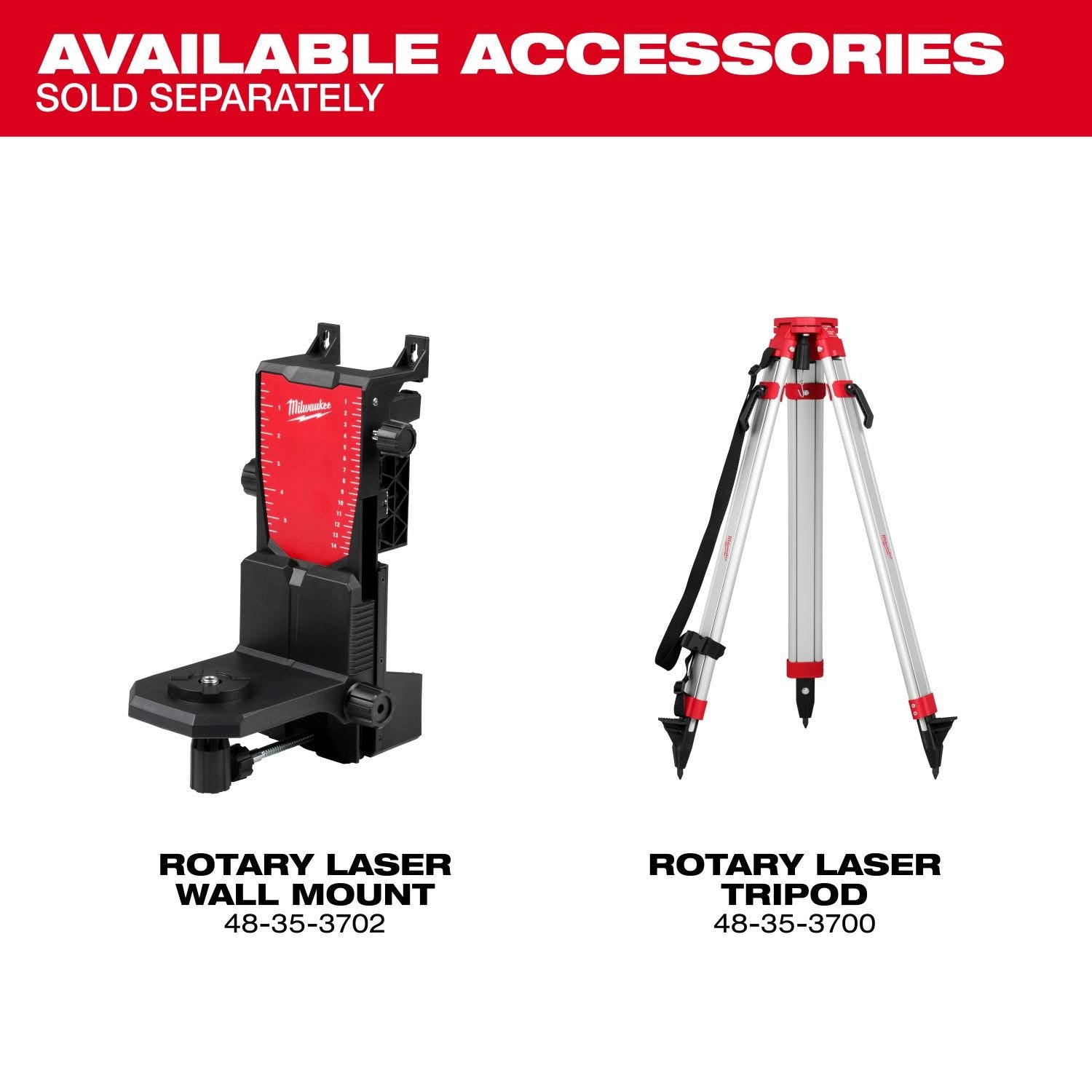

Tripod and grade rod sold separately.

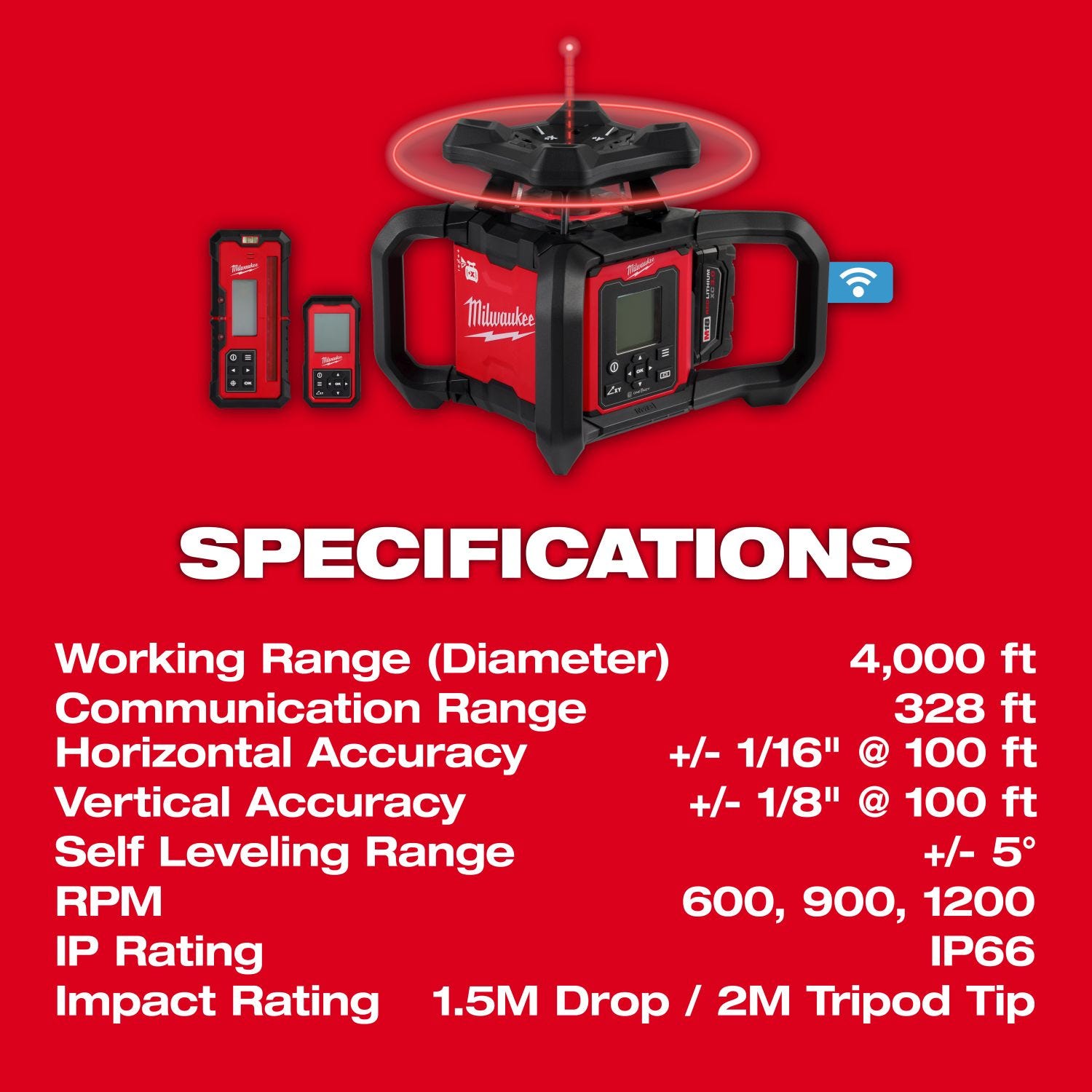

Key Specifications
|
|
Red |
|---|---|
|
|
+/- 1/16" at 100 ft |
|
|
+/- 1/8" at 100 ft |
|
|
4,000 ft with receiver |
|
|
328 ft (100 m) |
|
|
+/- 5 degrees |
|
|
600, 900, 1,200 RPM |
|
|
40+ hours |
|
|
IP66 (laser), IP67 (receiver) |
|
|
4.9 ft (1.5 m) drop, 6.6 ft (2 m) tripod tip |
|
|
5/8"-11 |
|
|
Milwaukee M18 (18V) |
Compatibility
Built For
Pro Tip
On sites with heavy equipment running nearby, switch the laser to high bump sensitivity. If vibration or a bump knocks it, the laser stops instead of quietly projecting a bad elevation, and you catch it before you set forms off a wrong reference.
Warranty & Support
Tool Nut's Take
The Milwaukee 3704-21 Dual Slope Rotary Laser Kit Puts Grade Control at the Rod
Dual slope, remote slope adjustment, and grade match make this the Milwaukee rotary laser for crews that set grade, not just level.
- Who it's for: Site work, concrete, excavation, and general contractors setting drainage slopes and elevations outdoors.
- Why it stands out: The remote mirrors the laser's display for slope changes from 328 ft (100 m) away, and it runs on the same M18 batteries as the rest of your tools.
- Worth knowing: This is a red-beam exterior laser meant for use with the receiver. The kit does not include a tripod or grade rod.
Common Questions
- What is the difference between the 3704-21 and the 3704-21T? The 3704-21T adds a tripod and grade rod to the same laser, receiver, and remote kit.
- Does the laser self-level vertically? Yes. It self-levels in both horizontal and vertical orientation within +/- 5 degrees and projects a vertical plumb dot.
- How long does it run on a charge? Milwaukee rates the 3704 at 40+ hours of run-time.
- What powers the receiver? The receiver runs on two AA batteries, which are included.
