Milwaukee M18 Red Exterior Dual Slope Rotary Laser Level 3.0Ah Kit with Receiver, Remote, Grade Rod & Tripod (3704-21T)
Milwaukee M18 Red Exterior Dual Slope Rotary Laser Level 3.0Ah Kit with Receiver, Remote, Grade Rod & Tripod (3704-21T)
Out of Stock - Available to Order - Usually ships in 14-20 days
Product Details
Product Details
Key Features
Overview
The Milwaukee 3704-21T M18 Red Exterior Dual Slope Rotary Laser Level 3.0Ah Kit w/ Receiver, Remote, Grade Rod & Tripod is a complete exterior layout and grading package for site contractors, excavators, concrete crews, and builders. This is a rotary laser level designed for leveling, grading, aligning, and setting slope on outdoor jobsites. Model Number 3704-21T takes the 3704-21 dual slope laser kit and adds Milwaukee's rotary laser tripod and an 8 ft grade rod, so everything you need to shoot elevations ships together.
Dual slope is the reason to choose this laser over a basic level-only unit. You can set grade on two axes for drainage on parking lots, driveways, patios, slabs, and pads, and the remote duplicates the laser's own display so you can adjust slope from where you are standing. Among Milwaukee's rotary lasers, the 3704 is the model built for crews who need to put fall on a surface, not just hold a flat line.
Accuracy is rated at 1/16" at 100 ft horizontal and 1/8" at 100 ft vertical. The laser self-levels within plus or minus 5 degrees in both horizontal and vertical orientation, and it spins at 600, 900, or 1,200 RPM. Low and high bump sensitivity modes let you decide how the laser reacts when the tripod gets nudged by wind, vibration, or equipment, which keeps a bump from turning into a bad elevation.
The 3714 dual slope laser receiver detects the beam across a 4,000 ft working diameter. Built-in strobe light protection reduces interference from strobes and other light sources, cutting down on false readings and downtime. Automatic grade match and a simplified menu make setup quick. A rubber overmold rated for 6.6 ft (2 m) drops protects the receiver when it comes off the rod.
Milwaukee built the laser for harsh exterior conditions. The reinforced housing withstands 59-1/16" (1.5 m) drops, and the laser is designed to survive a 6.6 ft (2 m) tripod tip. IP66 protection keeps out dust and water from rain, hose spray, and blowing debris. The 5/8"-11 threaded insert mounts the laser on standard construction tripods.
Power comes from the M18 platform. Milwaukee rates runtime at more than 40 hours on the included REDLITHIUM XC 3.0Ah battery, and the laser accepts all M18 batteries, so the packs that already run your other M18 tools can keep the laser spinning through a long pour. ONE-KEY compatibility lets you track and manage the laser's location, which matters for a tool that spends its day sitting on a tripod in an open site.
Who should buy it? Site work contractors, excavation and grading crews, concrete and flatwork contractors, landscapers, and general contractors who set drainage slope regularly. If your work stays level and you never set fall, a single-slope or level-only rotary laser costs less. If you need slope and want the whole kit in one box, this is the one to get.
Built for Open Jobsites
One setup covers a large site. The working range and accuracy let a single operator check grade across a pad while the equipment keeps moving.
- 4,000 ft working diameter with the receiver
- 1/16" at 100 ft horizontal accuracy

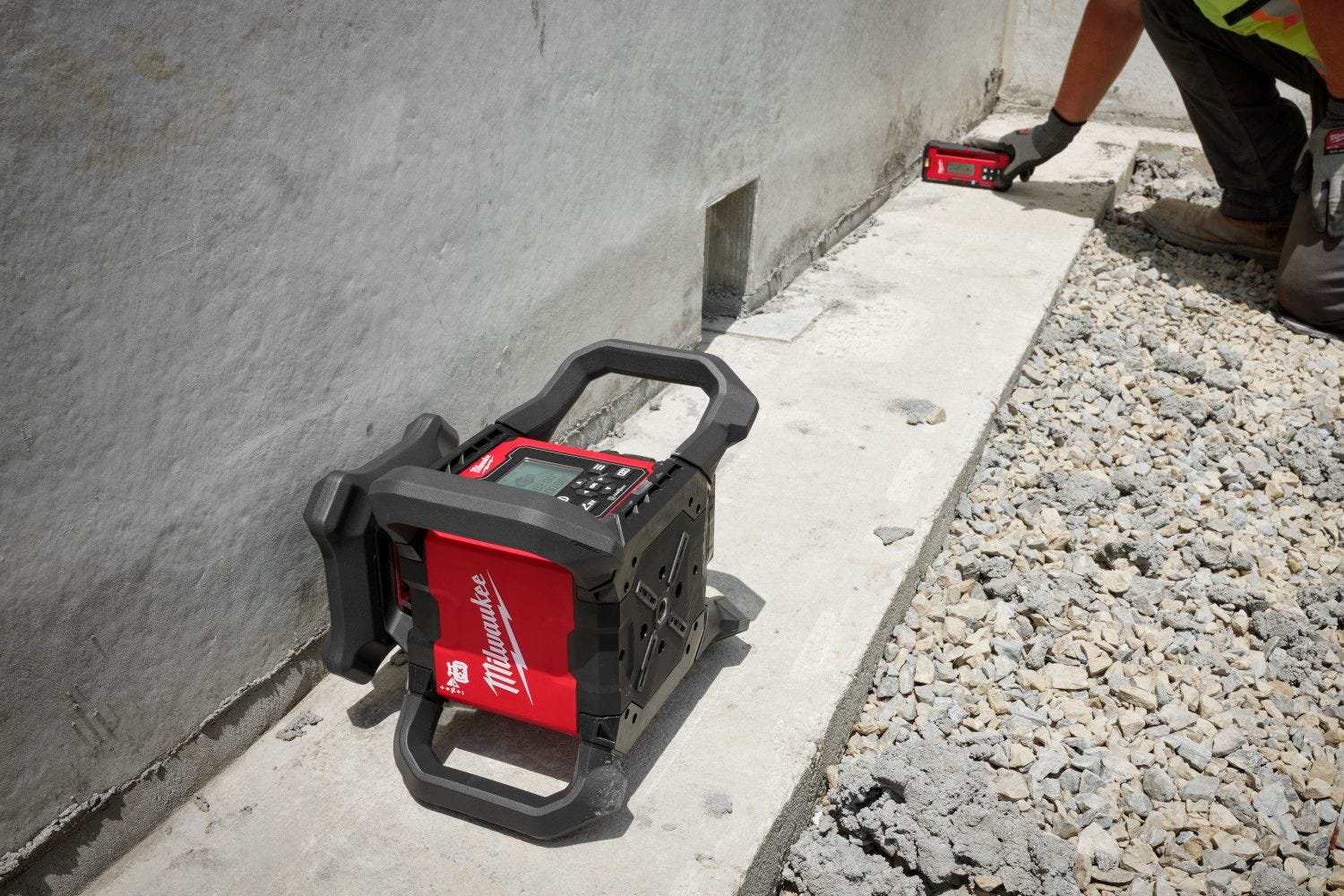

Level Forms and Footings Fast
The laser self-levels when you set it down, so you spend your time reading elevations instead of fussing with bubble vials.
- Self-leveling within plus or minus 5 degrees
- 600, 900, and 1,200 RPM rotation speeds

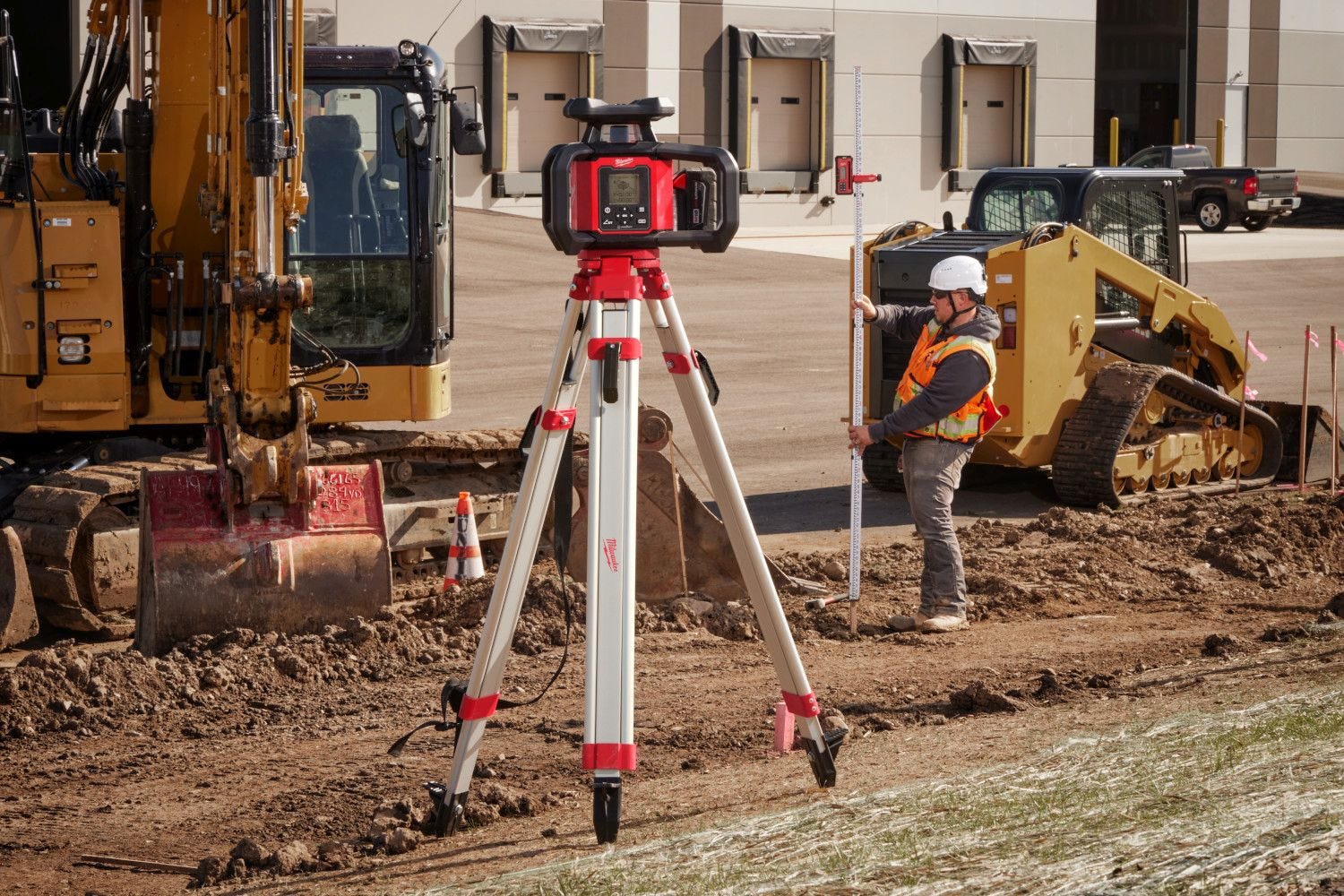

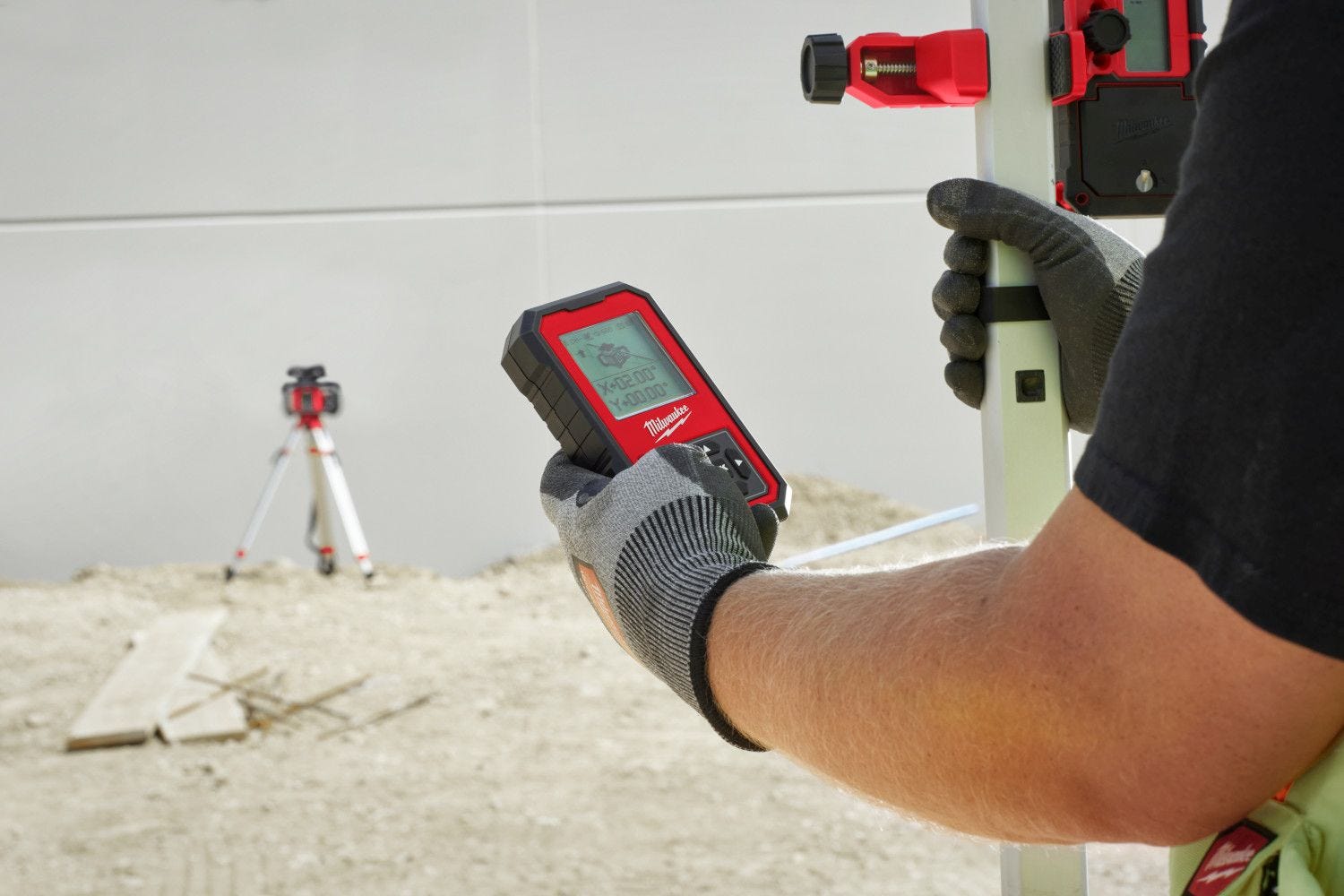

Read Grade at the Rod

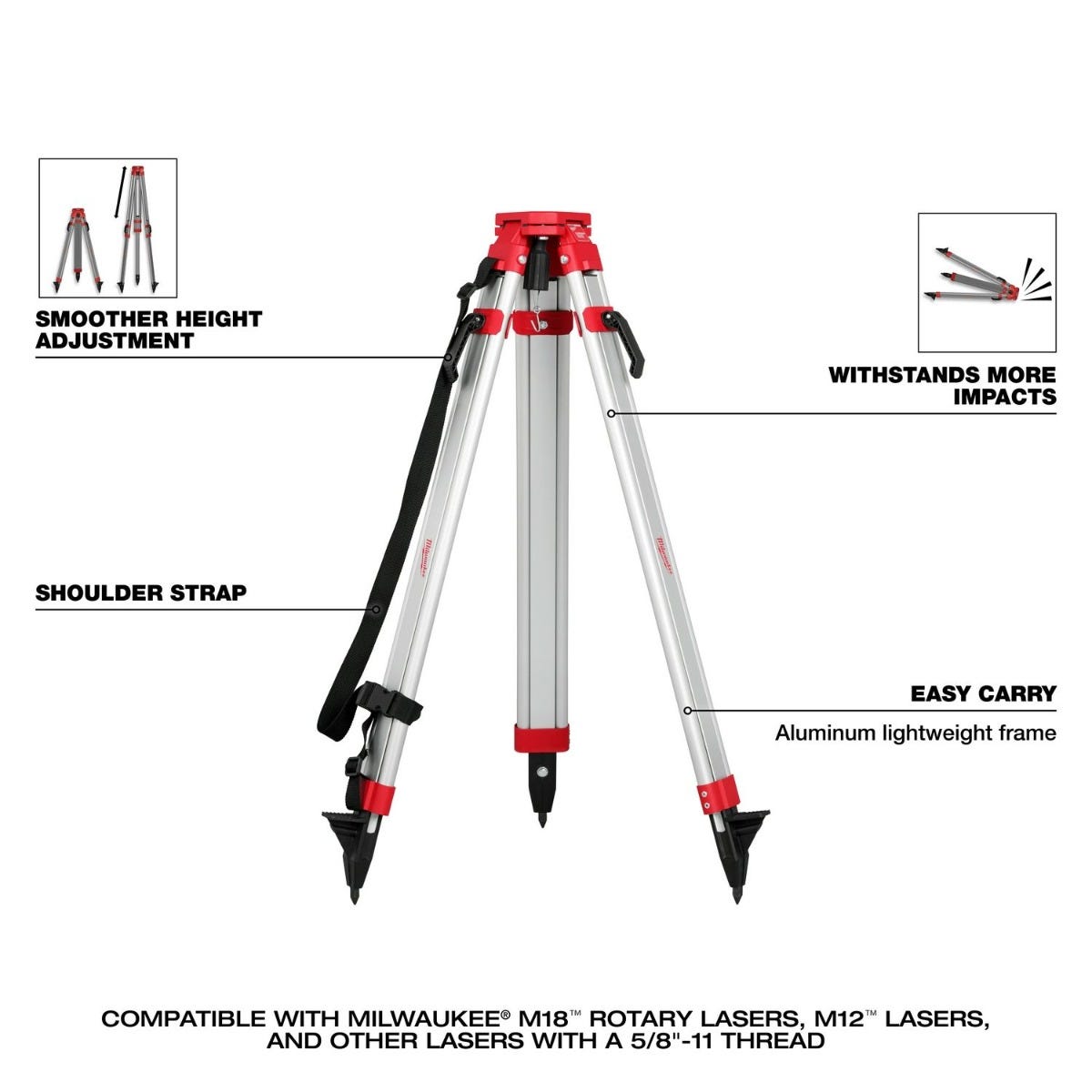

With the receiver on the grade rod and the remote in hand, one person can check readings and adjust slope without a helper at the laser. The included 48-35-3700 rotary laser tripod gives the laser a stable aluminum base with smooth height adjustment.
- Remote slope adjustment with duplicated display
- 8 ft grade rod with feet and inch graduations

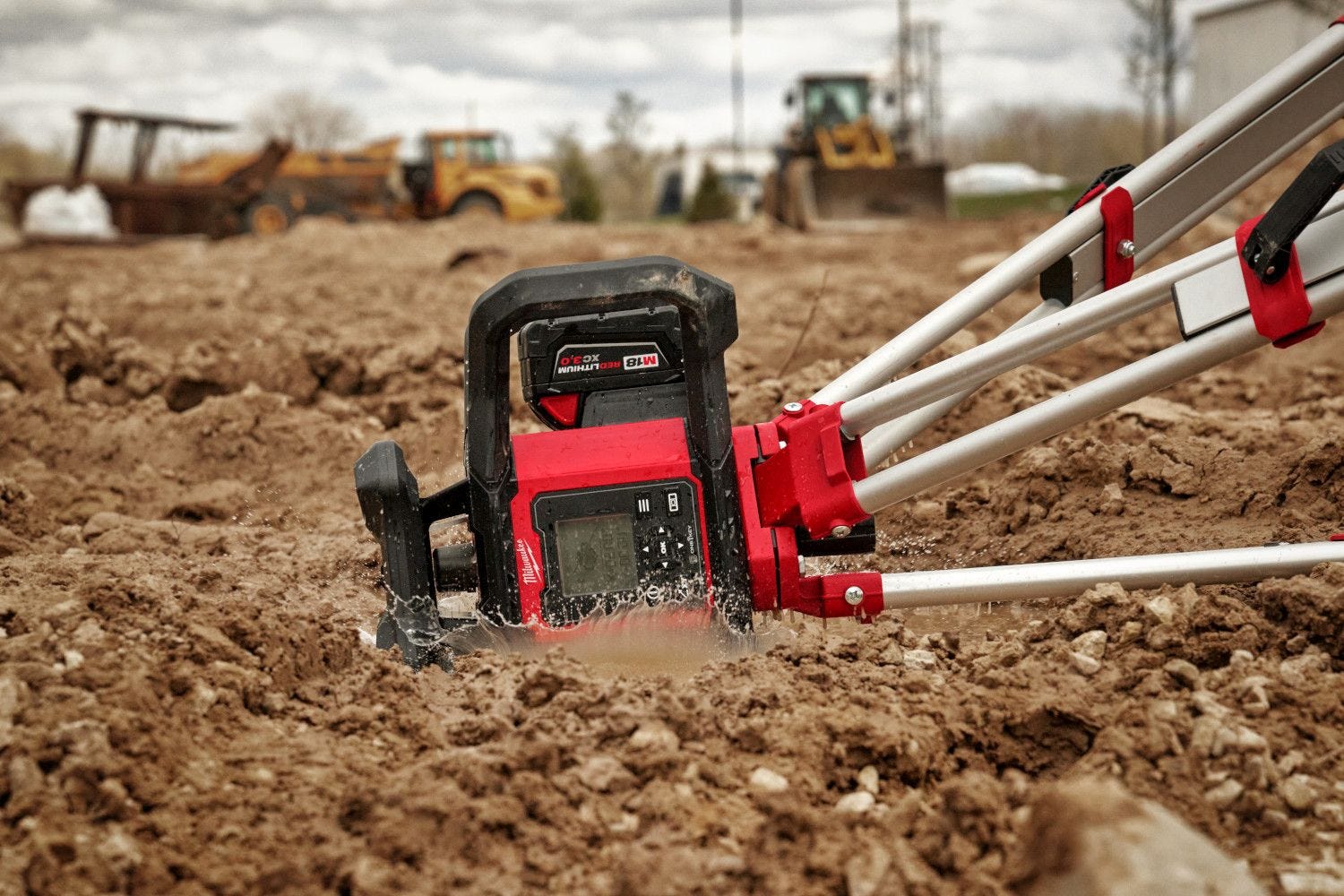

Survives a Tripod Tip
Tripods get kicked, blown over, and clipped by equipment. The reinforced housing is built to take that hit and keep working.
- Rated for 59-1/16" (1.5 m) drops and 6.6 ft (2 m) tripod tips
- IP66 dust and water protection

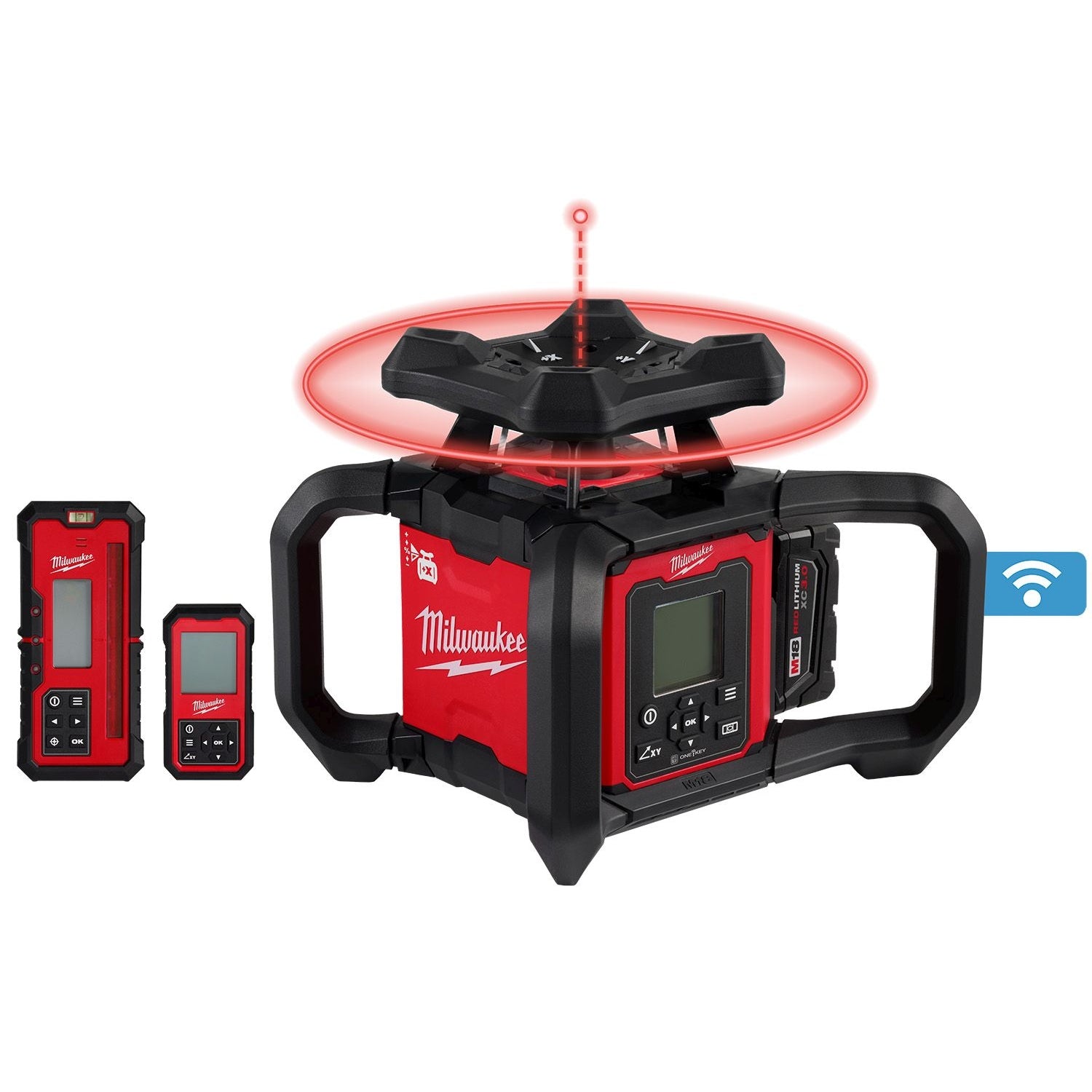

What's in the Box
- (1) M18 Red Exterior Dual Slope Rotary Laser
- (1) Red Exterior Dual Slope Rotary Laser Receiver
- (1) Dual Slope Rotary Laser Remote Control
- (1) Receiver Clamp
- (1) M18 REDLITHIUM XC 3.0Ah Battery
- (1) M18 & M12 Multi-Voltage Charger
- (1) Rotary Laser Tripod
- (1) Shoulder Strap
- (1) 8 ft Grade Rod
- (2) AA Batteries
- (1) Carrying Case
At a Glance
Key Specifications
|
|
1/16" at 100 ft |
|---|---|
|
|
1/8" at 100 ft |
|
|
4,000 ft diameter |
|
|
Plus or minus 5 degrees |
|
|
600, 900, 1,200 RPM |
|
|
IP66 |
|
|
40+ hours on M18 REDLITHIUM XC 3.0Ah |
|
|
Milwaukee M18 |
|
|
Class 2 |
|
|
5/8"-11 |
|
|
59-1/16" (1.5 m) |
|
|
8 ft, feet and inch graduations |
Compatibility
Built For
Pro Tip
Use the high bump sensitivity mode when equipment is working close to the tripod, and recheck your benchmark after any hard knock. Catching a bumped setup before the pour costs minutes; finding it after costs a tear-out.
Warranty & Support
Tool Nut's Take
The Milwaukee 3704-21T Dual Slope Rotary Laser Kit Puts Grade Control in One Box
This is a one-operator grading setup: set the laser, walk the site with the rod, and adjust slope from the remote.
- Who it's for: Site work, excavation, concrete, and landscape contractors who set drainage slope on pads, lots, and flatwork.
- Why it stands out: Dual slope with a remote that mirrors the laser display, a 4,000 ft working diameter, and a housing built to survive tripod tips, all running on M18 batteries you may already own.
- Worth knowing: If you only need a level plane and never set fall, the 3701-21T exterior rotary laser kit with tripod and grade rod is the simpler choice.
Common Questions
- What is the difference between the 3704-21 and the 3704-21T? The 3704-21T adds Milwaukee's rotary laser tripod and an 8 ft grade rod to the laser, receiver, remote, battery, and charger in the 3704-21.
- Can I adjust slope without walking back to the laser? Yes. The remote duplicates the laser's display and lets you adjust slope remotely.
- How long does it run on a charge? Milwaukee rates it at more than 40 hours on the included M18 REDLITHIUM XC 3.0Ah battery.
- Is it rated for wet conditions? The laser carries an IP66 rating for dust and water protection.
