Milwaukee 29-Piece RED HELIX Cobalt Drill Bit Set (48-89-2332)
Milwaukee 29-Piece RED HELIX Cobalt Drill Bit Set (48-89-2332)
Out of Stock - Available to Order - Usually ships in 14-20 days
Product Details
Product Details
Key Features
Overview
The Milwaukee 48-89-2332 29-Piece RED HELIX Cobalt Drill Bit Set is a cobalt twist drill bit set built for users who regularly drill into tougher materials and want longer bit life than standard black oxide sets. This is a twist drill bit set designed for drilling hard metals with drill drivers. Model Number: 48-89-2332. With 29 pieces covering common fractional sizes from 1/16 in. through 1/2 in., it gives you a broad range for fabrication, installation, repair, and general shop work.
What makes this set matter is how Milwaukee combines several real-world features into one bit design. The QUAD EDGE tip is built to start accurately and create smaller chips for quicker material removal with less heat. The VARIABLE HELIX flute changes from a more aggressive angle to a tighter angle for faster chip removal, which helps keep the cut moving instead of packing the hole. In plain terms, that means cleaner starts, more consistent drilling, and less fighting the bit when you're working through stainless steel, cast iron, thick metal, or black pipe.
The internal thicker tapered web is there for one reason: strength. Smaller bits and longer drilling sessions are where weak bits usually fail, especially in harder metal. Milwaukee calls out this thicker web design as a way to reduce premature breakage, and that is exactly the kind of feature pros care about because it saves both time and replacement cost. Add the cobalt construction, and you get a set designed for durability rather than just occasional light-duty use.
The 3-flat Secure-Grip shank is another jobsite-friendly detail that makes a difference. When a bit slips in the chuck, you lose torque, chew up the shank, and waste time. The 3-flat design helps the bit stay put in compatible drill drivers, which is especially useful when stepping up into larger diameters or drilling dense material where the bit is under more load. Milwaukee also laser etches the size on the bits for quicker identification when you're moving between sizes.
Storage is better thought out than what you get with a throwaway index case. The set comes organized in a customizable accessory case designed for use in PACKOUT, which makes it a better fit for techs, installers, and contractors already using Milwaukee storage. Instead of a loose collection of bits rolling around in a drawer or truck bin, this kit is made to stay organized and travel well.
For use cases, this Milwaukee drill bit set makes the most sense for metalworking, electrical, mechanical, maintenance, plumbing, HVAC, and general contractors who drill mixed materials but spend enough time in hard metals to justify a better bit. It is also a solid choice for serious DIY users who want one fractional set that reaches from small pilot holes up to 1/2 in. without piecing sizes together. If your work regularly includes stainless steel or thick metal, this set is built for that kind of load.
Drill Hard Metal Without Burning Through Bits
This set is aimed at the kind of drilling that ruins bargain bits fast. Cobalt construction, stronger web design, and chip-clearing flute geometry help the bit stay working in demanding metal applications.
- Ideal for stainless steel, cast iron, thick metal, and black pipe
- Designed for use with drill drivers
- Up to 15X life vs. black oxide drill bits according to Milwaukee
Get a Precise Start and Better Chip Removal

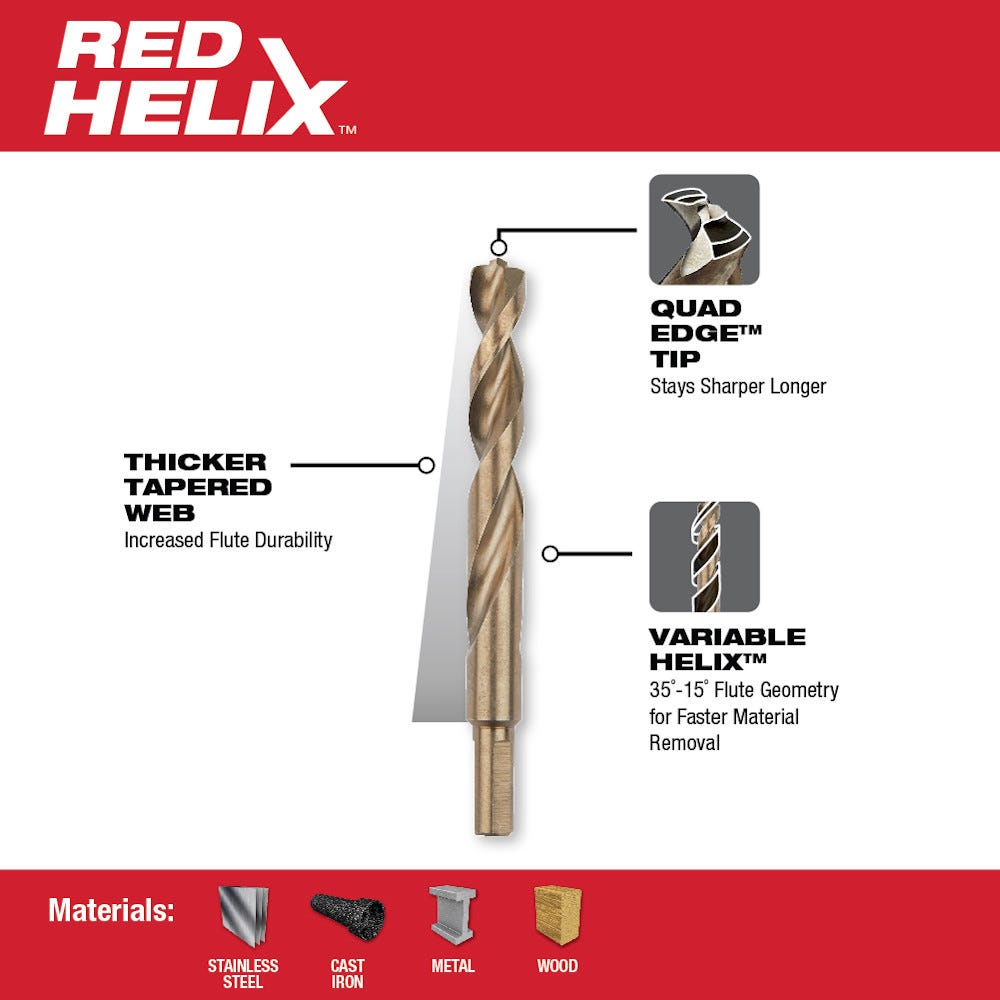

The cutting geometry is the main reason to buy this set over a basic twist bit kit. Milwaukee's QUAD EDGE tip helps the bit start where you place it, while the VARIABLE HELIX flute is built to move chips out fast so the bit runs cooler and cuts more efficiently.

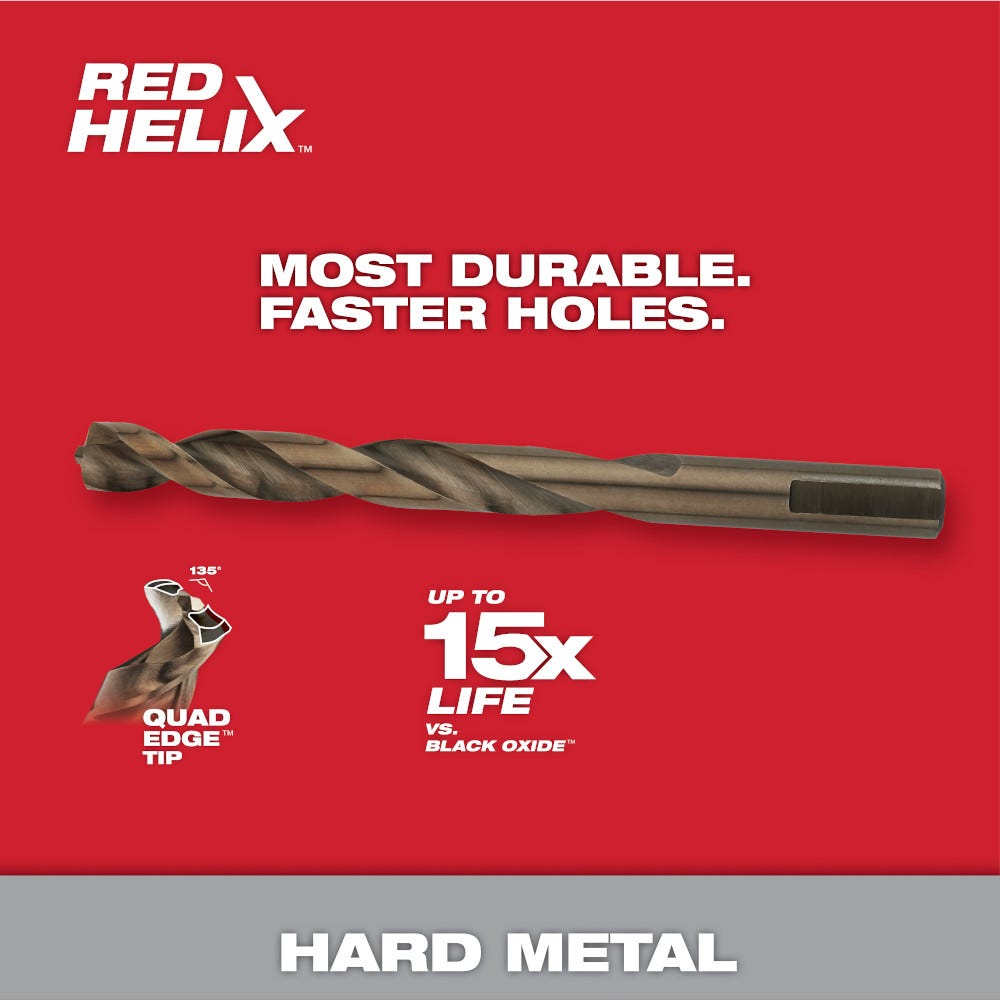

- QUAD EDGE tip for precision starts and smaller chips
- VARIABLE HELIX flute with 35 to 15 degree geometry
- Less heat buildup supports longer usable bit life

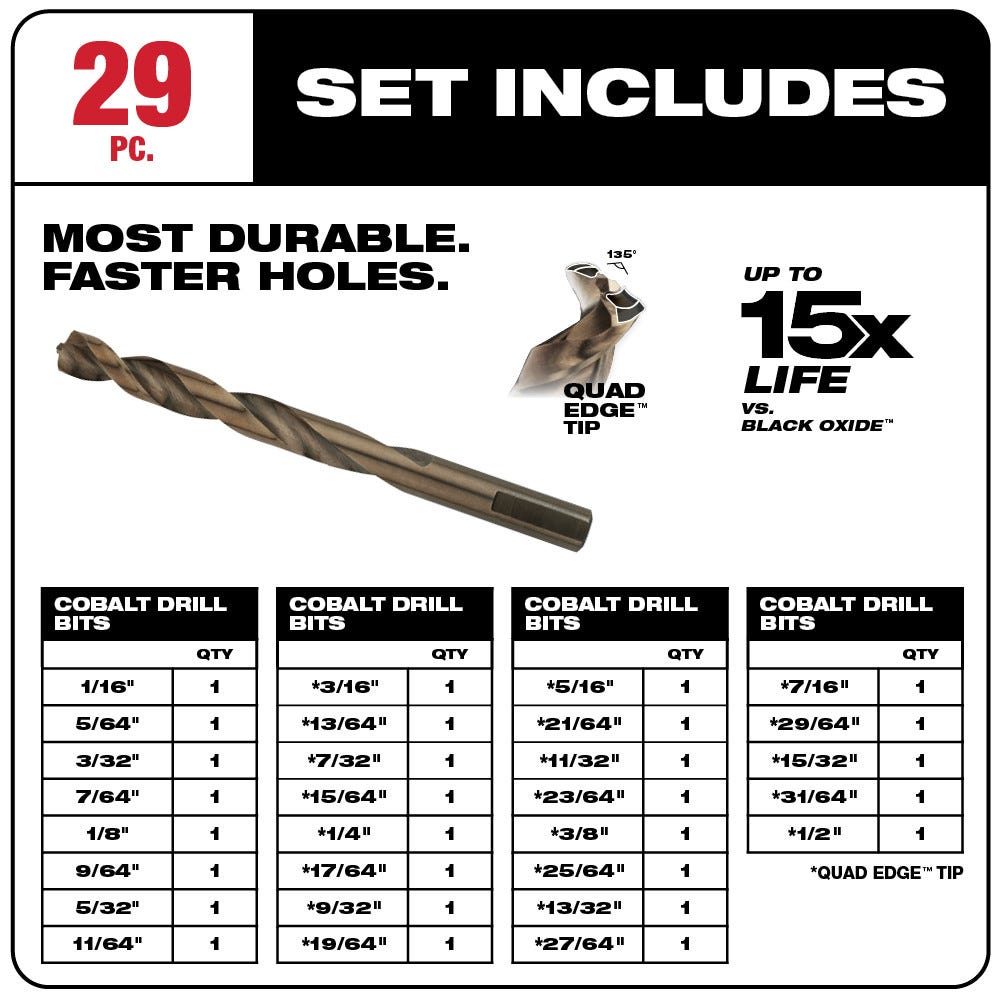

What's in the Box
- (1) 1/16 in. Cobalt RED HELIX Drill Bit
- (1) 5/64 in. Cobalt RED HELIX Drill Bit
- (1) 3/32 in. Cobalt RED HELIX Drill Bit
- (1) 7/64 in. Cobalt RED HELIX Drill Bit
- (1) 1/8 in. Cobalt RED HELIX Drill Bit
- (1) 9/64 in. Cobalt RED HELIX Drill Bit
- (1) 5/32 in. Cobalt RED HELIX Drill Bit
- (1) 11/64 in. Cobalt RED HELIX Drill Bit
- (1) 3/16 in. Cobalt RED HELIX Drill Bit
- (1) 13/64 in. Cobalt RED HELIX Drill Bit
- (1) 7/32 in. Cobalt RED HELIX Drill Bit
- (1) 15/64 in. Cobalt RED HELIX Drill Bit
- (1) 1/4 in. Cobalt RED HELIX Drill Bit
- (1) 17/64 in. Cobalt RED HELIX Drill Bit
- (1) 9/32 in. Cobalt RED HELIX Drill Bit
- (1) 19/64 in. Cobalt RED HELIX Drill Bit
- (1) 5/16 in. Cobalt RED HELIX Drill Bit
- (1) 21/64 in. Cobalt RED HELIX Drill Bit
- (1) 11/32 in. Cobalt RED HELIX Drill Bit
- (1) 23/64 in. Cobalt RED HELIX Drill Bit
- (1) 3/8 in. Cobalt RED HELIX Drill Bit
- (1) 25/64 in. Cobalt RED HELIX Drill Bit
- (1) 13/32 in. Cobalt RED HELIX Drill Bit
- (1) 27/64 in. Cobalt RED HELIX Drill Bit
- (1) 7/16 in. Cobalt RED HELIX Drill Bit
- (1) 29/64 in. Cobalt RED HELIX Drill Bit
- (1) 15/32 in. Cobalt RED HELIX Drill Bit
- (1) 31/64 in. Cobalt RED HELIX Drill Bit
- (1) 1/2 in. Cobalt RED HELIX Drill Bit

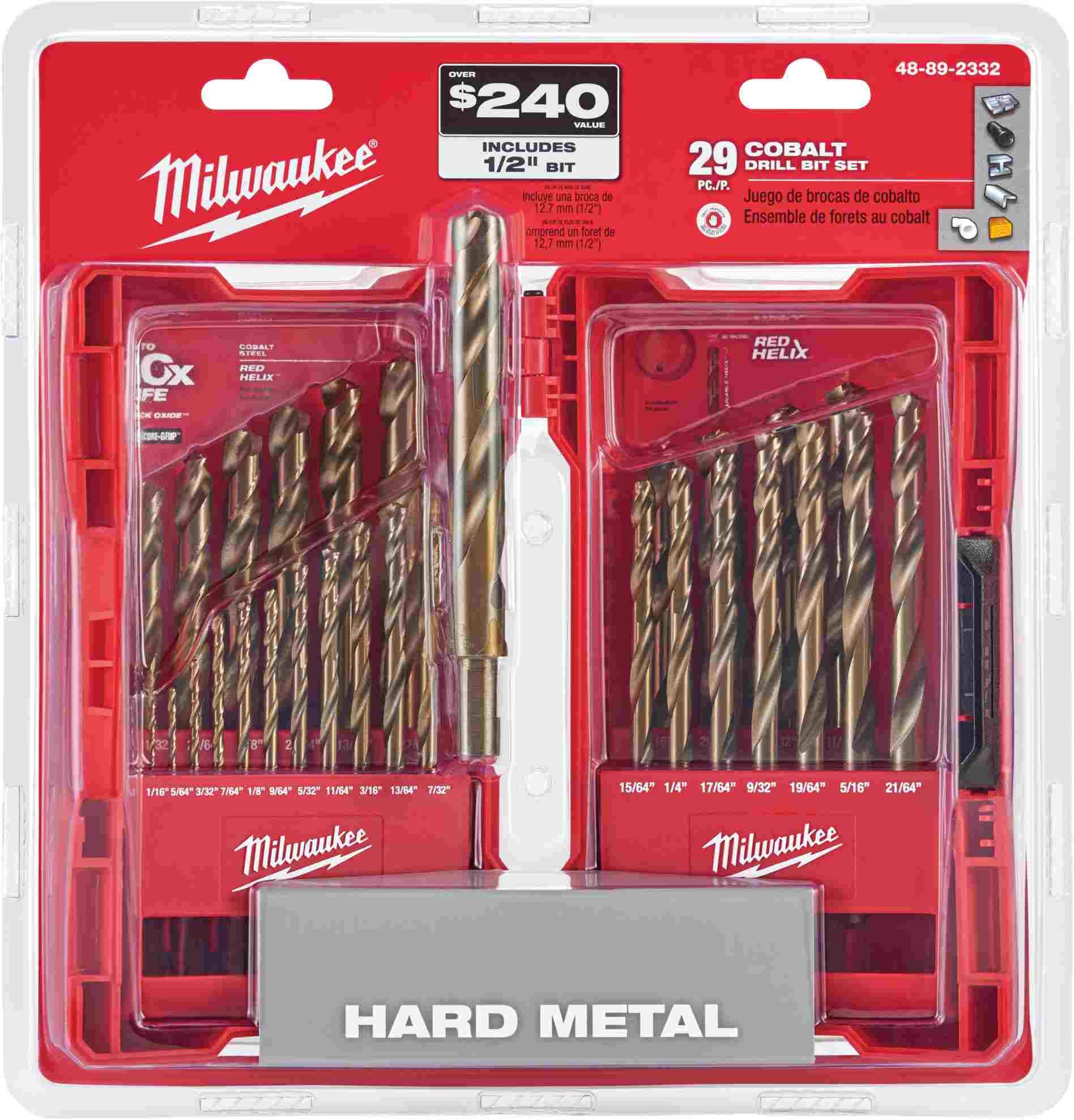

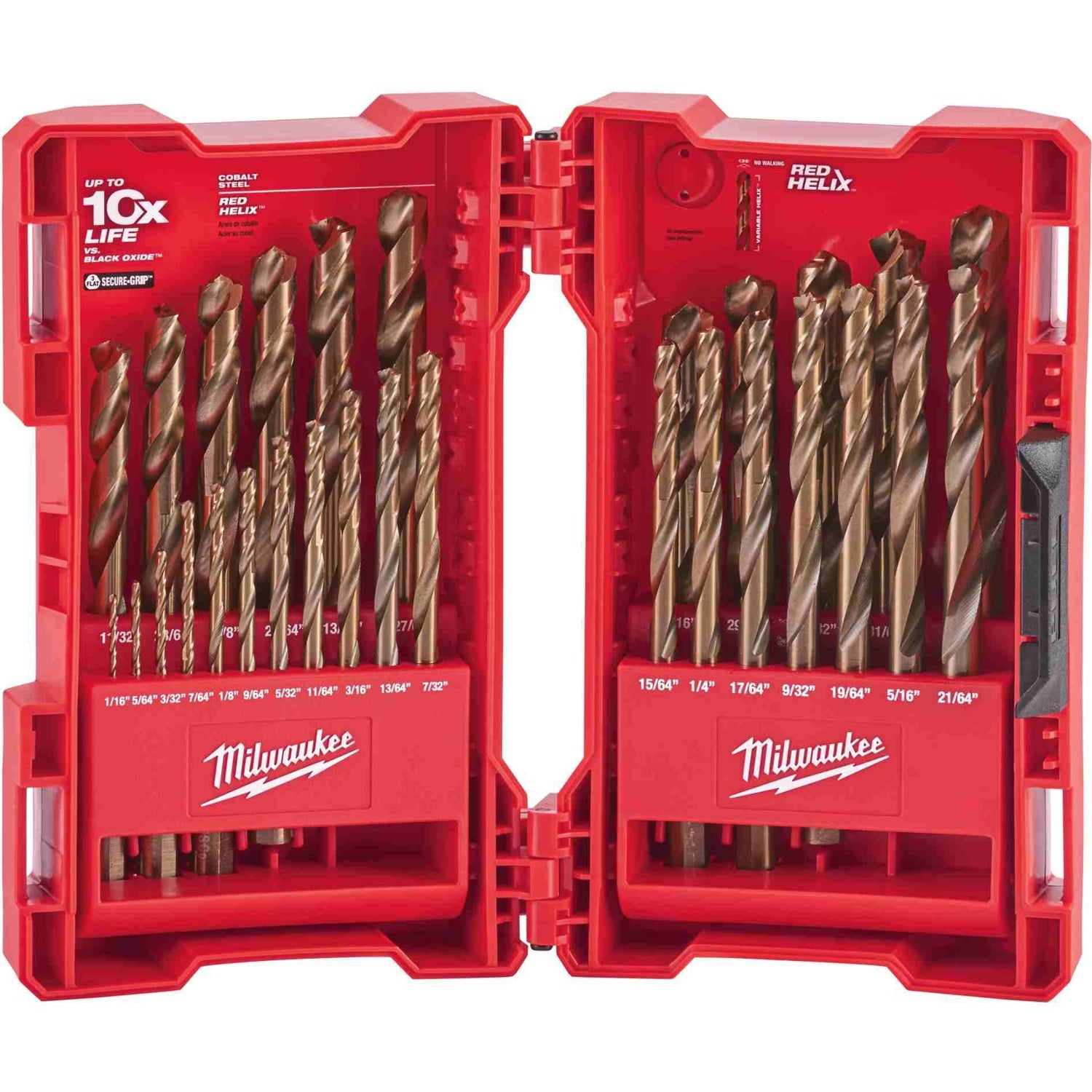

- (1) Customizable accessory case designed for PACKOUT
Key Specifications
|
|
Cobalt |
|---|---|
|
|
Twist |
|
|
1/16 in. to 1/2 in. |
|
|
29 |
|
|
3-Flat |
|
|
2.97 lbs |
|
|
7.75 in. |
|
|
11.75 in. |
Compatibility
Built For
Pro Tip
When you're drilling hard metal, start with one of the smaller sizes in this set to make a pilot hole before stepping up to your final diameter. It helps larger bits track cleaner and puts less stress on both the bit and the drill driver.
Warranty & Support
Tool Nut's Take
Milwaukee 48-89-2332 29-Piece RED HELIX Cobalt Drill Bit Set for hard-metal work
This is the set you buy when regular drill bits are turning into disposable items.
- Who it's for: Contractors, installers, metal fab users, maintenance crews, and serious DIYers who drill hard metals often enough to need cobalt instead of entry-level bits.
- Why it stands out: The QUAD EDGE tip, VARIABLE HELIX flute, thicker tapered web, and 3-flat shank all work toward the same goal: better starts, better chip clearing, and fewer broken or slipping bits.
- Worth knowing: This set is built around drill-driver use and comes in a PACKOUT-ready case, but the real value is in the bit geometry and cobalt build. If your work is mostly soft wood once in a while, it is more set than you need.
Common Questions
- What materials is this set designed for? Milwaukee lists it as ideal for hard metals such as stainless steel, cast iron, thick metal, and black pipe, and also suitable for wood and plastics.
- What type of tools is it designed to be used with? This set is designed for use with drill drivers.
- What kind of shank do these bits use? The bits use a 3-flat shank style to help prevent slipping in the chuck.
- Does the case work with Milwaukee PACKOUT? Yes. The customizable accessory case is designed for use in PACKOUT.
