Milwaukee M18 FUEL QUIK-LOK String Trimmer Attachment (49-16-2717)
Milwaukee M18 FUEL QUIK-LOK String Trimmer Attachment (49-16-2717)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

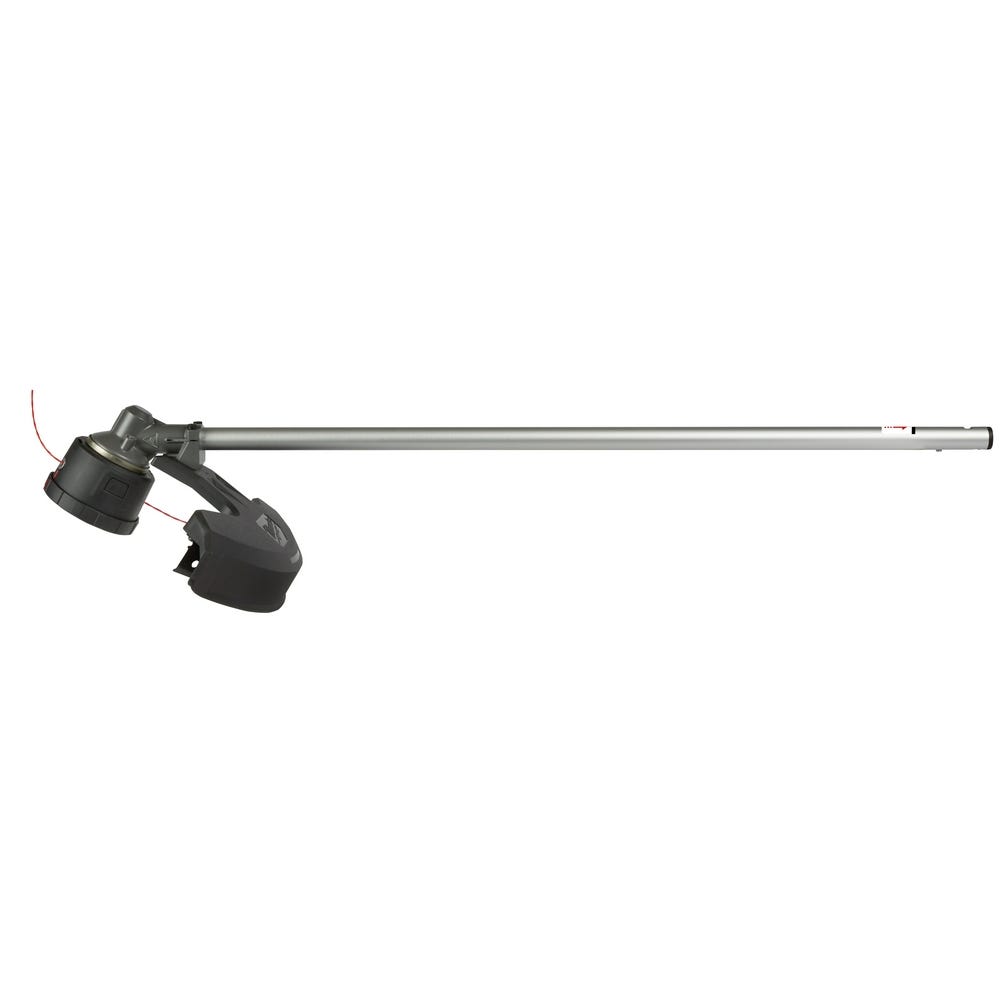

The Milwaukee 49-16-2717 M18 FUEL QUIK-LOK String Trimmer Attachment is an add-on attachment for Milwaukee's QUIK-LOK outdoor power system. This is a string trimmer attachment designed for grass trimming and edge cleanup when paired with a compatible Milwaukee M18 FUEL QUIK-LOK power head. Model Number 49-16-2717 gives you dedicated string trimming performance without committing to a separate full trimmer platform, which makes a lot of sense if you already own the Milwaukee power head.
On the job, the big advantage is flexibility. This attachment gives you an adjustable 14 inch to 16 inch cutting swath, so you can tune it for the work in front of you. Use the 14 inch setting when you want to stretch runtime and keep the tool a little more controlled in tighter spots. Step up to 16 inches when you need more clearing power and want to cover open ground faster. Milwaukee also rates the attachment for 0 to 4,900 and 0 to 6,200 RPM operation through the power head, which tells you it is built to keep up when the grass gets thick.
Milwaukee did not just stick a trimmer head on a tube and call it done. The gearing is optimized specifically for string trimming applications, which matters because the QUIK-LOK power head is shared across several outdoor attachments. That means the attachment is set up to turn the power head's output into useful trimming performance instead of generic spin. The straight shaft layout also keeps reach and control where you want them for fence lines, around landscaping, and general property maintenance.

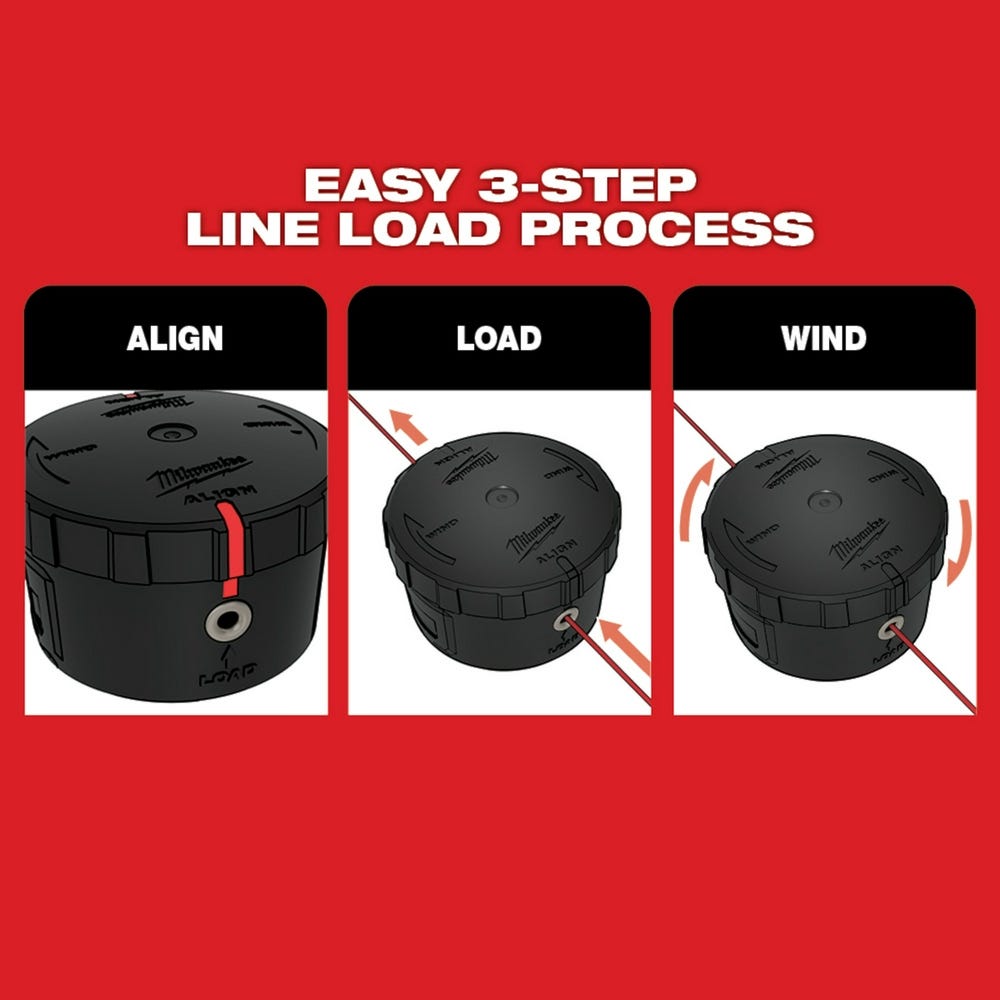

One of the more useful details here is the easy-load trimmer head. Reloading line is usually where a lot of trimmers waste your time, especially when you are already dirty and trying to finish the job before dark. This head is built for easy line loading in under 30 seconds and accepts both 0.080 inch and 0.095 inch trimmer line. It holds up to 25 feet of 0.080 inch line or 20 feet of 0.095 inch line, which gives you options depending on whether you want easier cutting through lighter grass or a little more durability in rougher growth.
Durability matters on outdoor power gear because these tools get dropped in trailers, leaned against walls, and stored in less-than-perfect conditions. Milwaukee calls out a protected drive shaft for greater resistance to drop damage and storage-related wear. That is the kind of feature you appreciate after a season of use, because attachment systems only make sense if the connection end and shaft assembly stay dependable.

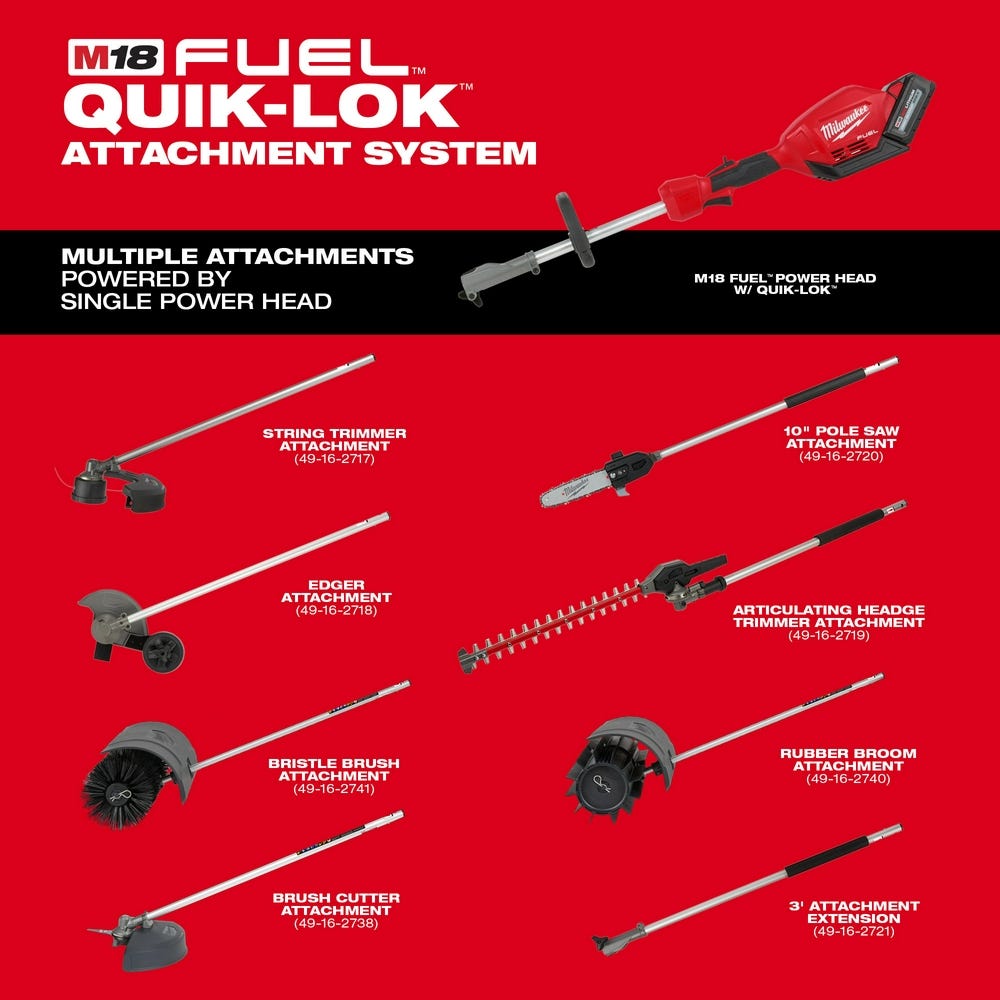

The other practical point is system compatibility. This attachment is made for the Milwaukee M18 FUEL power head with QUIK-LOK and fits the QUIK-LOK attachment system. It is not a standalone trimmer, and the power head is not included. If you already run compatible Milwaukee outdoor equipment, this is an efficient way to add a string trimmer to the setup you already own. If you do not own the QUIK-LOK power head yet, factor that into the purchase.
At 36.25 inches long and about 3.75 lbs as an assembled attachment, it adds trimming capability without making the system overly bulky. That makes it a good fit for homeowners maintaining a yard, facility crews handling general grounds upkeep, and contractors who want one battery platform and one power head to cover multiple outdoor tasks. If your goal is clean grass trimming with quick line changes and modular platform convenience, this attachment is the right kind of buy.
Milwaukee 49-16-2717 M18 FUEL QUIK-LOK String Trimmer Attachment for Faster Yard Cleanup
This attachment is about turning one power head into a practical trimming setup. It gives you the reach, cutting width, and line capacity needed for regular grass trimming without adding another engine or battery platform to manage.

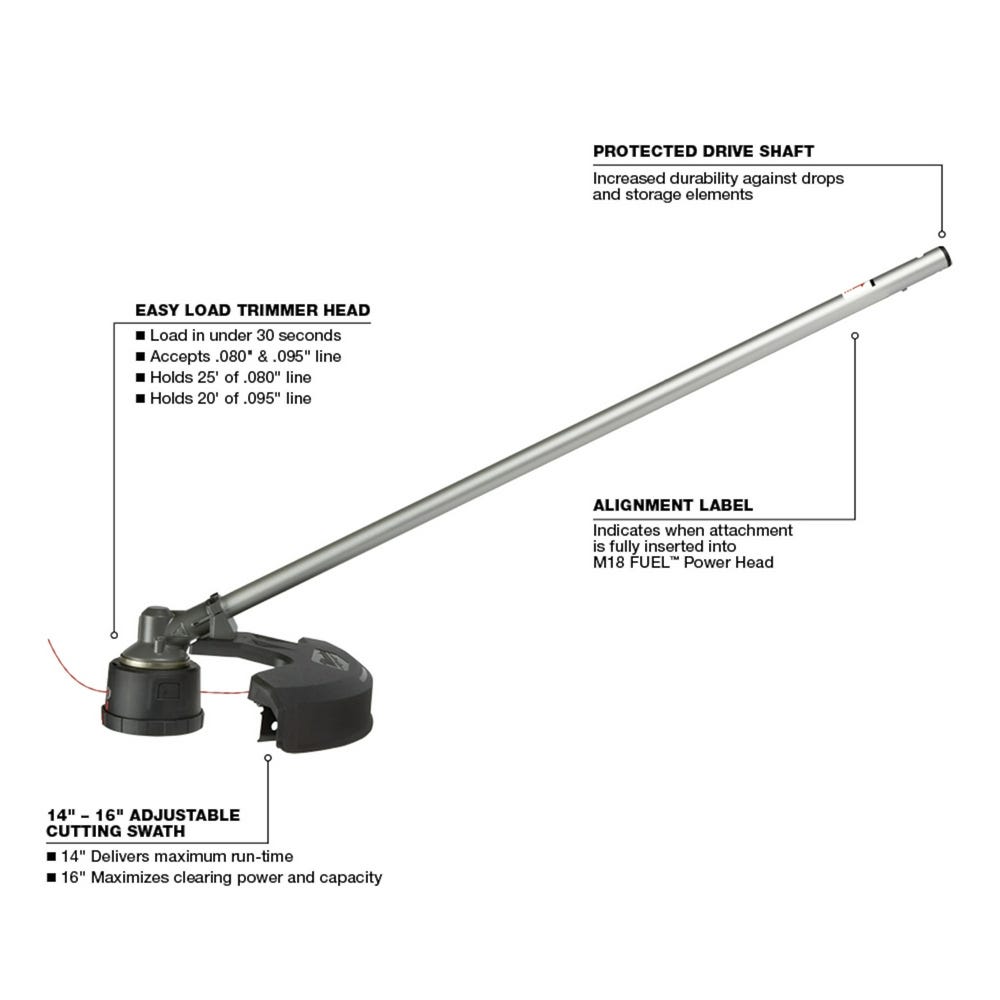

- Adjustable 14 in. to 16 in. cutting swath to balance runtime and clearing speed
- Uses 0.080 in. or 0.095 in. trimmer line with a bump feed system
- Easy-load head reloads line in under 30 seconds
- Protected drive shaft helps hold up to drops and storage conditions
What's in the Box
- (1) Milwaukee M18 FUEL QUIK-LOK String Trimmer Attachment (49-16-2717)
M18 FUEL QUIK-LOK power head not included.
Key Specifications
| Cutting Swath | 14 in. to 16 in. |
|---|---|
| Speed | 0 to 4,900 / 0 to 6,200 RPM |
| Line Diameter | 0.080 in. / 0.095 in. |
| Feed System | Bump Feed |
| Shaft Type | Straight Shaft |
| Overall Length | 36.25 in. |
| Assembled Weight | 3.75 lbs |
| Made In | Mexico |
Compatibility
Built For
Pro Tip
If you are trimming lighter grass or doing a lot of finish work around beds and hardscape, run the 14 inch swath first to keep runtime up and control tighter. Save the 16 inch setting and heavier 0.095 inch line for open areas and rougher growth where clearing speed matters more.
Warranty & Support
At a Glance
Tool Nut's Take
Milwaukee 49-16-2717 M18 FUEL QUIK-LOK String Trimmer Attachment is the smart buy for existing QUIK-LOK owners
If you already own the Milwaukee power head, this is the clean way to add serious string trimming without stacking up more machines in the trailer or garage.
- Who it's for: Milwaukee QUIK-LOK users who want one outdoor power system that can handle trimming along with other yard and property maintenance jobs.
- Why it stands out: The adjustable 14 inch to 16 inch swath, fast easy-load head, and protected drive shaft make it practical, not gimmicky.
- Worth knowing: This is an attachment only, so you need the compatible M18 FUEL QUIK-LOK power head to run it.
Common Questions
- Is this a complete string trimmer? No. It is a string trimmer attachment and requires a compatible Milwaukee M18 FUEL QUIK-LOK power head.
- What trimmer line sizes does it accept? It accepts 0.080 inch and 0.095 inch trimmer line.
- What cutting width does it offer? The cutting swath is adjustable from 14 inches to 16 inches.
- What kind of feed system does it use? It uses a bump feed trimmer head.
