Milwaukee Right Angle Attachment (49-22-8510)
Milwaukee Right Angle Attachment (49-22-8510)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

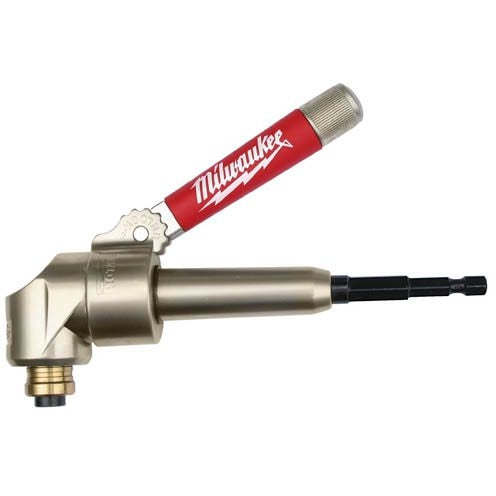

Milwaukee 49-22-8510 Right Angle Attachment is a compact drill and driver attachment made to let you work in places a standard drill setup cannot reach. This is a right angle attachment designed for drilling holes and driving screws in tight work areas. Model Number: 49-22-8510. It is a practical add-on for contractors, service techs, remodelers, and serious DIY users who regularly run into cabinets, corners, stud bays, and other restricted spaces.
The big reason this attachment matters is simple: clearance. Milwaukee states the compact design measures only 2 inches wide, which helps you get into spots where the chuck and body of a normal drill or impact driver would be blocked. If you have ever tried to sink a fastener between framing members or drill inside a cabinet box, you already know this is the difference between finishing the task cleanly and fighting the tool the whole time.
It is also built heavier than a throwaway adapter. The all-metal housing, steel gears, and ball bearing construction are there for a reason. They help the attachment manage up to 235 in-lbs of torque, which gives it enough muscle for real fastening and light drilling work without feeling like a fragile accessory you have to baby.
Milwaukee designed the 49-22-8510 around standard 1/4 in. hex accessories, so setup stays simple. The quick-change chuck accepts standard 1/4 in. hex shank bits, which means you can move between common drilling and fastening tasks without hunting down proprietary accessories. That matters on the job because the best attachment is the one that works with the bits you already own.
Compatibility is broad, which adds to the value. This attachment works with cordless drills and impact drivers and accepts all 1/4-inch hex shank bits. That makes it a useful crossover accessory if you bounce between tools during the day and want one tight-clearance solution that stays in rotation instead of sitting in the bottom of the box.
Who should buy it? Anyone who does regular fastening or light drilling in confined spaces. Electricians, cabinet installers, remodelers, maintenance crews, punch-list contractors, and mechanical trades will get the most out of it. If you rarely work in tight spots, it is more of a nice backup. If cramped access is part of your week, this is one of those attachments that saves time every time you pull it out.
Milwaukee 49-22-8510 Right Angle Attachment in Tight Access Work
This attachment is about keeping your drill or impact driver useful when space gets tight. Instead of changing your whole setup, you add a compact right angle head and keep moving.
- Compact design measures only 2 inches wide for better access in confined areas
- Rated up to 235 in-lbs of torque for real fastening and light drilling tasks
- Quick-change chuck accepts standard 1/4 in. hex shank bits
Key Specifications
| Torque | 235 in-lbs |
|---|---|
| Chuck Size | 1/4 in. |
| Shank Size | 1/4 in. |
| Bit Compatibility | Standard 1/4 in. hex shank bits |
| Material | All-metal housing and steel gears |
| Width | 2 in. compact design |
| Overall Length | 6.55 in. |
| Weight | 1.11 lb |
Compatibility
Built For
Pro Tip
Use shorter 1/4 in. hex bits when you are working deep inside a cabinet or between studs. The attachment already buys you clearance, and trimming bit length as much as the task allows makes the whole setup easier to control.
Warranty & Support
Tool Nut's Take
Milwaukee 49-22-8510 Right Angle Attachment is the kind of accessory you appreciate the first time a normal drill will not fit
It solves a very specific problem, and it solves it with enough strength and durability to earn a permanent spot in the bag.
- Who it's for: Pros and serious DIY users who regularly drill or drive fasteners in cabinets, framing bays, corners, and service spaces.
- Why it stands out: The compact 2 in. width, standard 1/4 in. hex bit compatibility, and 235 in-lbs torque rating make it more useful than the bargain-bin adapters that only come out for emergencies.
- Worth knowing: This is an attachment, not a complete drill. It is best when access is the problem you need to solve, not when maximum speed or heavy drilling is the priority.
Common Questions
- What bits does this attachment use? It accepts standard 1/4 in. hex shank bits.
- What is the torque rating? This attachment delivers up to 235 in-lbs of torque.
- Can it be used with drills and impact drivers? Yes. It is ideal for cordless drills, and it also functions with impact drivers.
- Is this made for tight areas? Yes. Milwaukee describes it as a compact right angle attachment with a design measuring only 2 inches wide.
