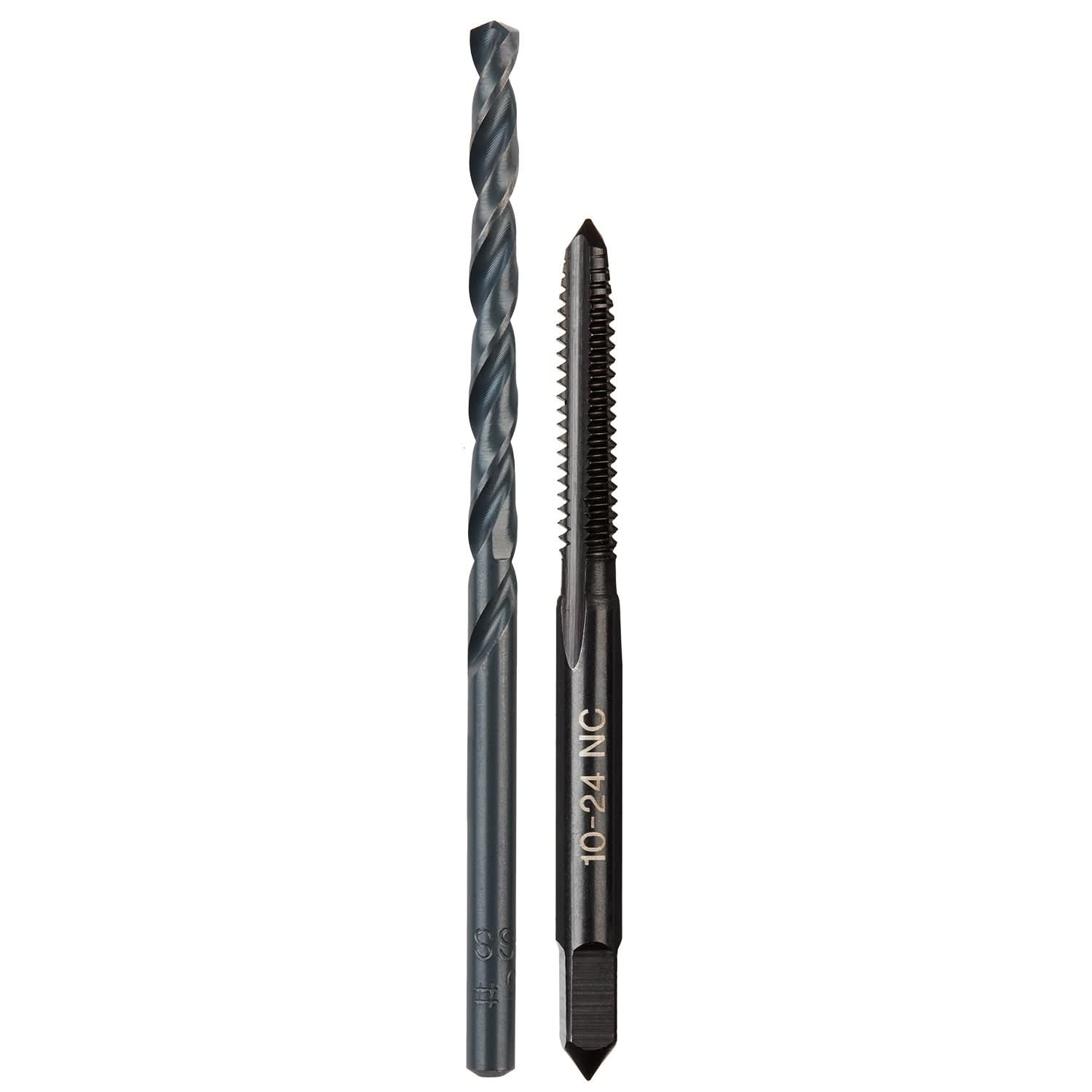

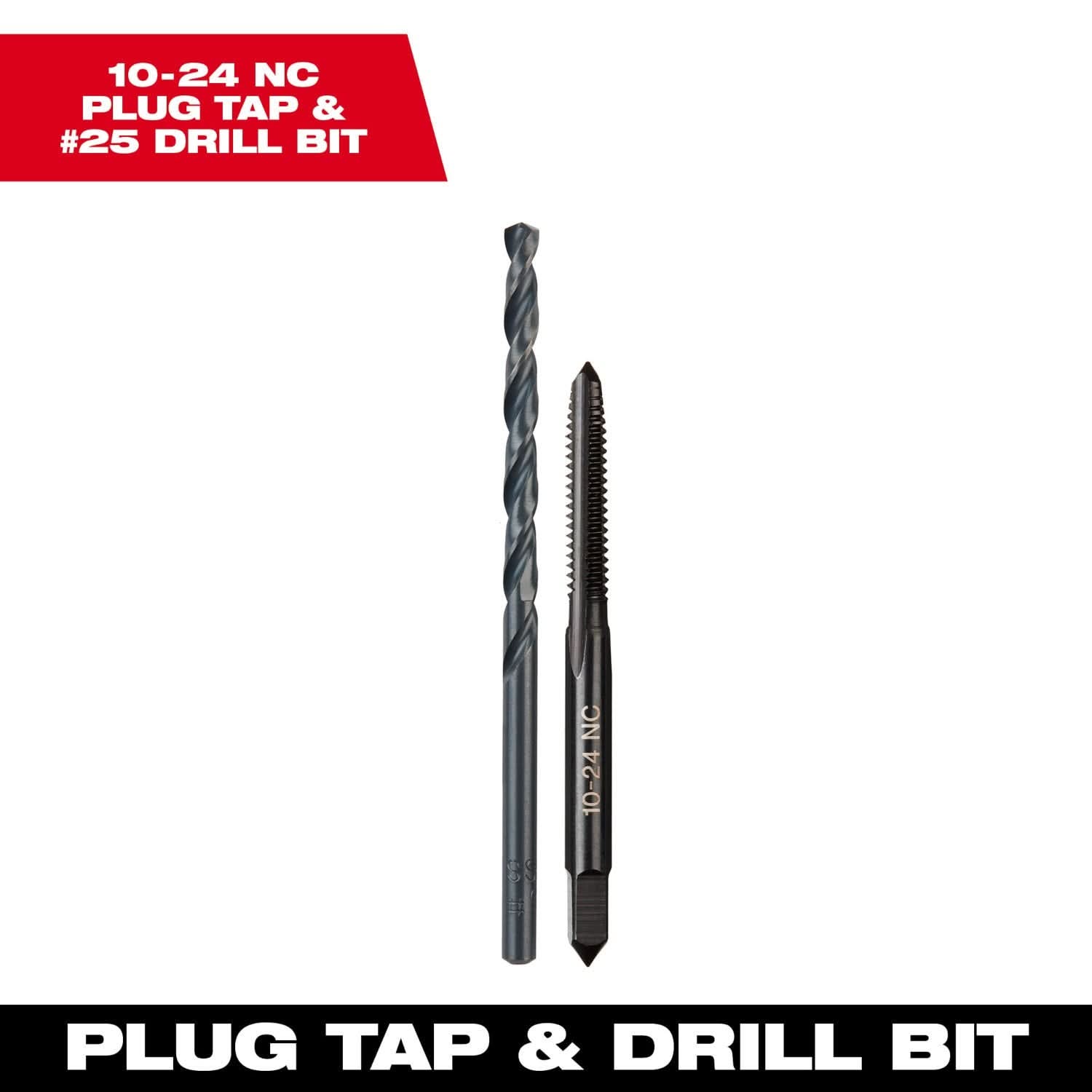

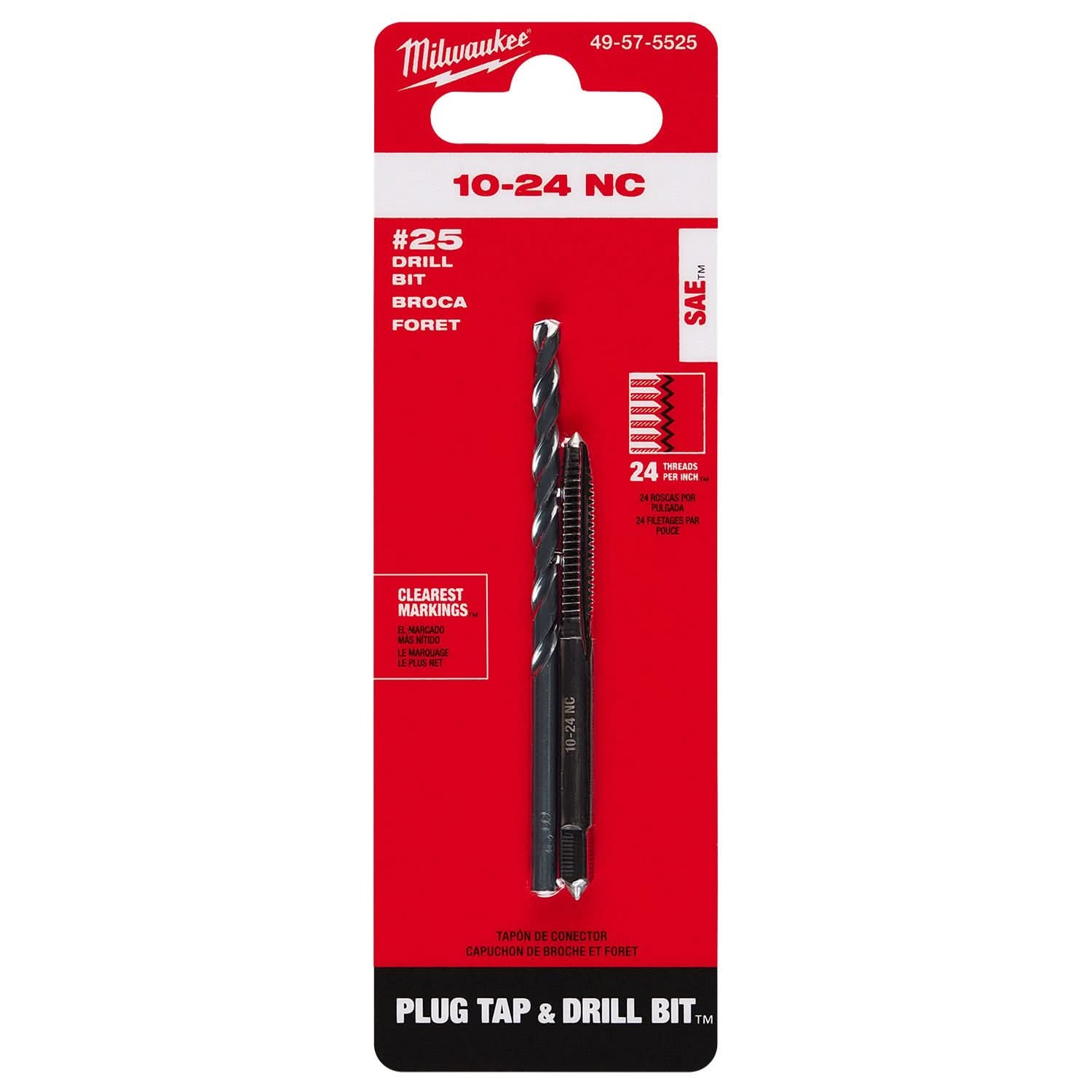

Milwaukee 10-24 NC Straight Flute Plug Tap & #25 Drill Bit (49-57-5525)
Milwaukee 10-24 NC Straight Flute Plug Tap & #25 Drill Bit (49-57-5525)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Milwaukee 49-57-5525 10-24 NC Straight Flute Plug Tap & #25 Drill Bit is a metal threading set built for creating or repairing internal threads in common shop and jobsite materials. This is a plug tap and drill bit set designed for pre-drilling and hand tapping 10-24 NC threads in metal. Model Number 49-57-5525. If you need the right drill size paired with the correct tap, this set keeps the process simple and cuts down on guesswork.
Milwaukee pairs a 10-24 NC plug tap with a matching #25 drill bit, which is the part that makes this set practical. You drill the pilot hole with the included twist drill bit, then cut or restore the threads with the tap. For maintenance work, fabrication, and repair, that means you can go from damaged or unfinished hole to usable threads without hunting down separate pieces.
The tap is precision machined for clean, accurate internal threads and uses a straight flute plug tap design for common threading work. That straight flute style is a good fit for through-hole threading and everyday repair tasks where you want predictable chip flow and straightforward hand use. The tap also has a square shank, so it works with standard tap handles and tap wrenches instead of locking you into a special holder.
Material matters on small cutting tools, and Milwaukee uses high carbon steel here for durability. The black oxide coating adds corrosion resistance, which helps when the set spends time in a service bag, tool drawer, or shop cabinet. Milwaukee also laser-etches the sizing on the tap, which sounds small until you are digging through loose taps and want to know exactly what you are holding without squinting at worn markings.
On the application side, this set is made for metal materials including brass, aluminum, and mild steel. That covers a lot of the repair and fabrication work most users run into, from cleaning up stripped threads in brackets and panels to adding threaded holes in light steel or aluminum parts. The included drill bit is designed for use with drill drivers, while the hand tap itself is not recommended for use with power tools. That distinction matters because it helps protect the tap, the workpiece, and the threads you are cutting.
For real-world use, this is a good fit for mechanics, maintenance techs, metal fabricators, electricians, HVAC installers, and serious DIY users who do occasional thread repair in metal. It is especially useful if you want a compact, ready-to-use threading solution for one common size instead of buying taps and drill bits individually. Add cutting fluid for best results, go slow, and this set handles the kind of clean-up and thread cutting work that shows up all the time in the shop.
Cut Cleaner Threads in Common Metal
The Milwaukee 49-57-5525 10-24 NC Straight Flute Plug Tap & #25 Drill Bit is built for the kind of metal thread work that needs to come out right, not just close enough. When you are repairing damaged threads or adding new ones in brass, aluminum, or mild steel, the matched tap and pilot bit help keep the process controlled.
- Precision-machined plug tap for creating and repairing internal threads
- Straight flute design is intended for common threading applications and through-hole work
- Best results are achieved when used with cutting fluid
What's in the Box
- (1) 10-24 NC Plug Tap
- (1) #25 Drill Bit
Key Specifications
| Tap Size | 10-24 NC Plug Tap |
|---|---|
| Drill Bit Size | #25 |
| Thread Type | UNC |
| Thread Direction | Right Hand Thread |
| Threads Per Inch | 24 TPI |
| Drill Bit Type | Twist |
| Material | High Carbon Steel |
| Surface Coating | Black Oxide |
| Number of Flutes | 4 |
| Overall Length | 5.75 in |
| Width | 1.88 in |
| Height | 0.38 in |
| Weight | 0.04 lbs |
| Pieces Included | 2 |
Compatibility
Built For
Pro Tip
Use the included #25 drill bit first, then run the 10-24 NC plug tap by hand with cutting fluid and back it off periodically to break chips. That keeps the tap cutting cleaner and lowers the chance of snapping a small tap in the hole.
Warranty & Support
Tool Nut's Take
Milwaukee 49-57-5525 10-24 NC Straight Flute Plug Tap & #25 Drill Bit for Straightforward Metal Thread Work
This is a smart buy for anyone who wants the correct tap and matching pilot bit together for one of the most common small thread repair jobs in metal.
- Who it's for: Mechanics, service techs, fabricators, and serious DIY users cutting or repairing 10-24 NC threads in brass, aluminum, and mild steel.
- Why it stands out: You get a precision-machined plug tap, corrosion-resistant black oxide finish, clear laser markings, and the matching #25 drill bit in one compact set.
- Worth knowing: The drill bit is fine for a drill driver, but the tap itself is meant for hand use with a standard tap wrench, not a power tool.
Common Questions
- What material is this tap made from? The tap is made from high carbon steel and has a black oxide coating for corrosion resistance.
- What materials can this set be used on? It is designed for metal applications including brass, aluminum, mild steel, and similar common metals.
- Can the tap be used with a power tool? No. Milwaukee states that hand taps are not recommended for use with power tools.
- What kind of threads does it cut? This set is for 10-24 NC right-hand UNC threads with 24 threads per inch.
