Milwaukee M12 Green 360 3-Plane Laser 4.0Ah Kit with M12 Battery Pack
Milwaukee M12 Green 360 3-Plane Laser 4.0Ah Kit with M12 Battery Pack
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Milwaukee M12 Green 360 3-Plane Laser 4.0Ah Kit with M12 Battery Pack is a cordless green laser level bundle for layout crews, electricians, mechanical trades, drywall and ceiling installers, and remodelers. This is a 3-plane laser level designed for alignment, leveling, squaring and point transfers across large interior spaces. Model Number 3632-21-48-11-2440 combines the Milwaukee 3632-21 M12 Green 360 3-Plane Laser 4.0Ah Kit with a second Milwaukee 48-11-2440 M12 REDLITHIUM XC 4.0Ah battery, so the laser never sits idle waiting on a charge.

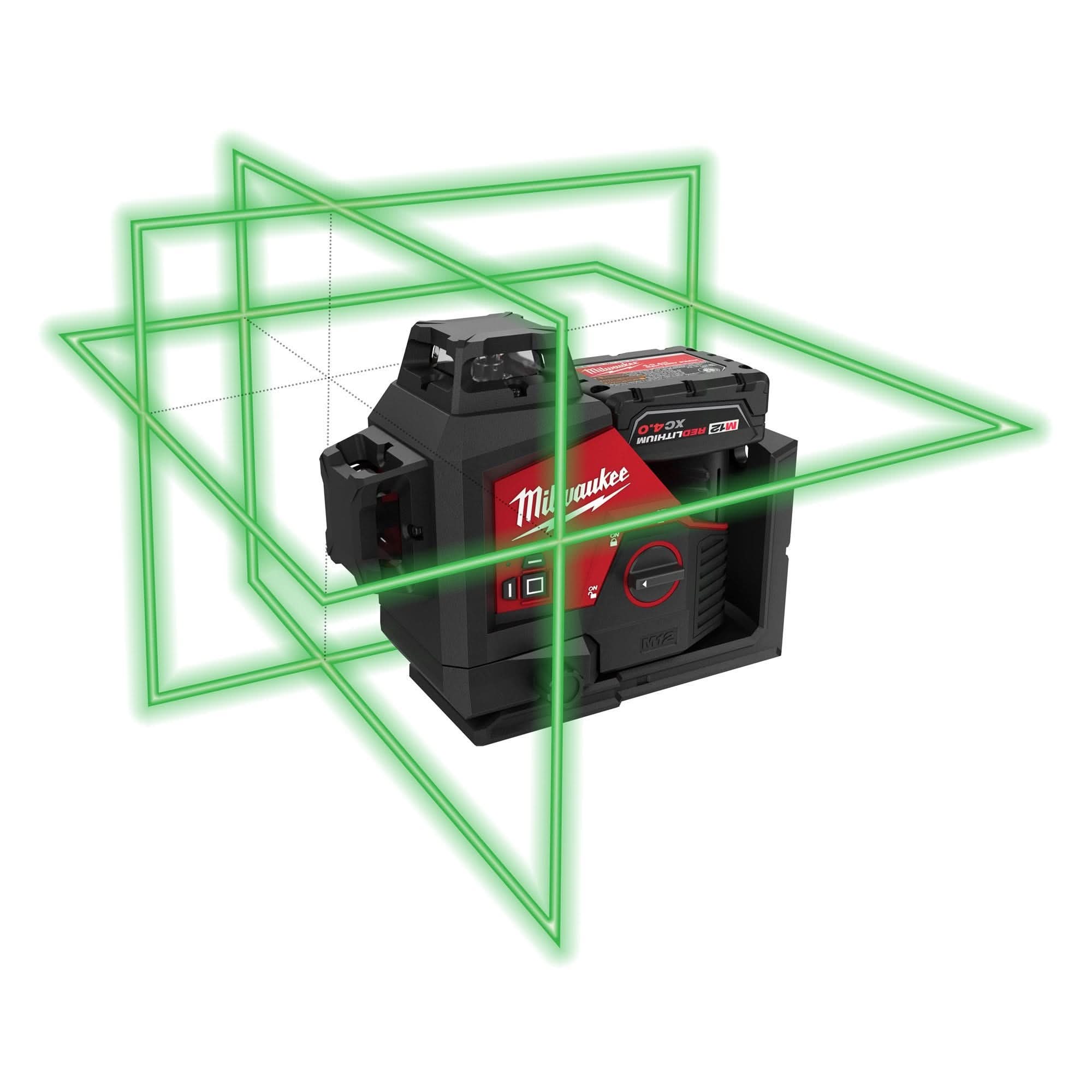

Three 360 degree planes are what separate this laser from a cross-line unit. The horizontal plane wraps the whole room for ceiling grid, cabinet lines and chair rail heights. The two vertical planes cross at 90 degrees, giving you square layout for walls and partitions and a plumb transfer from floor to ceiling. One setup handles all of it, which is time saved on every room. Among Milwaukee laser levels, this is the full-coverage option for crews doing layout every day.
Milwaukee built the high-intensity green laser for visibility over distance. Milwaukee rates the working range at 125 ft, 165 ft with a detector, and visibility up to 250 ft in diameter. Accuracy is plus or minus 1/8" at 33 ft, tight enough for framing lines, track layout and transferring control points across a commercial floor. The pendulum self-levels within plus or minus 4 degrees, so a rough placement on a floor or tripod is all it takes to get going.
Setup is where this laser saves the most time. The integrated bracket uses micro control to fine-tune the line and pivots on the plumb point, so the laser beam stays on your mark while you rotate it. Amplified rare earth magnets grip steel studs and track without sliding, an integrated hang hole covers screws and nails, and 1/4-20 and 5/8-11 thread mounts fit standard camera and construction tripods.
The housing is built for real jobsites. It carries an IP54 rating against water and dust and is rated for a 3.3 ft (1 m) drop. That covers the dust of a drywall job and a damp basement without babying the tool, though a laser is still a precision instrument and deserves its hard case between jobs.
Runtime is where this bundle earns its premium over the standard kit. Milwaukee rates 15+ hours of continuous runtime on an M12 REDLITHIUM XC 4.0Ah pack, which is a full shift on one battery. With two packs in the box, one can always be charging. Both batteries also run every other tool in the Milwaukee M12 system, from compact drills and installation drivers to inspection cameras and lights.
Who should buy it? Layout specialists, electricians, plumbers, HVAC installers, framing, drywall and ceiling crews, and general contractors who run a laser most days and cannot afford downtime from a dead pack. If you only need occasional level lines, the standard kit makes more sense. If the laser runs all day, the extra battery pays for itself.
Lay Out the Whole Room From One Spot
Three full planes mean level, plumb and square references across every wall at once. Set it in the middle of the room and work around it.
- One horizontal and two vertical 360 degree planes
- 125 ft working range, 165 ft with a detector
- Accuracy of plus or minus 1/8" at 33 ft
A Spare Pack for Long Shifts

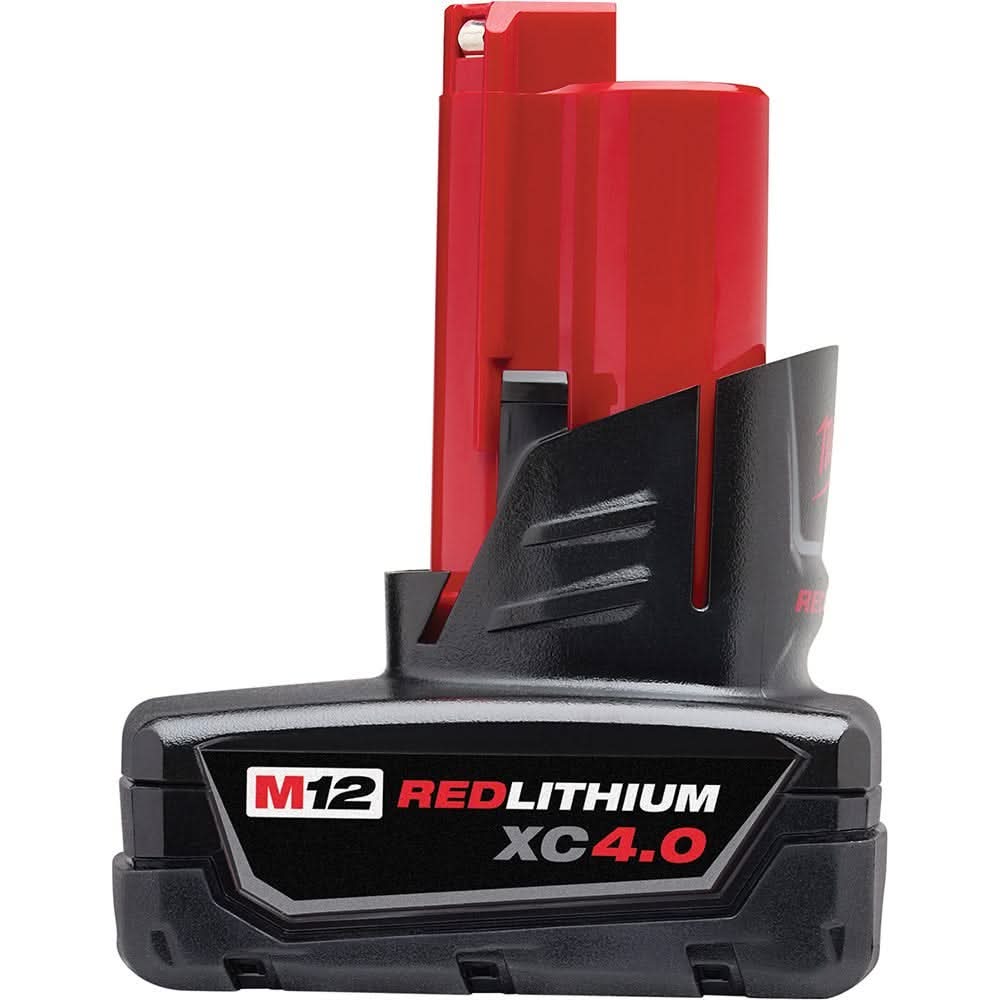

The second XC 4.0Ah pack keeps the laser running through back-to-back days of layout and doubles as a spare for your other Milwaukee M12 batteries in the van.
- (2) M12 REDLITHIUM XC 4.0Ah batteries in the bundle
- 15+ hours of continuous laser runtime per 4.0Ah pack

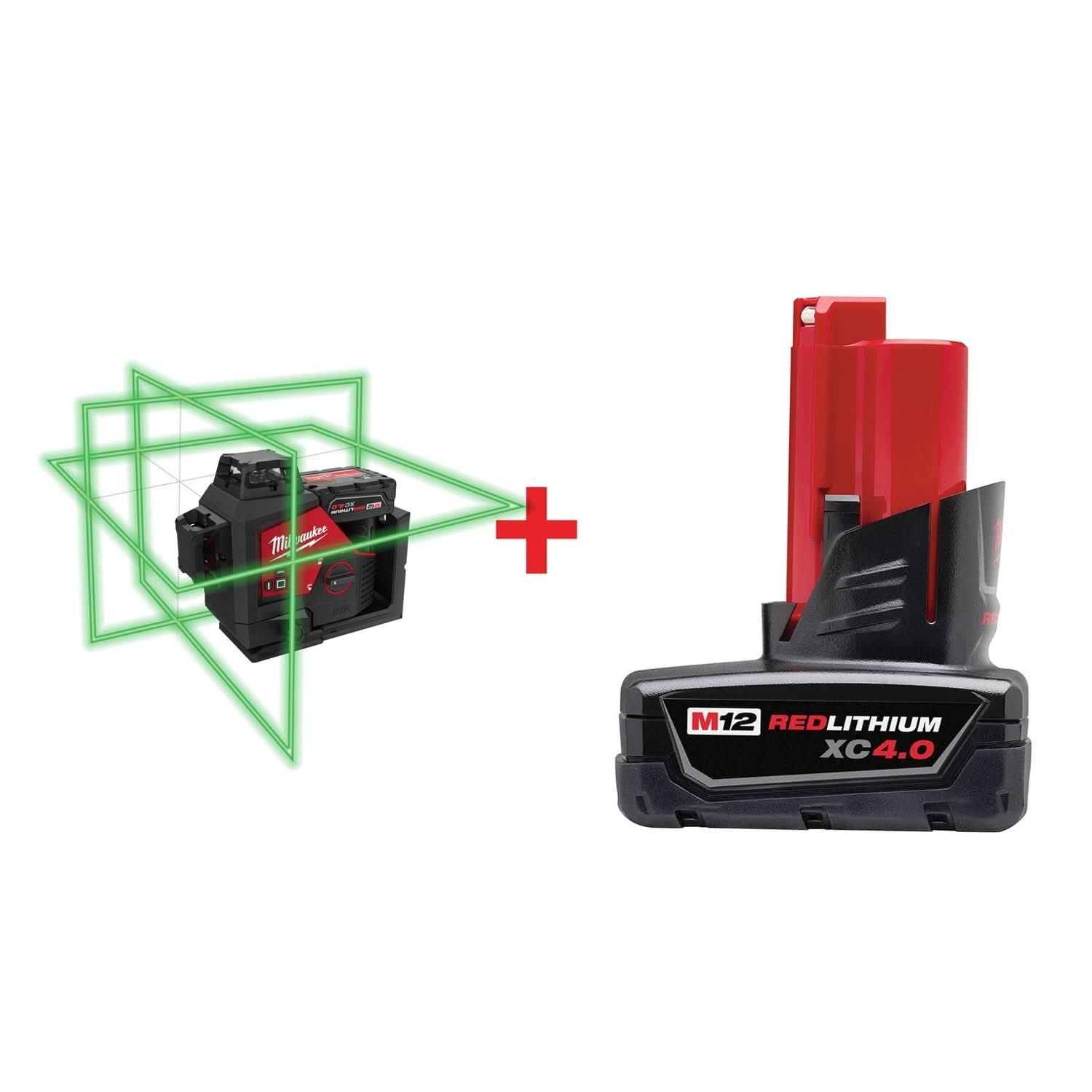

What's in the Box
- (1) Milwaukee M12 Green 360 3-Plane Laser
- (2) M12 REDLITHIUM XC 4.0Ah Extended Capacity Batteries (one with the kit, one additional)
- (1) M12 Charger
- (1) Laser Target
- (1) Hard Carrying Case
Key Specifications
|
|
M12 (12 V) |
|---|---|
|
|
3 x 360 degree (1 horizontal, 2 vertical), green |
|
|
125 ft; 165 ft with detector |
|
|
Up to 250 ft |
|
|
+/- 1/8" at 33 ft |
|
|
+/- 4 degrees |
|
|
15+ hours per M12 XC 4.0Ah pack |
|
|
(2) M12 REDLITHIUM XC 4.0Ah |
|
|
IP54 |
|
|
3.3 ft (1 m) |
|
|
1/4-20 and 5/8-11 |
|
|
2.6 lbs |
|
|
7.8" x 4.2" x 6.5" |
|
|
Glass-filled nylon |
Compatibility
Built For
Pro Tip
Stick the laser to a steel stud, get it close, then use the micro control to walk the line onto your mark. The bracket pivots on the plumb point, so the beam stays put on the floor while you rotate the vertical planes.
Warranty & Support
Tool Nut's Take
The Milwaukee M12 Green 360 3-Plane Laser 4.0Ah Kit with M12 Battery Pack Is Built for All-Day Layout
A full-coverage green laser with two long-run batteries, so the layout never stops for a charge.
- Who it's for: Layout crews, electricians, mechanical trades, drywall and ceiling installers, and GCs who run a laser most days.
- Why it stands out: Three 360 degree planes, 1/8" at 33 ft accuracy, a pivot-on-point micro control bracket, and two XC 4.0Ah packs.
- Worth knowing: The 165 ft range requires a laser detector, which is not included.
Common Questions
- How is this different from the standard 3632-21 kit? It includes everything in the 3632-21 kit plus a second M12 REDLITHIUM XC 4.0Ah battery.
- How long does it run? Milwaukee rates 15+ hours of continuous runtime on one XC 4.0Ah pack.
- Can it go on a tripod? Yes. It has both 1/4-20 and 5/8-11 thread mounts.
