Rolair 1.5 HP 9-Gallon Twin Tank Electric Belt Drive Compressor with Dual Controls (5715K17-0003)
Rolair 1.5 HP 9-Gallon Twin Tank Electric Belt Drive Compressor with Dual Controls (5715K17-0003)
In Stock - Ships from Manufacturer
Product Details
Product Details
Key Features
Overview
The Rolair 5715K17-0003 9-Gallon Twin Tank Compressor with Dual Controls is a 1.5 HP wheeled electric air compressor for contractors who run pneumatic nailers and staplers all day. This is a belt-drive electric air compressor designed for powering pneumatic fastening tools on the jobsite. Model Number: 5715K17-0003.
The output numbers are what matter: 10.1 CFM displaced and 7.3 CFM delivered at 90 PSI from a 1.5 HP motor. That is real recovery for running nailers and staplers through a full day of fastening.

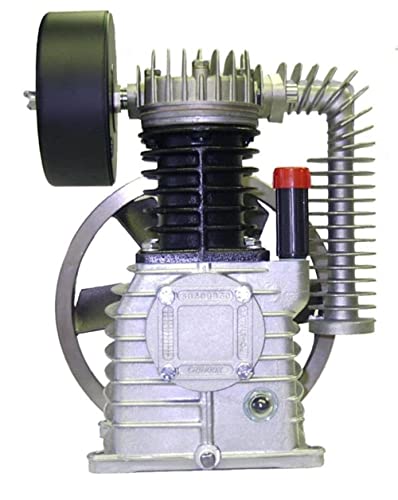

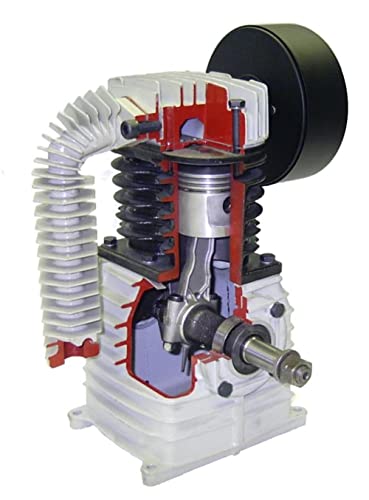

Rolair builds the pump for durability. It is a heavy-duty single-stage design with twin cast-iron cylinders, ball bearings, hardened steel valve plates, and Swedish lamellar reed valves, splash lubricated with a 34 oz oil capacity and an oil sight gauge so you can check the level at a glance. A multi-finned 11 inch flywheel and a built-in air-cooled aftercooler round out the pump.
Controls and safety hardware are pro-grade: a Square D pressure switch with unloader, a 0 to 200 PSI gauge with 5 lb graduations, a safety relief valve, manual-reset motor overload protection, and a totally enclosed steel belt guard. The intake filter has a silencer and a replaceable element, and an accessory support clip is included on the unit.
The 5715K17 platform is rated for 115/230V, 60 Hz power. It measures 46 x 19 x 28 inches with a 180 lb shipping weight, so it is a serious machine, but the wheeled twin tank layout keeps it movable on site.
This Rolair compressor is built for trim and finish carpenters, framing and remodeling crews, and anyone who needs dependable electric air power with a pump designed to last.
Key Specifications
| Horsepower | 1.5 HP |
|---|---|
| Voltage | 115/230 V, 60 Hz |
| Air Delivery | 7.3 CFM at 90 PSI |
| Displacement | 10.1 CFM |
| Tank Capacity | 9 gal, twin tanks |
| Pump | Single stage, twin cast-iron cylinders |
| Lubrication | Splash, 34 oz oil capacity |
| Pressure Gauge | 0 to 200 PSI |
| Overload Protection | Manual reset |
| Dimensions (L x W x H) | 46 in x 19 in x 28 in |
| Shipping Weight | 180 lbs |
Built For
Tool Nut's Take
A Twin Tank Built Like a Shop Compressor
The Rolair 5715K17-0003 pairs a cast-iron belt-drive pump with portable twin tanks, which is exactly what a crew running multiple pneumatic tools needs.
- Who it's for: Contractors who need steady air for nailers and staplers and want a compressor that lasts.
- Why it stands out: 7.3 CFM at 90 PSI, a cast-iron twin cylinder pump, a Square D pressure switch, and an aftercooler.
- Worth knowing: It ships at 180 lbs. Plan for freight delivery and a second set of hands to unload it.
