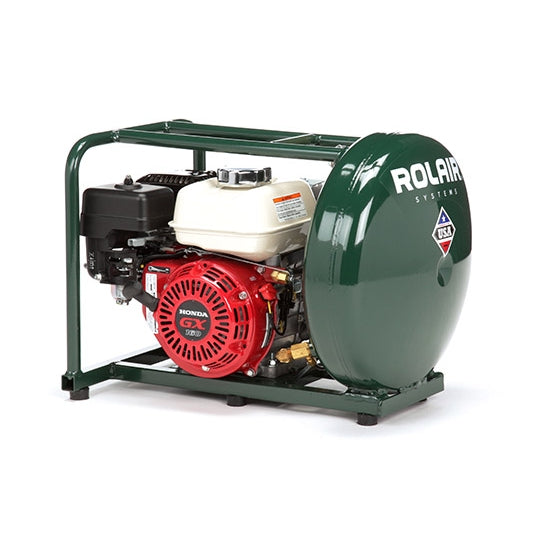

Rolair Compressors 163cc Direct Drive 5-Gallon 135 PSI Hand Carry Air Compressor (GD5000PV5H)
Rolair Compressors 163cc Direct Drive 5-Gallon 135 PSI Hand Carry Air Compressor (GD5000PV5H)
In Stock - Ships from Manufacturer
Product Details
Product Details
Key Features
Overview
The Rolair Compressors GD5000PV5H 163cc Direct Drive 5 Gallon 135 PSI Hand Carry Air Compressor is a gas-powered portable air compressor built for jobsites where electricity is not available. This is a hand carry air compressor designed for powering pneumatic tools in remote or constantly changing work areas. Model Number: GD5000PV5H. If you need a compact compressor that can leave the cord behind and still deliver real jobsite air output, this is the kind of machine you look at.
The big selling point here is simple: a 163cc Honda engine driving a direct-drive pump that delivers 4.6 CFM at 90 PSI. That is the number that matters for actual tool use. It also runs in a 110 to 135 PSI operating range, so you get useful stored pressure in the tank and enough output for many common air-driven tasks without dragging around a much larger wheelbarrow unit.
Rolair set this compressor up for durability, not just portability. The pump uses splash lubrication, which helps support longer pump life in regular service. A cast-iron cylinder adds wear resistance where it counts, and ball bearings help the pump run efficiently. On a tool like this, those details are not filler specs. They are the parts that affect how well the compressor holds up after repeated starts, vibration, loading, and transport.
The protective frame matters too. This unit uses a full steel cage that wraps the compressor for impact protection and also gives you a solid carry structure. That makes a difference when the compressor is being moved in and out of trucks, carried across uneven ground, or set down in tight work areas. It is a compact footprint at 26 inches long, 17 inches wide, and 20 inches high, so it is easier to place than a larger contractor compressor.
For day-to-day usability, Rolair includes a regulator with an air line pressure gauge, a quarter-inch universal quick disconnect, a safety relief valve, and automatic engine throttle control. The throttle feature is worth calling out because it helps reduce unnecessary fuel use once target pressure is reached, and that also helps with overall engine wear over time. There is also an intake filter noted for reducing noise levels compared to a more bare-bones setup.
This compressor is best suited to contractors, remodelers, service crews, and anyone working in places where outlet access is the problem, not compressor performance. If your work regularly takes you outside, onto new construction sites, or into areas before permanent power is live, the GD5000PV5H makes a lot of sense. If you work mostly in a shop with easy power access, an electric unit may be simpler. But if mobility and independence from electricity are the priority, this Rolair hand carry air compressor solves a real problem.
Air Power Where Electricity Stops
The value of this compressor is not just that it is portable. It is that it gives you compressed air in places where a standard electric compressor is useless. That makes it a practical pick for outdoor work, early-stage construction, and service jobs where power access is limited or nonexistent.
- 163cc Honda engine powers the compressor without needing an outlet
- 4.6 CFM delivered at 90 PSI for real pneumatic tool support
- Steel cage helps protect the compressor during transport and daily use
Key Specifications
| Engine Size | 163 cc |
|---|---|
| Horsepower | 5.5 HP |
| Delivered Air | 4.6 CFM @ 90 PSI |
| Displaced Air | 8.3 CFM |
| Operating Pressure | 110 to 135 PSI |
| Lubrication Type | Splash Lubrication |
| Number of Cylinders | 1 |
| Dimensions (L x W x H) | 26 in x 17 in x 20 in |
Pro Tip
Because this unit is splash-lubricated and ships with the crankcase pre-filled with 4 ounces of oil, make oil level checks part of your regular setup routine if the compressor is riding in a truck every day. It is a small step that helps a gas compressor like this live a much longer life.
Warranty & Support
Tool Nut's Take
Rolair Compressors GD5000PV5H Hand Carry Air Compressor for Remote Work
This is the kind of compressor that earns its keep when the jobsite has no power and the work still has to move.
- Who it's for: Contractors, remodelers, and service crews who need portable compressed air away from outlets.
- Why it stands out: Honda gas power, useful 4.6 CFM at 90 PSI output, and a cage-protected direct-drive setup built for jobsite handling.
- Worth knowing: It is a carry-style gas unit, so it makes the most sense for mobile work. If you mainly work near power, an electric compressor may be easier to live with day to day.
Common Questions
- Is this an electric or gas-powered compressor? It is a gas-powered air compressor with a 163cc Honda engine, built for use where electricity is not available.
- What air output does it provide? The compressor delivers 4.6 CFM at 90 PSI and has a displaced air rating of 8.3 CFM.
- What is the pressure range? The listed operating pressure is 110 to 135 PSI.
- Does it include a regulator and quick connect? Yes. The listed features include a regulator with air line pressure gauge and a quarter-inch universal quick disconnect.
