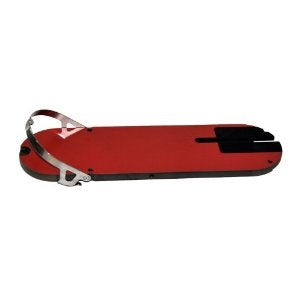

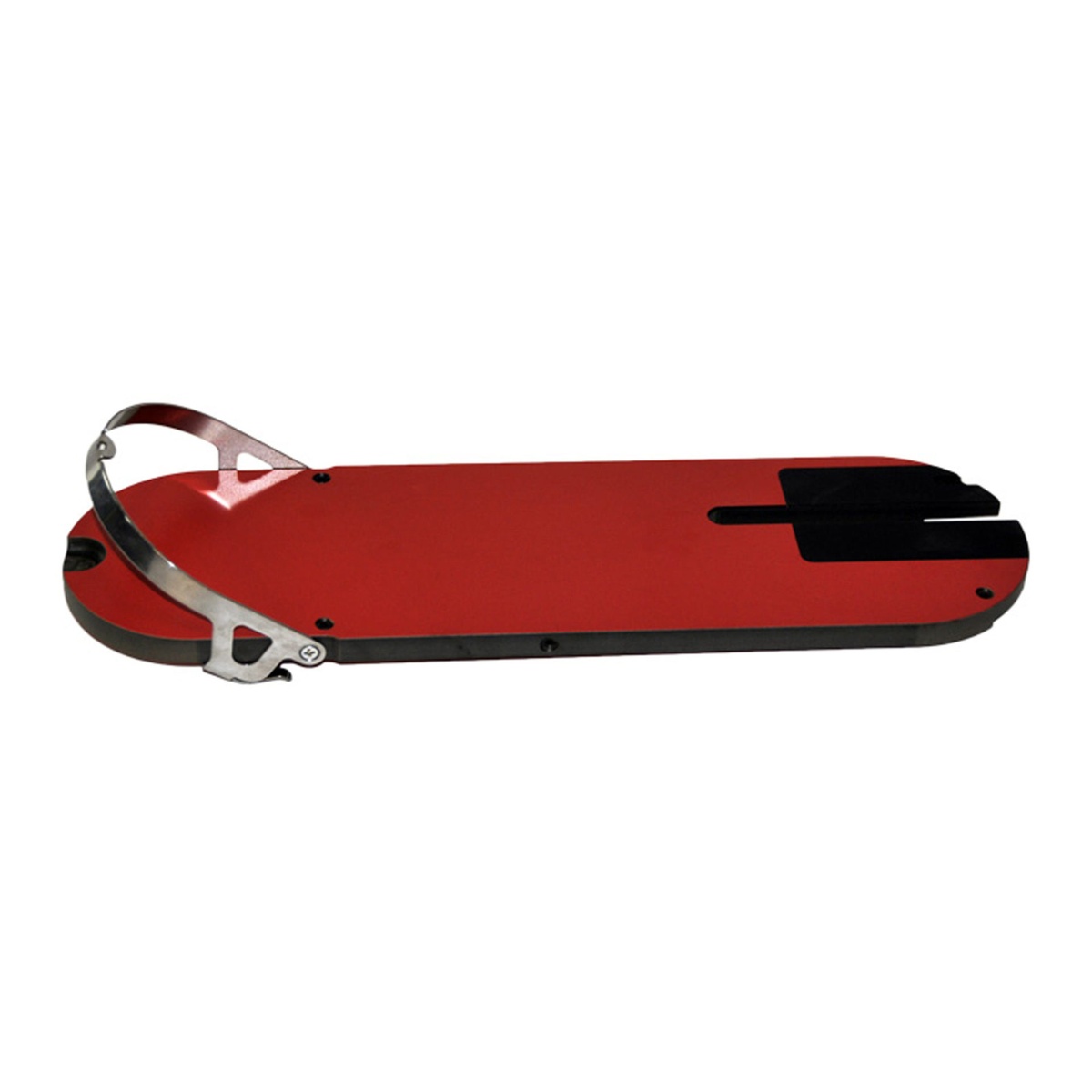

SawStop TSI-SLD Standard Lock Down Insert
SawStop TSI-SLD Standard Lock Down Insert
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
Key Features
Overview
The SawStop TSI-SLD Standard Lock Down Insert is a replacement table saw insert for SawStop cast-iron saws using standard 10 inch saw blades. This is a table saw accessory designed for creating a zero-clearance opening around the blade for cleaner cuts and better workpiece support. Model Number: TSI-SLD.
What matters here is fit. A zero-clearance insert closes up the gap around the blade, which helps support fibers at the cut line and can improve cut quality on plywood, veneered stock, and other materials that like to chip out. SawStop states this insert creates a zero-clearance fit on first use, so once installed and cut to the blade, it is matched to your setup instead of leaving a wide factory opening.
The construction is better than a throwaway accessory. SawStop uses a precision-machined phenolic core with a low-friction, wear-resistant melamine surface on the top and bottom. In plain terms, that means the insert is built to stay flat, slide material smoothly, and hold up better over time than a cheap insert that gets fuzzy, swells, or wears unevenly.
Jobsite practicality is built into the details. Positioning screws help dial in a solid, precise fit in the table, while the positive locking latch allows tool-free operation when you need to remove or reinstall the insert. That is the kind of feature you appreciate when changing setups, checking the blade area, or swapping accessories in the middle of a project.
This insert is also made to work with SawStop safety components already on the saw. It includes pre-formed clearance slots for the SawStop blade guard and riving knife, plus dual metal wear plates for anti-kickback pawls. That means you are not giving up compatibility with the saw's safety hardware just to get the tighter cut support of a zero-clearance insert.
Compatibility is specific, which is a good thing because inserts are not one-size-fits-all. The SawStop TSI-SLD Standard Lock Down Insert is compatible with SawStop ICS, PCS, and CNS cast-iron saws, and it is not compatible with the SawStop JSS-120A60 or CTS-120A60. If you run a SawStop cabinet saw or contractor saw in that cast-iron platform and use a standard 10 inch blade, this is the right kind of insert to keep on hand for cleaner work and a more dialed-in setup.
Who should buy it? Woodworkers, cabinet installers, trim carpenters, serious hobbyists, and shop owners who care about cut quality and proper fit. If you are the kind of user who notices the difference between a decent setup and a really sorted-out saw, this accessory earns its spot fast. It is not flashy, but it solves a real problem every time the blade meets the stock.
Cleaner Cuts With Better Workpiece Support
A good zero-clearance insert helps the saw cut cleaner because the stock is supported closer to the blade. That matters most on plywood, melamine, veneered panels, and smaller workpieces where a wide opening can let material flex or chip.
- Creates a zero-clearance fit on first use
- Designed for standard 10 inch saw blades
- Pre-formed slots support use with the blade guard and riving knife
Dialed-In Fit Without Extra Hassle
This insert is built for users who want the accessory to fit right and stay put. The combination of positioning screws and a positive locking latch gives you a more secure install and quicker removal when the setup changes.
- Precision machined from phenolic core material
- Low-friction, wear-resistant melamine surface on both sides
- Positive locking latch allows tool-free operation
What's in the Box
- (1) SawStop TSI-SLD Standard Lock Down Insert
Key Specifications
| Model Number | TSI-SLD |
|---|---|
| Material | Phenolic core with melamine surface |
| Blade Compatibility | Standard 10 in saw blades |
| Product Length | 16-1/2 in |
| Product Width | 5 in |
| Product Height | 2 in |
| Weight | 2 lb |
| Pack Size | 1 |
Compatibility
Built For
Pro Tip

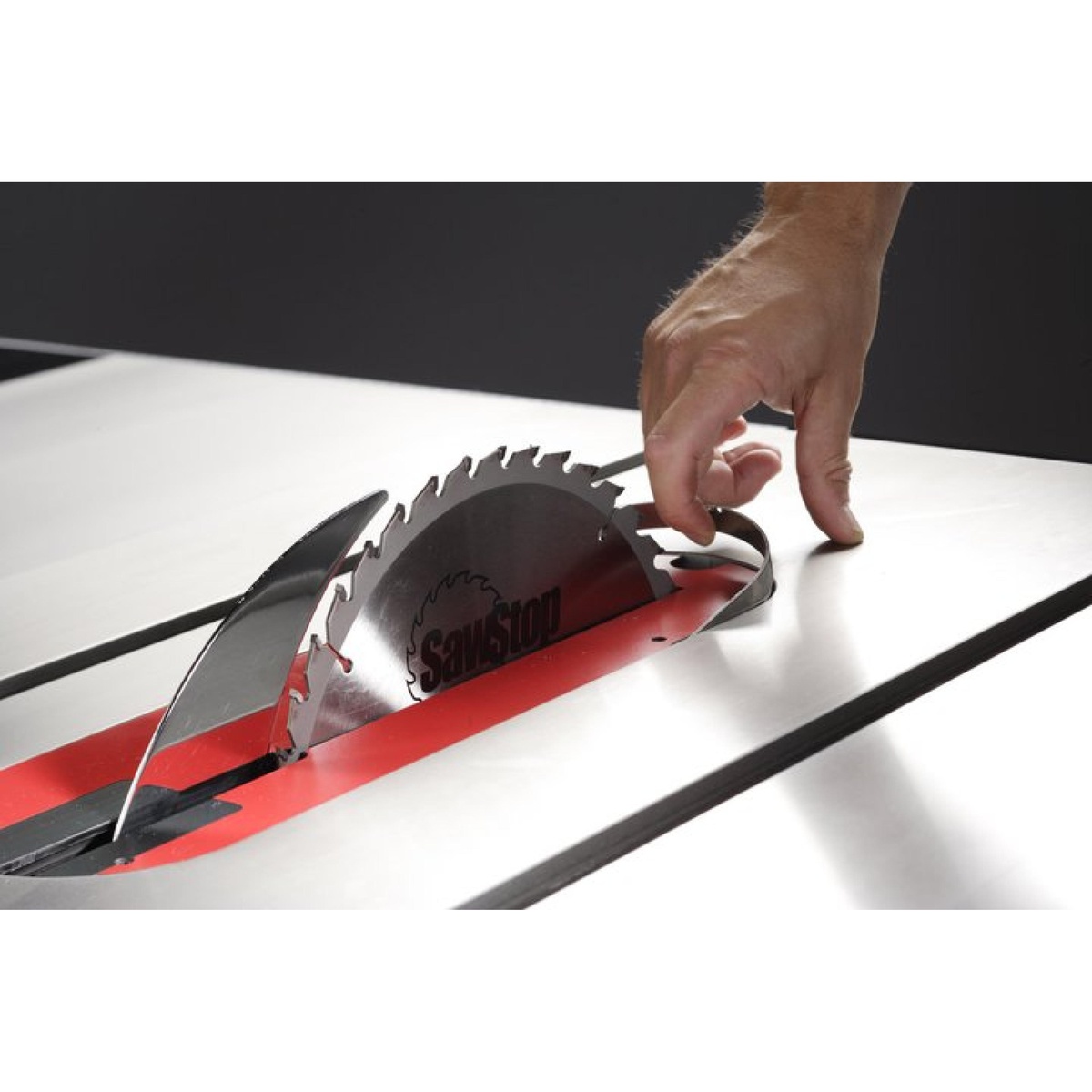

Install the insert, make sure it is sitting flush with the table using the positioning screws, then raise the blade slowly on first use to cut the kerf. That gives you the tightest possible zero-clearance opening for your exact blade setup.
Warranty & Support
Tool Nut's Take
SawStop TSI-SLD Standard Lock Down Insert: Small Part, Real Upgrade
If you own a compatible SawStop cast-iron saw, this is one of those accessories that makes the saw feel more finished every time you use it.
- Who it's for: SawStop ICS, PCS, and CNS owners who want cleaner cuts, better stock support, and a proper zero-clearance setup.
- Why it stands out: The fit features are right, the material is durable, and it keeps compatibility with the blade guard, riving knife, and anti-kickback pawls.
- Worth knowing: This is model-specific. It is not for the Jobsite Saw or Compact Table Saw, so check your saw model before you order.
Common Questions
- Which SawStop saws does this insert fit? It fits SawStop ICS, PCS, and CNS cast-iron saws.
- Will it work with a standard 10 inch blade? Yes. This insert is designed for standard 10 inch saw blades.
- Does it support the SawStop blade guard and riving knife? Yes. It has pre-formed clearance slots for the blade guard and riving knife.
- Is it compatible with the SawStop Jobsite Saw or Compact Table Saw? No. Source data states it is not compatible with SawStop JSS-120A60 or CTS-120A60, and SawStop notes the Jobsite Saw is not included.
