Shop Fox Mini Mobile Base (D2260A)
Shop Fox Mini Mobile Base (D2260A)
In Stock - Ships from Manufacturer
Product Details
Product Details
Key Features
Overview

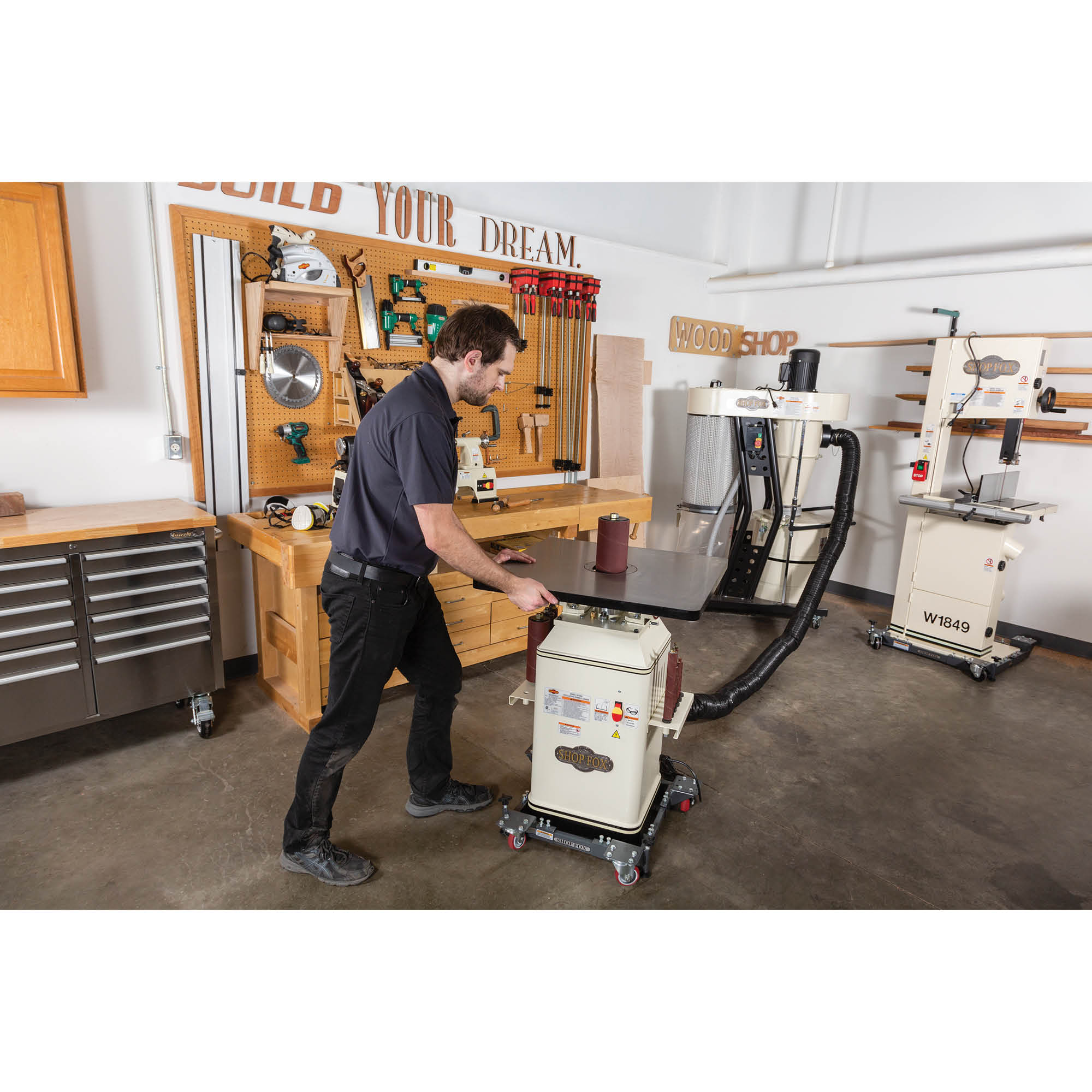

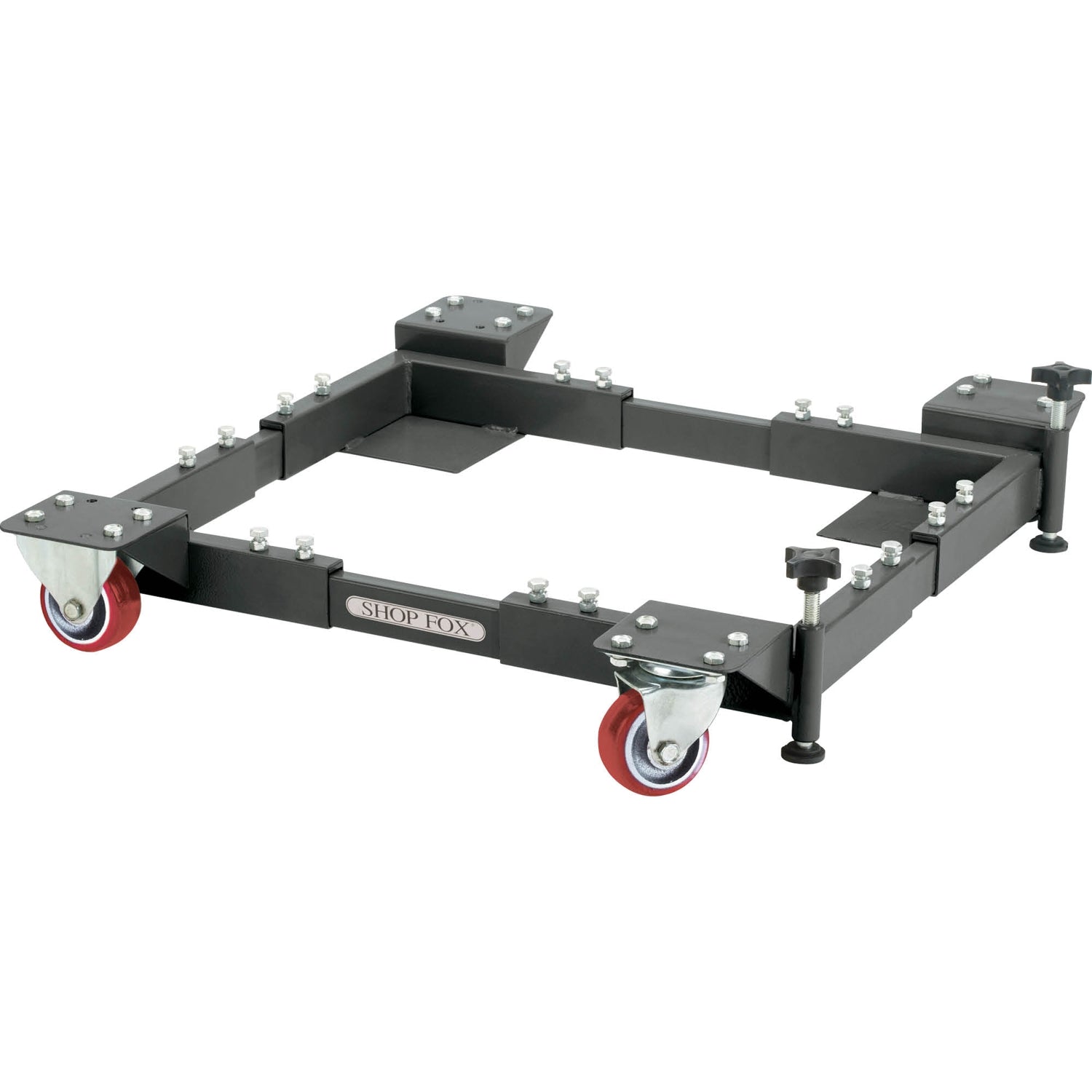

Shop Fox D2260A Mini Mobile Base is a compact adjustable platform made to put smaller stationary shop machines on wheels. This is a mobile base designed for moving and positioning benchtop or compact floor equipment around the shop. Model Number: D2260A. If you work in a tight woodworking space and need to roll a machine out when you need it and tuck it back when you do not, this is the kind of hardware that makes the shop easier to live with.
The big selling point here is flexibility. The frame adjusts from 10-1/2 in. x 14-1/2 in. up to 17-1/2 in. x 21-1/2 in., and Shop Fox says it can be assembled in eight configurations. That matters because not every machine has the same footprint, and a fixed-size base can turn into a headache fast. With this one, you have more room to match the frame to the machine instead of forcing the machine to fit the base.
Capacity is another reason this base makes sense. With a 600 lb maximum load rating, it is built for serious shop equipment, not just lightweight stands. For smaller jointers, planers, sanders, dust collection gear, and similar machines, that extra capacity gives you more confidence when you need to move equipment across the floor or reposition a machine for workflow.

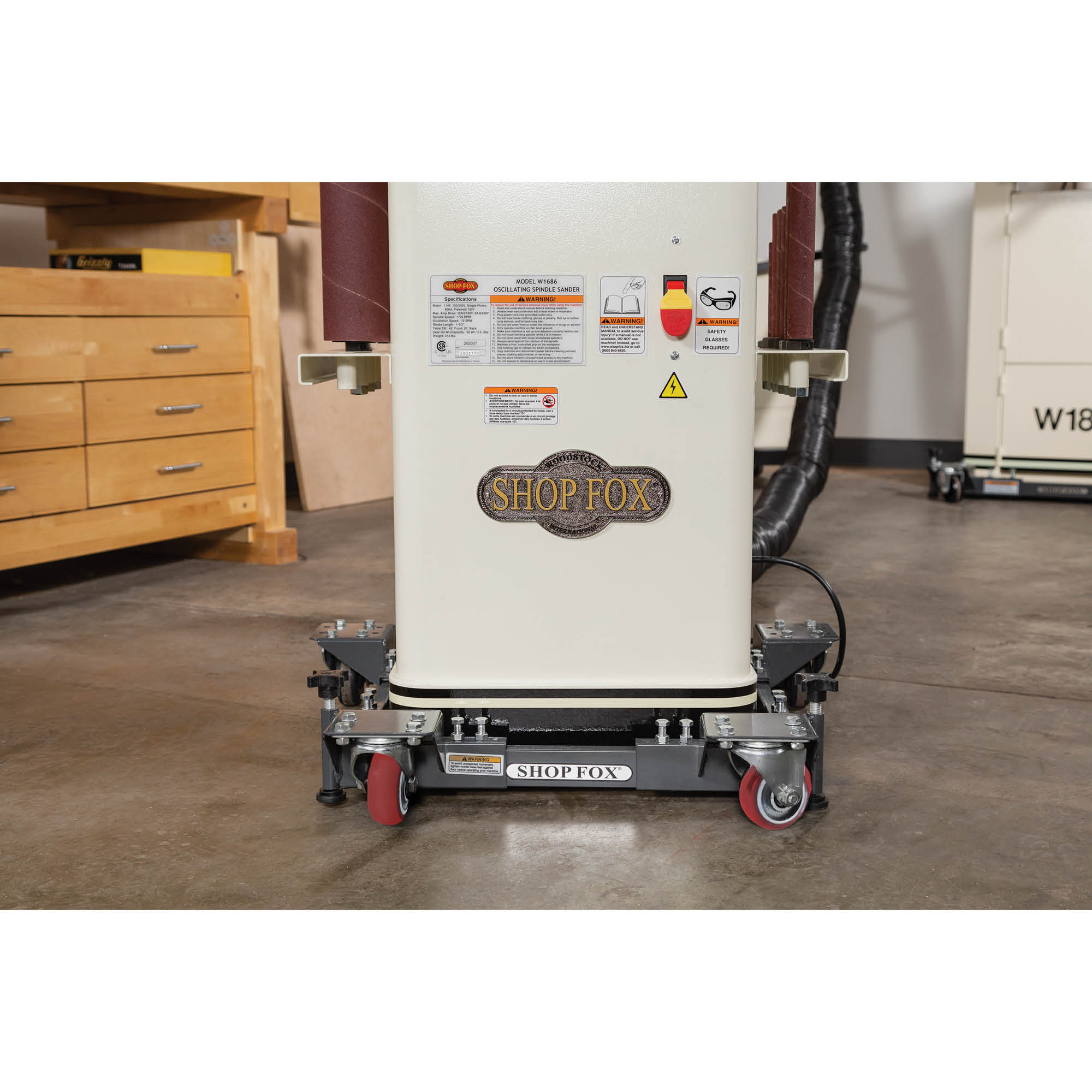

Shop Fox also put some thought into how the base sits and rolls. The heavy-duty casters are mounted on outriggers so the machine can sit as low as possible while staying stable. That lower stance helps keep the center of gravity under control, which is exactly what you want when moving equipment with some real weight to it. Two swivel casters on the corners improve maneuverability, so you are not fighting the base every time you change direction.

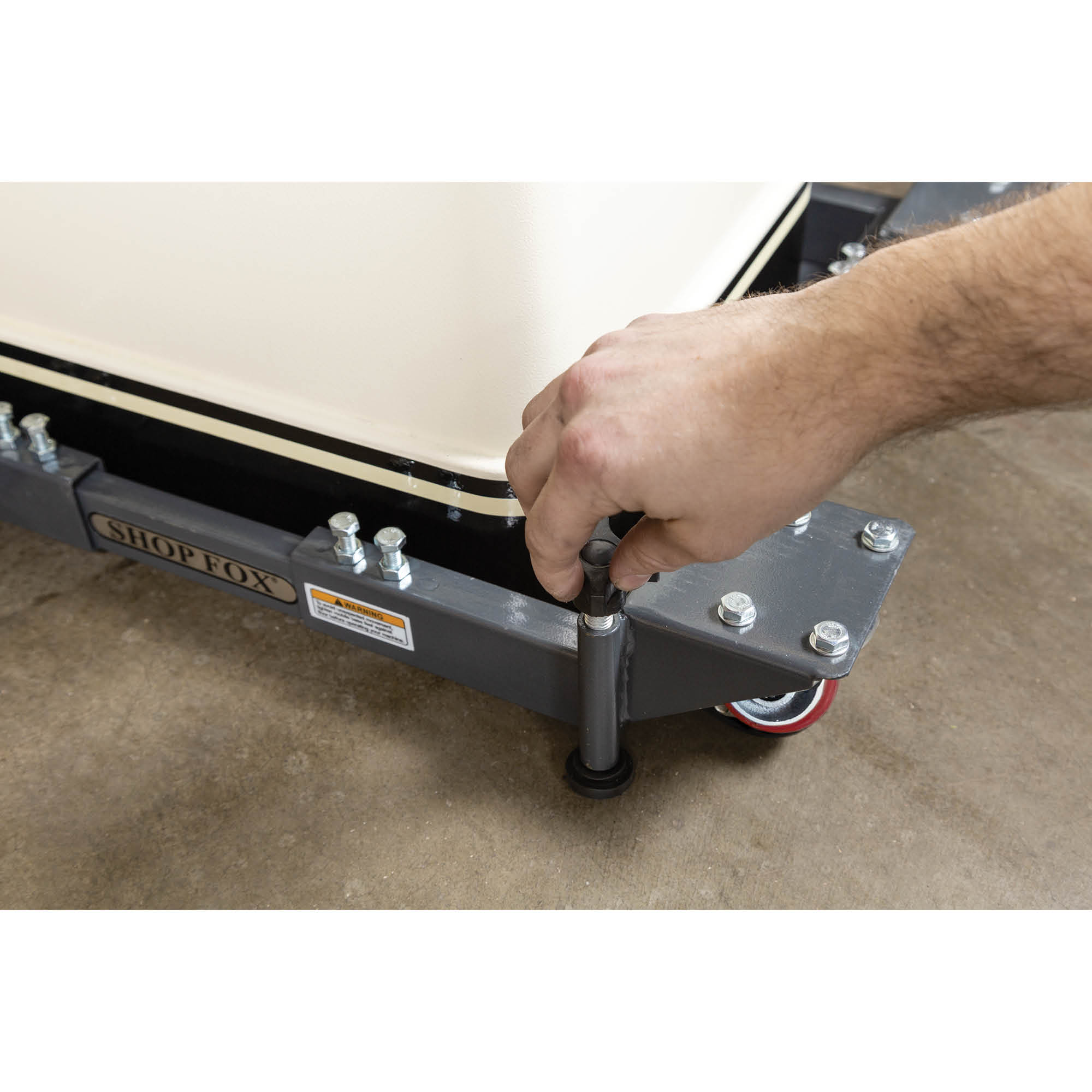

One practical detail worth calling out is the two-piece retractable feet. Shop Fox uses rare earth magnets so the knob can turn while the foot pad stays tight to the floor. In plain terms, that setup is there to help you go from mobile to planted without a lot of fuss. When the machine is parked, you want it steady. When it is time to move it, you want the changeover to be quick. This design is aimed right at that real-world shop routine.
The fixed caster side also has a bolt pattern that allows the wheels to be oriented in either of two directions. That gives you another layer of setup flexibility based on how the machine sits in your shop and how you want it to travel. For a small workspace where every aisle and turn matters, that is not a throwaway feature.
This Shop Fox mini mobile base is best suited for woodworkers, small professional shops, school shops, and serious DIY users who need to move machinery instead of dedicating permanent floor space to every tool. If your shop changes layout often, or you rely on one open work area for multiple tasks, this is the kind of accessory that pays off every single day.
Move Heavy Machines Without Giving Up Stability
This is the real benefit of a good mobile base: you can reclaim floor space without making your machine a chore to move. For smaller shops, that matters more than people think.
- 600 lb maximum capacity supports substantial shop equipment
- Two swivel casters help the base turn and track through tighter shop layouts
Adjust the Base to Fit the Machine
The adjustable frame is what makes this more useful than a one-size base. It gives you a better shot at fitting the machine you already own instead of shopping around the base.
- Adjustable size range from 10-1/2 in. x 14-1/2 in. to 17-1/2 in. x 21-1/2 in.
- Eight assembly configurations give you more layout options for different machine footprints
Park It Solid When the Work Starts
Rolling a machine is only half the job. Once it is in position, you want it settled down and ready to work. The retractable foot setup is there for exactly that.
- Two-piece retractable feet use rare earth magnets to keep operation simple
- The foot pad stays tight to the floor while the knob turns
Why the Shop Fox D2260A Mini Mobile Base Works in Small Shops
Why the Shop Fox D2260A Mini Mobile Base Works in Small Shops
Shop space is expensive, even in your own garage. A compact mobile base lets one machine live where it fits best when stored, then roll into the working position when you need it.
- Outrigger caster layout helps keep the machine low and stable
- Fixed caster side can be oriented in two directions to better match shop flow
What's in the Box
- (1) Shop Fox D2260A Mini Mobile Base
Key Specifications
| Load Capacity | 600 lbs |
|---|---|
| Minimum Base Size | 10-1/2 in. x 14-1/2 in. |
| Maximum Base Size | 17-1/2 in. x 21-1/2 in. |
| Configuration Options | 8 |
| Caster Type | Heavy-duty casters with 2 swivel casters |
| Foot Design | Two-piece retractable feet with rare earth magnets |
| Weight | 25.2 lbs |
| Warranty | 2 Years |
Compatibility
Built For
Pro Tip
Before final assembly, decide which direction you want the fixed caster side to track in your shop. On a mobile base like this, that small setup choice can make a machine much easier to roll in and out of its usual parking spot.
Warranty & Support
Tool Nut's Take
Small accessory, big shop upgrade
The Shop Fox D2260A Mini Mobile Base is the kind of shop accessory that solves a real problem fast: heavy machines take up space, and this lets you move them without giving up stability.
- Who it's for: Woodworkers and serious DIY users who need to roll compact stationary equipment in and out of position.
- Why it stands out: The 600 lb capacity, eight configuration options, and retractable foot design make it more adaptable than a basic fixed mobile base.
- Worth knowing: This is a mini mobile base, so the footprint range matters. Check your machine base dimensions before you buy.
Common Questions
- What is the weight capacity of this mobile base? It has a maximum capacity of 600 lbs.
- What machine base sizes will it fit? It adjusts from 10-1/2 in. x 14-1/2 in. up to 17-1/2 in. x 21-1/2 in.
- How many setup options does it have? Shop Fox states the base can be assembled in eight configurations.
- Does it use swivel casters? Yes. Two corner swivel casters provide maneuverability.
