Simpson Strong-Tie ACHZ ZMAX Galvanized Adjustable Post Cap for 4x (ACH4Z)
Simpson Strong-Tie ACHZ ZMAX Galvanized Adjustable Post Cap for 4x (ACH4Z)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview

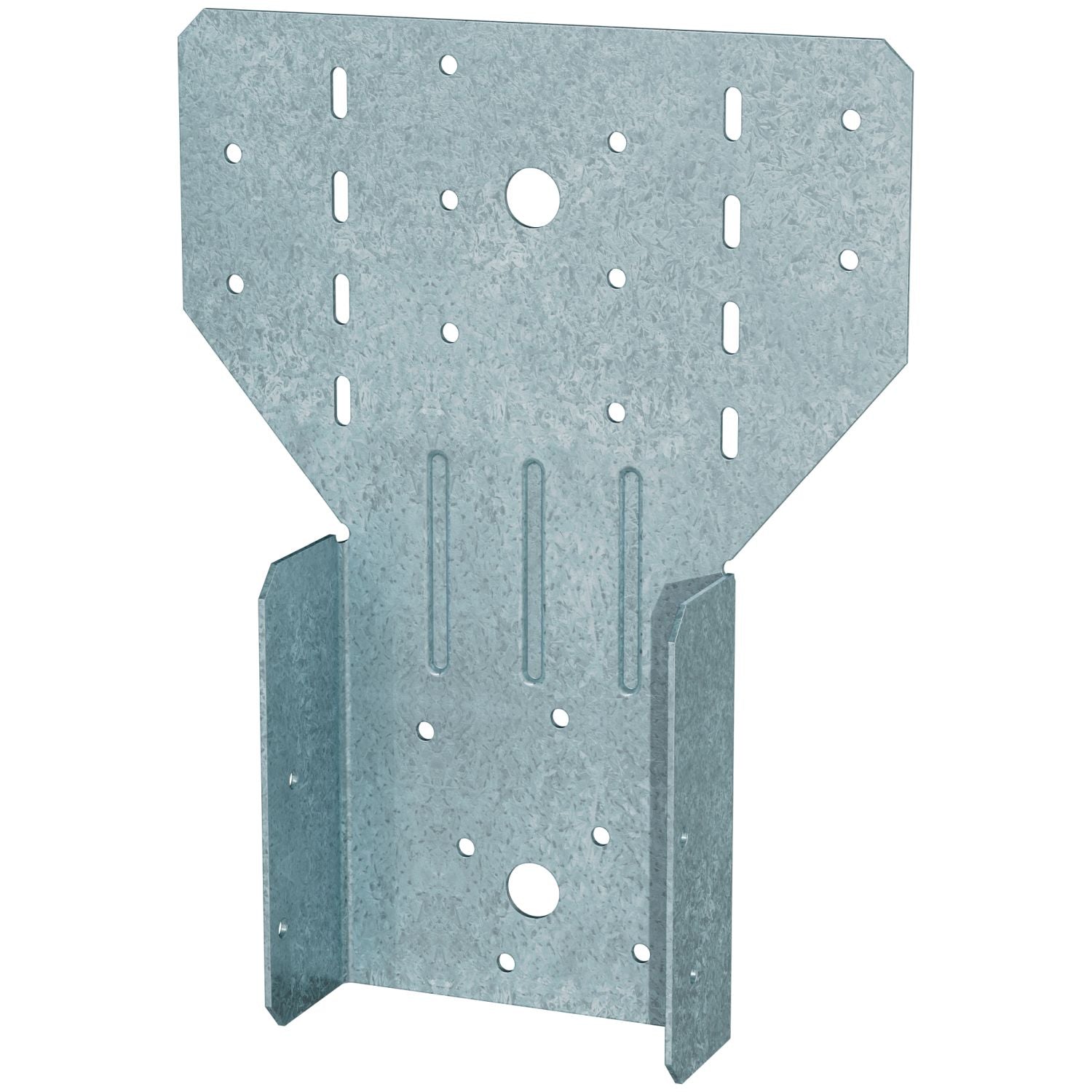

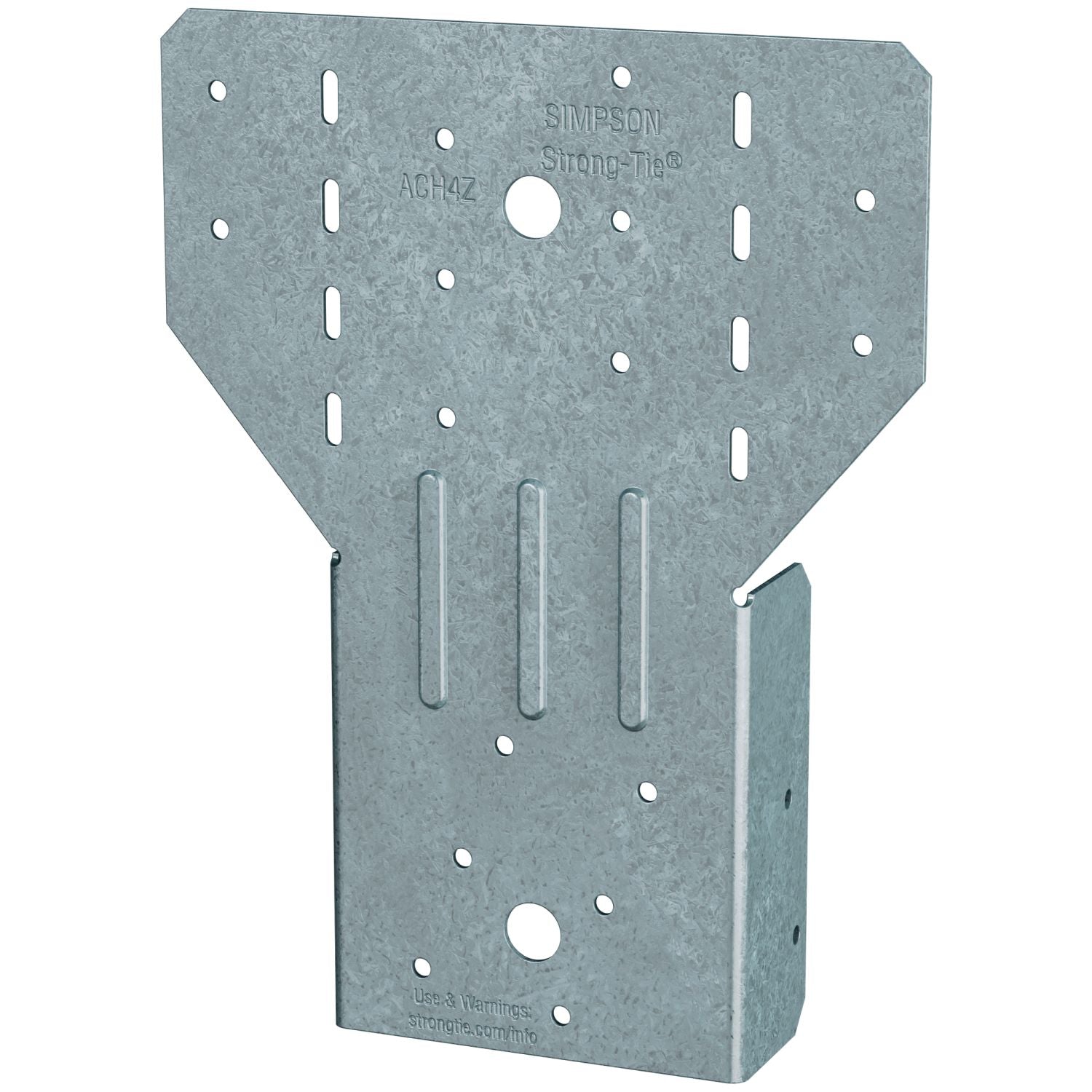

The Simpson Strong-Tie ACH4Z ACHZ ZMAX Galvanized Adjustable Post Cap for 4X is a heavier-duty adjustable post cap for connecting a beam to a post in deck and wood framing applications. This is a post cap designed for post-to-beam connections. Model Number ACH4Z. If you need more holding power than a light-duty connector but do not want to step up to a welded column cap, this is the middle-ground hardware built for that job.
What makes this connector matter is where it fits in the real world. The ACHZ series is designed for medium- to high-capacity uplift performance, and Simpson Strong-Tie rates it for load performance when installed in pairs. For the ACH4Z size, the connector is sized at 3-9/16 in. W x 6-1/2 in. L, which makes it the right fit for 4x post applications. It is made from 16-gauge steel, so you are not dealing with a flimsy bracket that belongs on non-structural work.
The adjustable two-piece design is one of the practical advantages here. It gives you flexibility on the install, especially on new framing or retrofit work where perfect conditions are not always part of the plan. Simpson also built in field-bendable flanges for end-beam conditions. That means one connector style can handle a beam landing in the middle of a post or at the end of a beam run, which helps simplify material selection on deck builds and similar structural framing jobs.
The ZMAX coating is standard, which is a big deal for outdoor work. On deck framing and exposed wood structures, finish matters because the connector is going to live in weather swings, moisture, and pressure-treated lumber environments. The protective coating is there for corrosion resistance, and that is one of the reasons this connector is commonly used on decks and other exterior beam-to-post connections.
Fastener choice also affects how this part performs. Simpson specifies installation with 0.162 in. x 2-1/2 in. nails or Strong-Drive SD Connector screws for increased loads. That gives you options depending on your workflow and load requirements. If speed and higher allowable loads matter on the job, the SD connector screw path is worth paying attention to. Either way, this is one of those parts where using the specified fasteners is not optional if you want the published performance.
For the trades, this adjustable post cap is best suited to deck builders, framers, general contractors, and serious DIYers working on structural outdoor wood connections. It is especially useful when you need a clean, code-minded beam-to-post connector that can adapt to mid-beam or end-beam layouts. If your project involves a 4x post and you want a stronger, more versatile cap than a basic light-duty option, this is the kind of hardware you buy once and install correctly.
Handles Mid-Beam or End-Beam Layouts
The big advantage of this adjustable post cap is layout flexibility. It is built for structural beam-to-post fastening and gives you options when the beam lands over the center of the post.
- Designed for deck and wood framing beam-to-post connections
- Two-piece adjustable design helps with fit-up in new construction and retrofit work
Field Bend for End Conditions
Not every beam lands in the middle of a post. The ACH4Z can be adapted for end-beam conditions by field bending the flange, which makes it more useful than a one-layout-only connector.
- Flanges can be field bent for end-beam conditions
- Simpson specifies bending one time only during installation
Heavy-Duty Steel with Outdoor Protection
This connector is made for structural use, not general-purpose bracket duty. The 16-gauge steel body and ZMAX coating are what give it the stiffness and corrosion protection needed for exterior framing hardware.
- 16-gauge steel construction
- ZMAX coating is standard for corrosion resistance
Key Specifications
| Model | ACH4Z |
|---|---|
| Connector Type | Adjustable two-piece post cap |
| Material Thickness | 16 gauge |
| Width (in.) | 3-9/16 in. |
| Length (in.) | 6-1/2 in. |
| Finish | ZMAX coating |
| Application | Decks, beam-to-post |
| Packaging Quantity | 1 |
Built For
Pro Tip
If you are using the ACH4Z for an end-beam condition, make your flange bend once and only once, then finish the install with the specified fasteners. Reworking the bend is a good way to lose time and confidence in the fit.
Tool Nut's Take
Simpson Strong-Tie ACH4Z ACHZ ZMAX Galvanized Adjustable Post Cap for 4X Gets the Structural Job Done
This is the kind of connector you buy when a basic bracket is not enough, but a full welded cap would be overkill.
- Who it's for: Deck builders, framers, contractors, and serious DIYers working with 4x posts in structural beam-to-post applications.
- Why it stands out: The two-piece adjustable design, ZMAX coating, and ability to handle both mid-beam and end-beam layouts make it a practical problem-solver.
- Worth knowing: This connector is load rated when installed in pairs, and its performance depends on using the specified nails or Strong-Drive SD Connector screws.
Common Questions
- What is the ACH4Z used for? It is used for structural post-to-beam connections, especially in deck and exterior wood framing applications.
- Can it be used for both middle and end beam locations? Yes. It can be used for mid-beam connections, and the flange can be field bent for end-beam conditions.
- What fasteners does Simpson Strong-Tie specify? Simpson specifies 0.162 in. x 2-1/2 in. nails or Strong-Drive SD Connector screws for increased loads.
- What finish does this post cap use? It comes with a standard ZMAX coating for corrosion resistance.
