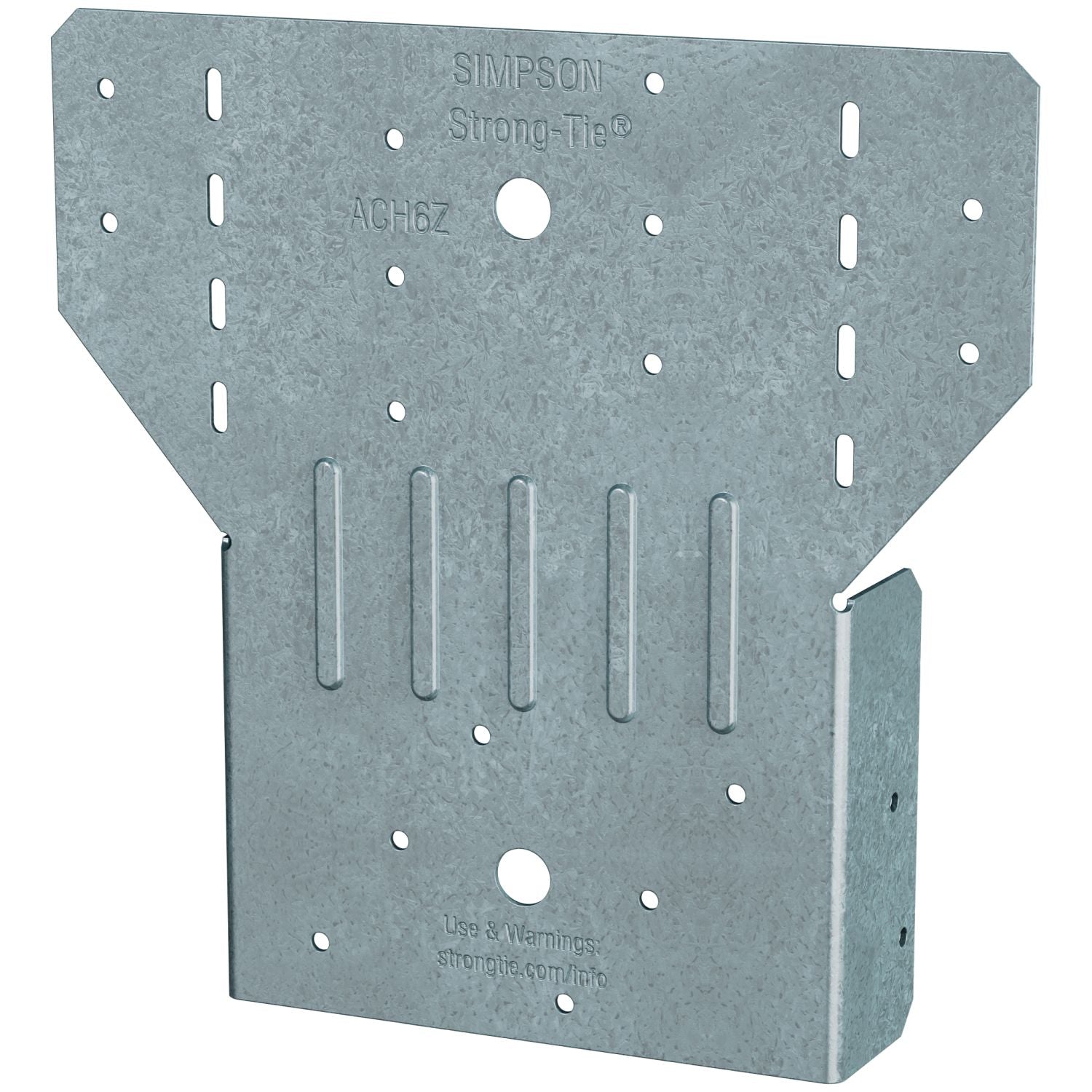

Simpson Strong-Tie ACHZ ZMAX Galvanized Adjustable Post Cap for 6x (ACH6Z)
Simpson Strong-Tie ACHZ ZMAX Galvanized Adjustable Post Cap for 6x (ACH6Z)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Simpson Strong-Tie ACH6Z Adjustable Post Cap is a heavy-capacity post cap designed to create a secure connection between a beam and a post. This is a post cap designed for structural beam-to-post fastening in framing, deck, pergola, and retrofit support work. Model Number ACH6Z. If you are working with a 6x nominal post and need a connector that gives you more installation flexibility than a fixed cap, this is the one you look at first.
What makes the ACH6Z matter is not just that it ties members together, but that it does it with adjustability built in. The two-piece design is useful when the framing layout is not perfectly straightforward or when you are reinforcing an existing assembly. Instead of forcing a one-position connection, this adjustable post cap gives you options for new construction and retrofit work where access and fit can be the difference between a clean install and a headache.
Simpson describes the ACHZ series as a heavier-capacity post cap, and that is the practical takeaway here. This connector is made to provide medium- to high-capacity uplift resistance, which is the kind of performance you want when the connection needs to do real structural work, not just hold parts in place. For builders and remodelers, that means more confidence at a critical joint where the beam meets the post.
The flange design adds another layer of jobsite usefulness. The flanges can be field bent for end-beam conditions, so the connector can handle either a mid-beam or end-beam connection depending on the layout. That saves time when plans meet the real world and the connection location is not a perfect standard condition. It is the kind of detail that makes a connector more versatile instead of forcing you to switch hardware mid-job.
Material and finish matter on structural connectors, and this one uses alloy steel with a ZMAX finish. In plain terms, that means the connector is built from steel and protected with a galvanized coating intended for tougher exposure than basic unfinished hardware. On framing and outdoor structure work, that finish is part of why the connector earns its keep.
Installation options are straightforward. The ACH6Z installs with 0.162 inch x 2-1/2 inch nails or with Strong-Drive SD Connector screws when increased loads are required. That gives the installer some flexibility based on the application and load requirements. It is also noted as load rated when installed in pairs, which is important because structural hardware only performs as intended when it is installed the way the manufacturer specifies.
In terms of fit, this is an adjustable post cap for a 6x nominal post, with listed dimensions around 5-1/2 inches by 8-1/2 inches and an item depth of 1.6 inches. That puts it squarely in the category of structural framing connectors sized for larger post work rather than light hardware duty. If you are building or reinforcing deck covers, pergolas, porch roofs, or other beam-on-post assemblies, that sizing and configuration are right in the wheelhouse.
Who should buy it? Carpenters, deck builders, framers, remodelers, and serious DIY users doing structural outdoor work. If your project needs a beam-to-post connector with real load capability, field-adjustable flanges, and corrosion-resistant finish, the Simpson Strong-Tie ACH6Z Adjustable Post Cap is the practical choice. If you are just looking for decorative hardware, this is more connector than you need. If you need a structural post cap that can adapt to the job, it makes a lot of sense.
Flexible for New Work or Retrofit
The adjustable two-piece layout gives this connector more real-world usefulness than a fixed post cap. That is especially helpful when you are reinforcing an existing structure or dealing with end-beam conditions that do not fit a one-size-fits-all connector.
- Designed for secure beam-to-post connections
- Flanges can be field bent for end-beam conditions
- Suitable for new construction or retrofit structural support
Key Specifications
| Material | Alloy Steel |
|---|---|
| Finish | ZMAX |
| Product Type | Adjustable Post Cap |
| Post Size | 6x nominal post |
| Dimensions | 5-1/2 in x 8-1/2 in |
| Depth | 1.6 in |
| Fastener Size | 0.162 in x 2-1/2 in nails |
| Installation Option | Compatible with Strong-Drive SD Connector screws for increased loads |
Compatibility
Built For
Pro Tip
If you are using the ACH6Z in an end-beam condition, plan your flange bend before you start fastening. It keeps the connector sitting clean to the members and helps you avoid fighting the steel once part of the pattern is already installed.
Tool Nut's Take
Simpson Strong-Tie ACH6Z Adjustable Post Cap Gets the Structural Work Done
The Simpson Strong-Tie ACH6Z Adjustable Post Cap is the kind of connector you buy when the joint actually matters and you want some flexibility without giving up load-focused design.
- Who it's for: Deck builders, carpenters, remodelers, and anyone tying a beam to a 6x nominal post in a structural application.
- Why it stands out: The two-piece adjustable design and field-bend flanges make it more adaptable than a basic fixed post cap, especially for retrofit or end-beam work.
- Worth knowing: This is structural hardware, so the fastener choice and installation method matter. It is also load rated when installed in pairs, so do not treat it like generic bracket hardware.
Common Questions
- What is the ACH6Z used for? It is used to create a secure structural connection between a beam and a post.
- Is this post cap adjustable? Yes. It uses a two-piece adjustable design for new or retrofit applications.
- Can it be used for end-beam connections? Yes. The flanges can be field bent to handle end-beam conditions.
- What fasteners does it use? It uses 0.162 inch x 2-1/2 inch nails or Strong-Drive SD Connector screws for increased loads.
