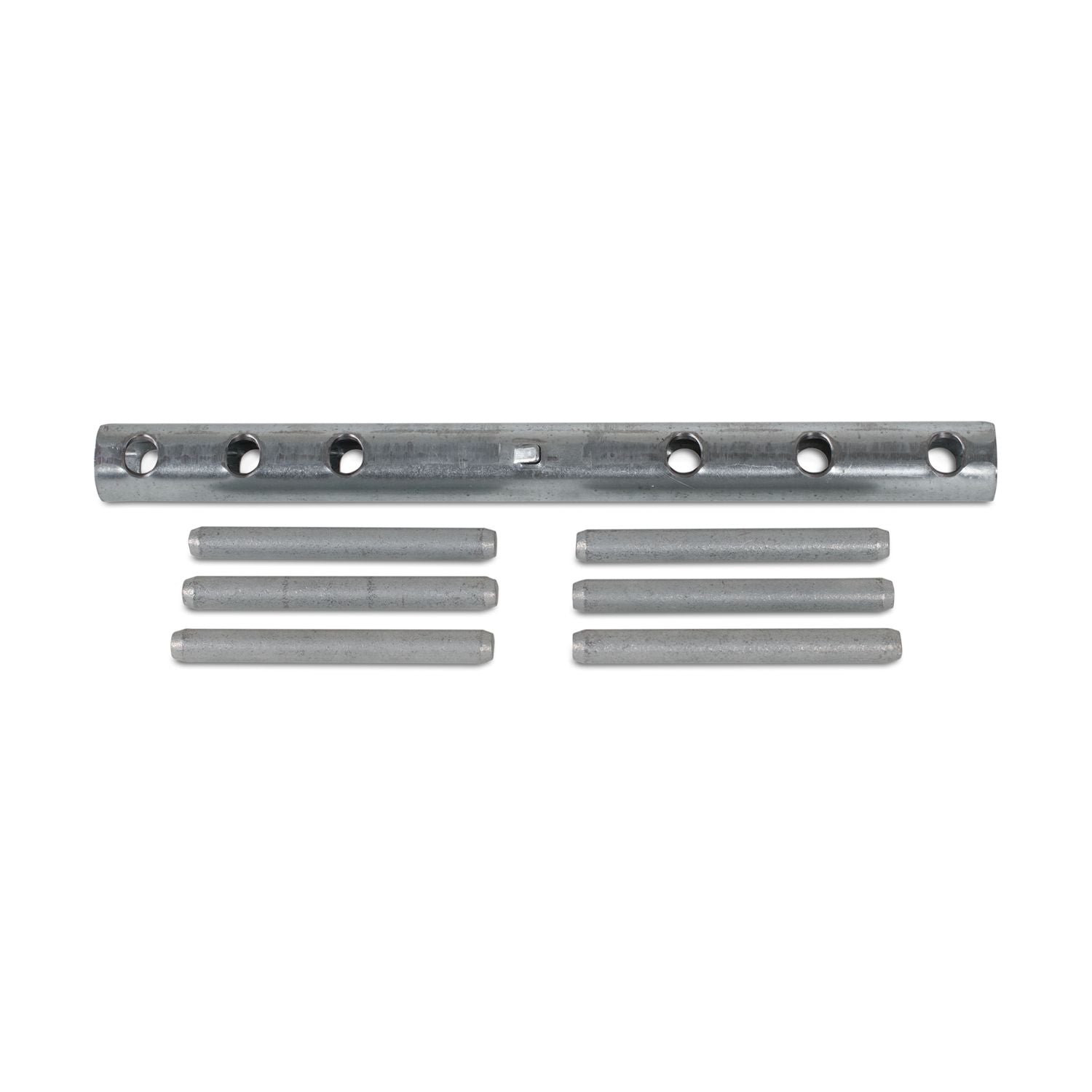

Simpson Strong-Tie CBT4Z-KT CBTZ 12-Gauge ZMAX Concealed Beam Tie for 6x6 Post
Simpson Strong-Tie CBT4Z-KT CBTZ 12-Gauge ZMAX Concealed Beam Tie for 6x6 Post
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Flattened sides assist installer while using the CBTZ as a template
- Locator tabs provide proper dimensional layout
- Required dowel pins included
- Orientation markings distinguish which end installs into the post and which end goes into the beam
- Dimensions: 1-1/4 in. x 14 in.
- Sized for a nominal 6x6 post
- Made from 12-gauge steel
- ZMAX galvanization on CBTZ offers extra corrosion resistance for exterior and treated-wood applications
- 1/2 in.-diameter drift dowels are mechanically galvanized in accordance with ASTM B695, Class 55

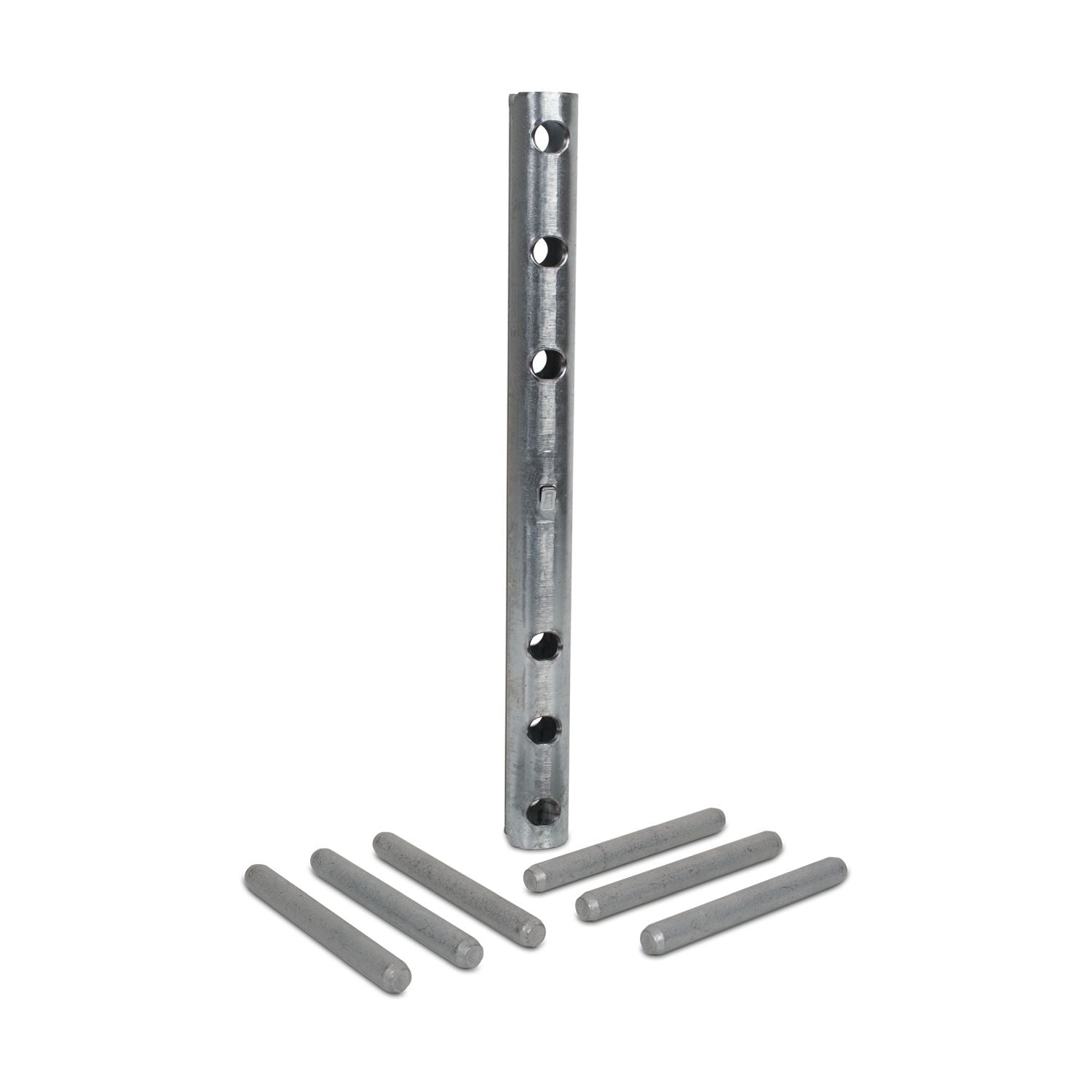

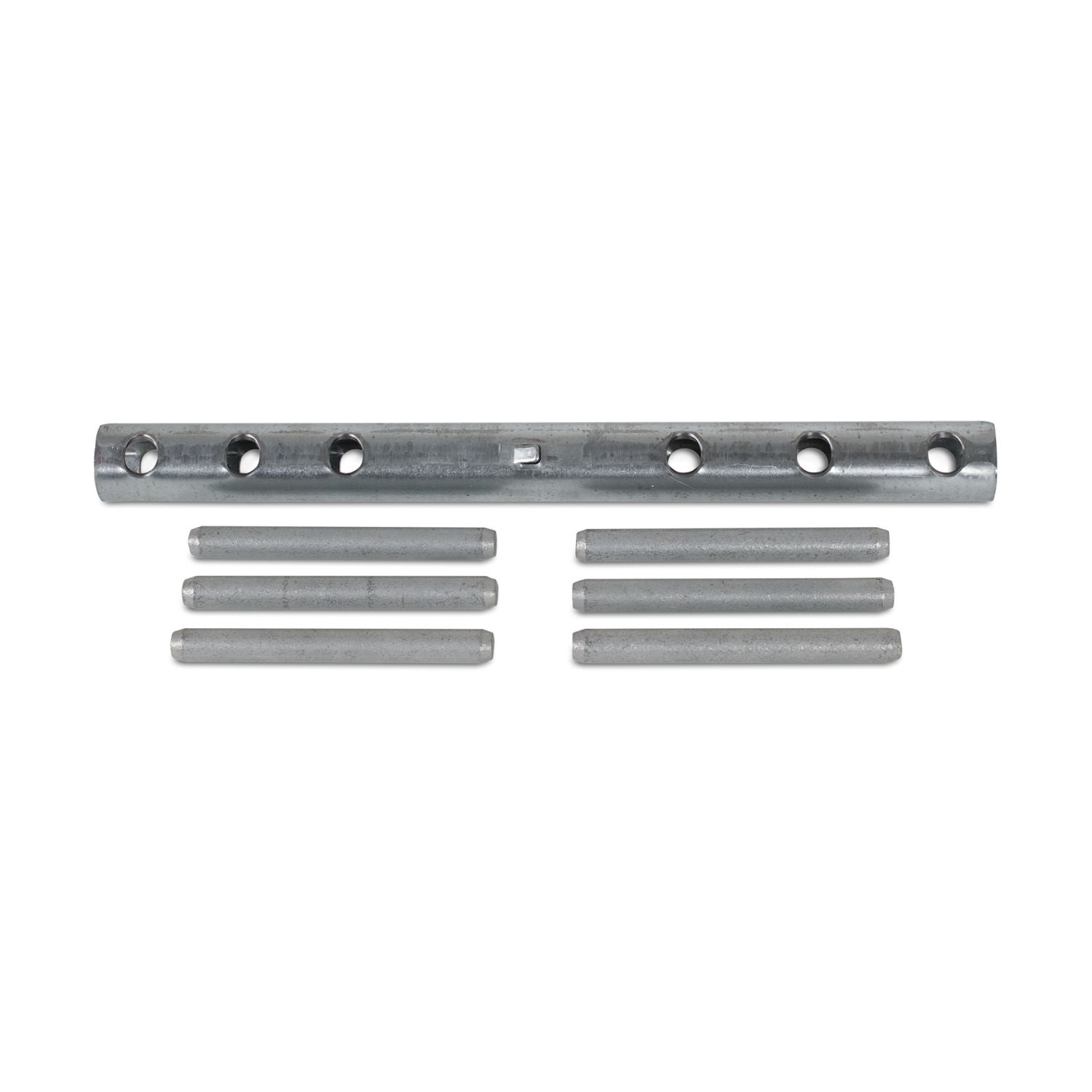

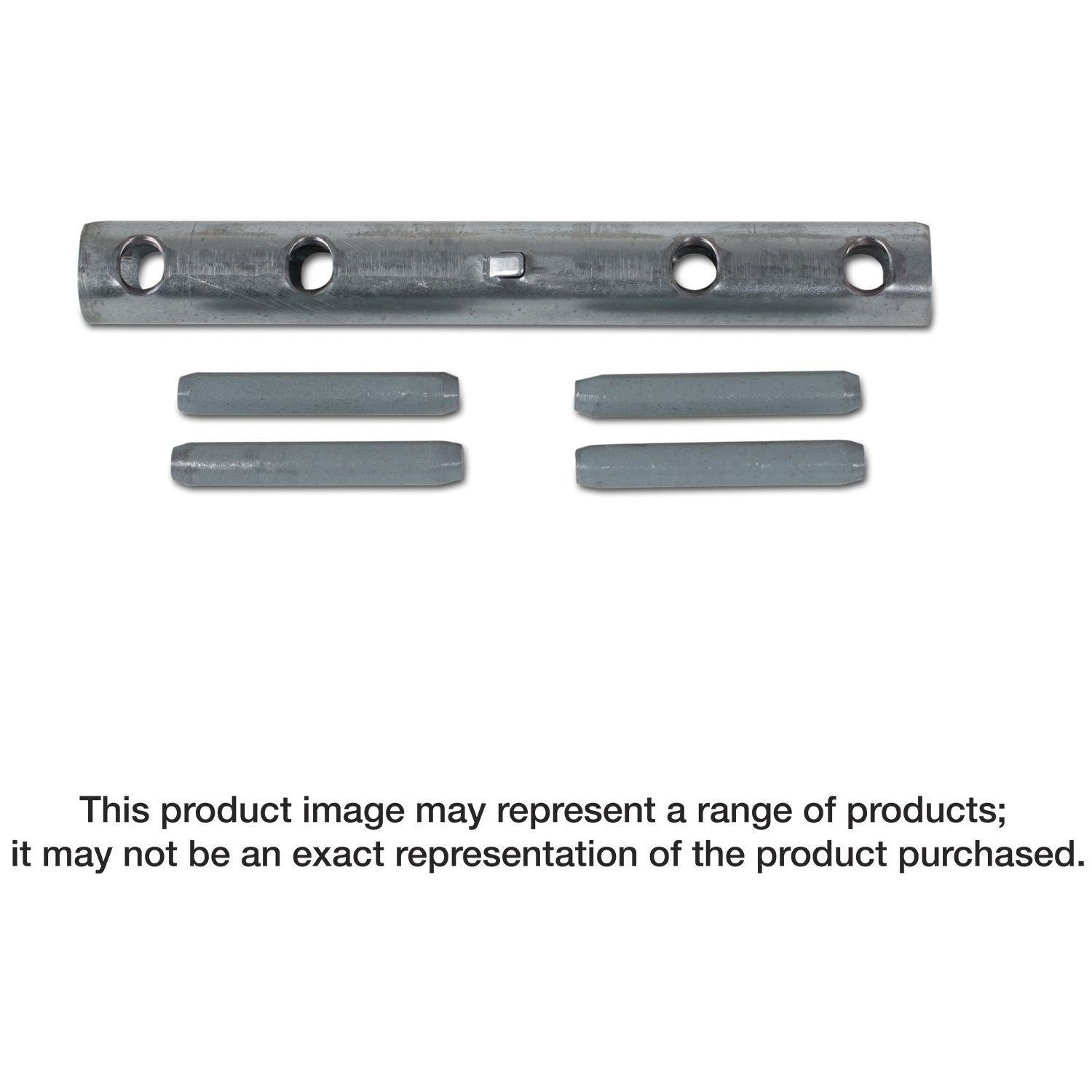

The Simpson Strong-Tie CBTZ™ is part of the concealed structural connector line that combines structural strength with invisibility. Designed to connect horizontal beams atop a vertical post, the CBTZ continues the structural load path into the foundation through the CPTZ. The simplistic cylindrical design allows installations with a common drill bit, eliminating challenging kerf cuts. The CBTZ is available in two models designed to connect beams and posts of a variety of sizes. It is part of a concealed connector system that includes the CPTZ and CJT.
- Flattened sides assist installer while using the CBTZ as a template
- Locator tabs provide proper dimensional layout
- Required dowel pins included
- Orientation markings distinguish which end installs into the post and which end goes into the beam
- Dimensions: 1-1/4 in. x 14 in.
- Sized for a nominal 6x6 post
- Made from 12-gauge steel
- ZMAX galvanization on CBTZ offers extra corrosion resistance for exterior and treated-wood applications
- 1/2 in.-diameter drift dowels are mechanically galvanized in accordance with ASTM B695, Class 55
Install With: Install with (6) 1/2 in. x 4-3/4 in. dowels (included) or 1/2 in. bolts
