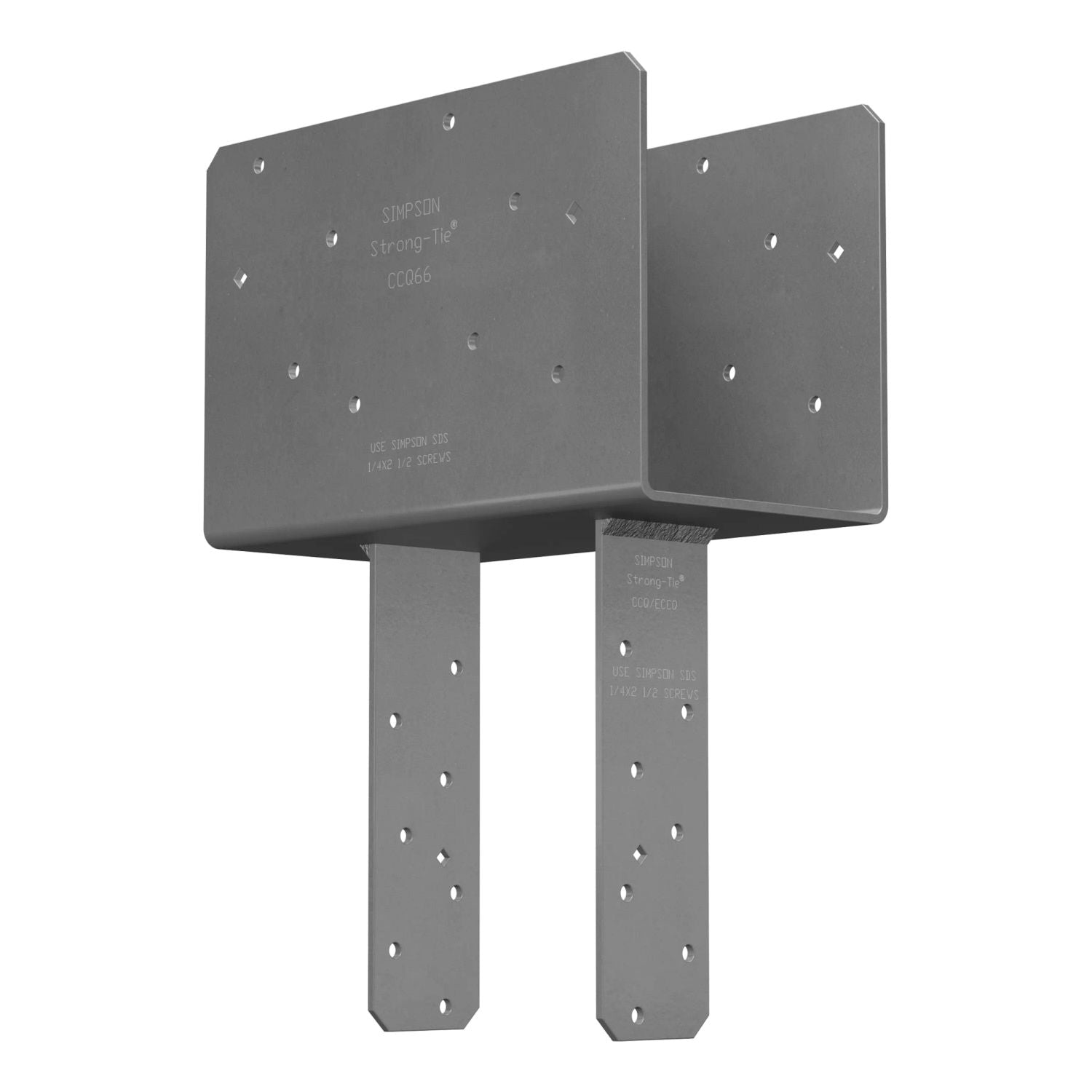

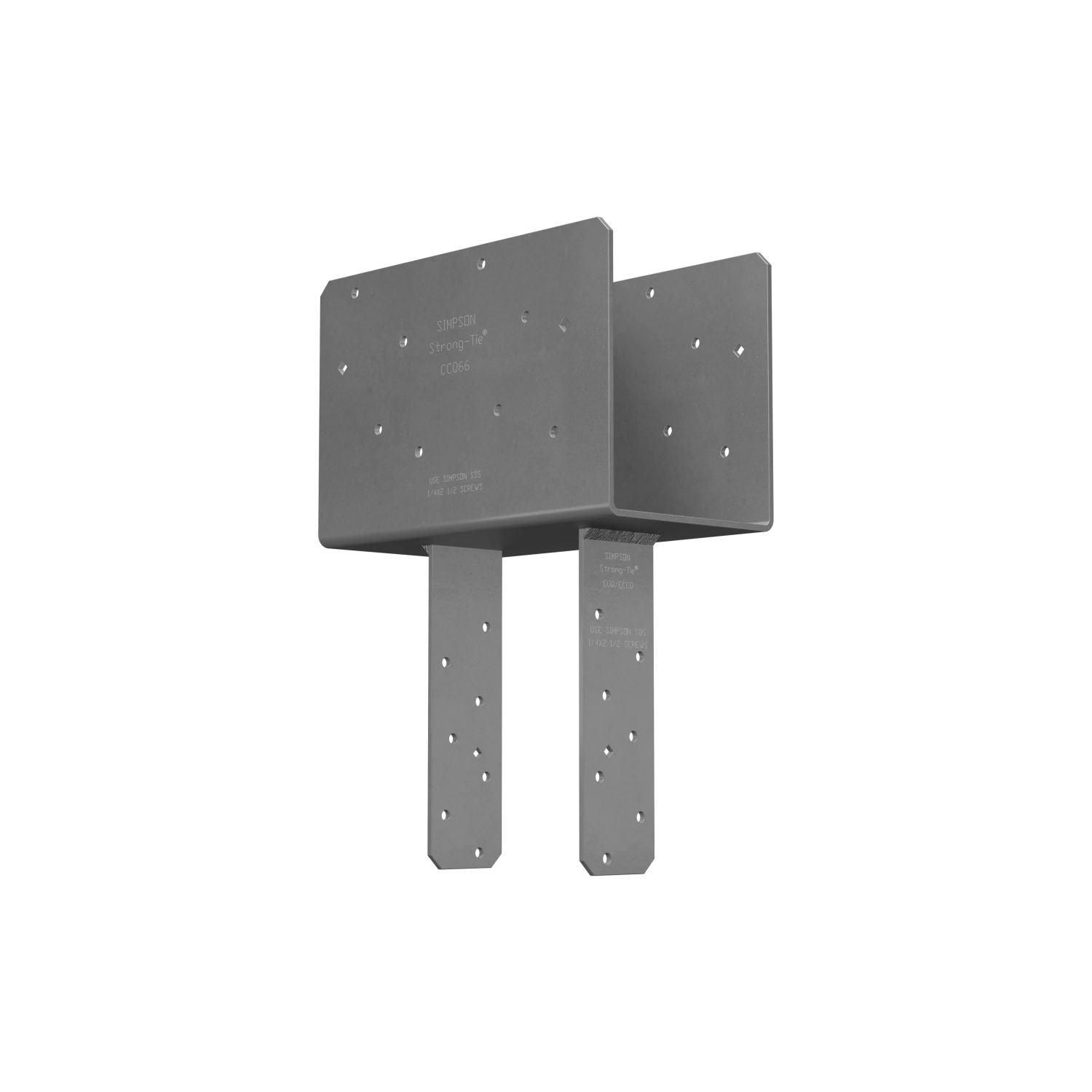

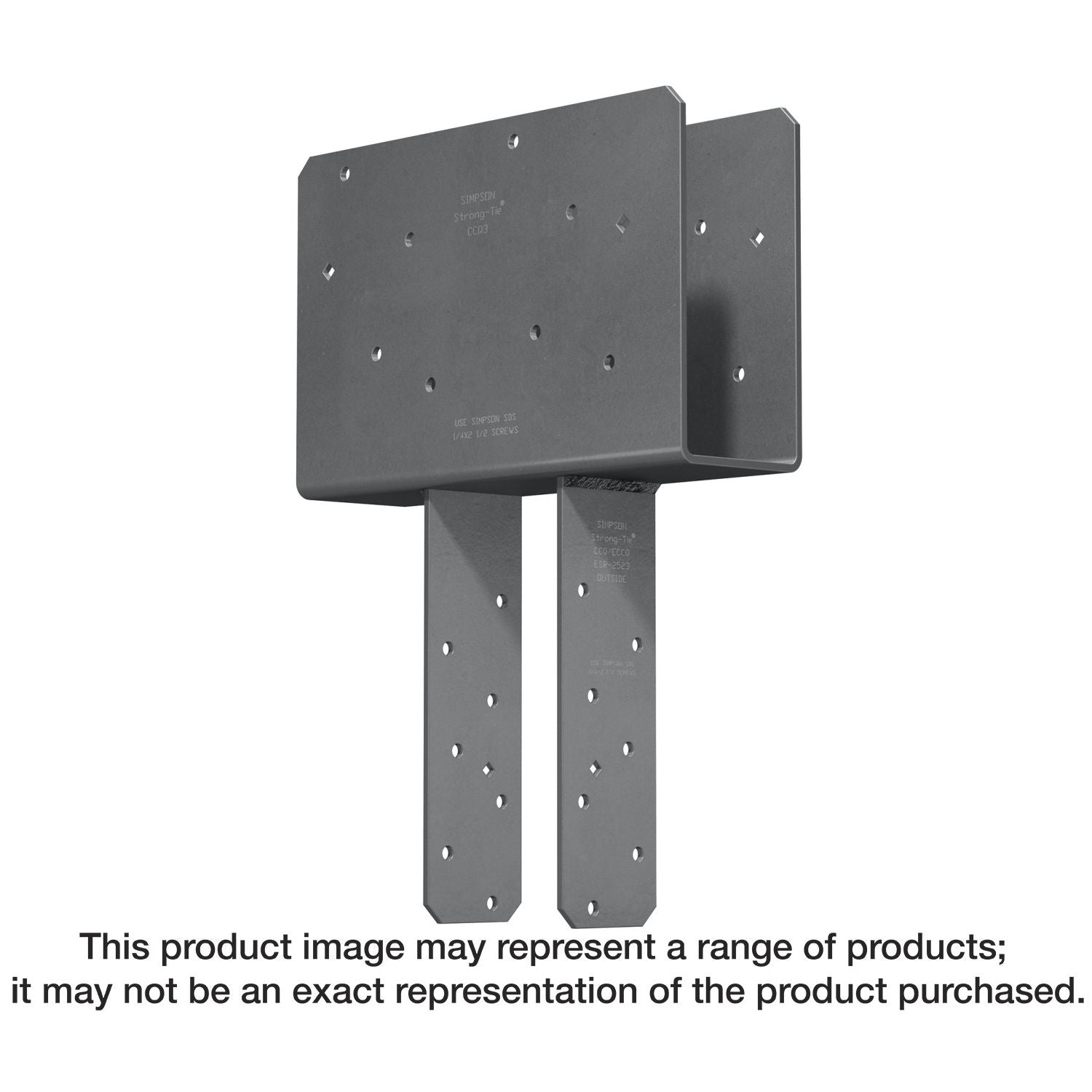

Simpson Strong-Tie CCQ66-SDS2.5HDG CCQ HDG Column Cap for 6x Beam, 6x Post with Strong-Drive SDS Screws
Simpson Strong-Tie CCQ66-SDS2.5HDG CCQ HDG Column Cap for 6x Beam, 6x Post with Strong-Drive SDS Screws
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- The SDS screws provide a lower profile than standard through bolts
- Certified welds for confidence in strength and loading
- Uplift loads have been increased for earthquake or wind loading
- Diamond holes for temporary fastening
- Nominal beam width: 6x
- Nominal post size: 6x
- Made from 7-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Simpson Strong-Tie column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The CCQ™ is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The CCQ uses Strong-Drive SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
- The SDS screws provide a lower profile than standard through bolts
- Certified welds for confidence in strength and loading
- Uplift loads have been increased for earthquake or wind loading
- Diamond holes for temporary fastening
- Nominal beam width: 6x
- Nominal post size: 6x
- Made from 7-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Install With: Install with 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
