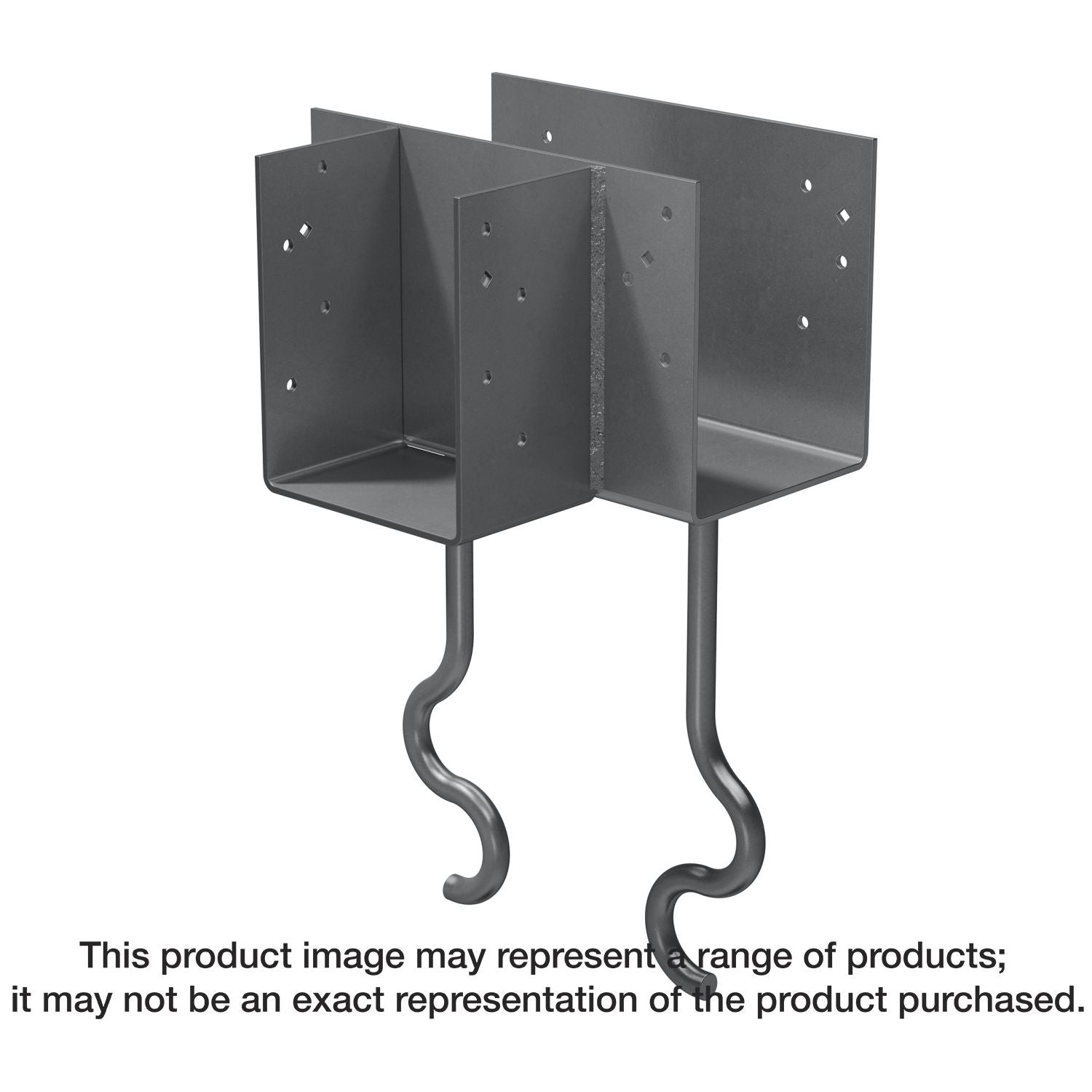

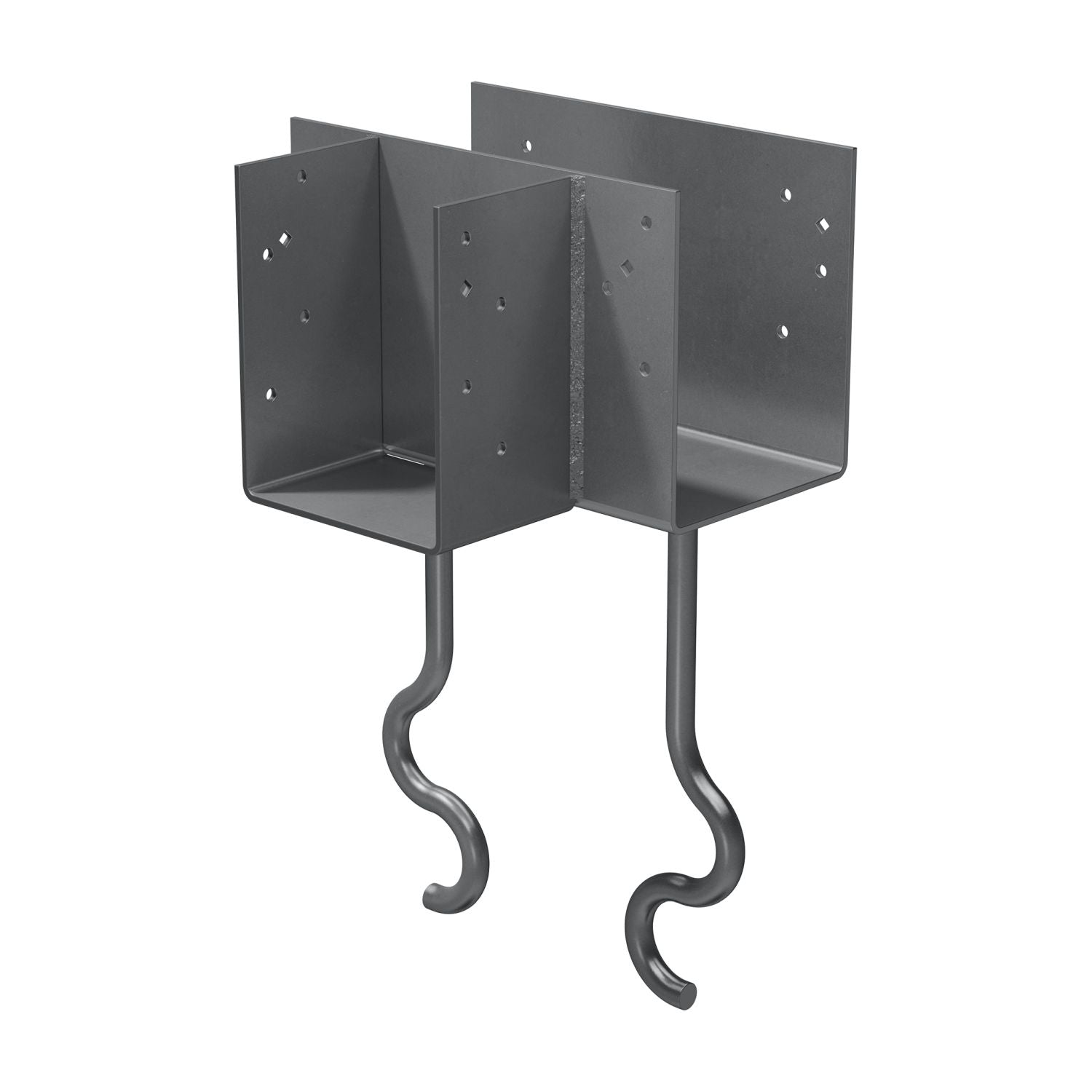

Simpson Strong-Tie CCTQM5.50-SDSG CCTQM 5-1/2-in. T-Shape Column Cap for Masonry w/ SDS Screws
Simpson Strong-Tie CCTQM5.50-SDSG CCTQM 5-1/2-in. T-Shape Column Cap for Masonry w/ SDS Screws
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Screws are configured to provide high uplift design values
- Certified welds for confidence in strength and loading
- SSTB offset allows flush installation to edge of pier
- SSTBs spaced to fit standard CMU cells
- 5-1/2 in. main channel and side stirrup widths
- 13-1/2 in. main channel length
- Made from 7-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
- Fasten with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws (included), which install with no pre-drilling and feature a corrosion resistant double-barrier coating
The CCTQM embedded column cap is designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie SSTB anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The CCTQM is for use along a floor support beam and non-corner locations with a side stirrup to accommodate intermediate support beams at 90° angles.
- Screws are configured to provide high uplift design values
- Certified welds for confidence in strength and loading
- SSTB offset allows flush installation to edge of pier
- SSTBs spaced to fit standard CMU cells
- 5-1/2 in. main channel and side stirrup widths
- 13-1/2 in. main channel length
- Made from 7-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
- Fasten with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws (included), which install with no pre-drilling and feature a corrosion resistant double-barrier coating
Install With: (20) 1/4-in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
