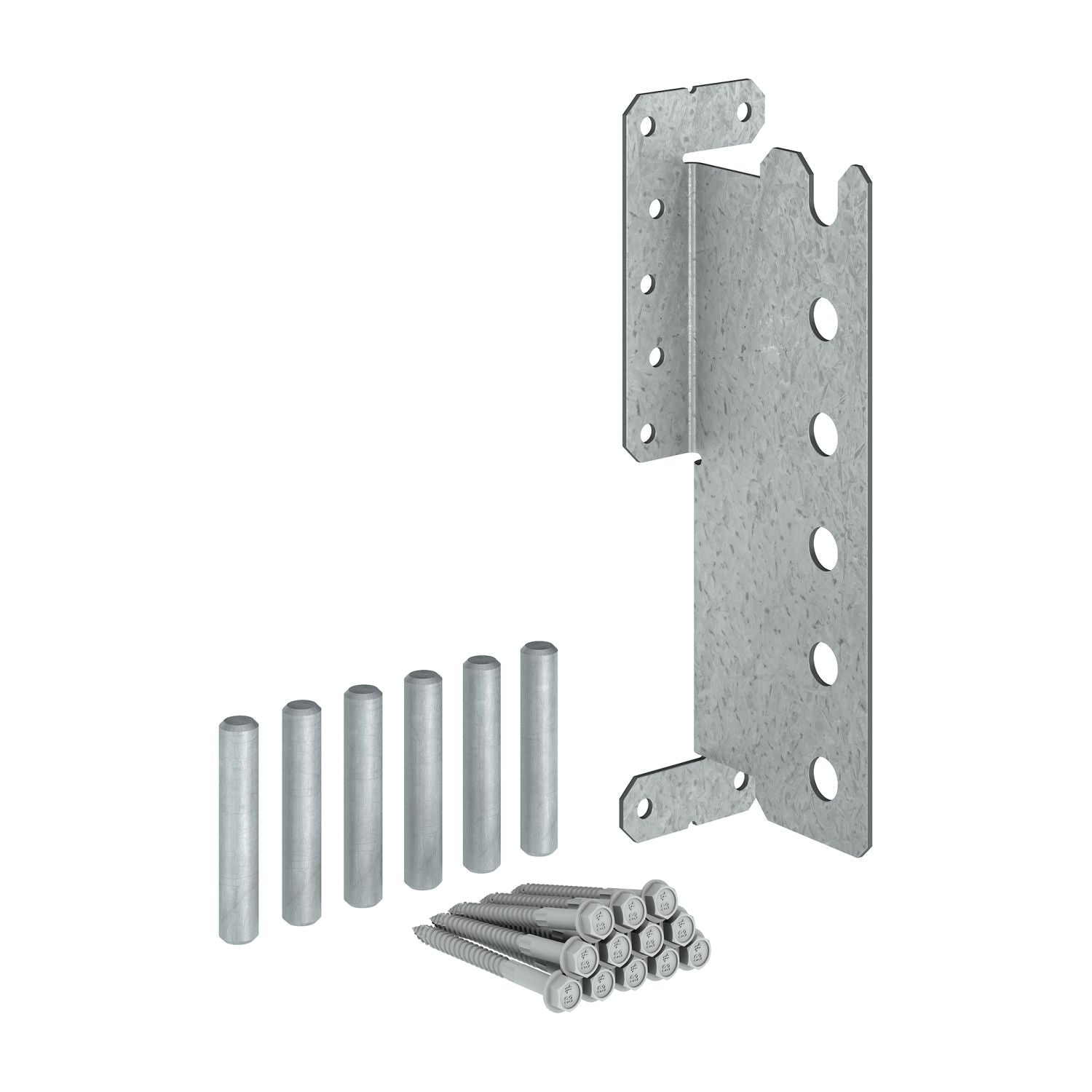

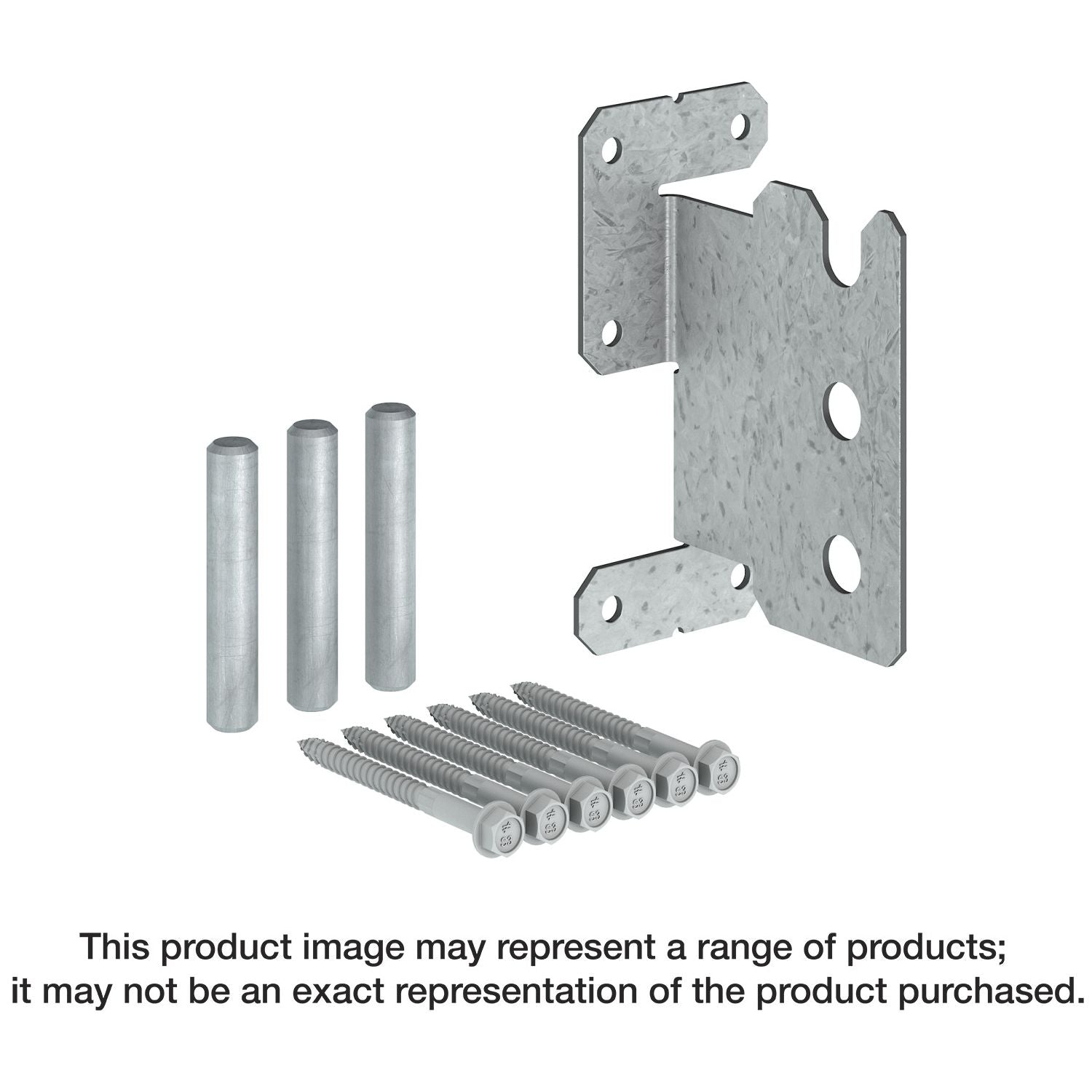

Simpson Strong-Tie CJT6ZS CJTZ 12-Gauge ZMAX Galvanized Concealed Joist Tie with (6) Short Pins
Simpson Strong-Tie CJT6ZS CJTZ 12-Gauge ZMAX Galvanized Concealed Joist Tie with (6) Short Pins
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Center dowel in beam
- Dowels aligned across the grain may cause splitting if the wood shrinks excessively
- Install only in glulam, composite lumber (PSL, LSL and LVL) or well dried lumber
- Short dowel (1/2 in. x 2-3/4 in.) for use with 3-1/8 in. glulam beam, 4x sawn lumber or 3-1/2 in.-wide PSL
- Made from 12-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
The CJTZ is a concealed connector. It can be installed three ways: with no routing of header/post or beam, a routed header/post or a routed beam. It is part of a concealed connector system that includes the CPTZ and CBTZ.
- Center dowel in beam
- Dowels aligned across the grain may cause splitting if the wood shrinks excessively
- Install only in glulam, composite lumber (PSL, LSL and LVL) or well dried lumber
- Short dowel (1/2 in. x 2-3/4 in.) for use with 3-1/8 in. glulam beam, 4x sawn lumber or 3-1/2 in.-wide PSL
- Made from 12-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install With: The CJTZ is supplied with all dowels and screws required; screws require a hex-head driver
