Simpson Strong-Tie Deck-Drive DCU COMPOSITE Screw, #10 x 2-3/4-in. T20, Quik Guard, Tan 03, 1750-Pack (DCU234TN03MB)
Simpson Strong-Tie Deck-Drive DCU COMPOSITE Screw, #10 x 2-3/4-in. T20, Quik Guard, Tan 03, 1750-Pack (DCU234TN03MB)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview

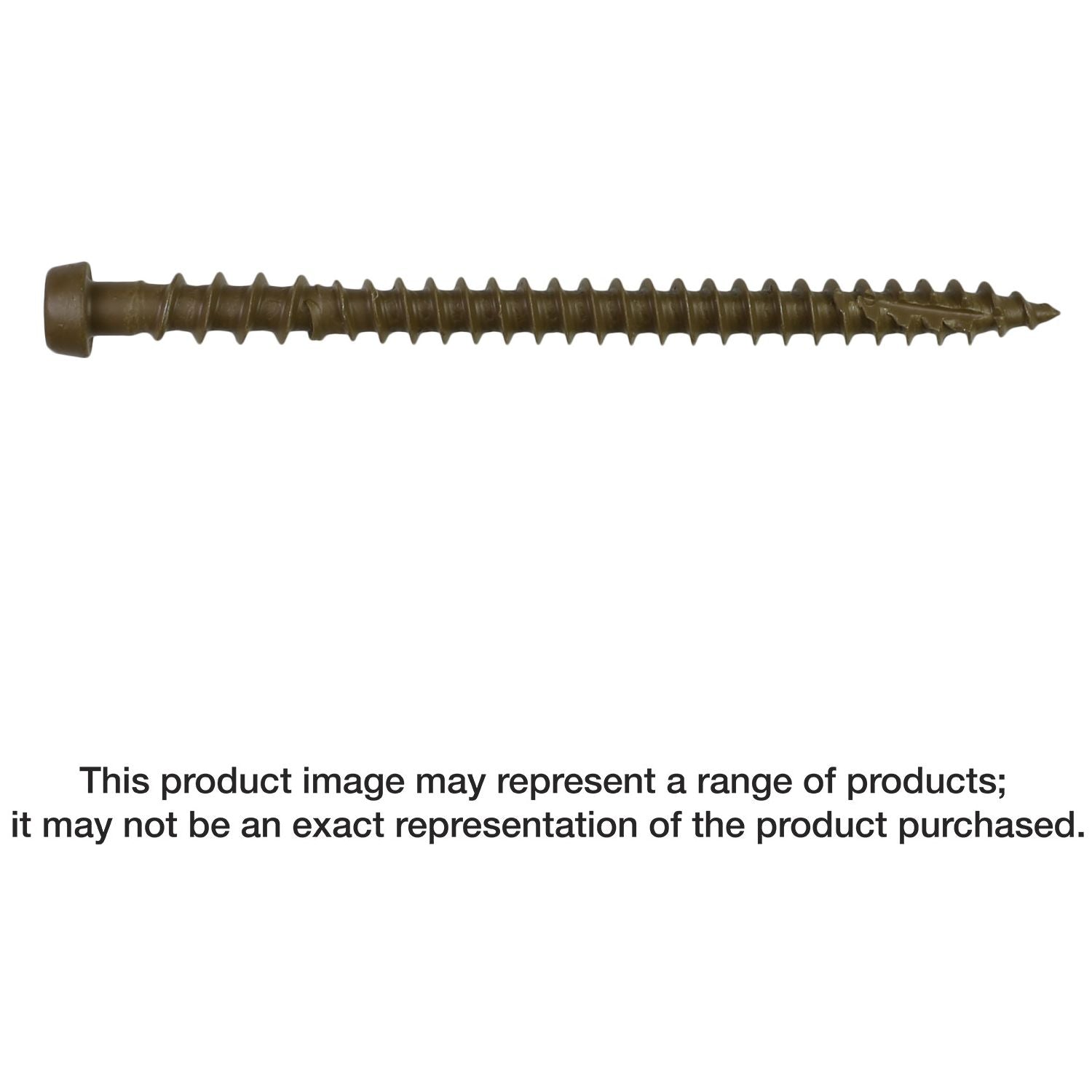

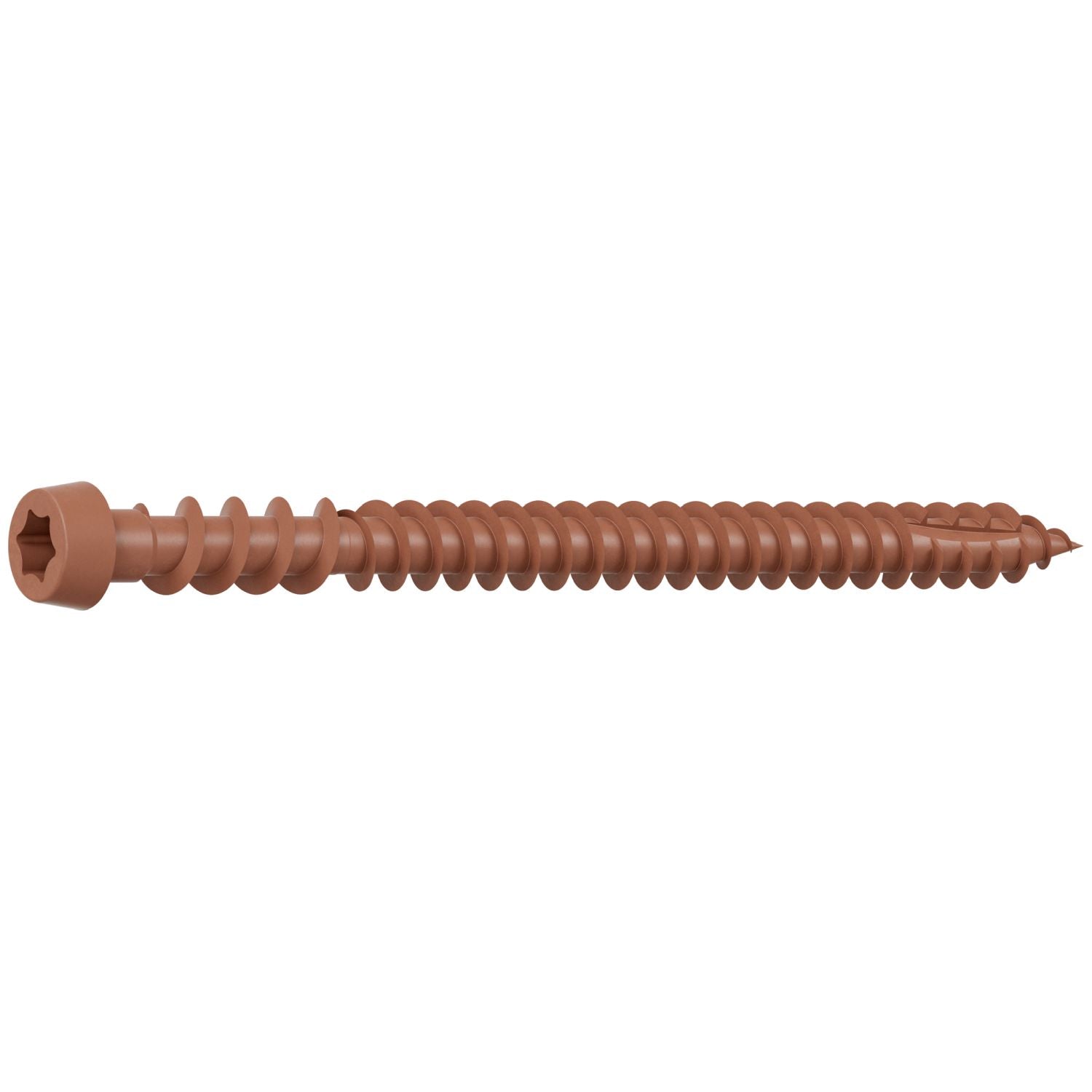

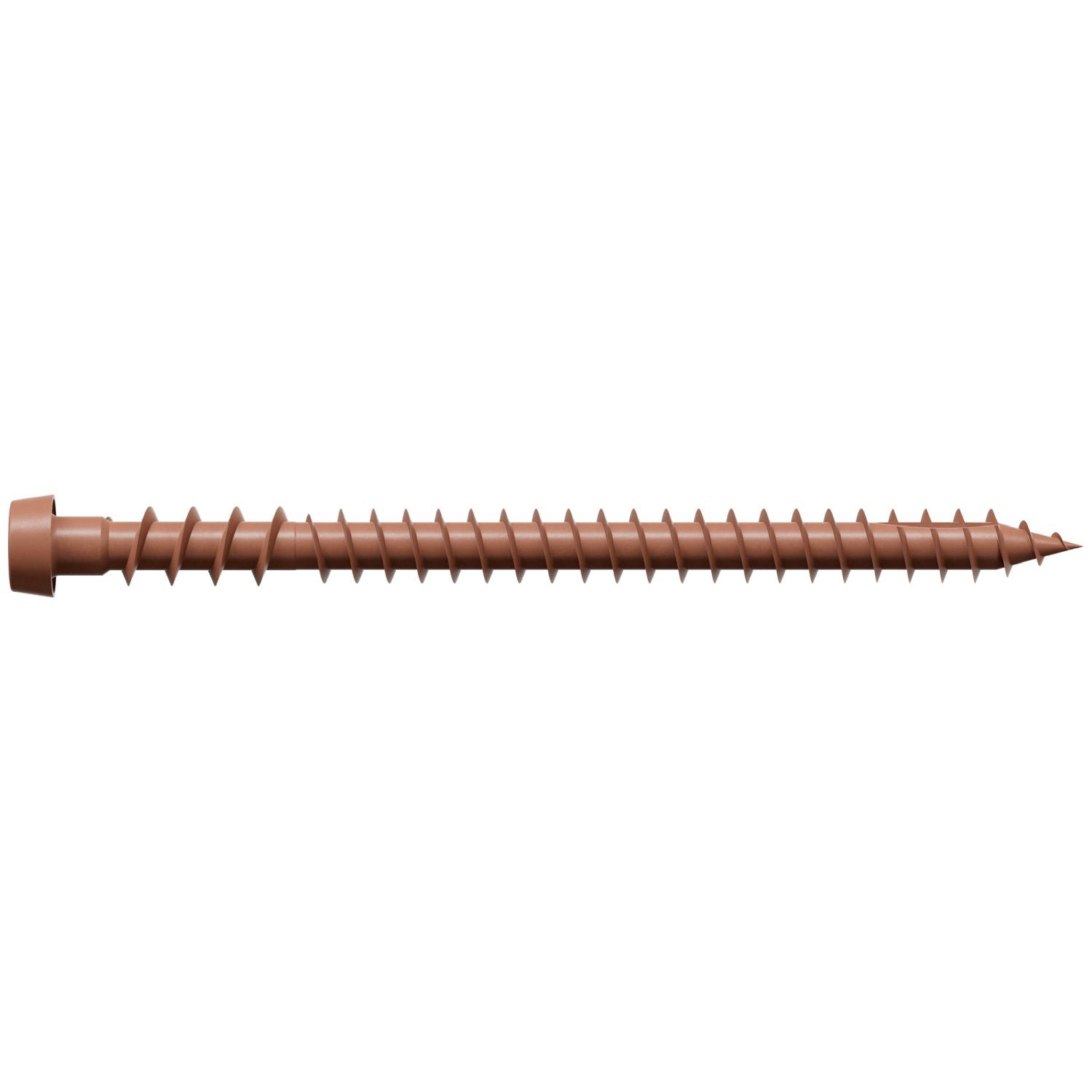

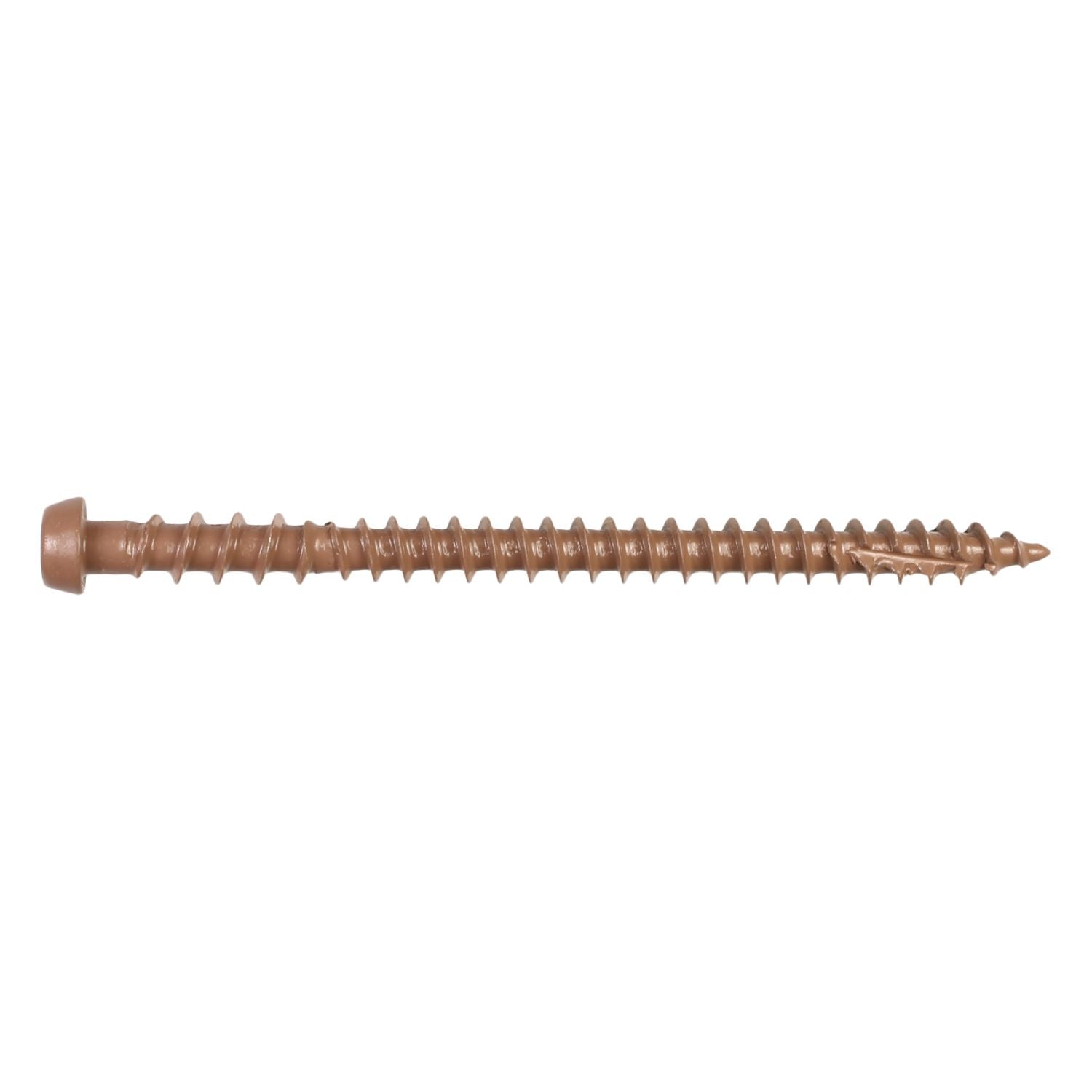

The Simpson Strong-Tie DCU234TN03MB Deck-Drive DCU COMPOSITE Screw is a #10 x 2-3/4 in. hand-drive composite decking screw with a T20 6-lobe drive, Quik Guard coating, and Tan 03 finish. This is a composite decking screw designed for fastening composite deck boards with a cleaner finished look. Model number DCU234TN03MB. If you are building a full deck and want a screw made specifically for composite instead of forcing a standard wood screw to do the job, this is the right kind of fastener.
What separates this screw from a basic exterior screw is how the thread and head design deal with composite material. The tri-lobe thread design is made to reduce damage while driving, and the inverted upper threads help clear excess material as the screw seats. In plain terms, that means less mushrooming, less raised material around the head, and less cleanup after fastening. The cap head is also there for a reason: it helps keep the board surface looking finished instead of pushed up and chewed out.
The Type-17 point is another jobsite-friendly detail. It helps the screw penetrate composite decking more easily for quicker starts, which matters when you are repeating the same fastening pattern across an entire deck. A screw that starts straight and bites clean saves time and reduces the chance of skating across the board face. Paired with the T20 6-lobe drive, you get a more secure bit fit than a lot of older drive styles, which helps control cam-out during long installation runs.
This specific version uses Quik Guard coating and comes in a Tan 03 color to blend better with matching board tones. For composite deck work, color matters because the fastener stays visible. A close color match helps the finished deck look planned instead of patched together. The 0.230 in. head diameter and cap-head style are part of that same clean-finish approach, giving the fastener a profile intended for exposed decking surfaces.
On corrosion resistance, Simpson Strong-Tie positions the Deck-Drive DCU COMPOSITE Screw line as offering superb corrosion resistance, and this model uses Quik Guard coating. For outdoor deck construction, that is not a throwaway spec. Fasteners live in weather, moisture, and seasonal movement, so coating quality affects long-term appearance and service life. If you are fastening composite boards over treated framing, using a purpose-built deck screw is the smart move.
The 2-3/4 in. length is also worth calling out because Simpson lists this length as an approved fastener by Trex for Trex composite decking. That gives deck builders a clear application fit when they are working with Trex boards and want an approved fastening option instead of guessing. This package includes 1,750 screws, which Simpson notes is enough for about 500 square feet of decking with framing at 16 in. on-center spacing.
Compatibility is straightforward. This screw is a hand-drive fastener that uses a T20 6-lobe bit, and Simpson lists replacement bit part number BIT20T-2-R2. If your crew already runs 6-lobe deck screws, it drops right into the workflow. The product family is also available in versions for the Quik Drive system, but this specific model is a hand-drive screw, so it is best for standard impact driver or drill fastening rather than collated auto-feed use.
Who should buy it? This one makes the most sense for deck builders, remodelers, carpenters, and serious DIYers installing composite decking and wanting a cleaner finished surface. If you are only replacing a couple of boards, a smaller pack may make more sense. If you are laying down a full deck and want a color-matched Simpson Strong-Tie composite screw that is built for the material, this is the kind of box you buy once and keep moving.
Drive Composite Boards Without Beating Up the Surface
Composite boards do not forgive the wrong fastener. This screw is built to seat cleanly in exposed deck surfaces so the finished job looks tighter and more consistent from board to board.
- Tri-lobe threads are designed to reduce damage to the composite board while driving
- Cap head helps prevent mushrooming and material from rising above the deck surface
Start Faster and Keep the Screw Tracking Straight
When you have hundreds of screws to run, a clean start matters. The point and thread geometry are designed to get into composite decking quickly without wasting time fighting the first few turns.
- Type-17 point penetrates composite decking for fast starts
- T20 6-lobe drive gives solid bit engagement for repeated deck fastening
Match the Deck Instead of Fighting It
Visible fasteners are part of the finished look on many deck builds, so color is not a small detail. This version comes in Tan 03, giving you a better visual match for compatible board tones than a plain silver or black screw.
- Color: Tan 03
- 2-3/4 in. length is an approved fastener by Trex for Trex composite decking
What's in the Box
- (1) Box of 1,750 Simpson Strong-Tie Deck-Drive DCU COMPOSITE Screws, #10 x 2-3/4 in., Tan 03
Replacement bit part number: BIT20T-2-R2.
At a Glance
Key Specifications
| Screw Size | #10 |
|---|---|
| Length | 2-3/4 in. |
| Head Diameter | 0.230 in. |

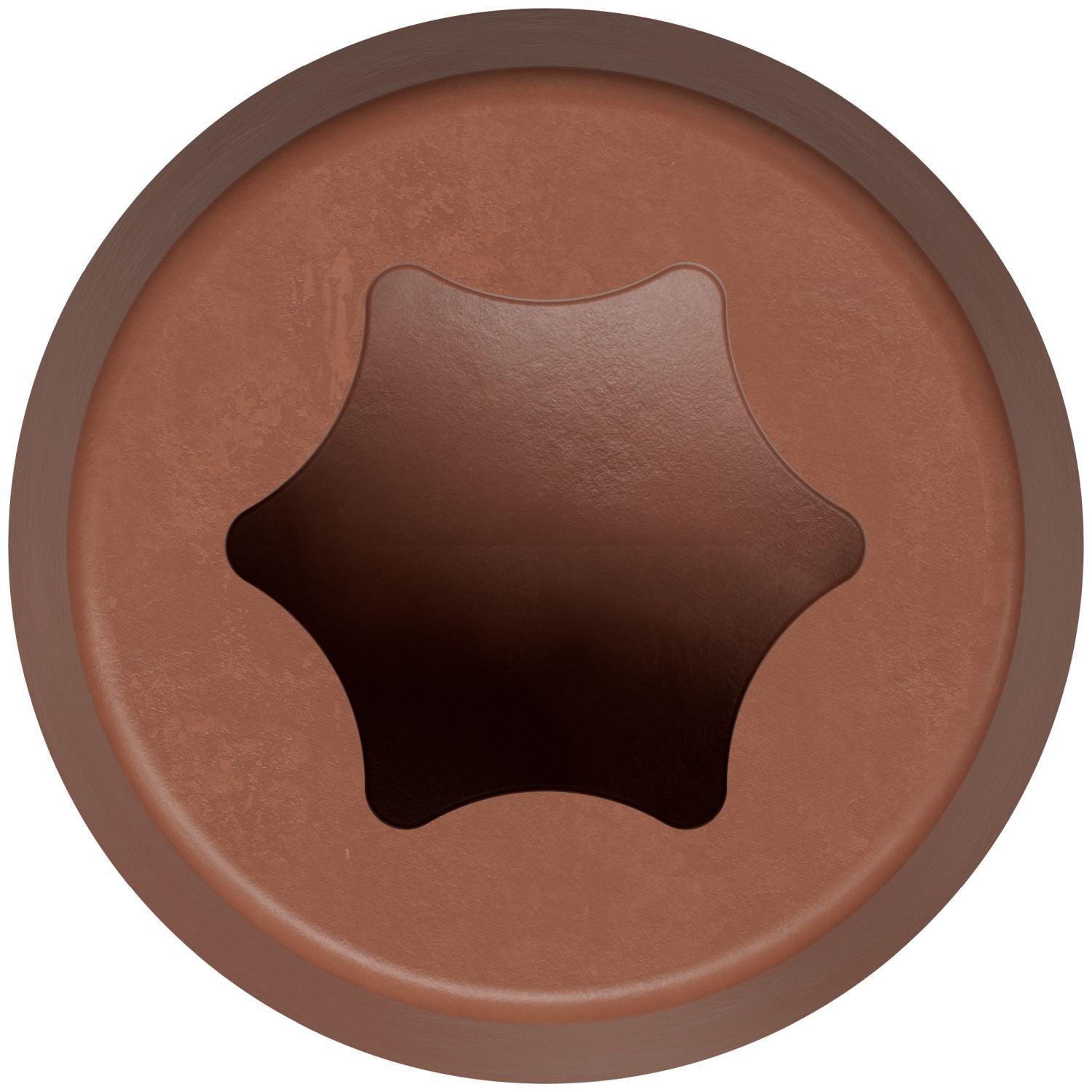

| Drive Type | T20 6-Lobe |
| Head Type | Cap Head |
| Thread Type | Tri-Lobe Threads |
| Point Type | Type-17 Point |
| Coating / Material | Quik Guard Coating |
| Color | Tan 03 |
| Packaging Quantity | 1,750 |
| Fastener Type | Hand-Drive Screw |
| Application | Composite Deck Boards |
Compatibility
Built For
Pro Tip
Before you run this box across a full deck, drive a few screws into an offcut from the actual board color and dial in your clutch or trigger control so the cap head lands flush. That is the quickest way to make Tan 03 disappear into the deck instead of standing proud.
Tool Nut's Take
Simpson Strong-Tie DCU234TN03MB Deck-Drive DCU COMPOSITE Screw gets the details right
If you are fastening composite decking and care how the finished surface looks, this is the kind of screw you buy on purpose, not as an afterthought.
- Who it's for: Deck builders, remodelers, and homeowners doing a full composite deck install who need a large-count box and a color-matched fastener.
- Why it stands out: The thread design, Type-17 point, and cap head are built around composite behavior, so you get cleaner seating and less mushrooming than with a generic exterior screw.
- Worth knowing: This is a hand-drive screw, not a collated strip version, and it uses a T20 6-lobe bit. Also, 1,750 screws is a contractor-size box, so it is best when you have real deck footage to cover.
Common Questions
- What is this screw designed for? It is designed for fastening composite decking boards.
- What bit does it use? This screw uses a T20 6-lobe drive. Simpson lists replacement bit part number BIT20T-2-R2.
- Is the 2-3/4 in. length approved for Trex decking? Yes. Simpson states that the 2-3/4 in. length is an approved fastener by Trex for Trex composite decking.
- How much decking will this 1,750-count box cover? Simpson notes that 1,750 screws install approximately 500 square feet of decking with framing at 16 in. on-center spacing.
