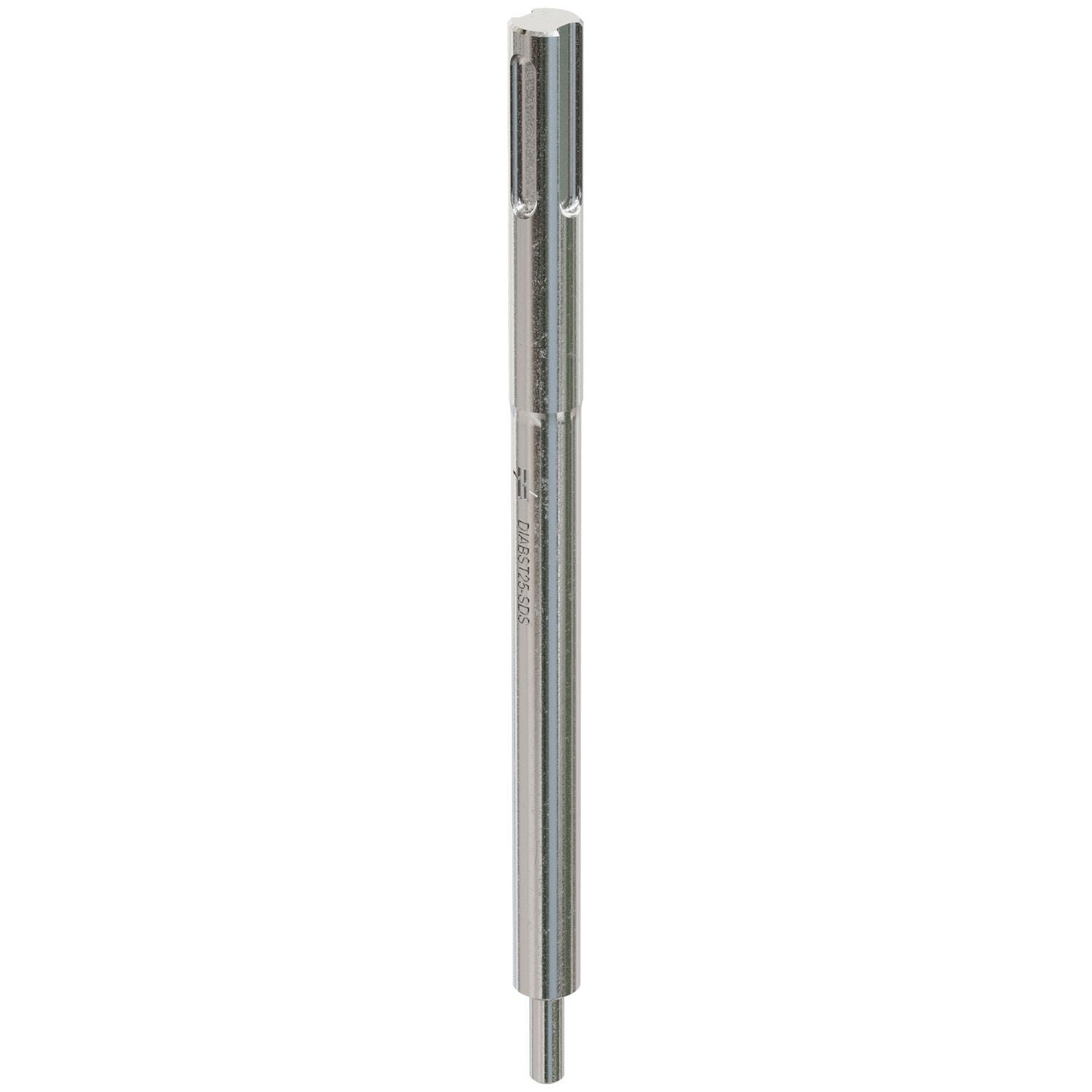

Simpson Strong-Tie SDS-plus Setting Tool for 1/4-in. Rod DIAB Drop-In Anchor (DIABST25-SDS)
Simpson Strong-Tie SDS-plus Setting Tool for 1/4-in. Rod DIAB Drop-In Anchor (DIABST25-SDS)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview
The Simpson Strong-Tie DIABST25-SDS SDS-plus Setting Tool is a power-setting tool made for properly installing compatible Simpson Strong-Tie drop-in anchors. This is a setting tool designed for expanding drop-in anchors in concrete, especially in overhead anchoring work where speed and consistency matter. Model Number: DIABST25-SDS. If you are setting DIAB25 or DIABL25 anchors and want a cleaner, more repeatable installation process, this is the dedicated tool built for that job.
The big advantage here is straightforward: the SDS-plus shank pairs with a compatible rotary hammer so the anchor can be set quickly and with repeatable results. Instead of relying on a manual setup that can vary from anchor to anchor, this tool is designed to drive the expander plug toward the bottom of the drop-in anchor until proper contact is made. That helps cut down on inconsistent sets, which is a real issue when you are doing multiple overhead hang points or repetitive fastening work.
Simpson Strong-Tie keeps the design simple because it needs to be. This is not a multi-purpose accessory. It is a dedicated carbon steel anchor setting tool built around a specific anchor size family. That focused design is what makes it useful on the job. You are not improvising with a punch or using a close-enough accessory. You are using the right profile for the matching anchor, which helps protect anchor performance and install quality.
At 6.25 inches long, the tool gives you enough reach to work comfortably with drop-in anchors while keeping the setup compact enough for routine use in a hammer drill or rotary hammer with an SDS-plus interface. The uncoated carbon steel body is built for function, not flash. For contractors and maintenance crews who set anchors regularly, that is exactly what you want: a purpose-built installation accessory that is easy to keep in the anchor kit and hard to misuse when matched with the correct anchor.
This model is specifically intended for Simpson Strong-Tie Drop-In models DIAB25 and DIABL25. That compatibility matters. Setting tools are not one-size-fits-all, and using the wrong one can make it harder to properly set the anchor and can affect the finished install. Simpson Strong-Tie also notes that oversized holes make anchors harder to set and reduce load capacity, so correct hole prep and the correct setting tool go together.
Who should buy it? Concrete contractors, electrical crews, plumbing crews, mechanical installers, and general trades doing overhead anchoring are the right audience. If you install threaded rod hangers, suspended systems, or repeated drop-in anchor points in concrete, this tool earns its place fast. If you do not use DIAB25 or DIABL25 anchors, skip it and buy the size-specific setter that matches your anchor instead.
Simpson Strong-Tie DIABST25-SDS SDS-plus Setting Tool for Faster Repetitive Anchor Work
Simpson Strong-Tie DIABST25-SDS SDS-plus Setting Tool for Faster Repetitive Anchor Work
When you are setting a lot of drop-in anchors, the right setter speeds up the process and helps keep every install more uniform. This tool is made for one job and that is exactly why it works well.
- SDS-plus shank fits compatible rotary hammers
- Designed for Simpson Strong-Tie DIAB25 and DIABL25 drop-in anchors
- Useful for repetitive overhead anchoring and threaded rod support work
Built Around the Correct Anchor Size
Dedicated setting tools matter because drop-in anchors need the expander plug driven correctly. This model is matched to the DIAB25 and DIABL25 anchor family, which helps avoid the sloppy results that come from using the wrong setting accessory.
- Purpose-built rather than general-use
- Helps support proper drop-in anchor expansion
- Best used with correctly drilled holes to maintain anchor performance
Simple, Durable Jobsite Accessory
There is not much to baby here. The carbon steel body and straightforward design make this the kind of accessory you keep with your anchor gear and use whenever the job calls for fast, repeatable setting.
- Carbon steel construction
- Uncoated finish
- Compact 6.25 inch overall length
What's in the Box
- (10) Simpson Strong-Tie DIABST25-SDS SDS-plus Setting Tools
Drop-in anchors are sold separately.
Key Specifications
| Tool Type | Drop-in anchor setting tool |
|---|---|
| Shank Type | SDS-plus |
| Material | Carbon Steel |
| Finish | Uncoated |
| Overall Length | 6.25 in |
| Diameter | 0.38 in |
| For Use With | Simpson Strong-Tie DIAB25, DIABL25 |
| Box Quantity | 10 |
Compatibility
Built For
Pro Tip
Match the setter to the exact drop-in anchor model and keep your hole size on spec. With drop-ins, a wrong-size setter or oversized hole is where a lot of bad installs start.
Tool Nut's Take
The Right Setter Beats a Workaround Every Time
The Simpson Strong-Tie DIABST25-SDS SDS-plus Setting Tool is the kind of specialized accessory that saves time because it is built for one exact anchor job and does it right.
- Who it's for: Crews setting DIAB25 or DIABL25 drop-in anchors in concrete, especially for overhead rod hanging and repeated installs.
- Why it stands out: SDS-plus convenience, size-specific compatibility, and a simple carbon steel build that is made for repeat use.
- Worth knowing: This is not a universal setting tool. It is the right buy only if you are running the matching Simpson Strong-Tie anchor models.
Common Questions
- Which anchors does this setting tool fit? It is designed for Simpson Strong-Tie Drop-In models DIAB25 and DIABL25.
- What shank type does it use? This model uses an SDS-plus shank.
- What is it made from? The tool is made from carbon steel.
- How long is the tool? The listed overall length is 6.25 inches.
