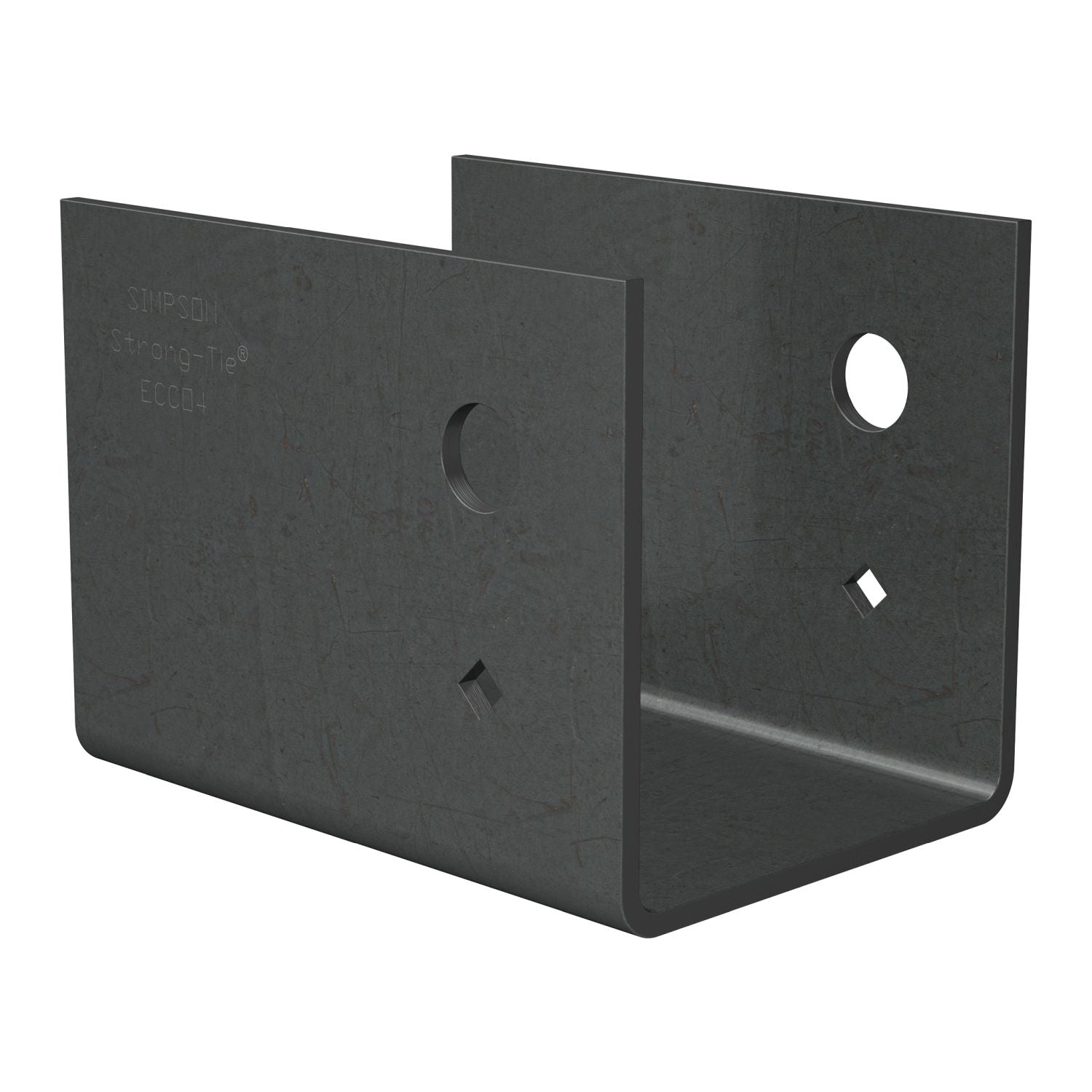

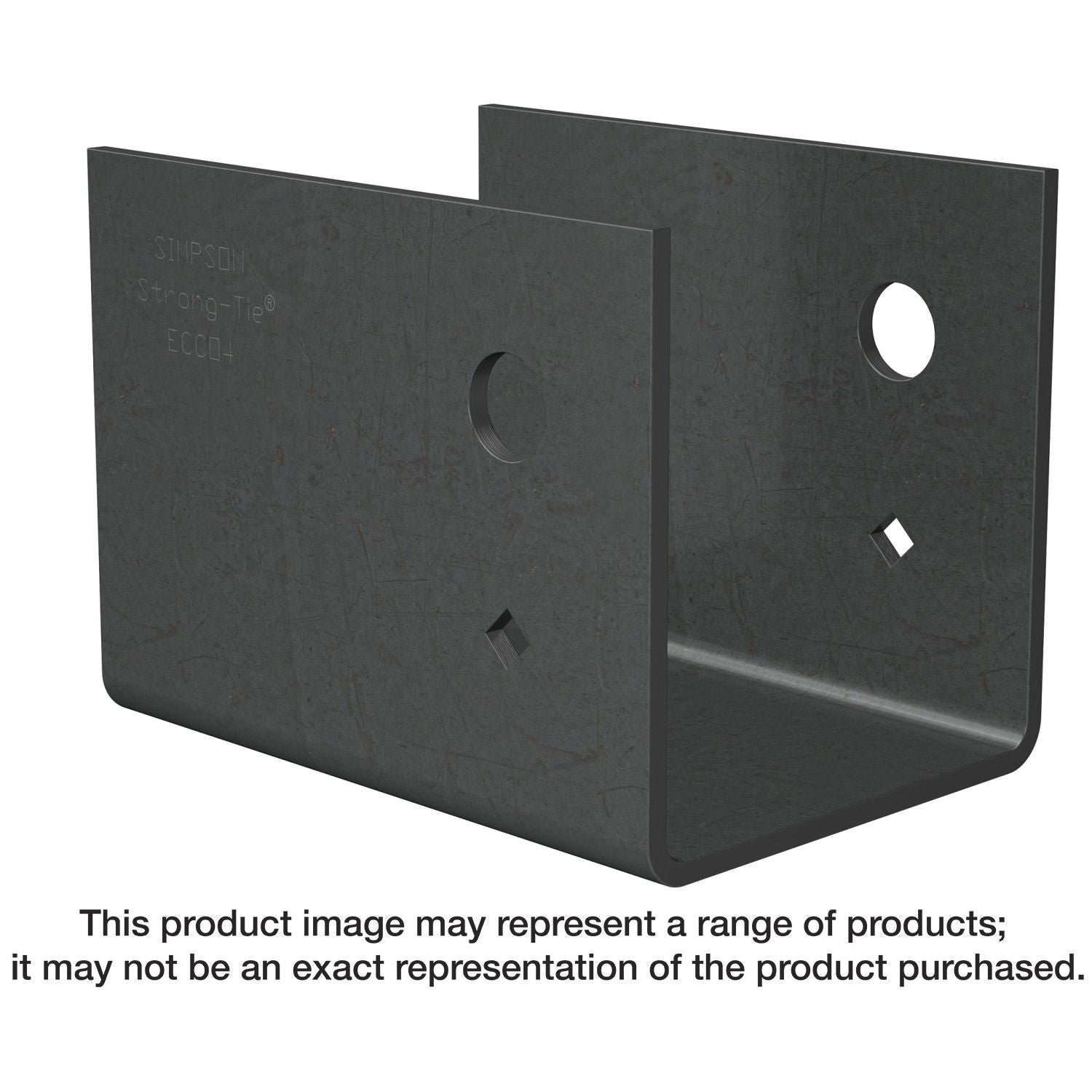

Simpson Strong-Tie ECCO4 ECCO End Column Cap, No Legs, for 4x Beam, 4-in. Height
Simpson Strong-Tie ECCO4 ECCO End Column Cap, No Legs, for 4x Beam, 4-in. Height
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
- For nominal 4x or 3-1/2 in. beam width
- Cap height of 4 in.
- Made from uncoated 7-gauge steel
Simpson Strong-Tie column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCO is designed to provide strong column-beam connections in end-of-beam applications on top of steel members. The column cap features a design without legs enabling a field-welded attachment to steel columns and beams. The seat of the column cap provides additional surface area for bearing that extends beyond the one side of the column. This helps to distribute the load from the beam and provide support for the connection.
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
- For nominal 4x or 3-1/2 in. beam width
- Cap height of 4 in.
- Made from uncoated 7-gauge steel
Install With: Install with (1) 5/8 in. diameter machine bolt
