Simpson Strong-Tie Opti-Mesh 3-1/2-in. Epoxy Adhesive Plastic Screen Tube for 3/8-in. Rod for ET-3G (EWS373P)
Simpson Strong-Tie Opti-Mesh 3-1/2-in. Epoxy Adhesive Plastic Screen Tube for 3/8-in. Rod for ET-3G (EWS373P)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

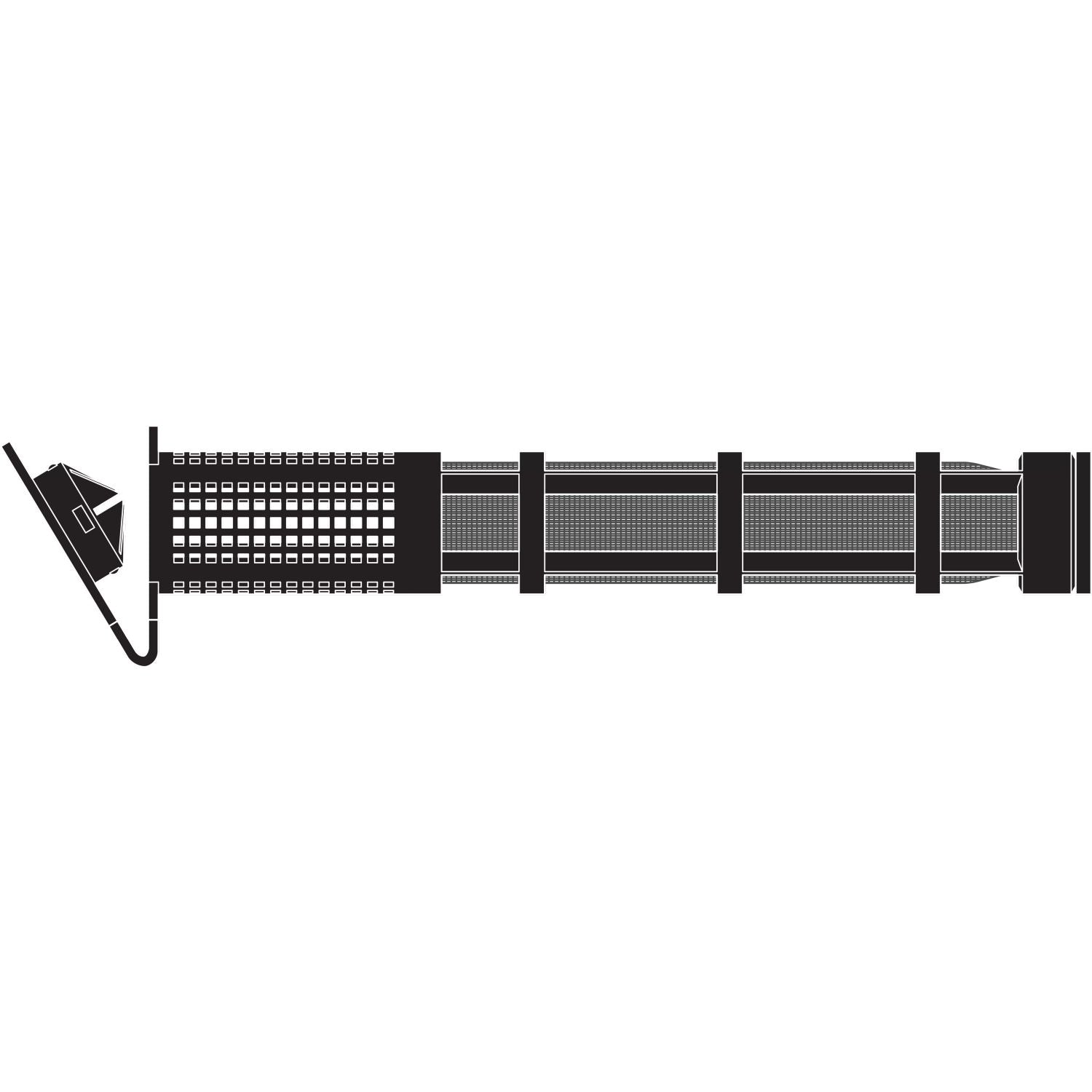

The Simpson Strong-Tie EWS373P Opti-Mesh Epoxy Adhesive Screen Tube is a plastic adhesive anchoring accessory for hollow block applications. This is a screen tube designed for threaded-rod anchoring in hollow concrete block. Model Number EWS373P. For this specific version, the tube is sized for 3/8 in. rod, a 9/16 in. hole, and a 3-1/2 in. length, making it a direct fit when you are setting anchors with Simpson Strong-Tie ET-3G epoxy adhesive.
What makes this part matter is how it manages adhesive inside a hollow base material. In hollow block, you need the adhesive to bond the rod without just dumping into the void. The woven mesh is sized to let the right amount of adhesive pass through the tube and bond with the base material while keeping enough adhesive in the tube to bond the threaded rod. That balance is the whole job of a screen tube, and it is what separates a clean adhesive anchor install from a messy, inconsistent one.

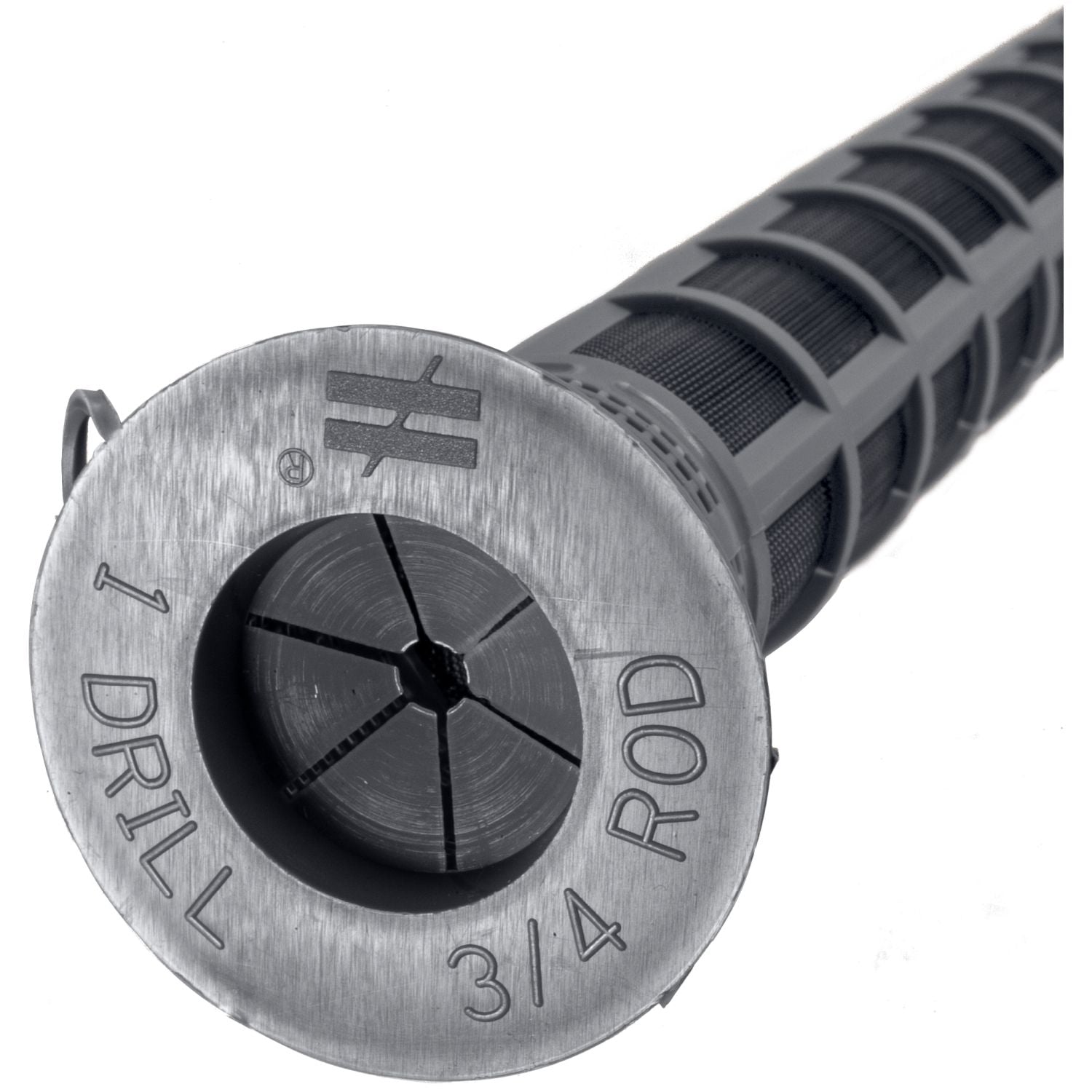

The Opti-Mesh design adds a few details that are actually useful on the job. The integral cap helps center and secure the rod in the tube, and it displays important sizing information such as rod diameter and drill bit diameter. It also helps keep adhesive from running out the front of the tube during installation. That means less waste, less cleanup, and a better shot at getting the anchor set where you want it the first time.
The flanges are there for a reason too. They help keep the screen tube from slipping into over-drilled holes and let the tube still function if the hole is a little too deep. In real masonry work, that kind of forgiveness matters. You do not always get perfect field conditions, so small design choices like this save time and prevent rework.
For hollow block anchoring, the open-mesh collar is one of the key features. It allows extra adhesive to flow out behind the face shell of the block, increasing the bearing area. That extra adhesive collar results in higher load capacities in hollow concrete block. In plain terms, it helps the adhesive anchor make better use of the block structure instead of relying only on the tube cavity.
Compatibility is important here because screen tubes are designed for a specific adhesive type. The EWS373P is identified as an Epoxy Adhesive (ET-3G) Screen Tube. If you are building out a threaded rod anchoring setup in hollow block and you need the correct tube for ET-3G epoxy adhesive, 3/8 in. threaded rod, and a 3-1/2 in. embedment tube length, this is the right match from the Simpson Strong-Tie Opti-Mesh line.
This is a good fit for masonry contractors, general contractors, installers doing retrofit anchoring in hollow concrete block, and anyone who wants the anchor assembly to go in cleaner and more consistently. It is not a general-purpose sleeve for any adhesive on the shelf. It is a specific adhesive anchoring accessory, and if your application calls for ET-3G epoxy, hollow block, and 3/8 in. rod, the EWS373P is the setup you want.
Keep Adhesive Where It Works
In hollow block, the goal is controlled adhesive flow, not a blowout into the cavity. The Opti-Mesh layout is built to meter adhesive through the mesh so the base material and the rod both get the bond they need.
- Open-mesh collar allows extra adhesive to flow behind the face shell in hollow block applications
- Designed to increase bearing area for higher load capacity in hollow concrete block
Faster Setup, Less Guesswork
The cap does more than close the front of the tube. It helps center the rod, keeps adhesive from running out the front, and puts key sizing info right on the part so you can verify the setup quickly.
- Integral cap displays rod diameter and drill bit diameter information
- Cap helps center and secure the rod while improving inspection after installation
Stays Put in the Hole
Small details matter with adhesive anchors. The flange helps prevent the tube from slipping into an over-drilled hole, which gives you a little field tolerance without ruining the install.
- Flanges help stop the tube from dropping into over-drilled holes
- Can function in holes drilled too deep, helping reduce wasted material and rework
Key Specifications
| Application | Threaded-Rod Anchoring |
|---|---|
| Material | Plastic |
| Rod Diameter | 3/8 in. |
| Hole Diameter | 9/16 in. |
| Length | 3-1/2 in. |
| Adhesive Type | Epoxy Adhesive (ET-3G) |
| Product Line | Opti-Mesh Screen Tube |
| Carton Quantity | 150 |
Compatibility
Built For
Pro Tip
Match the screen tube to the adhesive system before you load the gun. The EWS373P is built for ET-3G epoxy, and using the correct tube size for the 3/8 in. rod and 9/16 in. hole helps the mesh meter adhesive the way it was designed to.
Tool Nut's Take
Simpson Strong-Tie EWS373P Opti-Mesh Epoxy Adhesive Screen Tube Gets the Details Right
If you are anchoring 3/8 in. threaded rod in hollow block with ET-3G epoxy, this is the kind of small part that keeps the whole install clean and predictable.
- Who it's for: Masonry contractors, anchor installers, and GCs setting threaded rod in hollow concrete block.
- Why it stands out: The cap, flange, and open-mesh collar all solve real install problems like rod centering, adhesive control, and over-drilled holes.
- Worth knowing: This is not a one-size-fits-all accessory. It is a specific screen tube for a specific adhesive type, rod size, and hole size, so make sure your anchor setup matches the EWS373P spec.
Common Questions
- What rod size is this screen tube made for? This EWS373P version is sized for 3/8 in. rod.
- What hole size does it require? The specified hole diameter for this model is 9/16 in.
- What base material is it intended for? It is intended for hollow block and hollow concrete block adhesive anchoring applications.
- Is this a general-purpose screen tube for any adhesive? No. Screen tubes are designed for a specific adhesive type, and EWS373P is identified as an ET-3G epoxy adhesive screen tube.
