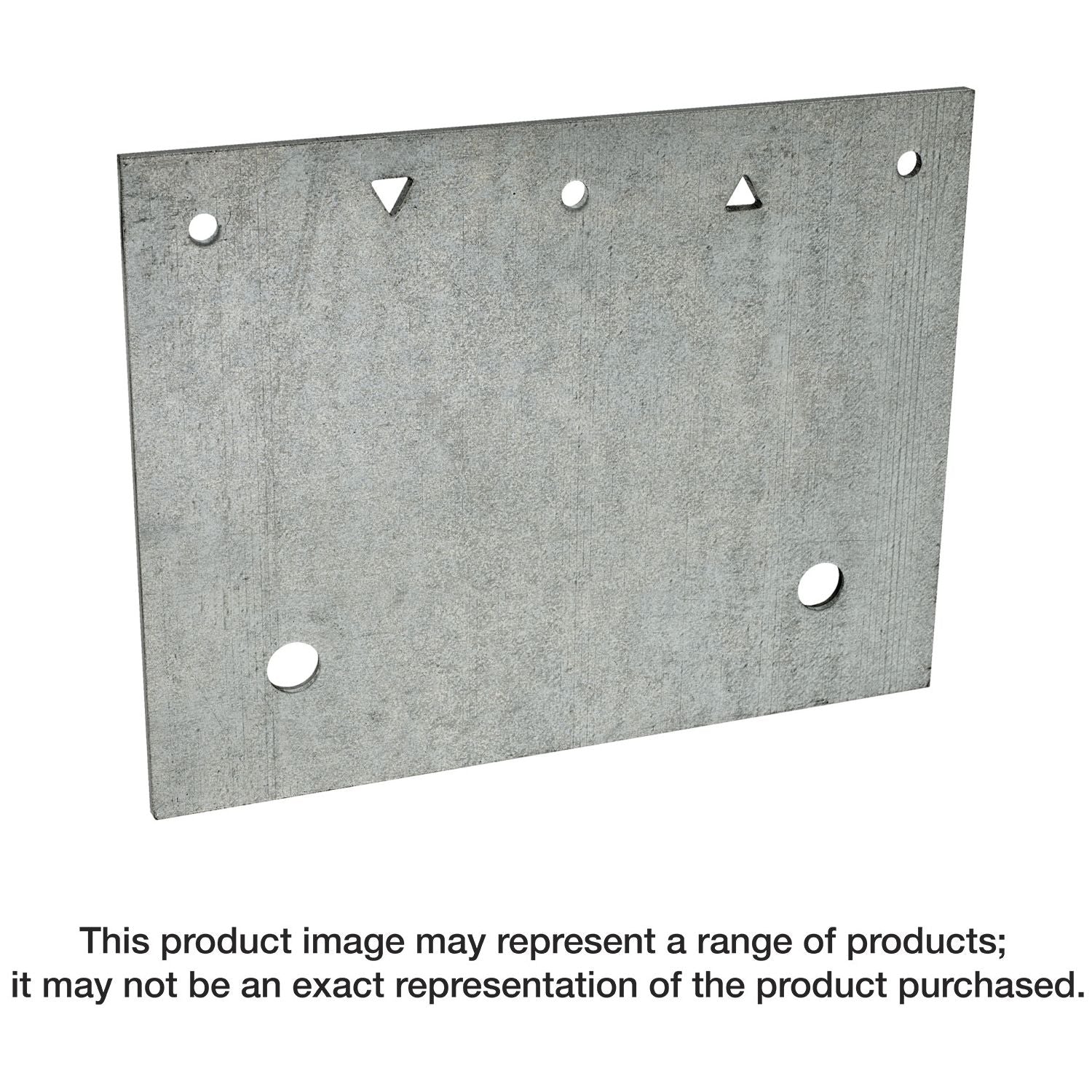

Simpson Strong-Tie FRFPHDG FRFP 7-in. x 9-in. HDG Retrofit Foundation Plate
Simpson Strong-Tie FRFPHDG FRFP 7-in. x 9-in. HDG Retrofit Foundation Plate
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Ideal where the mudsill is flush to the inside of the foundation (or up to 1-1/2 in. set back)
- When the two optional holes are filled, the plate offers increased loads and can be spaced farther apart
- When all five holes are filled, the FRFP is a one-for-one replacement for 5/8-in. anchor bolts
- Width: 9 in.
- Height: 7 in.
- Made from 7-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Help protect your foundation from earthquakes and high winds with the FRFP retrofit foundation plate. The next generation FRFP flat retrofit foundation plate connects the mudsill to the foundation and provides lateral load resistance. This design allows the Designer to maintain the same prescriptive requirements when filling the original three holes, or as an alternate, fill the newly added two optional triangle holes and utilize increased loads and greater allowable spacing.
- Ideal where the mudsill is flush to the inside of the foundation (or up to 1-1/2 in. set back)
- When the two optional holes are filled, the plate offers increased loads and can be spaced farther apart
- When all five holes are filled, the FRFP is a one-for-one replacement for 5/8-in. anchor bolts
- Width: 9 in.
- Height: 7 in.
- Made from 7-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Install With: Install with 1/2 in. diameter anchor bolts and 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
