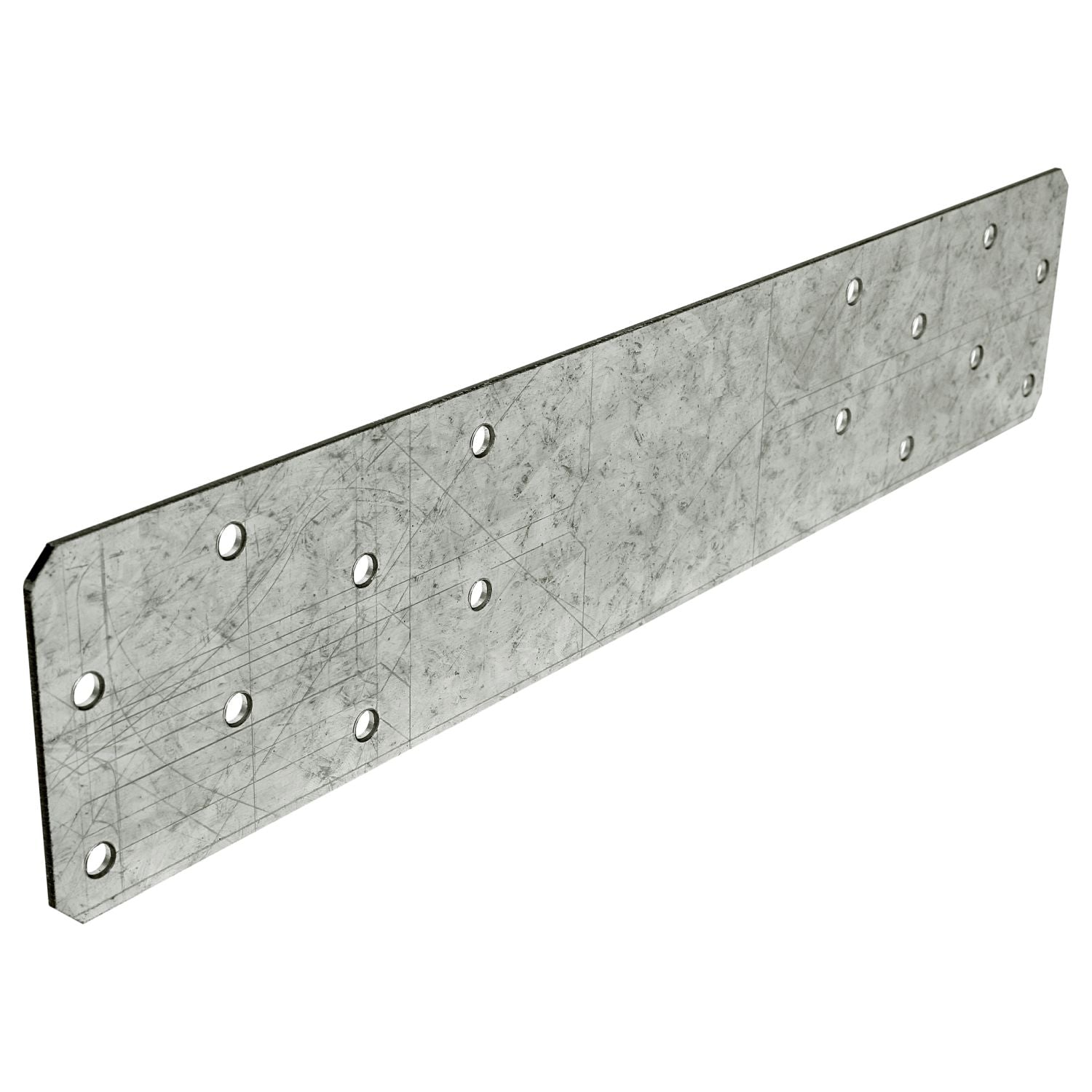

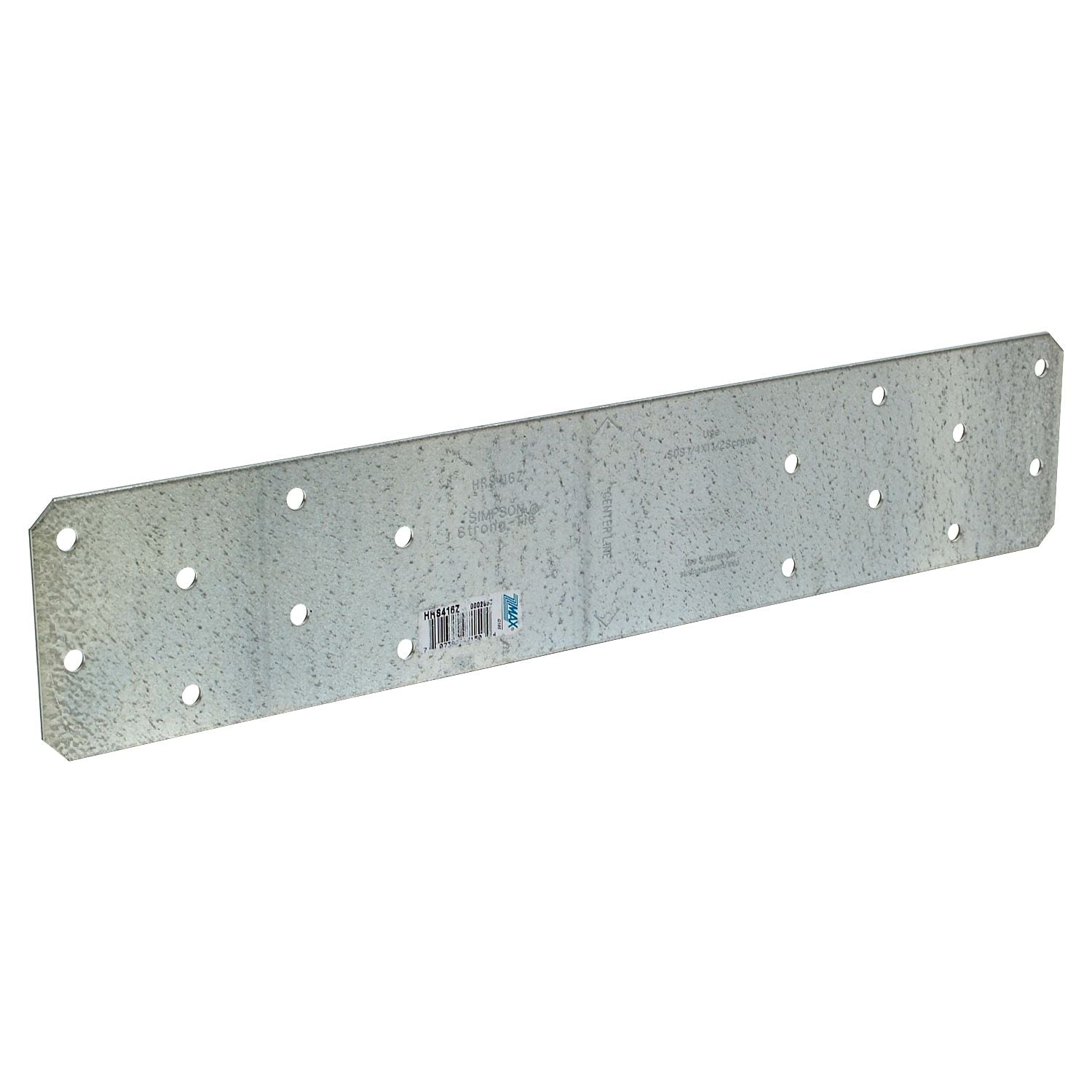

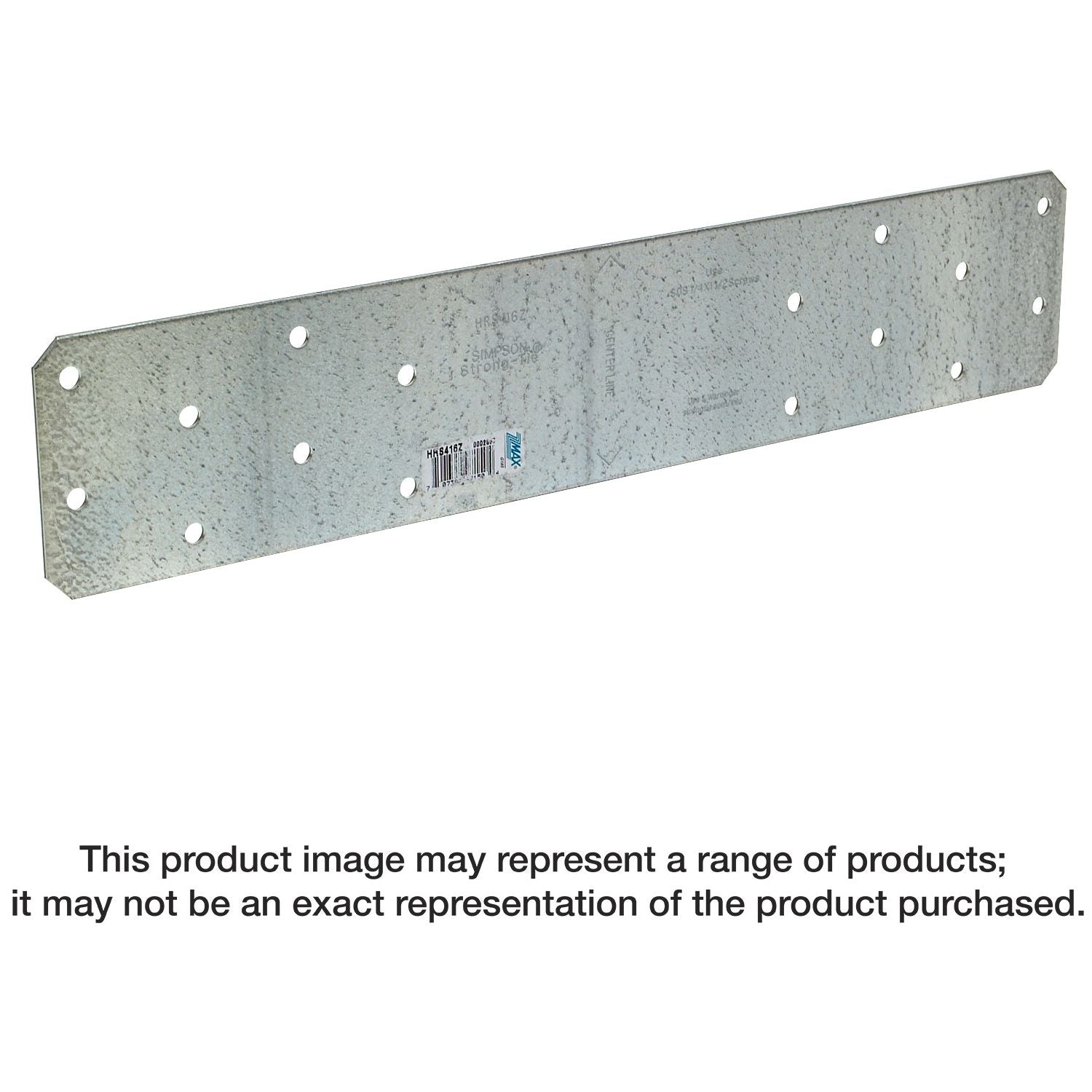

Simpson Strong-Tie HRS 16-in. 12-Gauge ZMAX Galvanized Heavy Strap Tie (HRS416Z)
Simpson Strong-Tie HRS 16-in. 12-Gauge ZMAX Galvanized Heavy Strap Tie (HRS416Z)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview
The Simpson Strong-Tie HRS416Z HRS 16 in. 12-Gauge ZMAX Galvanized Heavy Strap Tie is a heavy strap tie for reinforcing wood-to-wood connections where extra tension strength is needed. This is a heavy strap tie designed for reinforcing cut plates, wall intersections, ridge ties, and wood splices. Model Number: HRS416Z. If you are tying structural members together and want a load-rated connector instead of a generic flat strap, this is the right kind of hardware.
What makes the HRS series matter is that it is engineered to resist wind and seismic forces. In practical terms, that means it is intended for structural load paths, not just light bracing or cosmetic reinforcement. Simpson calls this a heavy, load-rated, precut strap, and that is exactly where it fits: jobs where a cut top plate, cut bottom plate, or intersecting wall needs a connector that can transfer tension across the joint.
This HRS416Z version is made from 12-gauge steel and measures 16 inches long by 3-1/4 inches wide. That wider footprint helps spread fasteners across the connected members and gives you a broader strap than smaller narrow ties. The easy nailing and screw pattern is built for connecting the sides of 2x members, which makes layout simpler when you are working through framing repairs, additions, or new structural connections.
The ZMAX coating is a big part of why this specific model stands out. If you are working outdoors or around treated lumber, corrosion resistance matters. ZMAX galvanization is there for exactly that reason, giving this heavy strap tie more protection than a basic zinc finish. For exterior work or pressure-treated applications, that is not a small detail. It is the difference between using the right connector for the environment and using one that may not hold up as well over time.
Installation is straightforward because the strap is precut and the fastener pattern is already laid out. That saves time on the job and helps keep the connection consistent. Simpson notes that you should use all specified fasteners and install them symmetrically. Additional fastener holes are provided, and not every hole always needs to be filled to achieve listed loads, but the connection still depends on following the manufacturer load table and fastening guidance for the exact application.
For fastening, Simpson Strong-Tie specifically references 1/4 inch x 1-1/2 inch Strong-Drive SDS heavy-duty connector screws, including part number SDS25112. That gives you a clear path if you prefer screw installation over guessing at hardware. Fasteners are not included, so this is the connector only. That is worth knowing up front if you are building a materials list for a framing repair or structural reinforcement job.
This strap tie is a good fit for framers, remodelers, general contractors, and serious DIY users doing structural repairs the right way. It is especially useful when you need a clean, ready-made metal strap for a wood connection and do not want to cut generic coil strap on site. If the job calls for a load-rated heavy strap with known dimensions, known gauge, and a corrosion-resistant finish, the HRS416Z checks those boxes without overcomplicating the install.
Made for Structural Reinforcement
This heavy strap tie is built for connections that need more than a basic mending plate. It is intended for structural reinforcement where tension transfer matters, including splices and cut framing members.
- Engineered to resist wind and seismic forces
- Designed for wood-to-wood connections and structural repair work
Wider Strap, Better Coverage
At 3-1/4 inches wide and 16 inches long, the HRS416Z gives you a broad connection area for tying members together. That wider layout helps when you need a strap that spans a joint cleanly and distributes fasteners across the connection.
- 16 in. length for splice and tie applications
- 3-1/4 in. width with prepunched holes for easier layout
Precut and Ready to Install
Precut hardware keeps the job moving. Instead of trimming strap stock and laying out holes yourself, you get a ready-made connector with a clean pattern that is meant for repeatable installation.
- Precut strap saves setup time on site
- Use all specified fasteners and install them symmetrically per manufacturer guidance
What's in the Box
- (1) Simpson Strong-Tie HRS416Z heavy strap tie
Fasteners are not included.
Key Specifications
| Model | HRS416Z |
|---|---|
| Product Type | Heavy Strap Tie |
| Material | Steel |
| Gauge | 12 gauge |
| Thickness | 97 mil |
| Length | 16 in. |
| Width | 3-1/4 in. |
| Depth | 0.13 in. |
| Finish | ZMAX galvanized |
| Package Quantity | 1 |
| Application | Solid sawn lumber |
| Weight | 1.46 lbs |
Compatibility
Built For
Pro Tip
If you are using the HRS416Z across a splice, lay out your fasteners symmetrically from the center of the joint so the strap shares load evenly across both members. It is a simple step, but it makes a cleaner install and keeps you closer to how the connector is intended to work.
Warranty & Support
Tool Nut's Take
Simpson Strong-Tie HRS416Z HRS 16 in. 12-Gauge ZMAX Galvanized Heavy Strap Tie Gets the Structural Job Done
This is the kind of connector you buy when you need a real structural strap, not a piece of light hardware trying to do a heavy job.
- Who it's for: Framers, remodelers, and contractors reinforcing wood splices, cut plates, wall intersections, or ridge connections.
- Why it stands out: You get 12-gauge steel, a wide 3-1/4 inch body, a ready-to-install precut format, and ZMAX coating for better corrosion resistance in exterior or treated-wood work.
- Worth knowing: This is sold as the strap only, so plan your fasteners separately and make sure you follow Simpson's fastening schedule for the load you need.
Common Questions
- What is this strap tie used for? It is used to resist tension forces in wood connections, including cut top or bottom plates, wall intersections, ridge ties, and splices where extra structural strength is needed.
- Is the HRS416Z suitable for exterior or treated-wood applications? Yes. This model uses a ZMAX galvanized finish, which is intended to provide added corrosion resistance for exterior and treated-wood applications.
- What size is the HRS416Z? The strap is 16 inches long, 3-1/4 inches wide, and made from 12-gauge steel with a 97 mil thickness.
- What material is it designed to connect? The listed application is solid sawn lumber in wood-to-wood structural connections.
