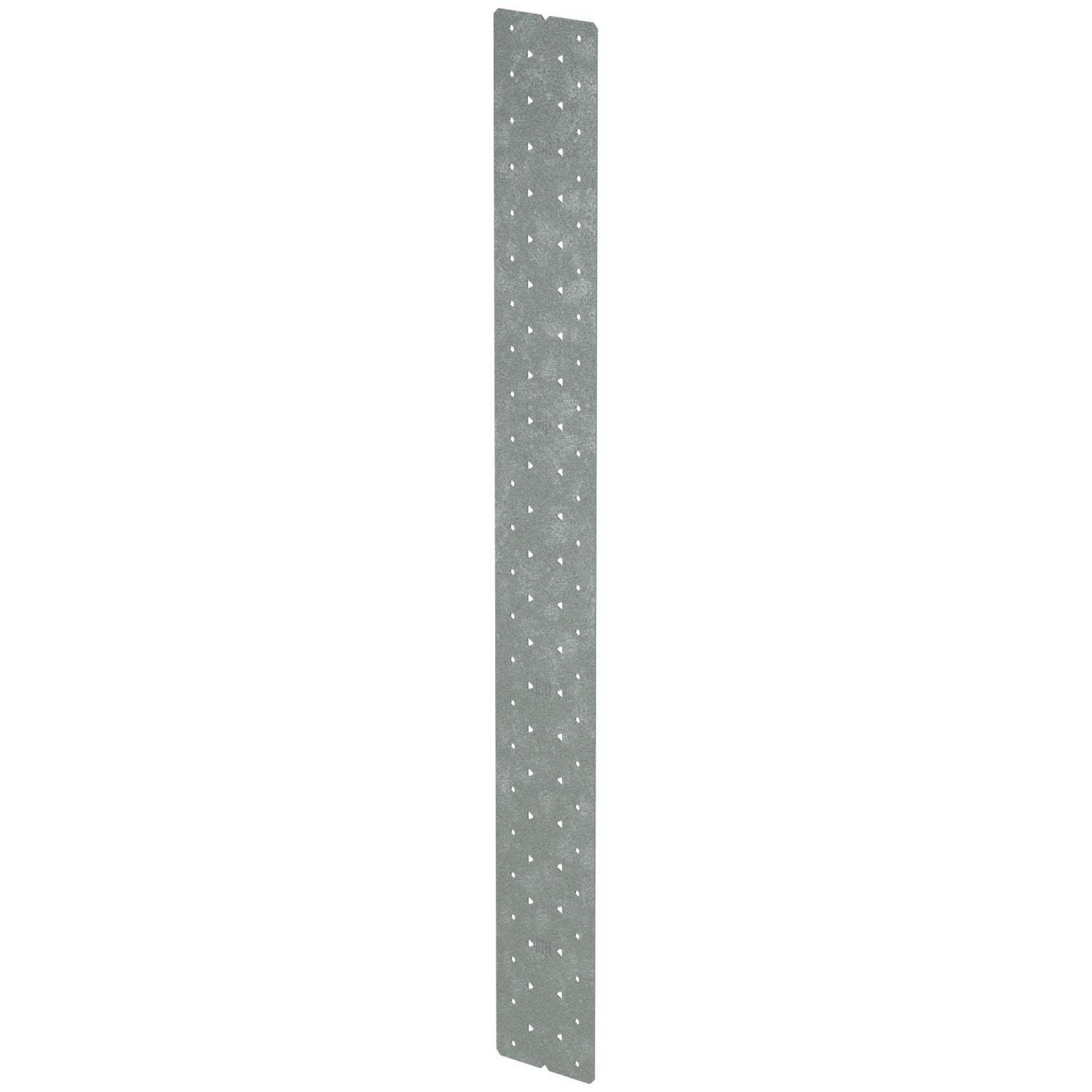

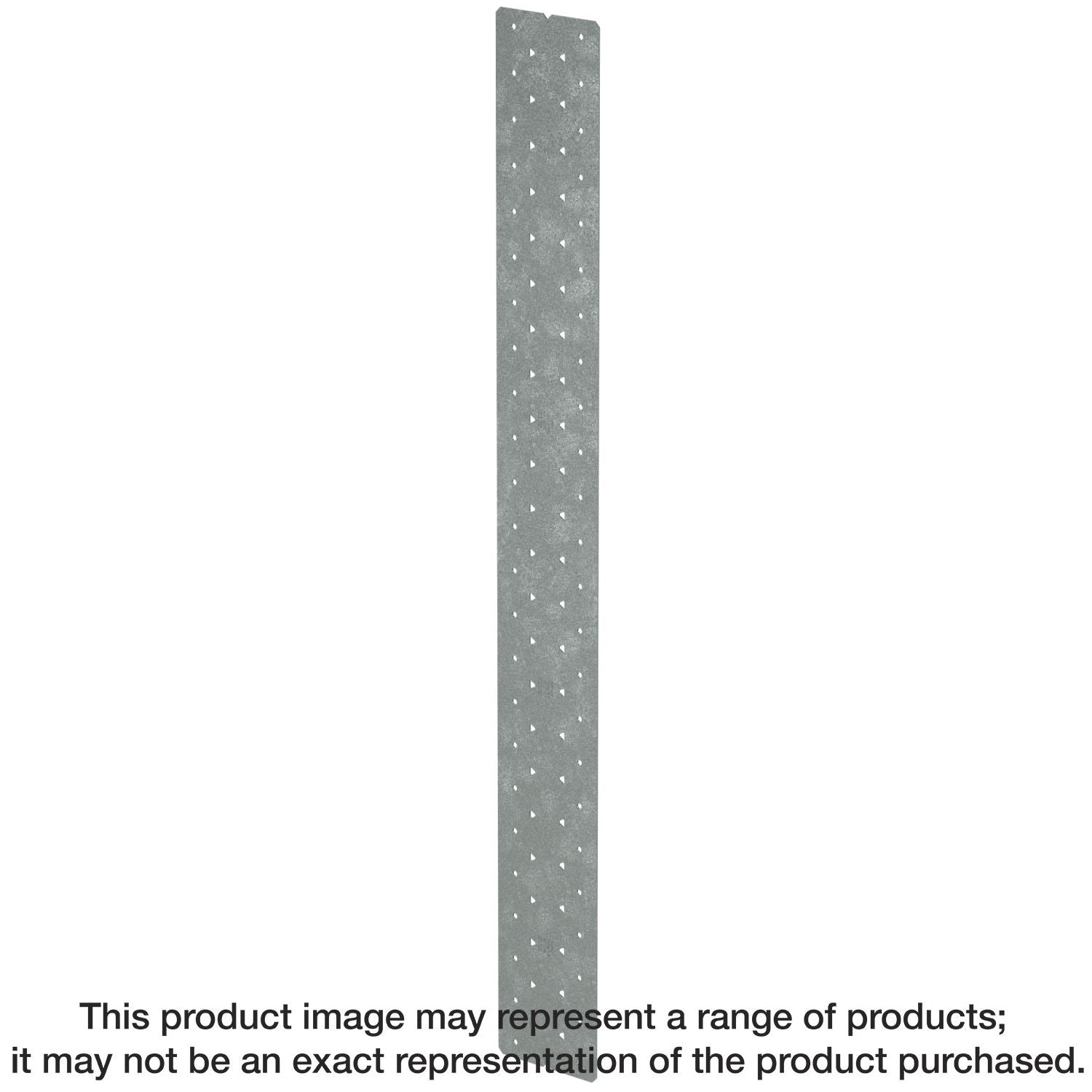

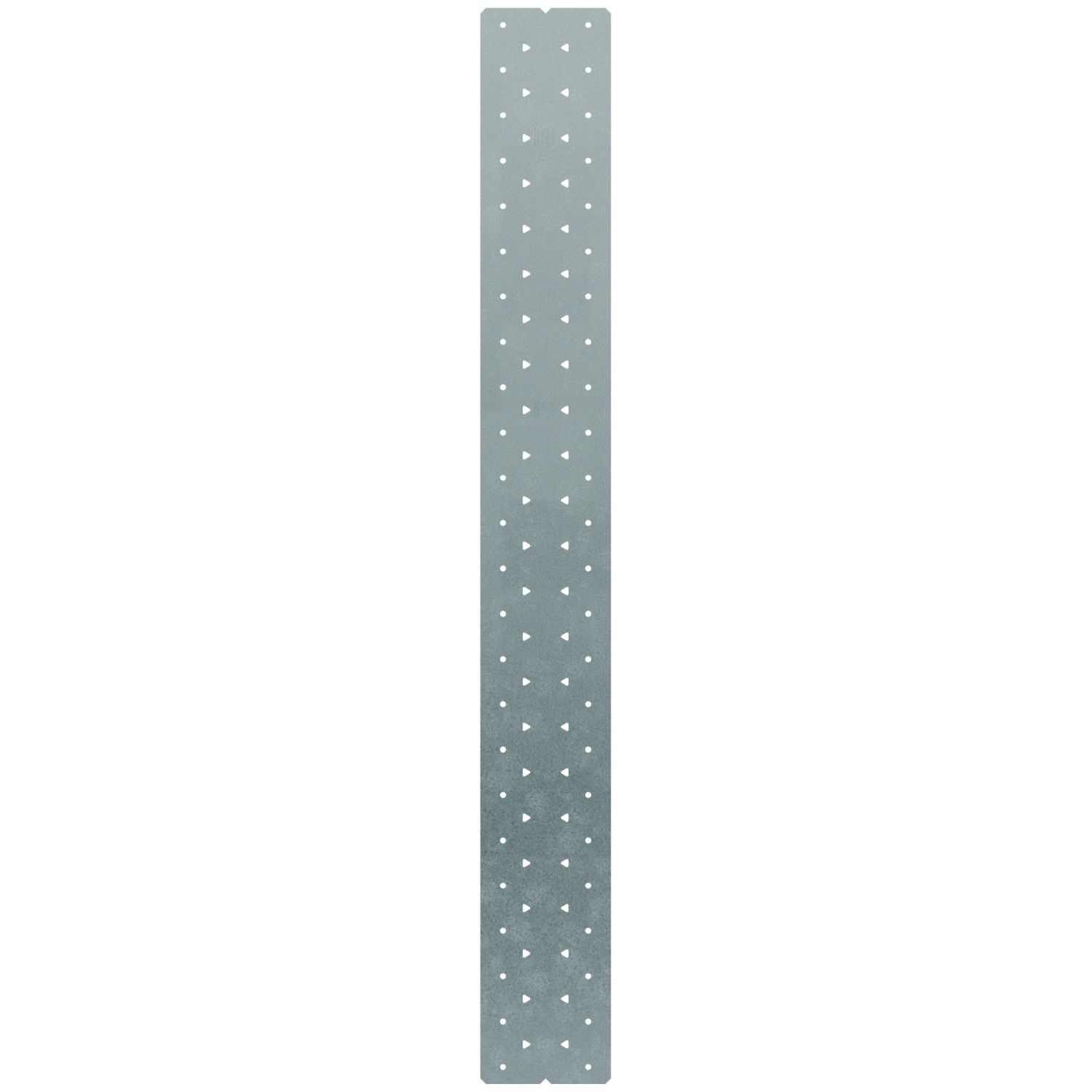

Simpson Strong-Tie MDCST48 MDCST 5-3/4-in. x 47-1/2-in. Galvanized Diaphragm Chord Strap Tie
Simpson Strong-Tie MDCST48 MDCST 5-3/4-in. x 47-1/2-in. Galvanized Diaphragm Chord Strap Tie
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Pre-punched screw holes speed fastener installation
- High capacity eliminates the need for expensive shop-fabricated steel plates
- Straps may be overlapped to reduce the physical space or footprint needed to transfer high loads across a panel joint
- Width: 5-3/4 in.
- Length: 47-1/2 in.
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
Simpson Strong-Tie tested and load-rated tension straps and fasteners are designed to minimize cost and maximize speed and precision — while providing the strength, versatility and reliability you depend on. The MDCST48 is a 14-gauge high-capacity strap specifically designed to carry tension across a CLT floor or wall panel joint. The MDCST48 installs with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws.
- Pre-punched screw holes speed fastener installation
- High capacity eliminates the need for expensive shop-fabricated steel plates
- Straps may be overlapped to reduce the physical space or footprint needed to transfer high loads across a panel joint
- Width: 5-3/4 in.
- Length: 47-1/2 in.
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with 1/4 in. x 3 in. Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws
