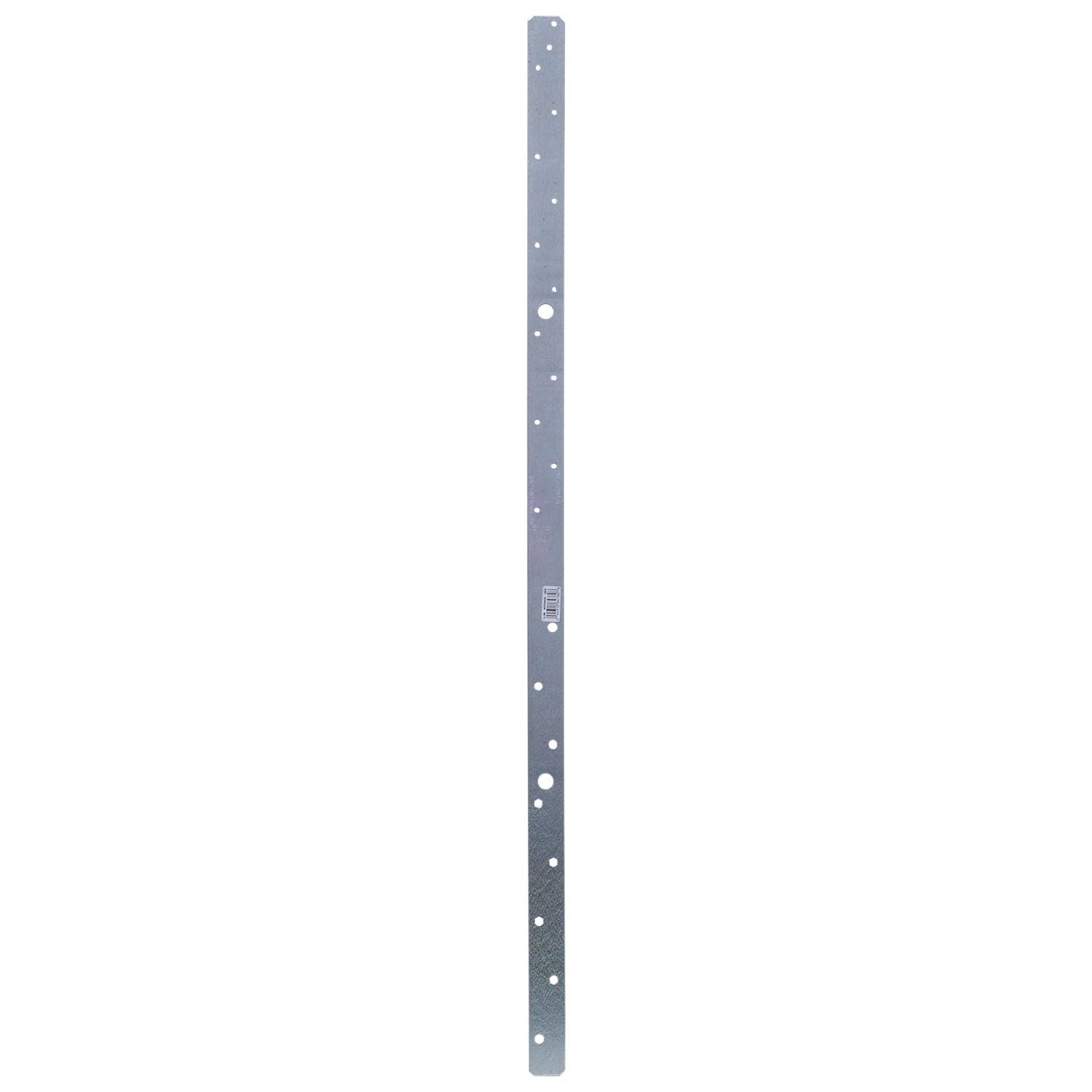

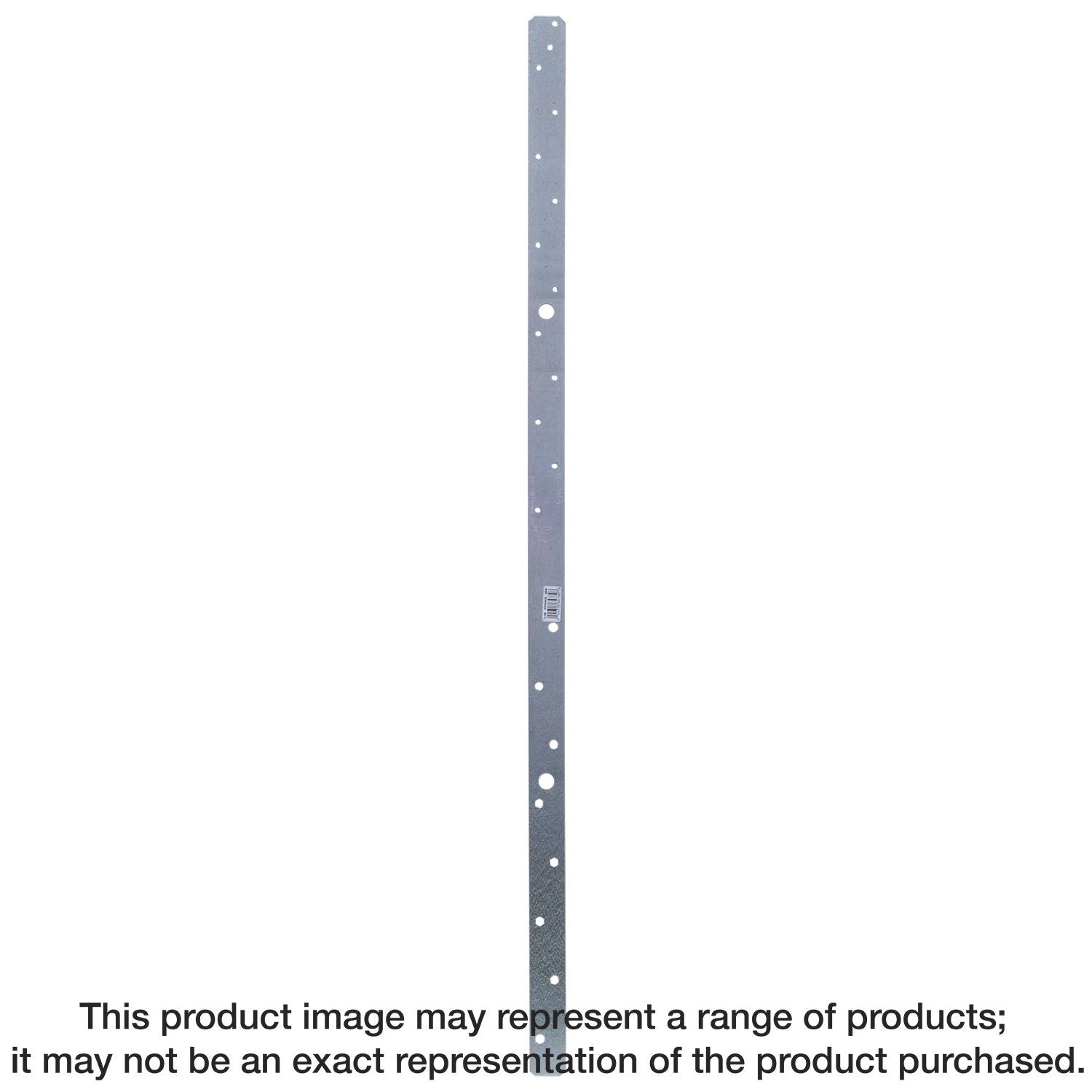

Simpson Strong-Tie MSTAM36 MSTAM 36-in. 16-Gauge Galvanized Medium Strap Tie for Masonry
Simpson Strong-Tie MSTAM36 MSTAM 36-in. 16-Gauge Galvanized Medium Strap Tie for Masonry
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Straps are load rated with the correct thickness and number of fasteners, in contrast with field-fabricated straps
- Loads have been increased for wind and seismic forces
- Floor-to-floor clear span application
- Strap length: 36 in.
- Width: 1-1/4 in.
- Made from 16-gauge steel
- Galvanized (G90) for corrosion resistance
The Simpson Strong-Tie MSTAM is designed to resist tension loads in wood-to-masonry uplift applications. This medium strap tie is for use with either concrete or grout-filled concrete masonry units (GFCMU). The MSTAM utilizes a staggered nail pattern to help minimize wood splitting.
- Straps are load rated with the correct thickness and number of fasteners, in contrast with field-fabricated straps
- Loads have been increased for wind and seismic forces
- Floor-to-floor clear span application
- Strap length: 36 in.
- Width: 1-1/4 in.
- Made from 16-gauge steel
- Galvanized (G90) for corrosion resistance
Install With: Install with (13) 0.148 in. x 3 in. common nails AND (8) 1-1/4 in. x 2-1/4 in. Titen Turbo™ screws for GFCMU OR (8) 1-1/4 in. x 1-3/4 in. Titen Turbo™ screws for concrete
