Simpson Strong-Tie MSTI 36-in. 12-Gauge Galvanized Medium Strap Tie (MSTI36)
Simpson Strong-Tie MSTI 36-in. 12-Gauge Galvanized Medium Strap Tie (MSTI36)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview

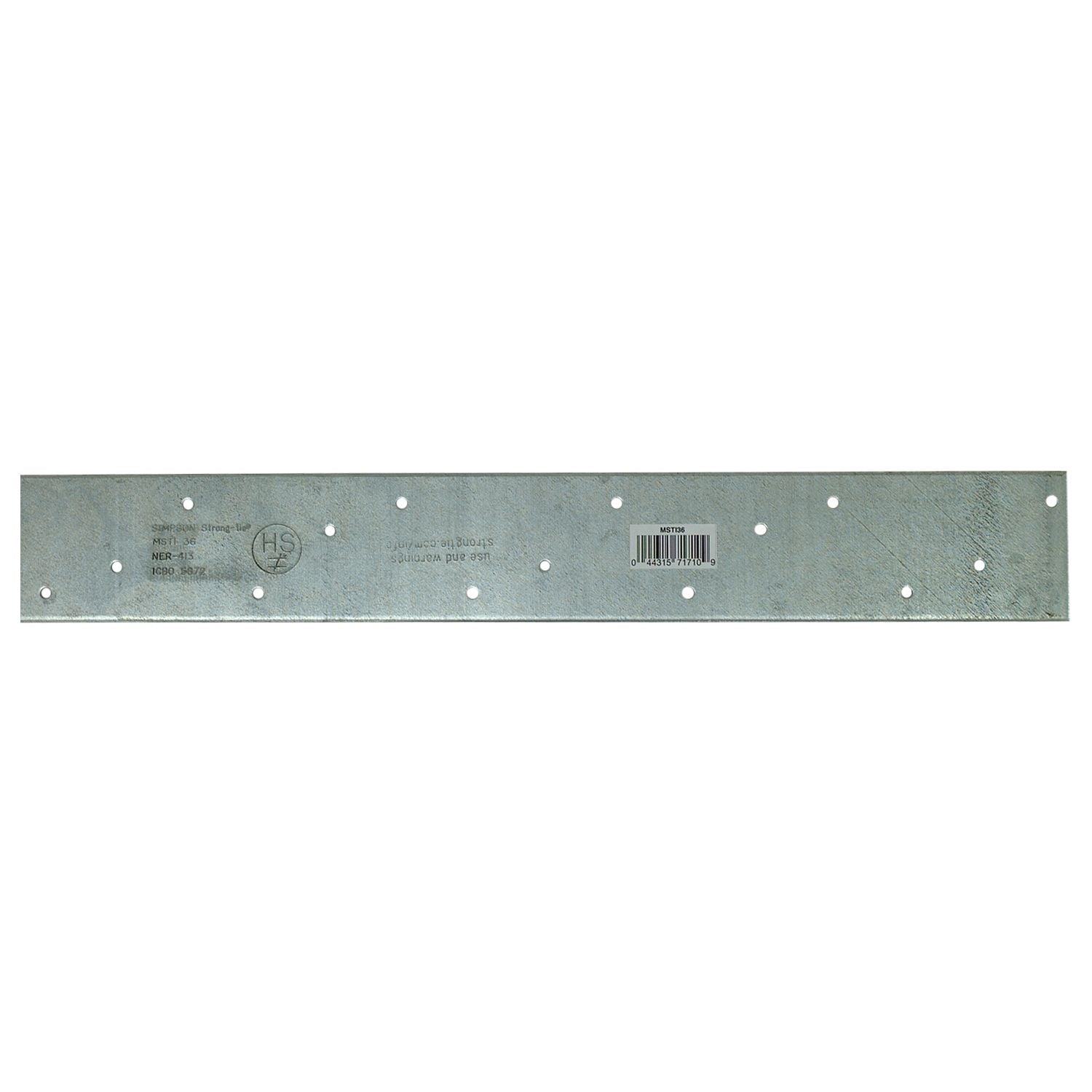

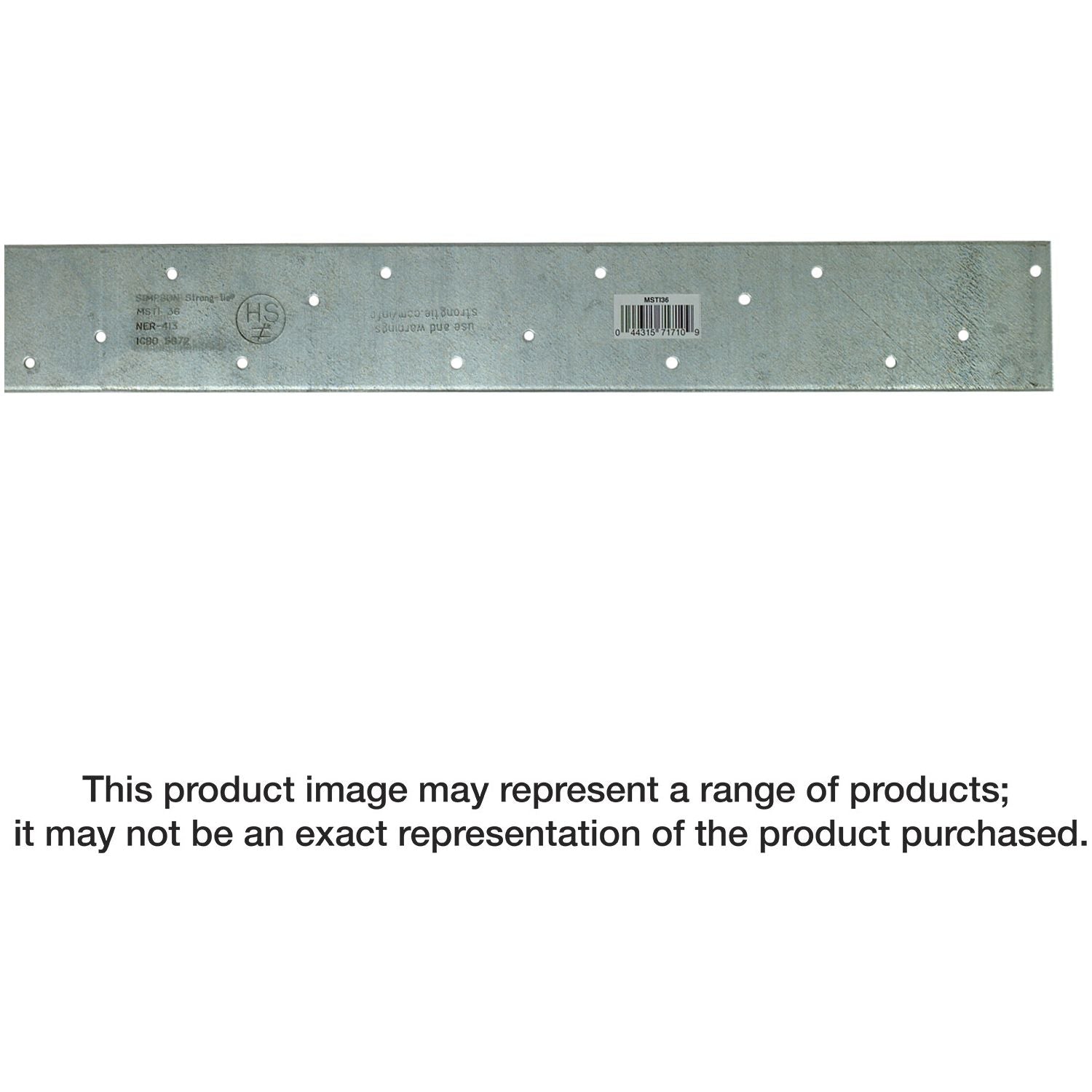

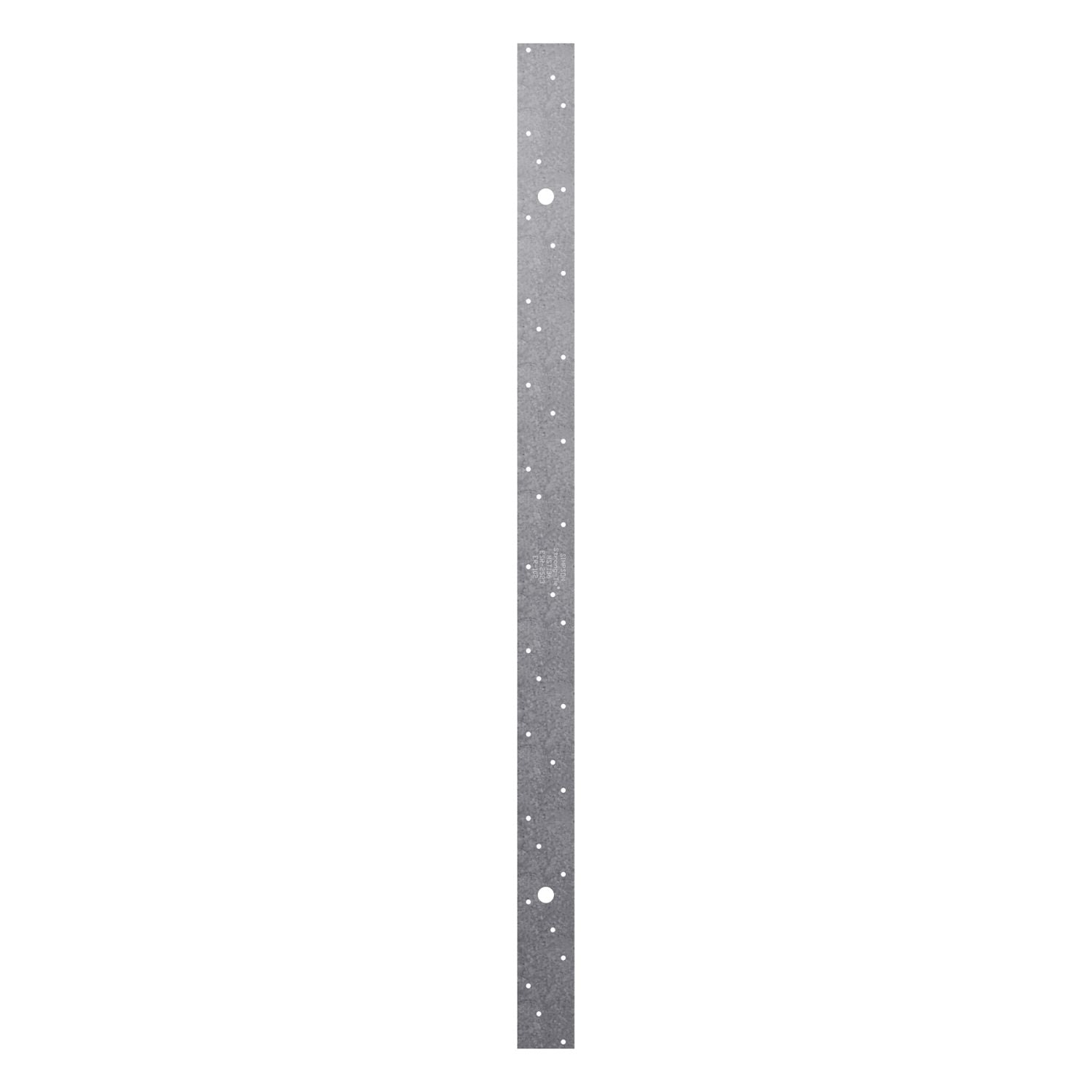

Simpson Strong-Tie MSTI 36 in. 12-Gauge Galvanized Medium Strap Tie is a precut steel strap for structural reinforcement in wood framing. This is a medium strap tie designed for tension-load connections and load transfer across framing members. Model Number: MSTI36. If you are tying together wood members in areas where uplift, lateral force, or general structural reinforcement matters, this is the kind of connector you reach for.
The big story here is capacity without getting into oversized hardware. Simpson Strong-Tie calls the MSTI a medium precut strap designed to resist tension loads, and the staggered fastener hole pattern is there for a reason. It helps optimize strength while reducing the chance of splitting the wood. Home center data also notes 3 inch nail spacing, which is a practical detail on the job because it gives you a more forgiving fastening pattern on framing members and composite wood products.
The 36 inch length gives you more tie-in area than short repair straps, which is useful when you need to bridge across members or reinforce longer sections in framing assemblies. The 2-1/16 inch width keeps it substantial enough for structural work without turning installation into a fight in tighter layouts. This size is especially relevant for wood I-joists and vertical applications on composite wood products where a longer strap helps spread the load.
Material matters on a connector like this, and MSTI36 is made from 12 gauge steel with a zinc galvanized G90 finish. That gives it corrosion resistance for typical framing applications while keeping the strap rigid enough for structural use. It is not just a thin punched strap meant for light duty bracing. It is intended for medium-duty wood framing connections where the connector is expected to carry real load.
Installation details are just as important as the strap itself. This connector is intended to be used with specified fasteners, not whatever happens to be in the pouch. It installs with 0.148 inch x 1-1/2 inch nails or #9 x 1-1/2 inch Strong-Drive SD connector screws, and Simpson also notes to use all specified fasteners. That is worth paying attention to because connector performance depends on the full fastener schedule, not just the steel part number.
In real framing work, this strap makes sense where you need added resistance against wind and seismic forces, or where diaphragm decking and wood chord open-web trusses call for a strap that can be installed efficiently. It is also a solid fit for contractors working with I-joist systems and engineered wood assemblies who need a reliable, code-oriented connector from a brand that is widely specified in residential and light commercial construction.
If you are a framer, remodeler, builder, or serious DIYer doing structural wood connections, this is a straightforward product to buy because the use case is clear. The Simpson Strong-Tie MSTI36 is for the customer who wants a real structural strap tie with known dimensions, known fastener requirements, and a hole pattern designed to do the job without unnecessary guesswork.
Long Reach for Structural Reinforcement
A longer strap gives you more fastening area and more flexibility when you need to tie framing members together across a wider span. On structural wood work, that extra length can make layout easier and improve how the load is distributed through the connection.
- 36 inch overall length for longer reinforcement runs
- 2-1/16 inch width balances coverage with manageable installation
Fastener Layout That Works With Wood
The hole pattern is not random. Simpson designed this strap with staggered fastener spacing to help reduce splitting and improve usable strength in the connection, which is exactly what you want when fastening into wood members and engineered lumber.
- Staggered hole pattern helps optimize strength
- 3 inch nail spacing is designed to minimize splitting
Fits Real Framing Applications
This strap is meant for real structural framing use, not decorative hardware duty. It is suitable for I-joist applications and other wood framing assemblies where you need a tension strap that can help resist wind and seismic forces.
- Suitable for diaphragm decking and wood chord open-web trusses
- Designed for I-joist and composite wood product applications where applicable
Key Specifications
| Length (in.) | 36 in. |
|---|---|
| Width (in.) | 2-1/16 in. |
| Thickness (mil) | 97 mil |
| Gauge | 12 ga. |
| Material | Steel |
| Finish | Zinc Galvanized, G90 |
| Product Weight (lbs) | 2.1 lbs |
| Package Quantity | 1 |
Built For
Pro Tip
Do not treat connector fasteners like a place to improvise. Use the specified 0.148 inch x 1-1/2 inch nails or #9 x 1-1/2 inch SD connector screws and fill the required holes, because that is what the published load values depend on.
Tool Nut's Take
Why the Simpson Strong-Tie MSTI 36 in. 12-Gauge Galvanized Medium Strap Tie earns its spot
This is the kind of structural strap you buy when you want a real framing connector with useful length, solid steel, and a fastener pattern that makes sense in wood.
- Who it's for: Framers, builders, remodelers, and serious DIYers doing structural wood reinforcement, especially with I-joists and engineered wood.
- Why it stands out: The 12 gauge build, 36 inch length, and staggered hole pattern give it a good mix of strength and installability.
- Worth knowing: Fasteners are not included, and like every structural connector, performance depends on using the specified hardware and full fastening schedule.
Common Questions
- What is this product used for? It is a medium precut strap tie used for structural reinforcement and tension-load connections in wood framing.
- What material and finish does it use? MSTI36 is made from 12 gauge steel and uses a zinc galvanized G90 finish for corrosion resistance.
- Can it be used with I-joists? Yes. Applications include I-joists, including wood I-joists and composite wood products where applicable.
- What fasteners does it require? It uses 0.148 inch x 1-1/2 inch nails or #9 x 1-1/2 inch Strong-Drive SD connector screws, and Simpson specifies using all required fasteners.
