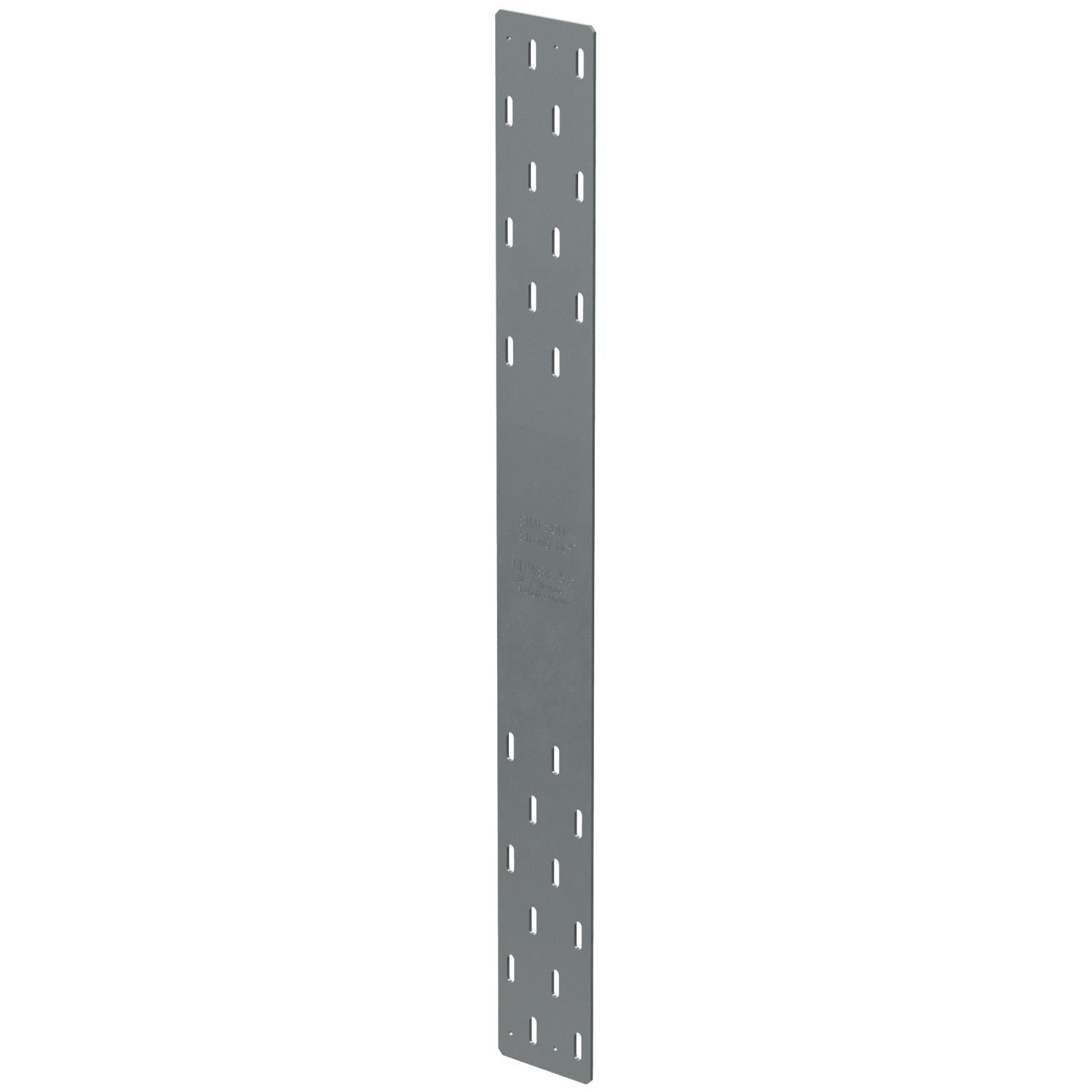

Simpson Strong-Tie MTWS48-5.5 MTWS 5-7/16-in. x 47-5/8-in. 7-Gauge Mass Timber Washer Strap
Simpson Strong-Tie MTWS48-5.5 MTWS 5-7/16-in. x 47-5/8-in. 7-Gauge Mass Timber Washer Strap
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- High capacity reduces the need for expensive shop-fabricated steel plates
- Use of inclined SDCF screws and MTW45-8 washers reduces the number of fasteners needed to achieve the load
- Strap can be used for either CLT panel-to-panel connection or CLT panel-to-steel connection
- Full straps may be used to connect CLT panels together
- Full straps may be cut into half straps; these half straps may be used to connect CLT panels to steel attachment points (designed by others)
- Width: 5-7/16 in.
- Length: 47-5/8 in.
- 7-gauge steel (ASTM A653 Grade 33)
- Galvanized (G90) for extra corrosion resistance
Simpson Strong-Tie tested and load-rated tension straps and fasteners are designed to minimize cost and maximize speed and precision — while providing the strength, versatility and reliability you depend on. The MTWS48 strap utilizes MTW45-8 washers and Strong-Drive SDCF Timber-CF (SDCF) fully-threaded countersunk-head screws. The combination provides a tension strap with high strength and stiffness that can be used in a variety of CLT diaphragm and wall applications. The MTWS48 is a 7-gauge high-capacity strap specifically designed to carry tension across a CLT floor or wall panel joint. The MTWS48 can also be used to attach CLT panels to steel attachment points when paired with a welded connection (designed by others).
- High capacity reduces the need for expensive shop-fabricated steel plates
- Use of inclined SDCF screws and MTW45-8 washers reduces the number of fasteners needed to achieve the load
- Strap can be used for either CLT panel-to-panel connection or CLT panel-to-steel connection
- Full straps may be used to connect CLT panels together
- Full straps may be cut into half straps; these half straps may be used to connect CLT panels to steel attachment points (designed by others)
- Width: 5-7/16 in.
- Length: 47-5/8 in.
- 7-gauge steel (ASTM A653 Grade 33)
- Galvanized (G90) for extra corrosion resistance
Install With: Install with (24) SDCF22512 screws and (24) MTW45-8 mass timber angled washers or (24) SDCF22858 screws and (24) MTW45-8 mass-timber angled washers
