Simpson Strong-Tie S/DTT ZMAX Galvanized Light Tension Tie (S/DTT2Z)
Simpson Strong-Tie S/DTT ZMAX Galvanized Light Tension Tie (S/DTT2Z)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview

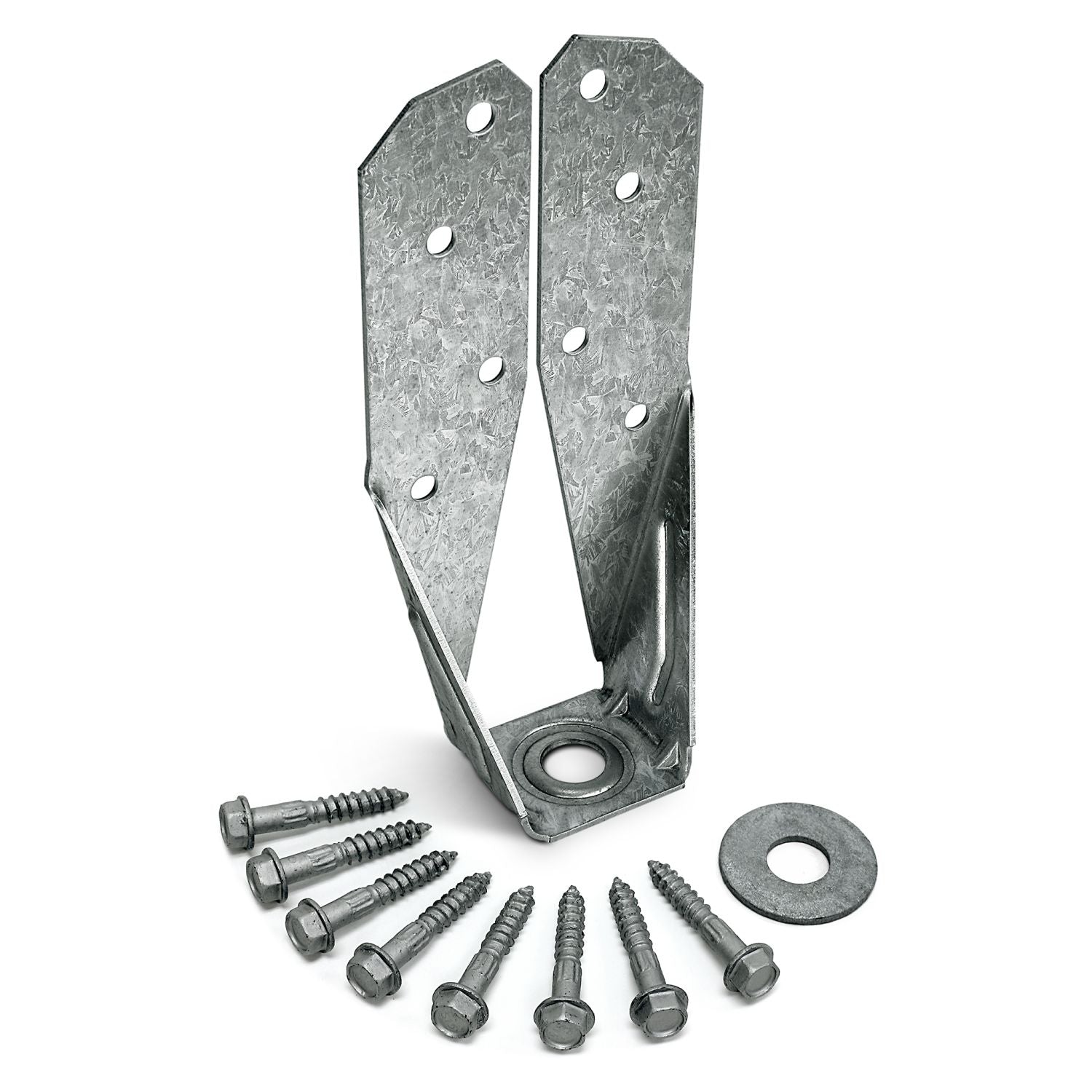

The Simpson Strong-Tie S/DTT2Z S/DTT ZMAX Galvanized Light Tension Tie is a cold-formed steel connector made for lighter-duty hold-down applications in steel framing. This is a light tension tie designed for lighter-duty hold-down applications on single or back-to-back studs. Model number S/DTT2Z. If you are tying a stud assembly back to the foundation in high-wind construction, this connector gives you a straightforward, compact way to make that connection.
What matters here is where this part fits in the build. The S/DTT series is intended for hold-down and tension tie work where you do not need a larger, heavier connector. That makes it a practical choice for steel stud framing details that still need a rated connection but do not have room for bulkier hardware. The short profile height is a real advantage at the base of the wall, especially when you are working around track, slab edges, and anchor placement.
Simpson builds the S/DTT2Z from 68 mil, 14 gauge steel and finishes it with ZMAX coating. In plain terms, that means you are getting a formed steel tie with the stiffness needed for the connection and a corrosion-resistant finish suited for demanding jobsite conditions where standard painted hardware would not be the right call. The formed seat at the base and reinforced side geometry are there for a reason: they help the connector sit correctly over the anchor location and carry load back into the assembly.
This tie is also flexible on installation planning. It can be used with cast-in-place anchor bolts or post-installed anchor bolts, which matters if you are coordinating new slab work, retrofitting an existing foundation, or dealing with changes after concrete is already in place. Simpson also calls out SABR anchor bolt options and SET-3G and AT-3G adhesive products for retrofit anchor bolt applications, so there is a clear path when the anchorage detail needs to be engineered around existing conditions.
For installation, Simpson is specific: use all specified fasteners, attach the strap portion to the steel stud with the required number and type of screws, and bolt the base to the wall or foundation with a suitable anchor using the required bolt diameter. On the S/DTT2Z in particular, a standard cut washer is required between the nut and the seat, and that washer is included. That is not a throwaway detail. It is part of the intended installation and should not be skipped or substituted casually.
Dimensionally, the connector is compact at 1-5/8 inches wide and 6-15/16 inches high, with a 13/16 inch center line from the face of stud to the center of anchor. Those numbers matter when you are laying out steel framing and anchor locations because small connectors only work well when the geometry is predictable. This one is sized to fit the application without wasting space.
The best fit for this product is cold-formed steel framing crews, engineers, and contractors handling high-wind wall assemblies, hold-down details, and lighter-duty tension connections. If you need a steel framing hold-down connector that is compact, corrosion-protected, and usable with either cast-in-place or post-installed anchorage, this is the kind of part that makes sense. If your loads or wall design call for a heavier holdown, step up accordingly, but for the application this part is meant for, it is a clean and practical piece of hardware.
Fits Tight Base Connections

The short profile is the big selling point when you are working at the bottom of a steel stud wall. It gives you the hold-down connection you need without taking up more room than the detail can spare.
- Designed for single or back-to-back stud applications
- Helps simplify hold-down placement near the slab and bottom track
Built for Steel Framing Details

This connector is made from 68 mil, 14 gauge steel and finished with ZMAX coating, so it is built for real framing conditions, not light decorative use. The formed base and side reinforcement are there to support the anchor connection and keep the part doing its job under load.
- 68 mil material thickness
- ZMAX coating adds corrosion resistance compared to plain unfinished steel
Gives You More Anchor Options

Being able to use cast-in-place or post-installed anchor bolts makes this part easier to work into both planned builds and retrofit situations. That flexibility can save time when field conditions change after the concrete work is already done.
- Works with cast-in-place anchor bolt layouts
- Supports post-installed anchor bolt solutions when specified
What's in the Box
- (1) Simpson Strong-Tie S/DTT2Z light tension tie
- (1) Standard cut washer
Key Specifications
| Material Thickness | 68 mil |
|---|---|
| Gauge | 14 ga. |
| Width (W) | 1-5/8 in. |
| Height (H) | 6-15/16 in. |
| Center Line (CL) | 13/16 in. |
| Finish | ZMAX coating |
| Application | High-Wind Construction |
| Packaging Quantity | 1 |
Compatibility
Built For
Pro Tip
On the S/DTT2Z, install the included standard cut washer between the nut and the seat exactly as specified. That small detail is part of the connection design, and skipping it is an easy way to create a bad install.
Tool Nut's Take
Why the Simpson Strong-Tie S/DTT2Z S/DTT ZMAX Galvanized Light Tension Tie Makes Sense
This is a smart pick when you need a compact steel framing hold-down connector that does the job without eating up space at the base of the wall.
- Who it's for: Steel framing contractors, engineers, and builders handling lighter-duty hold-down details in high-wind construction.
- Why it stands out: The short profile, ZMAX finish, and ability to work with cast-in-place or post-installed anchor bolts make it easy to spec and practical to install.
- Worth knowing: This is a lighter-duty tension tie, not a one-size-fits-all heavy holdown, and the included washer needs to be installed as required.
Common Questions
- What is this connector used for? It is used for lighter-duty hold-down and tension tie applications on single or back-to-back cold-formed steel studs.
- Can it be used with different anchor bolt methods? Yes. Simpson states it can be installed with cast-in-place or post-installed anchor bolts.
- What finish does the S/DTT2Z use? It uses a ZMAX coating for corrosion resistance.
- What does the CL dimension mean? CL is the center line from the face of stud to the center of anchor.
