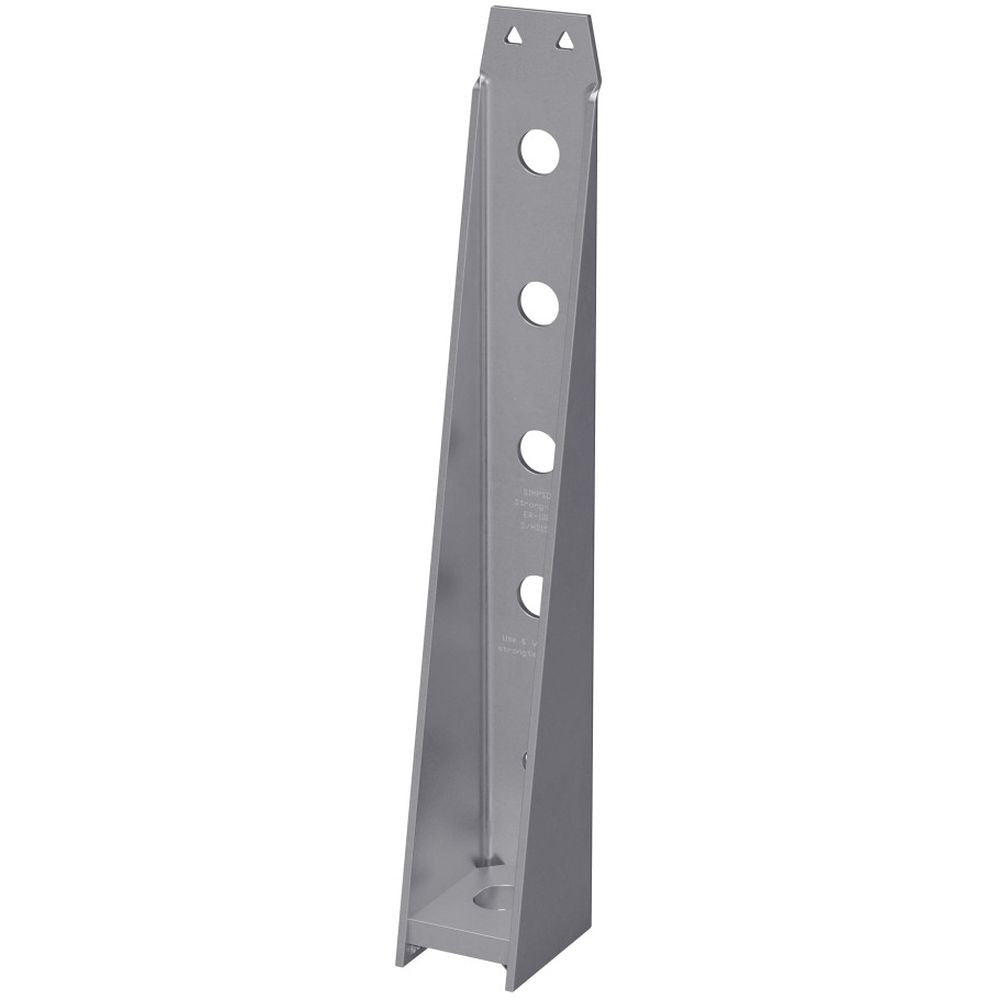

Simpson Strong-Tie S/HD15B S/HDB 17-in. Light Steel Bolted Holdown
Simpson Strong-Tie S/HD15B S/HDB 17-in. Light Steel Bolted Holdown
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Can be installed directly on the bottom track or raised above it and is suitable for back-to-back applications where eccentricity is a concern
- Features a unique seat design that greatly minimizes deflection under load
- The S/HDB series is designed for installation with bolts; refer to the S/HDS series for attachment to post/column with screws
- Holdown dimensions: 17 in. high x 2-5/16 in. wide
- Made from 171 mil (7 ga.) steel
- Simpson Strong‑Tie gray paint finish
The Simpson Strong-Tie S/HDB is designed to provide loads for high-load shearwalls, braced-wall panels and lateral applications and is ideal for bolt-on applications where the cold-formed steel stud manufacturer can prepunch the bolt holes. The holdown features a unique seat that greatly minimizes deflection under load. Designed for installation with bolts into the studs or column.
- Can be installed directly on the bottom track or raised above it and is suitable for back-to-back applications where eccentricity is a concern
- Features a unique seat design that greatly minimizes deflection under load
- The S/HDB series is designed for installation with bolts; refer to the S/HDS series for attachment to post/column with screws
- Holdown dimensions: 17 in. high x 2-5/16 in. wide
- Made from 171 mil (7 ga.) steel
- Simpson Strong‑Tie gray paint finish
Install With: Install with (4) 3/4 in. diameter bolts to stud and (1) 1 in. diameter anchor bolt to structure
