Simpson Strong-Tie S/HDU 16-5/8-in. Holdown for Cold-Formed Steel (S/HDU11)
Simpson Strong-Tie S/HDU 16-5/8-in. Holdown for Cold-Formed Steel (S/HDU11)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview

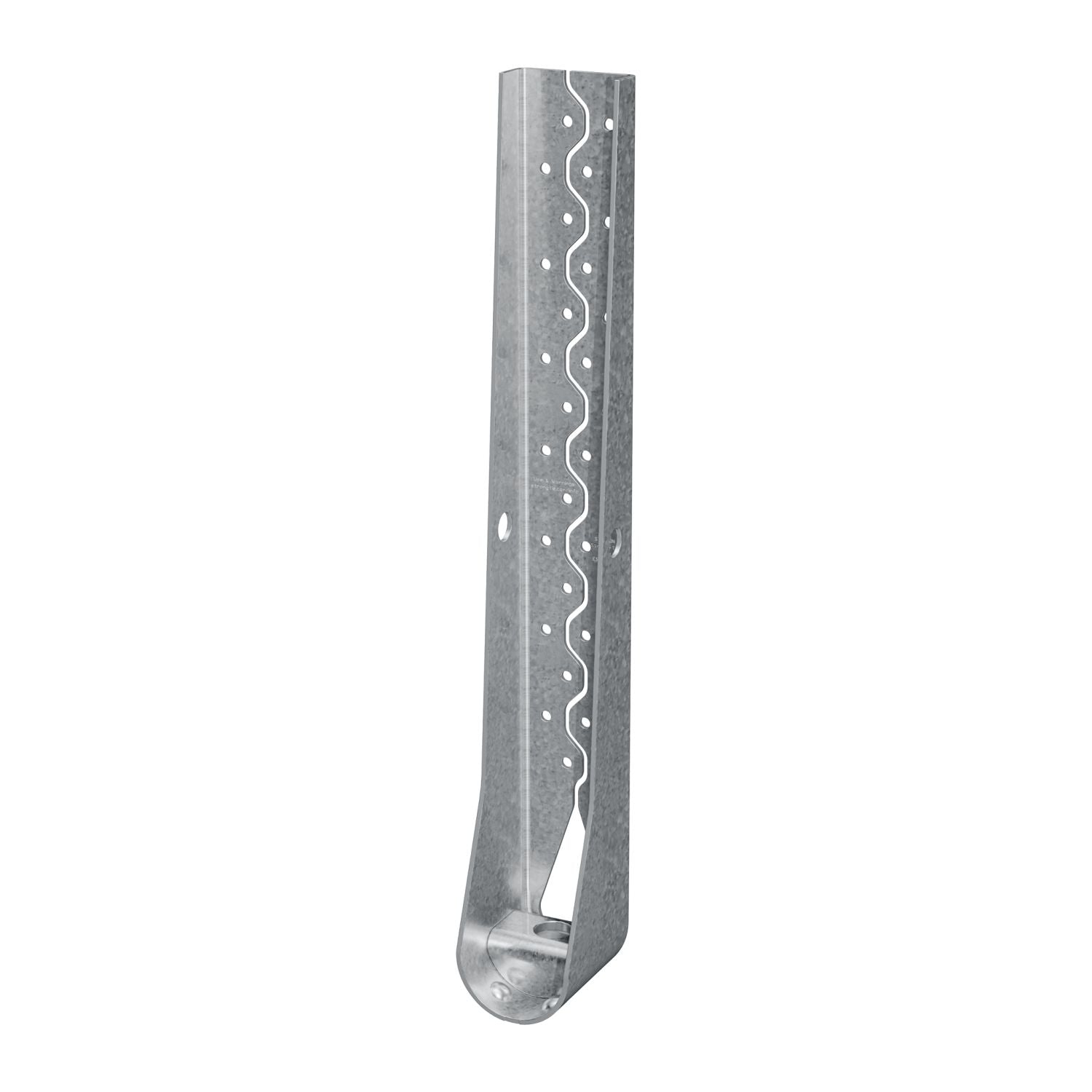

The Simpson Strong-Tie S/HDU11 S/HDU 16-5/8 in. Holdown for Cold-Formed Steel is a steel holdown connector for anchoring cold-formed steel framing to the foundation. This is a holdown designed for resisting uplift and tension forces in cold-formed steel wall assemblies. Model Number: S/HDU11. If you are building shear walls or detailing a high-wind steel framing connection, this is the part that helps transfer load where it needs to go without adding unnecessary deflection.
What sets the S/HDU11 apart is the pre-deflected geometry. That design virtually eliminates material stretch, which matters because less stretch means lower deflection under load. In real terms, that helps the wall system stay tighter and more predictable when tension forces show up. For engineers, framers, and contractors working in cold-formed steel construction, that is not a minor detail. It directly affects how the connection behaves in service.
This holdown is made from 118 mil, 10 gauge steel and finished with G90 zinc galvanizing. The body measures 2-3/8 inches wide and 16-5/8 inches high, giving the S/HDU11 the length needed for its larger fastener pattern and higher-capacity role within the S/HDU series. The centerline dimension is 1-3/8 inches and the standoff is 1-1/2 inches, both of which matter when you are coordinating anchor placement and stud layout in a cold-formed steel wall.
Installation is geared toward cold-formed steel framing work. Simpson specifies that the connector is specially designed to fit inside the open side of the stud, which helps keep the connection integrated within the wall framing rather than hanging outside it. The connector uses standard #14 self-drilling screws to fasten to studs, and Simpson also notes that the anchor bolt washer is not required. A crescent washer is included with the holdown.
On the anchorage side, Simpson points designers and installers to SABR and PAB anchor bolts for cast-in-place anchorage options, and SET-3G and AT-3G adhesive products for retrofit anchor bolt applications. That gives the S/HDU11 useful flexibility depending on whether the job is new construction or an anchor retrofit situation. One important note for this specific model: Simpson states that a heavy hex nut for the anchor bolt is required to achieve the table loads for S/HDU11.
The S/HDU11 is clearly aimed at structural cold-formed steel work, especially high-wind construction. It makes the most sense for engineers, framing contractors, and commercial or multifamily crews working on load path connections where uplift resistance, predictable deflection, and clean integration into the stud assembly all matter. If you need a cold-formed steel holdown that is purpose-built for inside-the-stud installation and backed by Simpson Strong-Tie system guidance, this is the right kind of connector to be looking at.
Designed for Clean CFS Integration
The S/HDU11 is made to sit inside the open side of a cold-formed steel stud, which helps keep the connection tucked into the wall framing and easier to coordinate with the rest of the assembly.
- Specially designed to fit inside the open side of the stud
- Uses standard #14 self-drilling screws to fasten to studs
Built to Limit Stretch Under Load
The pre-deflected shape is there for a reason. It helps virtually eliminate material stretch, which reduces deflection and gives the connection a tighter, more controlled response when uplift loads are applied.
- Pre-deflected geometry for low deflection performance
- Useful where connection movement needs to be kept in check
Ready for New Builds or Retrofit Anchors
This connector is not boxed into one anchoring method. Simpson lists cast-in-place anchor bolt options and adhesive retrofit options, which gives designers and installers more ways to match the connection to the job conditions.
- Cast-in-place options include SABR and PAB anchor bolts
- Retrofit options include SET-3G and AT-3G adhesive products
Key Specifications
| Material Thickness | 118 mil |
|---|---|
| Gauge | 10 ga. |
| Width (in.) | 2-3/8 in. |
| Height (in.) | 16-5/8 in. |
| Center Line (in.) | 1-3/8 in. |
| Standoff (in.) | 1-1/2 in. |
| Finish | Zinc Galvanized, G90 |
| Packaging Quantity | 1 |
Compatibility
Built For
Pro Tip
If you are designing or installing to the published S/HDU11 table loads, do not overlook Simpson's note that a heavy hex nut is required on the anchor bolt for this model. That is the kind of small detail that can turn into a big correction later.
Tool Nut's Take
Simpson Strong-Tie S/HDU11 S/HDU Holdown Means Business
If you are working in cold-formed steel and need a real uplift connection instead of a compromise part, this is the kind of holdown you spec with confidence.
- Who it's for: Engineers, steel framing contractors, and crews building cold-formed steel wall systems in high-wind conditions.
- Why it stands out: The inside-the-stud fit and pre-deflected geometry are the big wins here. You get a purpose-built connection with lower deflection and cleaner integration into the framing.
- Worth knowing: The Simpson Strong-Tie S/HDU11 is sold individually, and the anchor hardware details matter. Use the specified fasteners and note the heavy hex nut requirement if you are chasing the published loads.
Common Questions
- What type of framing is this holdown designed for? It is designed for cold-formed steel construction and is specially made to fit inside the open side of the stud.
- What fasteners are used to attach it to the stud? Simpson specifies standard #14 self-drilling screws to fasten the holdown to studs.
- Is a separate anchor bolt washer required? No. Simpson states that an anchor bolt washer is not required.
- Can this connector be used with retrofit anchoring products? Yes. Simpson lists SET-3G and AT-3G adhesive products for anchor bolt retrofit options.
