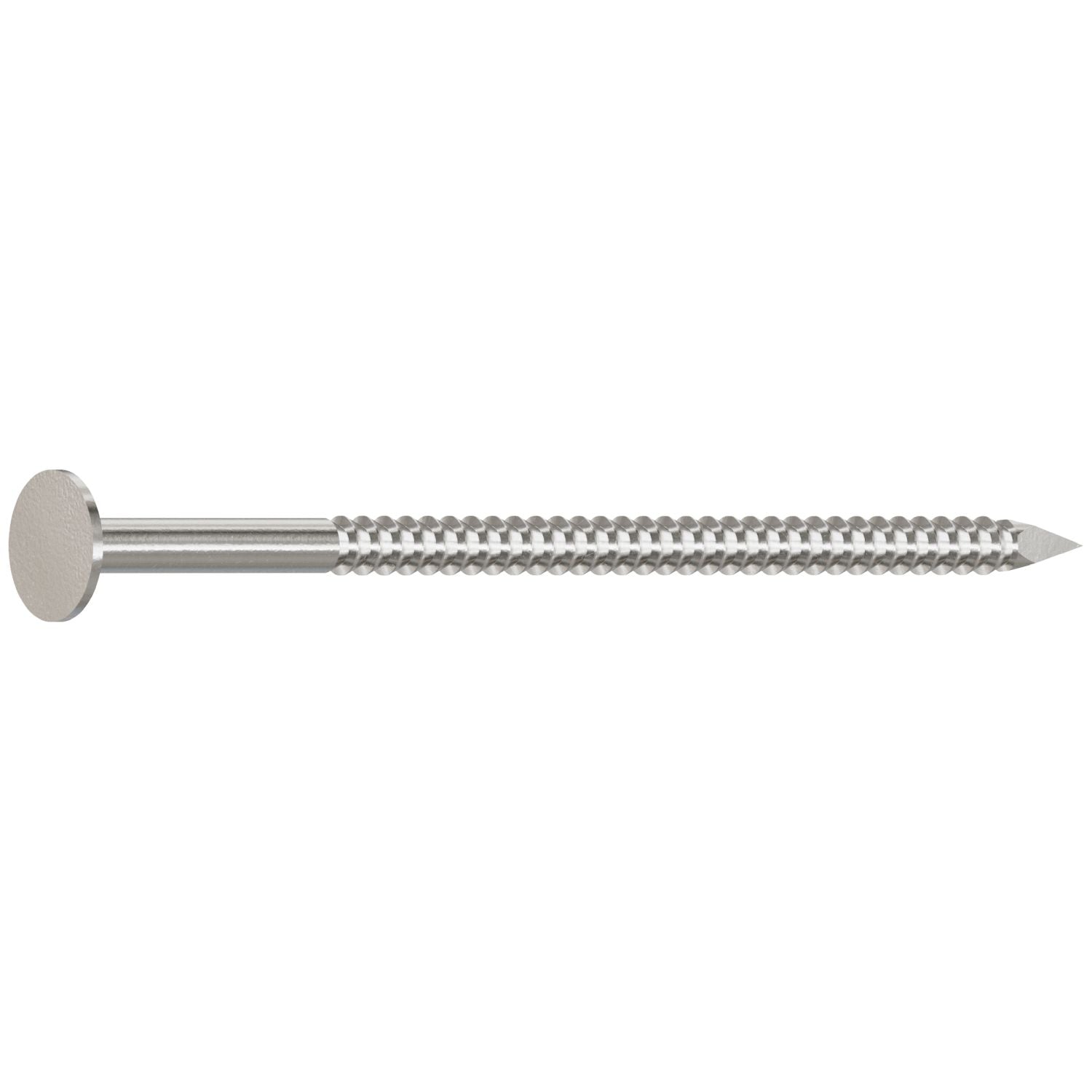

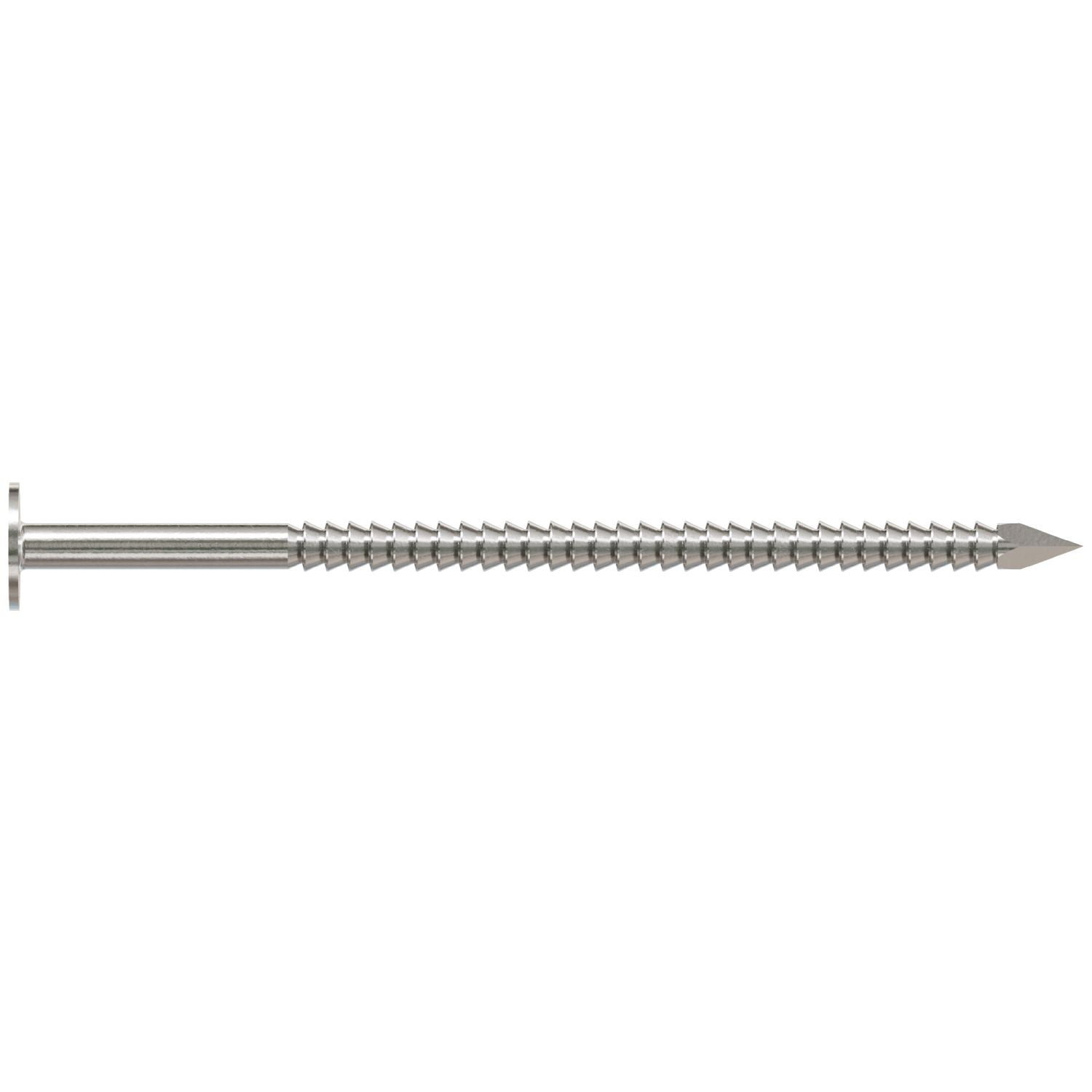

Simpson Strong-Tie Roofing Nail, Annular Ring Shank, 3-in. x .131-in. Type 304 Stainless Steel, 1-lb. (S1010ARN1)
Simpson Strong-Tie Roofing Nail, Annular Ring Shank, 3-in. x .131-in. Type 304 Stainless Steel, 1-lb. (S1010ARN1)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Simpson Strong-Tie S1010ARN1 Roofing Nail is a 3 in. hand-drive roofing fastener made from Type 304 stainless steel for exterior roofing work. This is a roofing nail designed for fastening roofing material to wood members and plywood roof decks. Model Number: S1010ARN1. If you need a nail that holds tighter than a plain smooth shank and stands up better outdoors, this is the point of this one.
What matters most here is the annular ring shank. Instead of relying on a smooth body, the shank has rings that lock into the wood fibers and increase withdrawal resistance. On a roof, that matters because fasteners deal with movement, weather, and uplift over time. The 0.131 in. shank diameter and 10 gauge build give this roofing nail the size and holding power expected for secure attachment in wood-based roof assemblies.
The head design is just as important as the shank. Simpson Strong-Tie uses a full round head with a smooth pattern and a 3/8 in. diameter, which gives the fastener more bearing surface against shingles and other roofing materials. In plain terms, that wider head helps spread the load and helps reduce pull-through. The diamond point also helps the nail start cleanly when hand-driving into wood roof members or plywood decking.
Material choice is a big reason to buy this version. S1010ARN1 is Type 304 stainless steel, so it is built for exterior use where corrosion resistance matters more than saving a few bucks on fasteners. That makes it a better fit for roofing work than basic bright or lightly coated nails when the job calls for a stainless option.
This specific Simpson Strong-Tie S1010ARN1 Roofing Nail is the 3 in. long, 10d version packaged in a 1 lb. box, with an approximate count of 78 nails per pound. Simpson Strong-Tie also notes that 2-1/2 in. and 3 in. lengths are ideal for installing thicker tiles and slates, depending on the tile manufacturer's recommendations. If your application needs extra length for layered roofing material, this size is one of the versions intended for that kind of work.
Who should buy it? Roofers, remodelers, builders, and serious DIY users doing repair or replacement work where stainless roofing fasteners are called for. If you are fastening to wood members or plywood roof decks and want stronger holding power than a smooth-shank roofing nail, this is the practical choice. It is a hand-drive nail, so it is for users who want direct control over placement rather than coil nailer speed.
Built to Hold in Roofing Applications
This fastener is made for real roofing work, not general-purpose nailing. The ring shank gives the nail more bite in wood, which is exactly what you want when securing roofing material that needs to stay put.
- Application: roofing
- Designed for fastening to wood members and plywood roof decks
More Grip Than a Smooth Shank
The shank is the whole story on this nail. Those rings are there to increase withdrawal resistance, giving you a more secure attachment in wood than a plain smooth-shank roofing nail.
- Shank type: annular-ring shank
- Shank diameter: 0.131 in.
Head and Point That Make Sense on the Roof
The larger head helps the fastener bear down on roofing material without concentrating all the pressure in a tiny spot, and the diamond point helps it start cleaner in wood decking. That is the kind of basic geometry that saves aggravation when you are hand-driving a lot of nails.
- Head diameter: 3/8 in.
- Point type: diamond point
Key Specifications
| Fastener Type | Hand-Drive Nail |
|---|---|
| Application | Roofing |
| Material | Type 304 Stainless Steel |
| Gauge | 10 |
| Length | 3 in. |
| Head Diameter | 3/8 in. |
| Shank Diameter | 0.131 in. |
| Shank Type | Annular-Ring Shank |
| Head Type | Full Round Head |
| Head Pattern | Smooth Head |
| Point Type | Diamond Point |
| Approx. Count per lb. | 78 |
| Packaging Quantity | 1 lb. |
| Compliance | Complies with ASTM F1667 specifications for roof-sheathing ring-shank nails |
Built For
Pro Tip
If you are using this nail for slate roofing, Simpson Strong-Tie recommends figuring nail length by doubling the slate thickness and adding 1 inch. That is the quick way to avoid coming up short on penetration when the roof material gets thicker.
Tool Nut's Take
Simpson Strong-Tie S1010ARN1 Roofing Nail Means Business
If you need a stainless hand-drive roofing nail with stronger hold in wood, this is the kind of fastener worth buying once instead of rethinking later.
- Who it's for: Roofers, builders, and repair crews fastening shingles, slate, tile, or underlayment to wood roof members and plywood roof decks.
- Why it stands out: The annular ring shank gives you the extra holding power, and the Type 304 stainless steel construction makes sense for exterior roofing work.
- Worth knowing: This is a hand-drive nail in a 1 lb. package, so it is about placement and holding strength, not production-speed nail gun work.
Common Questions
- What is the Simpson Strong-Tie S1010ARN1 Roofing Nail made from? It is made from Type 304 stainless steel.
- What type of shank does this roofing nail use? It uses an annular-ring shank, which increases withdrawal resistance for a more secure attachment in wood.
- What materials is this nail intended to fasten into? It is designed for attachment to wood members and plywood roof decks.
- Is this a hand-drive nail or a collated nail? It is a hand-drive nail.
- Does it meet any recognized fastener standard? Yes. It complies with ASTM F1667 specifications for roof-sheathing ring-shank nails.
