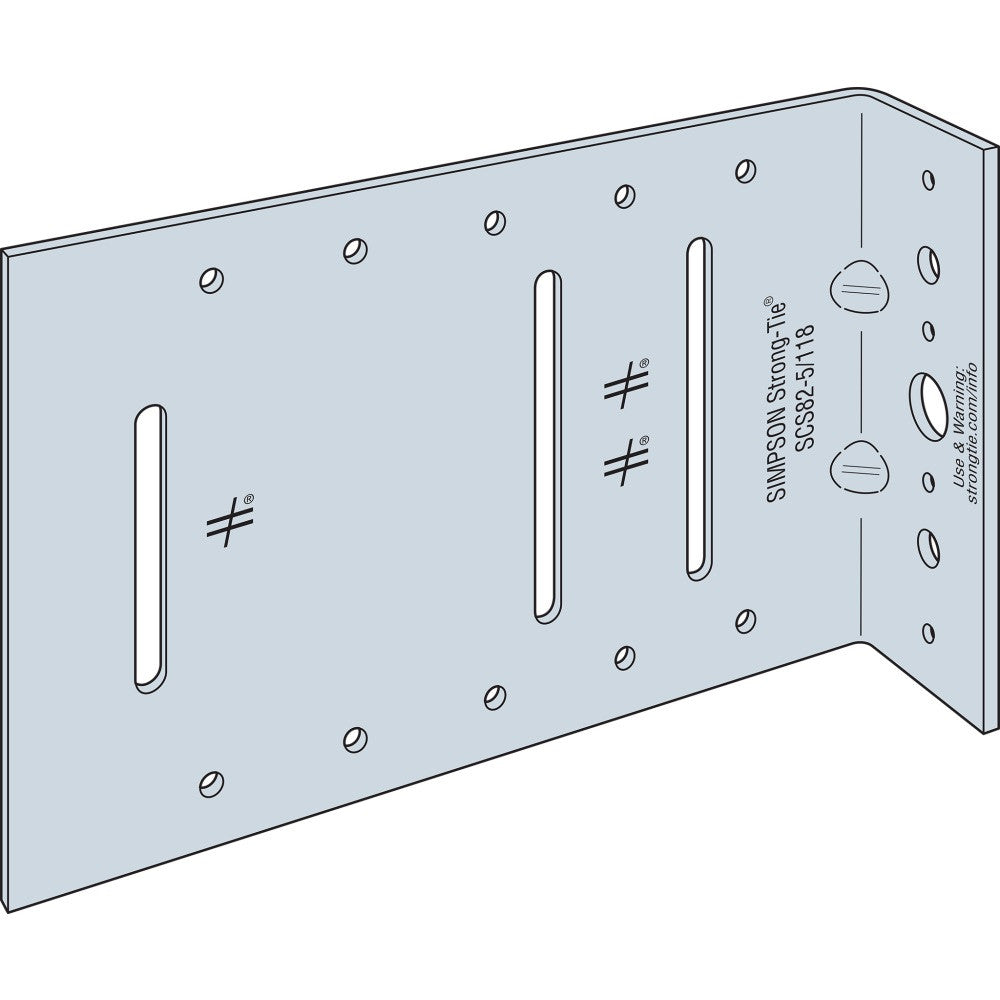

Simpson Strong-Tie SCS82-5/118-KT25 SCS 2-in. x 8-in. x 5-in. 10-Gauge Seismic Bypass Framing Slide Clip w/ Screws, 25-Pack
Simpson Strong-Tie SCS82-5/118-KT25 SCS 2-in. x 8-in. x 5-in. 10-Gauge Seismic Bypass Framing Slide Clip w/ Screws, 25-Pack
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Slide slots used with shouldered washer screws (included) allow a full 1 in. of vertical deflection
- Precision-located ribs enhance strength while allowing ductility
- Simpson Strong-Tie No-Equal stamps alongside slide slots indicate proper screw placement
- Dual-function clip with prepunched slots for slide application and small round holes for fixed application
- Width: 8 in.
- Made from 10-gauge (118 mil) steel
- Galvanized (G90) for corrosion resistance
- Quantity: 25
The Simpson Strong-Tie SCS is a hybrid clip designed specifically to allow both slide-clip or fixed-clip applications in areas of high seismic activity. Everything about the SCS clip — from its heavy-duty steel manufacturing to its strategically placed darts to the location of its fastener slots and holes — has been engineered to provide exceptional resistance to in-plane seismic loads. Backed by our real-world, full-scale cyclic testing, the SCS seismic clip delivers the highest seismic loads in the industry. Slide-clip testing shows that attachment at the first slot is most critical to in-plane capacity, the SCS is designed to accommodate two large washer screws (included) at the first slot attached to the stud. The hole types and locations maximize the SCS clip’s versatility, with three prepunched oblong slots for slide-clip applications and a pattern of round holes allowing fixed-clip options to meet a range of load needs.
- Slide slots used with shouldered washer screws (included) allow a full 1 in. of vertical deflection
- Precision-located ribs enhance strength while allowing ductility
- Simpson Strong-Tie No-Equal stamps alongside slide slots indicate proper screw placement
- Dual-function clip with prepunched slots for slide application and small round holes for fixed application
- Width: 8 in.
- Made from 10-gauge (118 mil) steel
- Galvanized (G90) for corrosion resistance
- Quantity: 25
Install With: Installs with XLSH78B1414 #14 shouldered screws (included)
