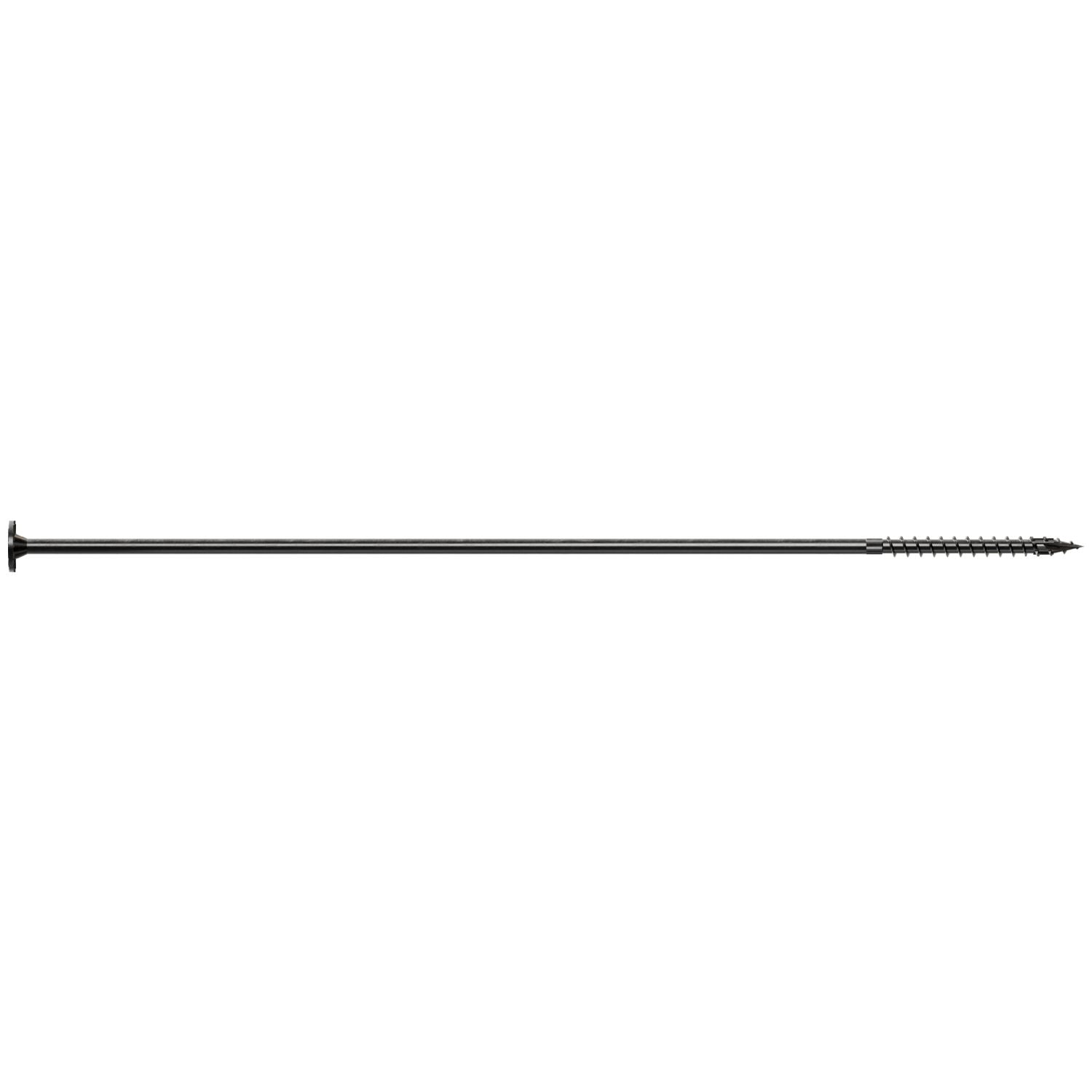

Simpson Strong-Tie Strong-Drive SDWS TIMBER Screw (Exterior Grade), 0.220-in. x 16-in. T40, Black (SDWS221600DBBRP1)
Simpson Strong-Tie Strong-Drive SDWS TIMBER Screw (Exterior Grade), 0.220-in. x 16-in. T40, Black (SDWS221600DBBRP1)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Simpson Strong-Tie SDWS221600DBBRP1 Strong-Drive SDWS TIMBER Screw (Exterior Grade) is a structural wood screw made for heavy wood-to-wood fastening. This is a timber screw designed for structural wood-to-wood connections in exterior applications. Model Number: SDWS221600DBBRP1. If you need a cleaner, faster alternative to through-bolting or traditional lag screws, this screw is built to save time while still delivering serious holding power.
This specific version is a 0.220 in x 16 in black exterior wood screw with a T40 6-lobe drive, washer head, and SawTooth point. In practical terms, that means easier starts, more confident bit engagement, and a broad head that spreads the load better than a smaller head style. The bold thread design is there for one reason: to pull and hold large wood members together without making the install a fight.
For long structural screws, drive quality matters just as much as raw length. The T40 6-lobe drive gives you more positive engagement than a basic recess, which helps reduce cam-out and makes repeated installs easier on both the bit and the user. The underhead nibs help the head seat flush with reduced splintering, so the finished connection looks cleaner and the hardware seats the way it should.
The size and geometry on this screw are aimed at real framing, timber, ledger, and outdoor structure work. At 16 inches long, it is meant for large-section fastening where shorter screws simply will not reach enough material. The 0.760 in head diameter adds bearing area, and the 3 in thread length gives the screw the bite needed to draw members together effectively.
Corrosion resistance is a big part of why this screw matters. Simpson Strong-Tie uses a double-barrier coating that is rated for corrosion resistance equivalent to hot-dip galvanization, making it suitable for certain exterior and preservative-treated wood applications as described in the evaluation report. That makes this a better fit for outdoor builds like pergolas, fencing, planters, ledgers, and other exposed wood assemblies where standard interior fasteners have no business being used.
On the job, the big advantage here is speed. Simpson positions the SDWS structural wood screw as an easier-to-install, high-strength alternative to through-bolting and traditional lag screws. That means fewer steps, less prep, and less time wrestling with oversized hardware when a structural screw can do the job. In most applications, the SawTooth point helps eliminate the need for predrilling, which is exactly the kind of detail that saves time when you are installing multiple long fasteners in treated lumber or framing stock.
This screw is best suited for contractors, deck and fence builders, carpenters, remodelers, and serious DIY users building exterior wood structures. If your work involves fastening large wood members together and you want strength, faster installs, and an exterior-rated finish, this is the kind of fastener worth paying attention to. It is not a general-purpose screw. It is a structural fastening solution for wood connections where reach, grip, and outdoor durability actually matter.
Built for Structural Outdoor Woodwork
This screw is made for the kind of connections where ordinary wood screws come up short. When you are tying together large outdoor members, length, drive engagement, and corrosion resistance all matter.
- Designed for fastening wood-to-wood structural connections
- Double-barrier coating is suited for certain exterior and preservative-treated wood applications
Drives Faster With Less Fuss
The point and drive design work together to make installation more predictable. That means less time fighting the screw at the start and better control as it pulls the joint tight.
- SawTooth point helps ensure fast starts and reduces installation torque
- T40 6-lobe drive improves engagement and helps extend bit life
Simpson Strong-Tie SDWS221600DBBRP1 Strong-Drive SDWS TIMBER Screw Holding Power Where It Counts
Simpson Strong-Tie SDWS221600DBBRP1 Strong-Drive SDWS TIMBER Screw Holding Power Where It Counts

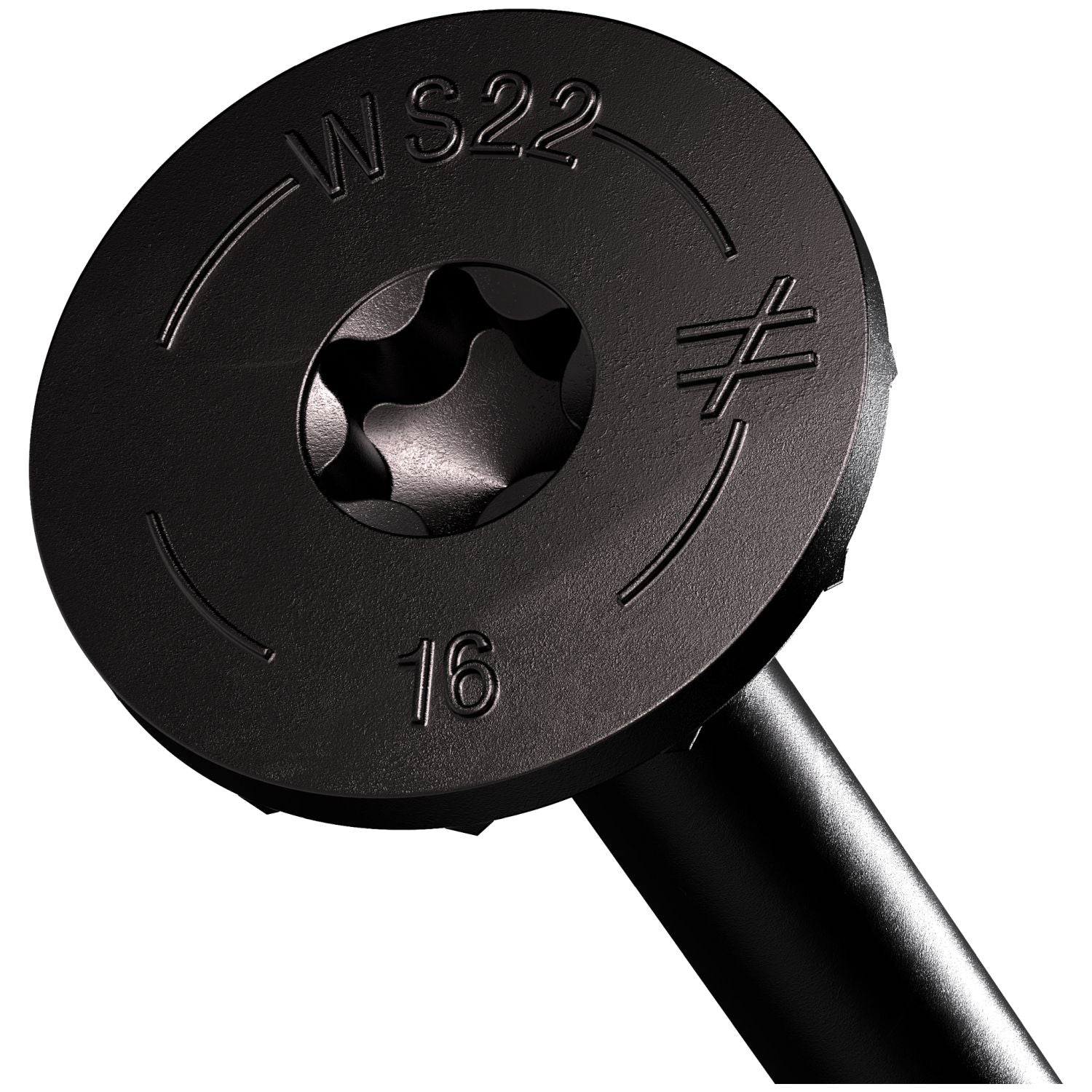

For structural wood connections, the head style is not just a detail. The washer head gives you a larger bearing surface, which helps the screw clamp material securely without relying on a small head footprint.
- Large washer head provides a large bearing area
- Underhead nibs help the head drive flush with reduced splintering
Good Fit for Outdoor Projects
This is the kind of structural fastener that makes sense for outdoor assemblies that need both reach and durability. From landscape structures to heavy framing details, it is built for demanding wood fastening instead of light-duty trim work.
- Ideal for exterior structures such as pergolas, fences, planters, and ledgers
- Black finish matches this specific variant
What's in the Box
- (1) Simpson Strong-Tie SDWS221600DBBRP1 Strong-Drive SDWS TIMBER Screw, 0.220 in x 16 in, black
Key Specifications
| Fastener Type | Hand-Drive Screw |
|---|---|
| Application | Fastening Wood-to-Wood |
| Length (in.) | 16 in. |
| Shank Diameter (in.) | 0.220 in. |
| Head Diameter (in.) | 0.760 in. |
| Drive Type | T40 6-Lobe |
| Head Type | Washer Head |
| Thread Length (in.) | 3 in. |
| Point Type | SawTooth Point |
| Coating / Material | Double-Barrier Coating |
| Color | Black |
| Packaging Quantity | 1 |
Compatibility
Built For
Pro Tip
Because the SawTooth point starts quickly, get your parts clamped and aligned before you pull the trigger. On long structural screws like this 16-inch model, that small step makes it much easier to keep the connection tracking where you want it.
Tool Nut's Take
A serious structural screw for serious wood connections
The Simpson Strong-Tie SDWS221600DBBRP1 Strong-Drive SDWS TIMBER Screw is the kind of fastener you grab when a regular wood screw is out of its league and a lag screw feels slow and clumsy.
- Who it's for: Builders, carpenters, fence and pergola crews, remodelers, and DIY users working on large exterior wood assemblies.
- Why it stands out: You get long reach, a washer head for solid bearing area, a SawTooth point for easier starts, and an exterior-grade coating that makes sense for outdoor structural work.
- Worth knowing: This listing is for a single 16-inch black screw, so make sure that packaging quantity fits the job before you check out.
Common Questions
- What type of fastening is this screw designed for? It is designed for structural wood-to-wood fastening, including engineered wood connections.
- What drive does this screw use? This screw uses a T40 6-lobe drive.
- Is this screw suitable for exterior projects? Yes. It has a double-barrier coating with corrosion resistance equivalent to hot-dip galvanization and is suitable for certain exterior and preservative-treated wood applications as described in the evaluation report.
- Do I usually need to predrill? Simpson states the SawTooth point reduces installation torque and eliminates the need for predrilling in most applications.
