• The slots in one leg allow for flexible installation and adjustability and permit vertical truss chord movement when loads are applied
• Use STCT where truss or rafter is separated from the top plate of the nonbearing wall
• Product not intended for floor applications due to the frequency of floor joist deflections and potential for squeaks
• Width: 1-1/4 in.
• Height: 4-1/4 in.
• Depth: 1-3/4 in.
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

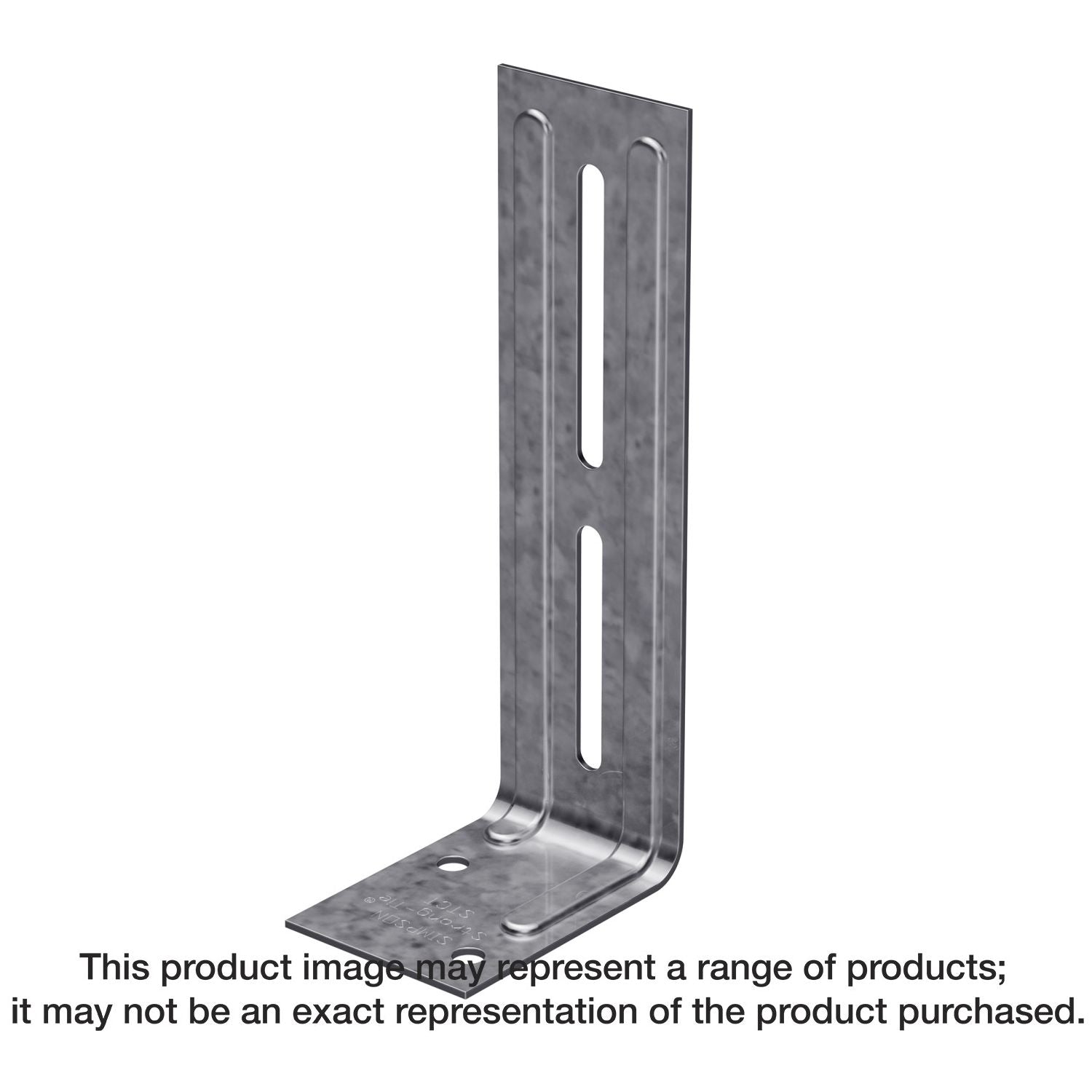

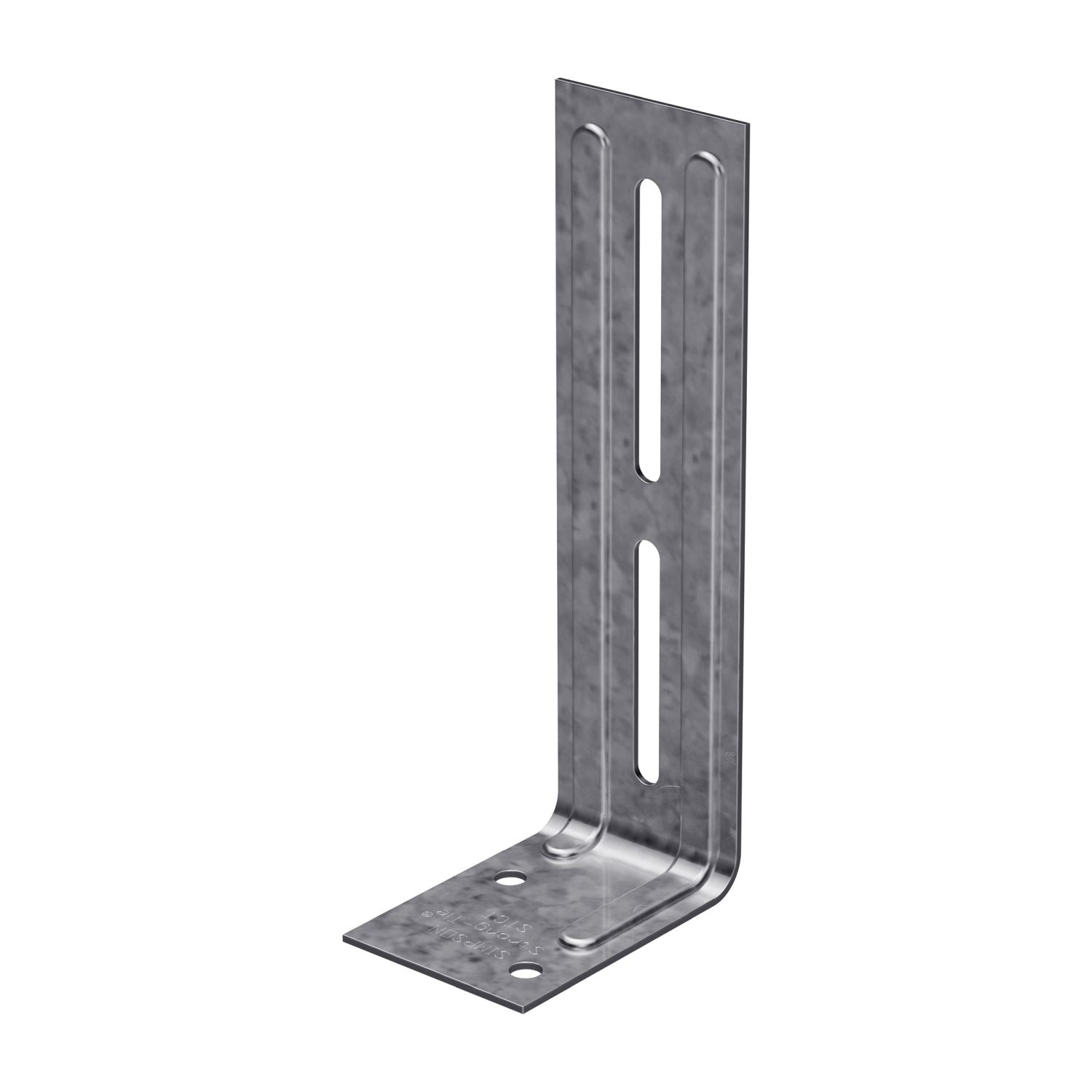

Not only do angles make joints stronger, they also provide more consistent, straight corners. Simpson Strong-Tie offers a wide variety of angles in various sizes and thicknesses to handle light-duty jobs or projects where a structural connection is needed. Originally designed to align roof trusses and nonbearing walls, this versatile angle is ideal for a wide variety of applications.

• The slots in one leg allow for flexible installation and adjustability and permit vertical truss chord movement when loads are applied
• Use STCT where truss or rafter is separated from the top plate of the nonbearing wall
• Product not intended for floor applications due to the frequency of floor joist deflections and potential for squeaks
• Width: 1-1/4 in.
• Height: 4-1/4 in.
• Depth: 1-3/4 in.
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 8d common nails
