Simpson Strong-Tie Strong Drive SWD Double-Threaded Screw, 0.180-in. x 3-1/2-in. T30, Black, 50-Pack (SWD18312DBB-R50)
Simpson Strong-Tie Strong Drive SWD Double-Threaded Screw, 0.180-in. x 3-1/2-in. T30, Black, 50-Pack (SWD18312DBB-R50)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview
The Simpson Strong-Tie SWD18312DBB-R50 Strong-Drive SWD Double-Threaded Screw is a 3-1/2 inch exterior structural wood screw sold in a 50-pack. This is a structural wood screw designed for fastening wood-to-wood connections on exterior and interior structural jobs. Model Number: SWD18312DBB-R50. If you need a fastener for beams, posts, joists, knee bracing, guardrails, or other load-bearing wood connections, this one is built for that kind of work.

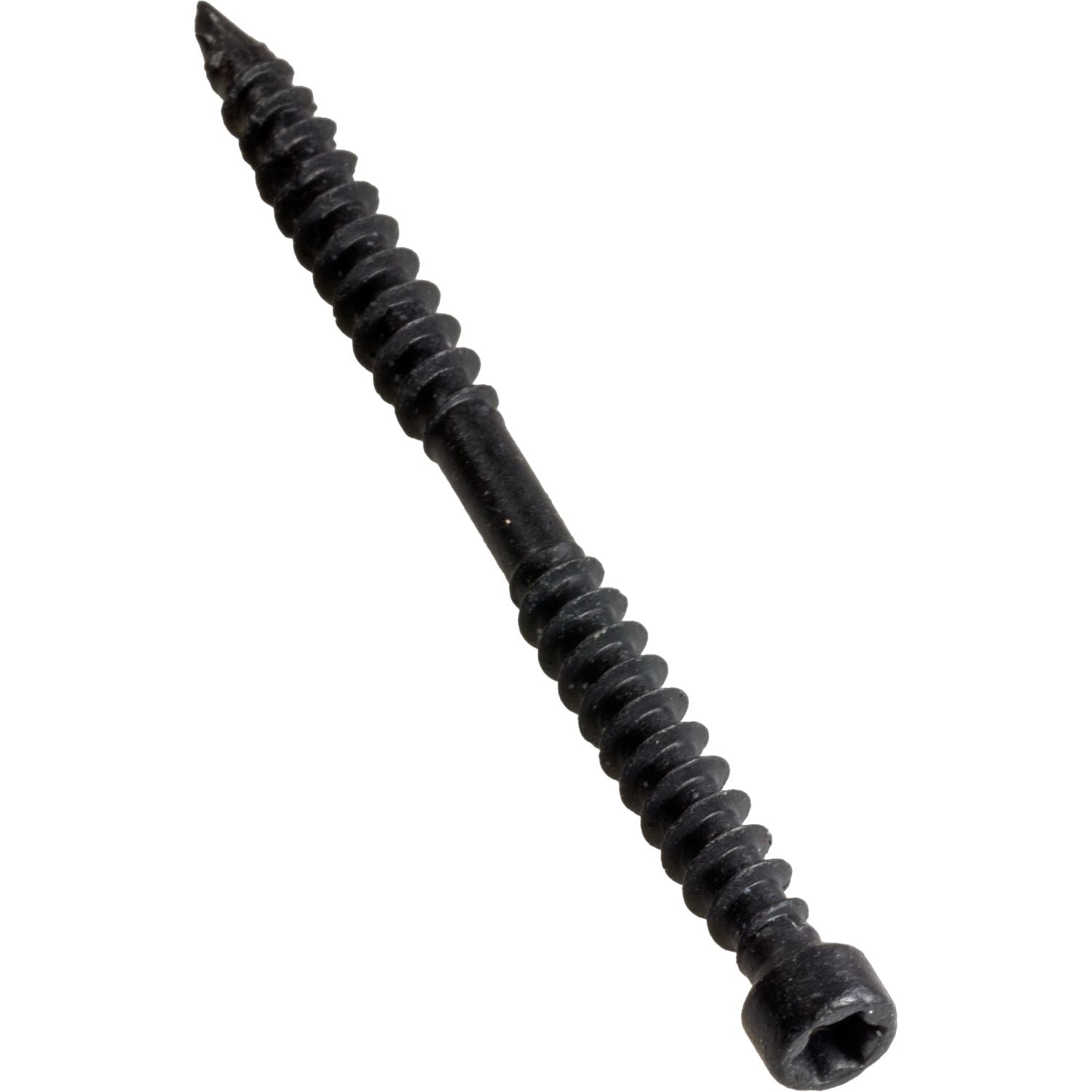

What makes this screw different is the double-thread layout paired with a smooth, unthreaded mid-shank. In plain terms, the threads grab on both ends while the center section helps pull the members together tight. That means less fighting bowed material, less gap between parts, and a cleaner finished connection. On structural work, that kind of draw matters more than a flashy spec sheet.
The 0.180 inch shank diameter and 1-5/8 inch thread length put this model in a useful range for medium structural wood fastening where you want strong pull-down without jumping to a much larger screw. The cylinder head keeps the profile low for concealed or lower-visibility installs, which is useful when the fastener needs to disappear better than a typical larger-head structural screw. The chisel point is there for a reason too: it helps the screw start easier, supports angled installation, and reduces splitting compared with blunt starting points.
Corrosion resistance is handled by Simpson Strong-Tie's black exterior-grade double-barrier coating. That makes the screw a practical choice for exterior wood applications where basic interior fasteners would not hold up. It is also ACQ approved, which matters if you are working with treated lumber and want a screw suited to that environment.
Drive engagement is another jobsite detail Simpson got right here. This model uses a T30 6-lobe drive, which gives a more secure bit fit than a basic slot or Phillips style drive under higher load. When you are running structural screws into dense framing material, that better engagement helps reduce cam-out and wasted time. The included T30 driver bit is a small detail, but on the first box it means you can get right to work.
The product is code listed and load rated for structural applications, with allowable shear load values published for the SWD18312DBB model. That is the real difference between a structural wood screw like this and a general-purpose construction screw. This fastener is intended for connections such as beam to post, beam to joist, purlin to truss, roof to wall, post cap replacement, guardrail to post, multi-ply assembly, and post-frame work.
Who should buy it? Carpenters, framers, deck builders, post-frame crews, remodelers, and serious DIY users doing real structural wood connections. If you want a screw that pulls hard, stays low-profile, and is meant for structural use instead of light fastening, this is the right lane. If you are just hanging trim or doing light shop work, it is more screw than you need. For connection work in wood, though, it is the kind of fastener that earns its place.
Drives Clean in Structural Lumber
This screw is built for real wood connection work, not shelf-duty hardware aisle tasks. The chisel point helps it start cleanly, while the T30 6-lobe drive gives solid bit engagement when torque loads go up.
- Chisel point supports easy driving and reduced splitting
- T30 6-lobe drive is designed for secure driving
Pull Members Together Securely
The double-thread pattern is the whole point of this design. Combined with the unthreaded mid-shank, it helps clamp wood members together tightly instead of just spinning through and leaving the joint loose.
- Double thread design improves draw between members
- Smooth mid-shank helps create a tight wood-to-wood connection
Made for Exterior Structural Jobs
Exterior structural work asks more from a fastener than indoor general carpentry. This model uses a black double-barrier coating for corrosion resistance and carries structural load and code-listing credentials that matter on serious builds.
- Black exterior-grade double-barrier coating for corrosion resistance
- Code listed and load rated for structural applications
What's in the Box
- (50) Simpson Strong-Tie SWD18312DBB-R50 structural wood screws
- (1) T30 6-lobe driver bit
Key Specifications
| Length (in.) | 3-1/2 in. |
|---|---|
| Shank Diameter (in.) | 0.180 in. |
| Head Diameter (in.) | 0.315 in. |
| Thread Length (in.) | 1-5/8 in. |
| Drive Type | T30 6-lobe |
| Head Type | Cylinder Head |
| Thread Type | Double Thread |
| Point Type | Screw Chisel Point |
| Coating | Double-Barrier Coating |
| Color | Black |
| Material | Steel |
| Pack Quantity | 50 |
Compatibility
Built For
Pro Tip
Use the included T30 6-lobe bit and keep the screw driving straight as it starts. With a double-threaded structural screw like this, good bit engagement and a straight start help the fastener pull the joint tight the way it is meant to.
Warranty & Support
Tool Nut's Take
Simpson Strong-Tie SWD18312DBB-R50 Strong-Drive SWD Double-Threaded Screw gets the structural stuff right
This is the kind of structural wood screw you buy when you want tight pull-up, a cleaner-looking head, and jobsite-ready drive engagement without stepping into overkill.
- Who it's for: Framers, deck builders, post-frame crews, remodelers, and serious DIY users making real wood-to-wood structural connections.
- Why it stands out: The double-thread and smooth mid-shank combo is the main story here because it helps draw members together tightly, and the low-profile cylinder head is a nice bonus.
- Worth knowing: This is a specialized structural fastener, not a cheap general-purpose screw. If your job needs code-listed connection hardware performance, that is exactly why it makes sense.
Common Questions
- What is this screw designed for? It is a structural wood screw designed for wood-to-wood fastening on exterior or interior structural jobs.
- What driver bit does it use? This model uses a T30 6-lobe drive.
- Is it suitable for exterior use? Yes. It has a black exterior-grade double-barrier coating for corrosion resistance.
- What kind of connections is it used for? Uses include knee bracing, beam to post, beam to joist, purlin to truss, guardrail to post, roof to wall, post cap replacement, post-frame configuration, and multi-ply assembly.
