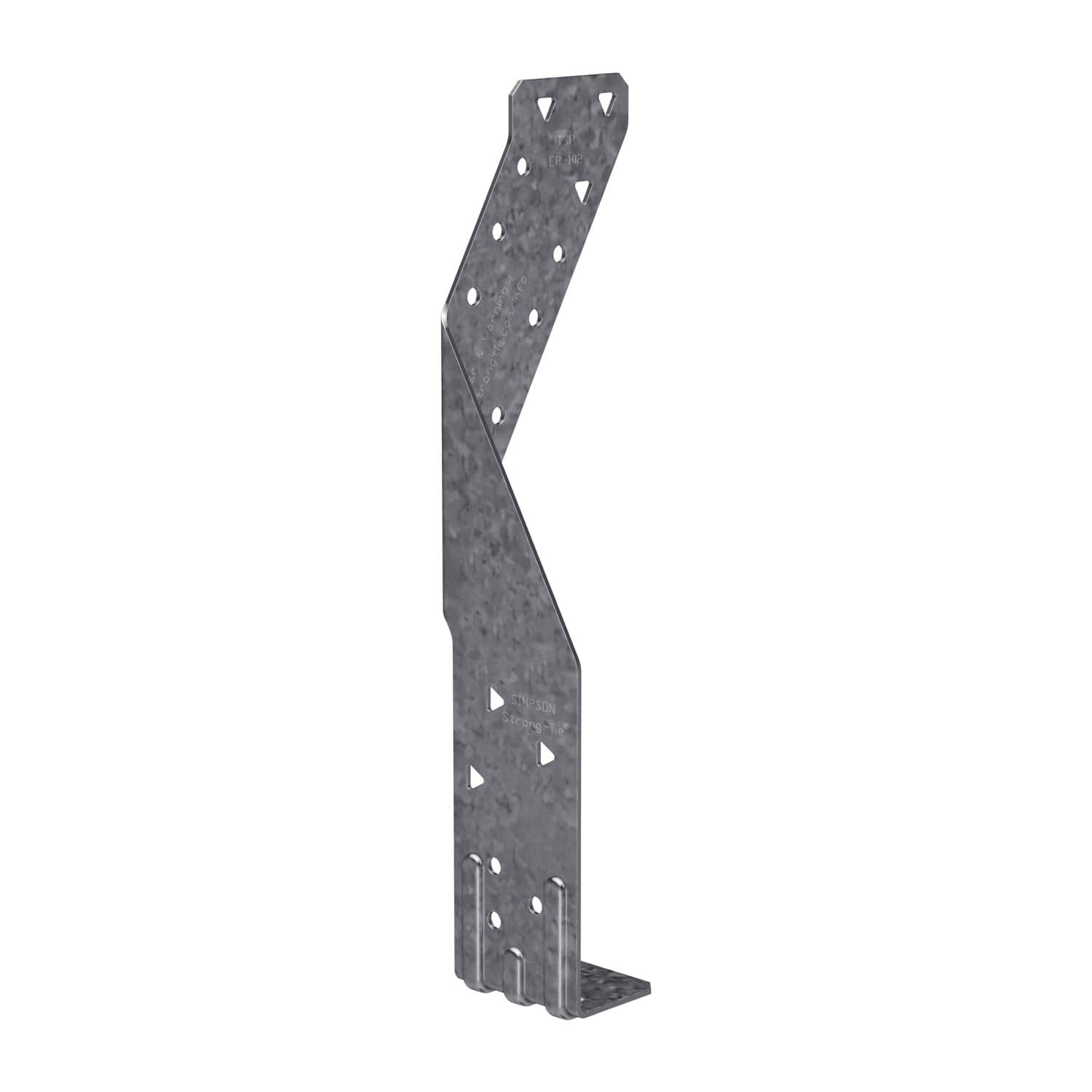

Simpson Strong-Tie TSP TSP 16-Gauge Galvanized Stud-Plate Tie
Simpson Strong-Tie TSP TSP 16-Gauge Galvanized Stud-Plate Tie
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Embossment feature provides strength at the bend
- Features optional diamond holes of various uplift capacities with min./max. nailing configurations
- Can be installed before or after placement of wall
- Width: 1-1/2 in.
- Length: 7-7/8 in.
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance
The TSP is designed for connecting the top plate to either the wall stud or a 2x rafter. This tie stud plate is installed on the wide face of the 2x stud to avoid interference with sheathing. The TSP features a top-flange that allows the plate to securely attach to both sill plates and top plates.
- Embossment feature provides strength at the bend
- Features optional diamond holes of various uplift capacities with min./max. nailing configurations
- Can be installed before or after placement of wall
- Width: 1-1/2 in.
- Length: 7-7/8 in.
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with 10d x 1-1/2 in. nails or 10d x 1-1/2 in. nails to the rafter/truss and 10d common nails to the plates
