Simpson Strong-Tie VTCR VTCR Single-Sided Valley Truss Clip
Simpson Strong-Tie VTCR VTCR Single-Sided Valley Truss Clip
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Single-sided for new construction or retrofit applications — can be installed after the valley truss is set in place
- Accommodates pitches from 0/12 to 12/12
- Can be installed on either beveled or non-beveled bottom chords
- Dome holes assist in installing the fasteners into the supporting framing at approximately 45°
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance

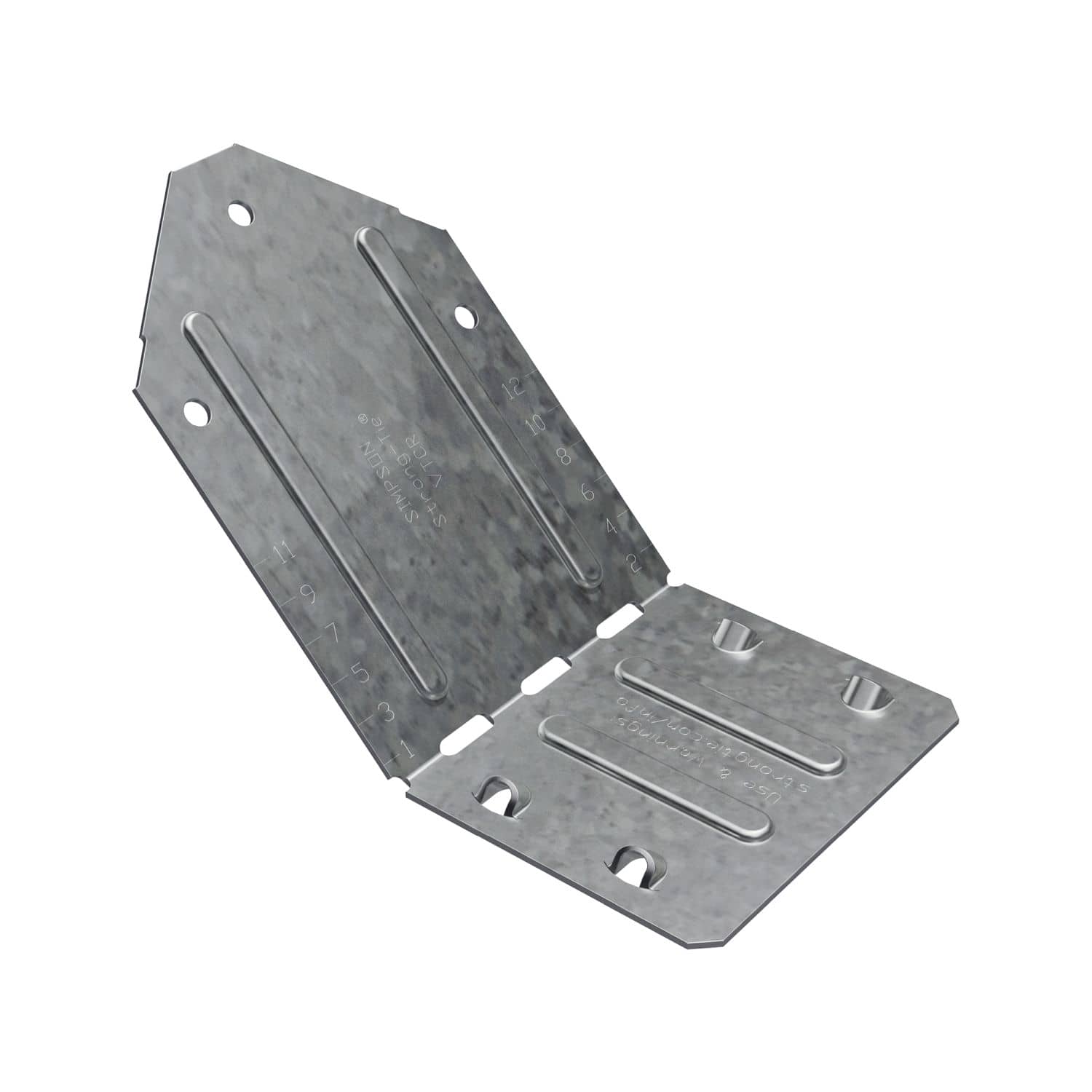

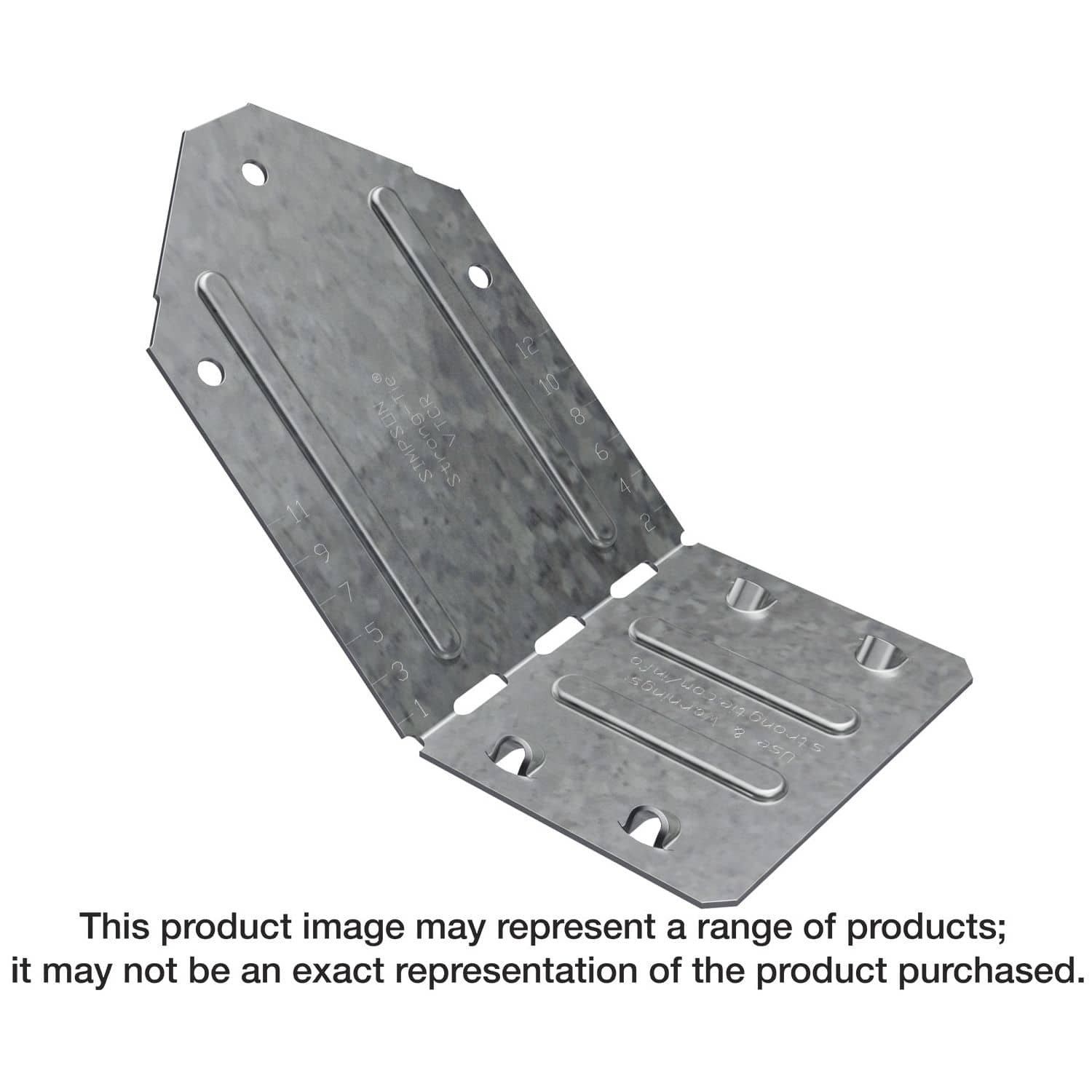

The VTCR is a single-sided valley truss clip that provides a positive connection between the valley truss and the supporting framing below. Installed on top of the roof sheathing, it eliminates the need to add a support wedge under the valley truss or to bevel the bottom chord to match the roof pitch. The clip installs with nails or Simpson Strong-Tie Strong-Drive SD Connector screws.
- Single-sided for new construction or retrofit applications — can be installed after the valley truss is set in place
- Accommodates pitches from 0/12 to 12/12
- Can be installed on either beveled or non-beveled bottom chords
- Dome holes assist in installing the fasteners into the supporting framing at approximately 45°
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with 10d common nails in the framing and 10d x 1-1/2 in. nails in the valley truss, or #9 x 2-1/2 in. Strong-Drive SD Connector screws in the framing and #9 x 1-1/2 in. SD screws in the valley truss
