SquiJig Fusion Pro 7.5-in. Rafter Square w/ 3/16-in. Heel, Green (FP75Green316)
SquiJig Fusion Pro 7.5-in. Rafter Square w/ 3/16-in. Heel, Green (FP75Green316)
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

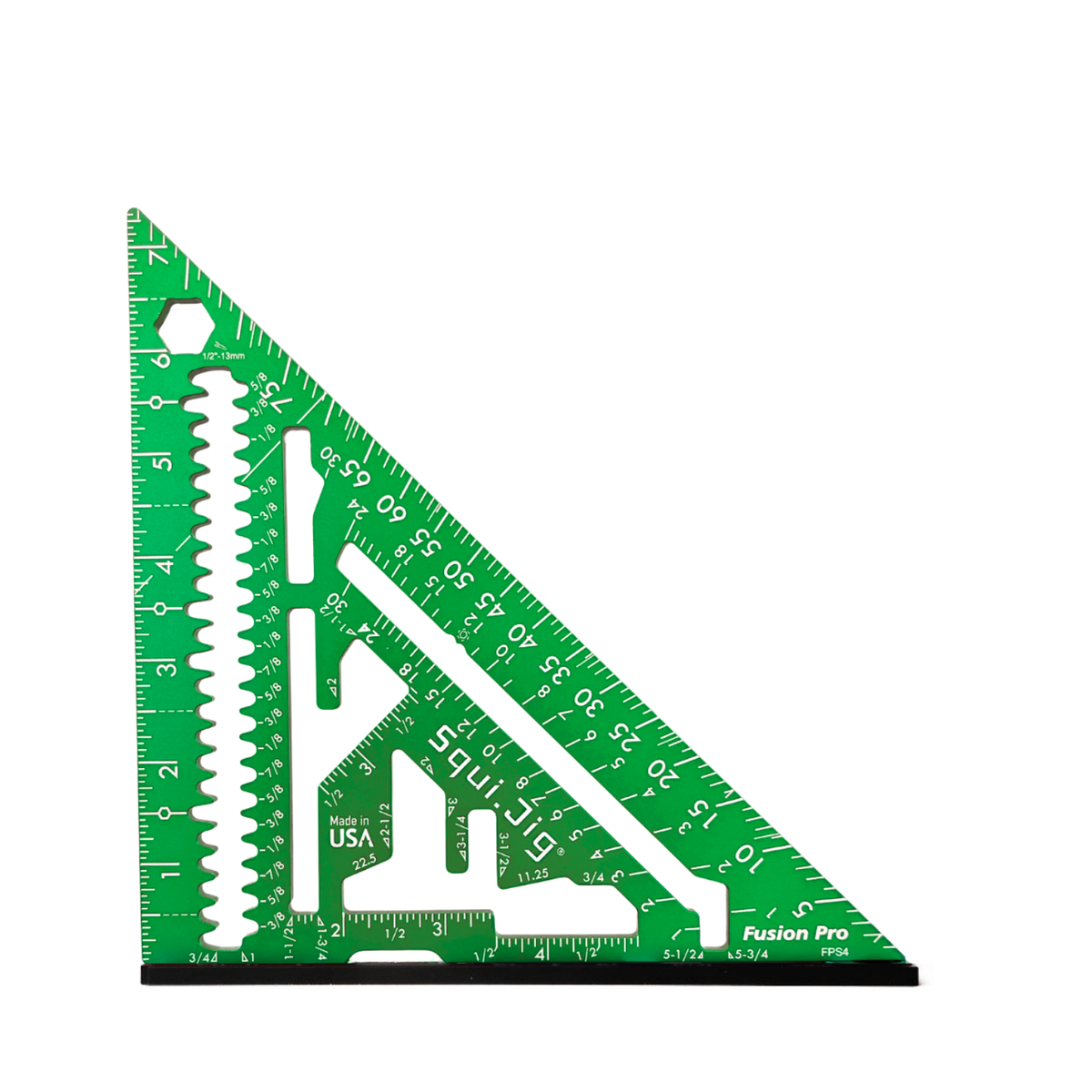

The SquiJig Fusion Pro 7.5-in. Rafter Square w/ 3/16-in. Heel, Green (model FP75Green316) is a 7.5-in. aluminum rafter square with a green anodized square with a black 3/16-in. x 1-in. heel. This is a rafter square designed for framing layout, rafter and stair marking, and square crosscuts with a circular saw, with a heel built for deck board spacing.
The 3/16-in. x 1-in. heel is the reason to pick this version. It sets precise deck board spacing, so you can square, mark, and gap boards with the same tool. That makes decking layout and installation faster and more consistent.
Built-in blade wrenches in 1/2 in. (13mm) and 9/16 in. (14mm) sit right on the heel. SquiJig holds the patent on this wrench-on-the-heel design, so you will not find it on other rafter squares. Scribe notches hold your pencil in place for clean, controlled lines.
The square is CNC machined from aircraft-grade aluminum with crisp, easy-to-read laser marks, and it weighs 8.0 oz. The heel bolts on and can be replaced if it is ever damaged.
It is built for framers, roofers, deck builders, and remodelers who want one square that marks, guides the saw, and handles the small jobs around it. It is 100% made in the USA.
Decking Spacer Built In

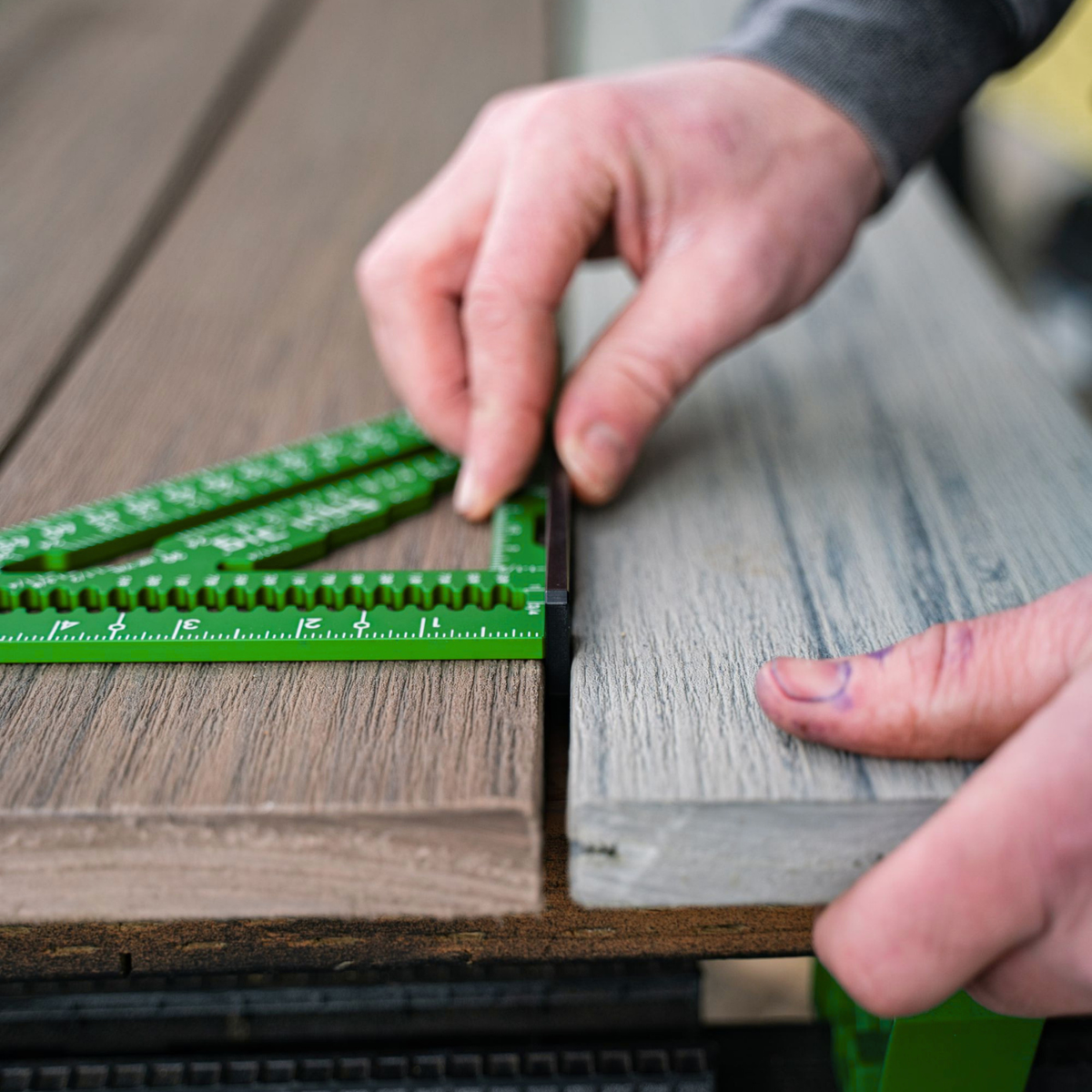

The 3/16-in. x 1-in. heel drops between deck boards to set a consistent gap, so layout and spacing happen with the same tool.
- 3/16-in. x 1-in. heel for deck board spacing
- Faster, more consistent installs
Built-In Blade Wrenches

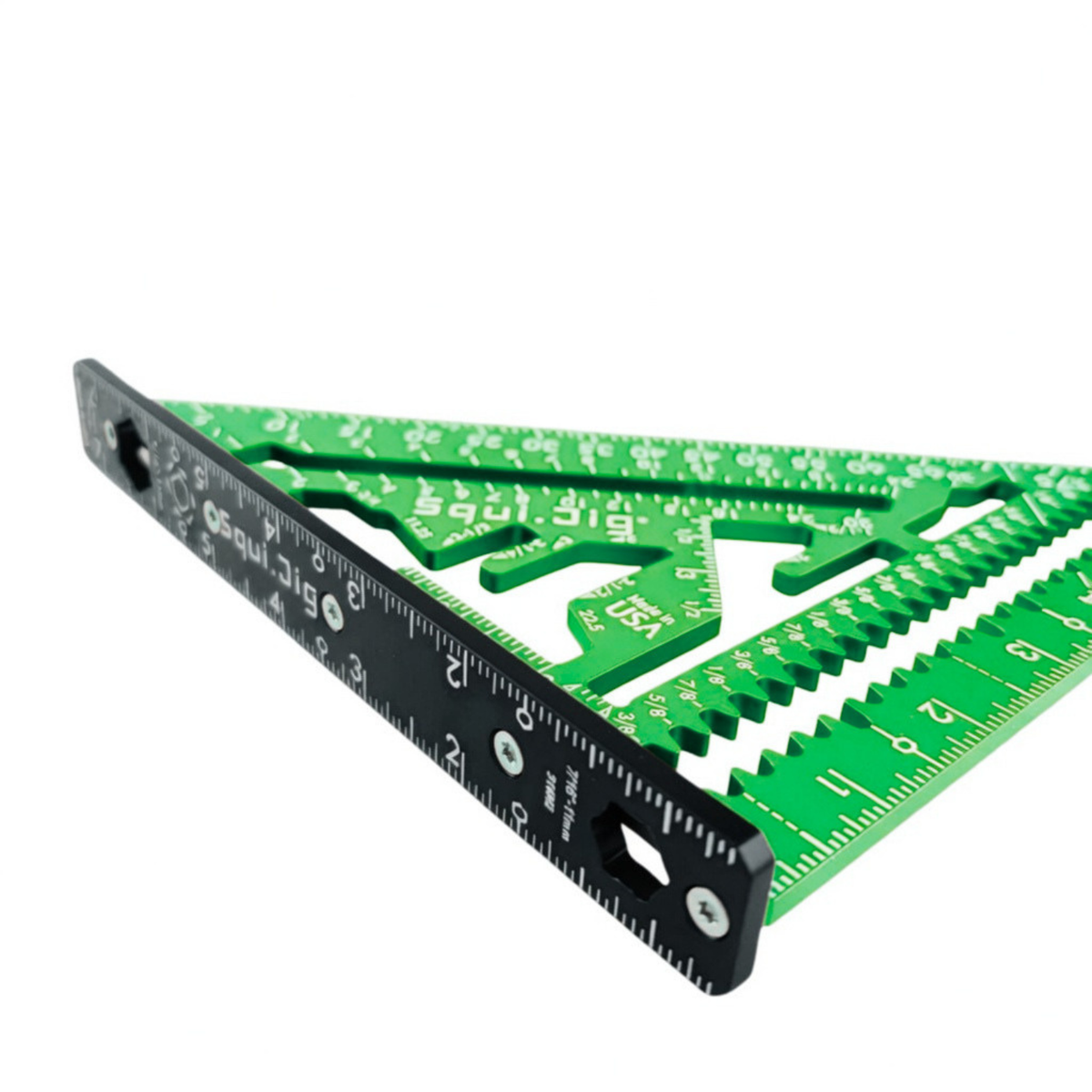

The patented wrench on the heel adds 1/2-in. (13mm) and 9/16-in. (14mm) wrenches, so a blade change does not mean digging for a separate wrench.
- 1/2-in. (13mm) and 9/16-in. (14mm) wrenches
- Patented wrench-on-the-heel design
Saw Guide for Square Crosscuts

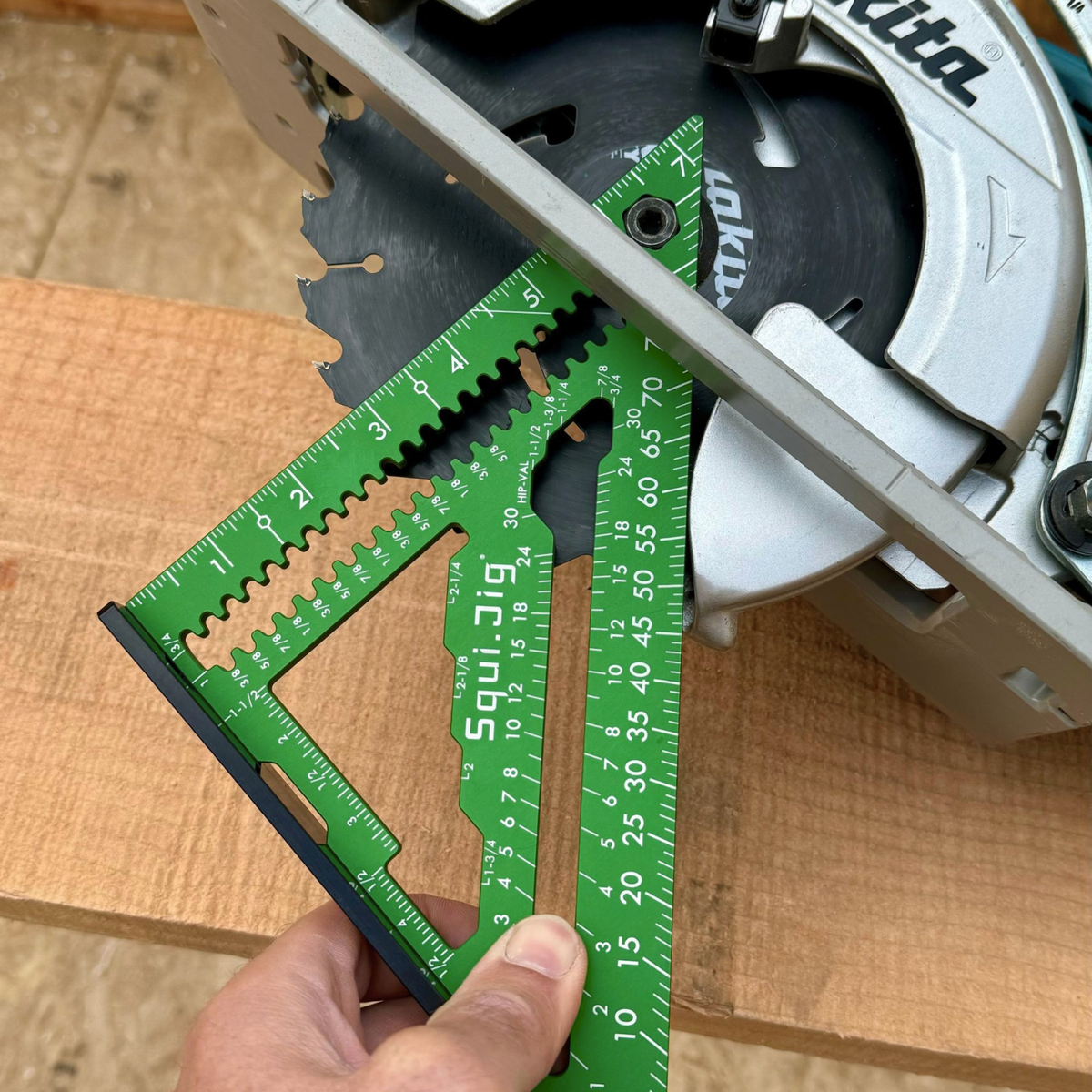

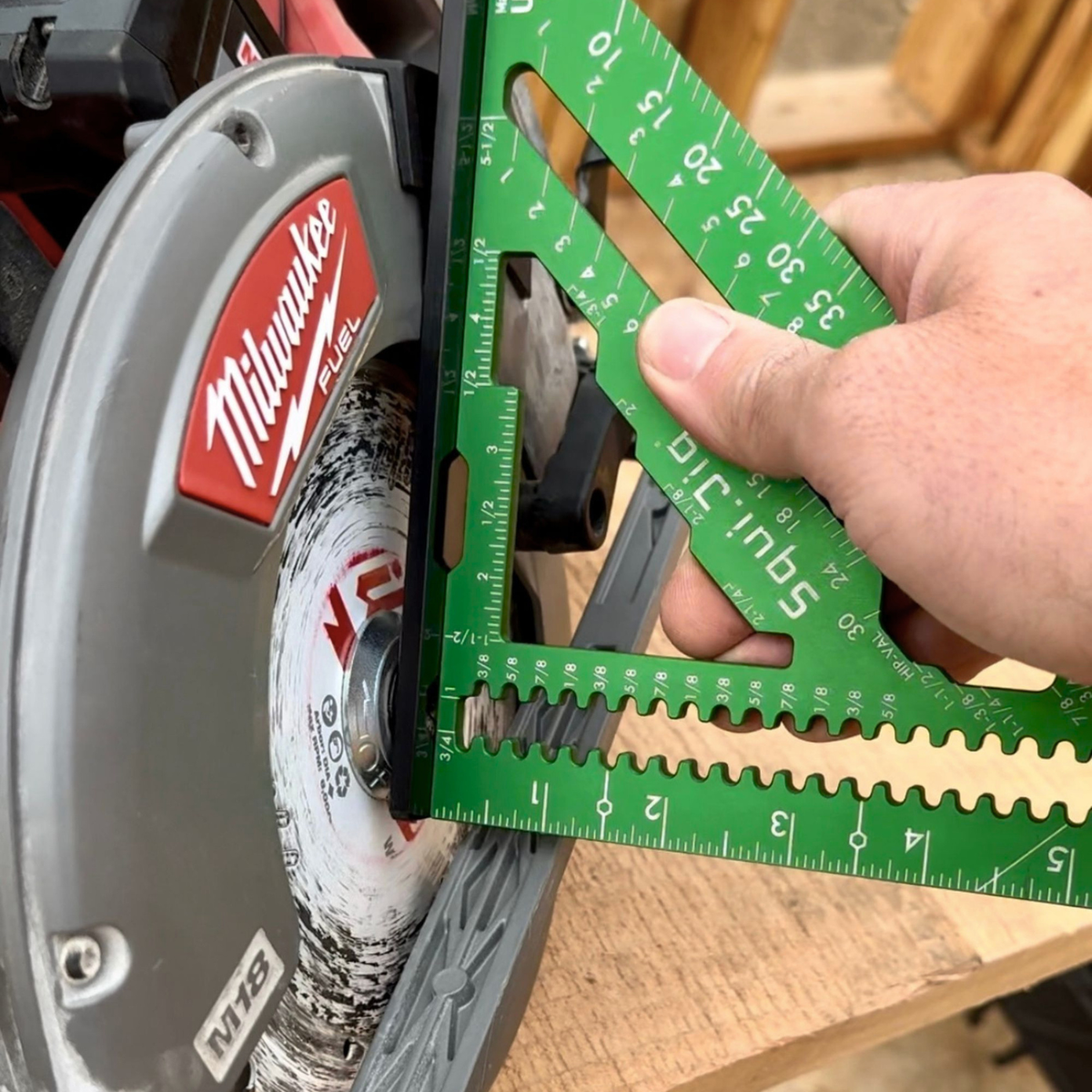

Hold the heel against the board edge and run the saw along the square for clean, square crosscuts on framing lumber.
- Ruler heel trims time on layout
- Scribe notches hold your pencil in place
Key Specifications
| Square Size | 7.5 in. |
|---|---|
| Material | Aircraft-grade aluminum |
| Construction | CNC machined, laser-etched markings |
| Heel | 3/16 in. x 1 in. spacer heel |
| Built-In Wrenches | 1/2 in. (13mm) and 9/16 in. (14mm) |
| Pencil Holding | Scribe notches |
| Weight | 8.0 oz |
| Color | Green |
| Made In | USA |
Compatibility
Built For
Tool Nut's Take
A Rafter Square That Gaps Decking Too
The SquiJig Fusion Pro 7.5-in. Rafter Square w/ 3/16-in. Heel, Green folds a deck board spacer into a square you already carry.
- Who it's for: Deck builders and framers who set a lot of 3/16-in. gaps.
- Why it stands out: The 3/16-in. heel and patented wrench-on-the-heel design.
- Worth knowing: This version has no level vial. If you want the level, get the standard Fusion Pro.
Common Questions
- Is it made in the USA? Yes. SquiJig machines the Fusion Pro in the USA from aircraft-grade aluminum.
- What size wrenches are built in? 1/2 in. (13mm) and 9/16 in. (14mm).
- How much does it weigh? 8.0 oz.
