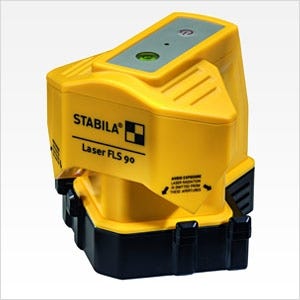

The Stabila 04490 FLS90 Floor Line Laser System is a compact floor line laser built for square layout work during flooring and tile installation. This is a floor line laser designed for 90 degree room layout and flooring alignment. Model Number: 04490. If your job depends on starting straight and staying square, this tool gives you a fast visual reference right on the floor where the work happens.

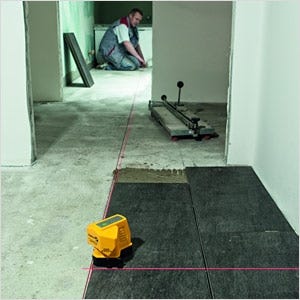

What makes this tool useful is simple: it projects bright, focused laser lines that form a perfect 90 degree angle, with visible lines up to 50 ft. That matters when you're laying floor tile, parquet, laminate, carpeting, or PVC across larger rooms and hallways. Instead of snapping chalk lines, checking them, and hoping they stay visible through dust or adhesive, you get a clean reference line that stays easy to follow while you work.

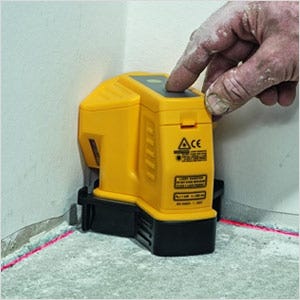

The FLS 90 is built around floor-line optics that direct the laser along the floor surface instead of wasting visibility higher up the wall. In practical terms, that means the line is where your material goes, so alignment is quicker and more accurate. STABILA also designed the housing so it can sit directly in inside corners. That is a big deal for checking whether walls are actually square before you commit to a layout that will fight you across the room.

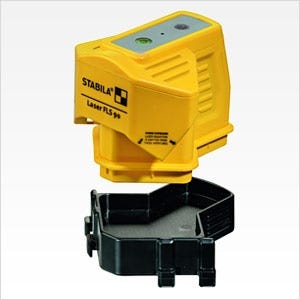

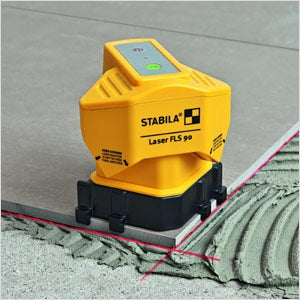

The base design is another smart part of the system. The dual-purpose base lets you position the laser on flat surfaces or reference the edge of tiles so your layout extends cleanly from existing work. When you are tying new tile into a finished section or trying to keep courses consistent through a doorway, that edge reference can save time and cut down on cumulative layout error.

For jobsite use, the Stabila 04490 FLS90 Floor Line Laser System has an IP54 protection rating, which gives it a level of resistance against dust and splashing water common on active remodel and flooring jobs. It runs up to 20 hours on AAA batteries, so you are not stopping constantly to swap power. At 2.4 lbs, it has enough weight to feel planted without being a hassle to move from room to room.

Laser performance is straightforward and professional-grade: Class 2 output under 1 mW with a 635 nm wavelength. The system also supports a receiver-based measuring range up to 490 ft with optional receiver #07330 when you need extended range beyond the visible line. For indoor layout work, especially in rooms where speed and squareness matter more than complicated setup, that makes this a specialized tool that does one job very well.

This laser makes the most sense for tile setters, flooring installers, remodelers, and general contractors doing interior finish work. Serious DIY users working on a full-floor install will also appreciate it because it removes a lot of guesswork at the most important stage of the job. If you are trying to establish square layout lines quickly and work directly off the reference, this is the kind of tool that pays for itself in avoided mistakes.

Stabila 04490 FLS90 Floor Line Laser System for installers who care about starting square

This is a purpose-built layout tool that cuts out the usual floor-marking hassle and gets you to a true 90 degree reference fast.

• Who it's for: Tile setters, flooring installers, remodelers, and serious DIY users laying out rooms where being square matters from the first course.
• Why it stands out: The corner-ready body, focused floor lines, and tile-edge referencing base make it more useful for floor layout than a general line laser.
• Worth knowing: This is an indoor specialist and it is not self-leveling, so buy it because you want a dedicated floor squaring laser, not an all-purpose layout tool.

• What is this laser mainly used for? It is designed for square floor layout work, including tile, parquet, laminate, carpeting, and PVC installation.
• How far can the visible line be seen? The visible line range is up to 50 ft.
• Can it be used with a receiver for longer range? Yes. With optional receiver #07330, the measuring range can reach up to 490 ft.
• Is the FLS 90 self-leveling? No. This model is not self-leveling.
• How long does it run on batteries? Operating life is rated up to 20 hours.
